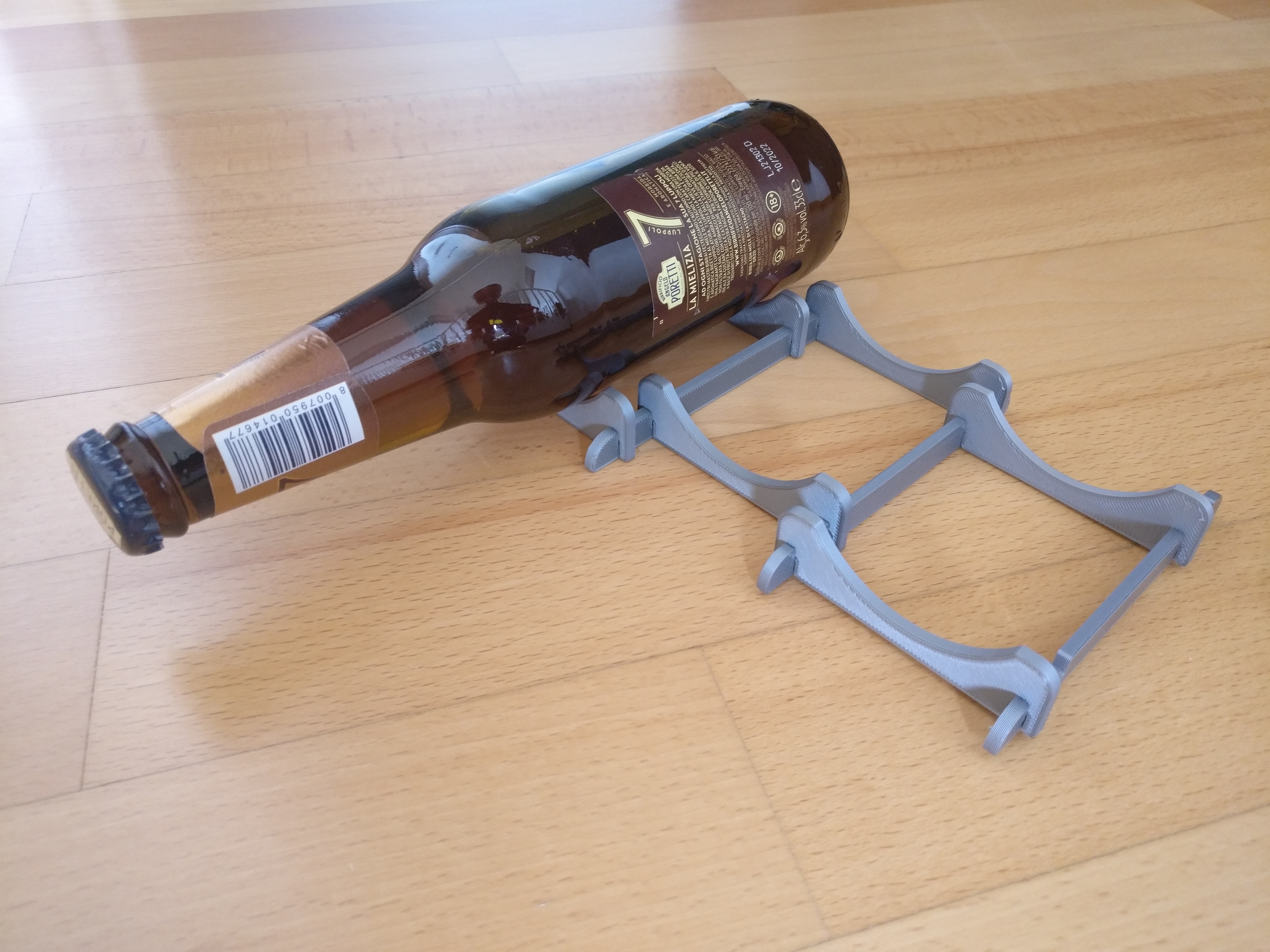

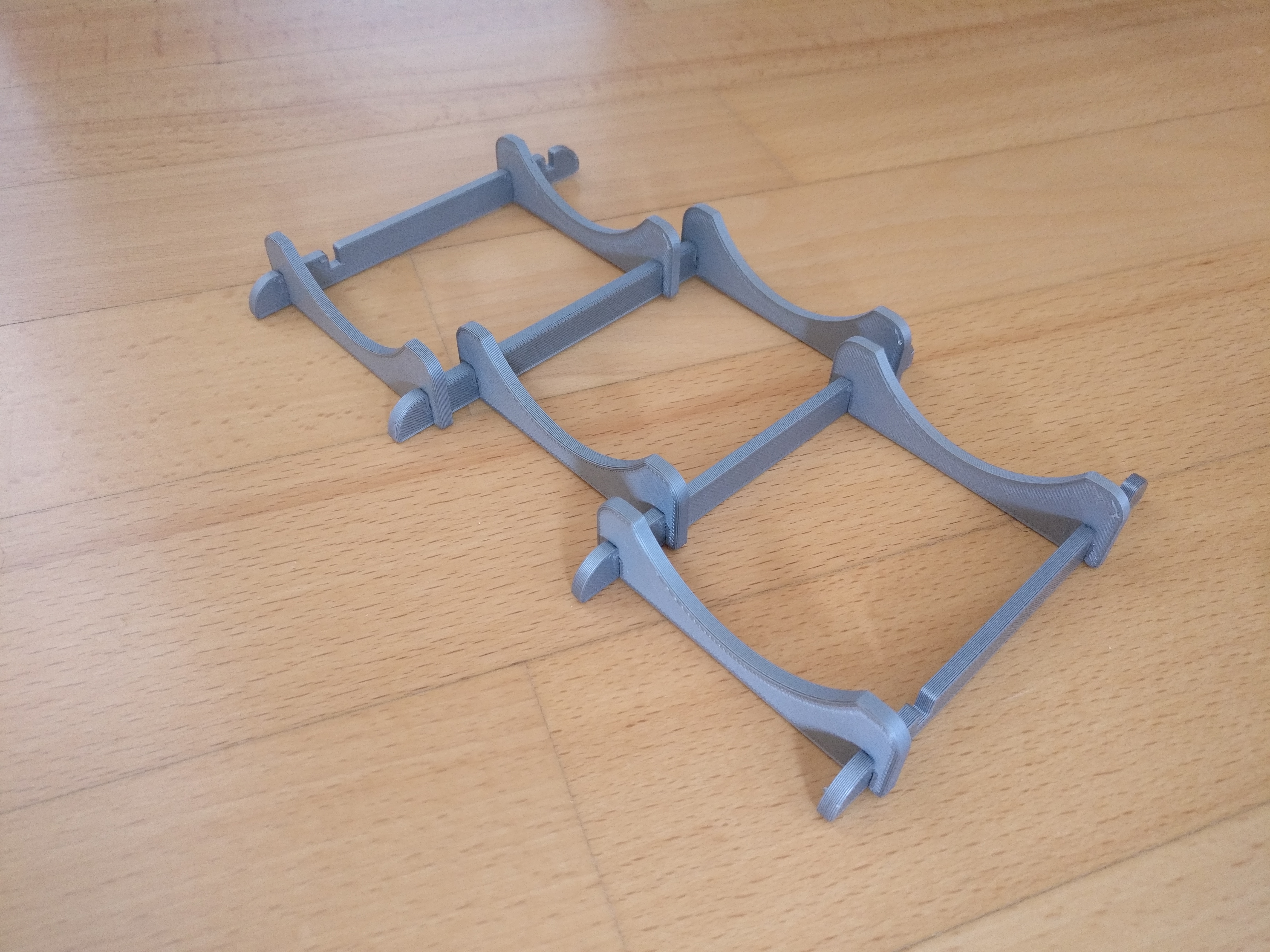

A simple modular rack to store your beer bottles in the fridge.

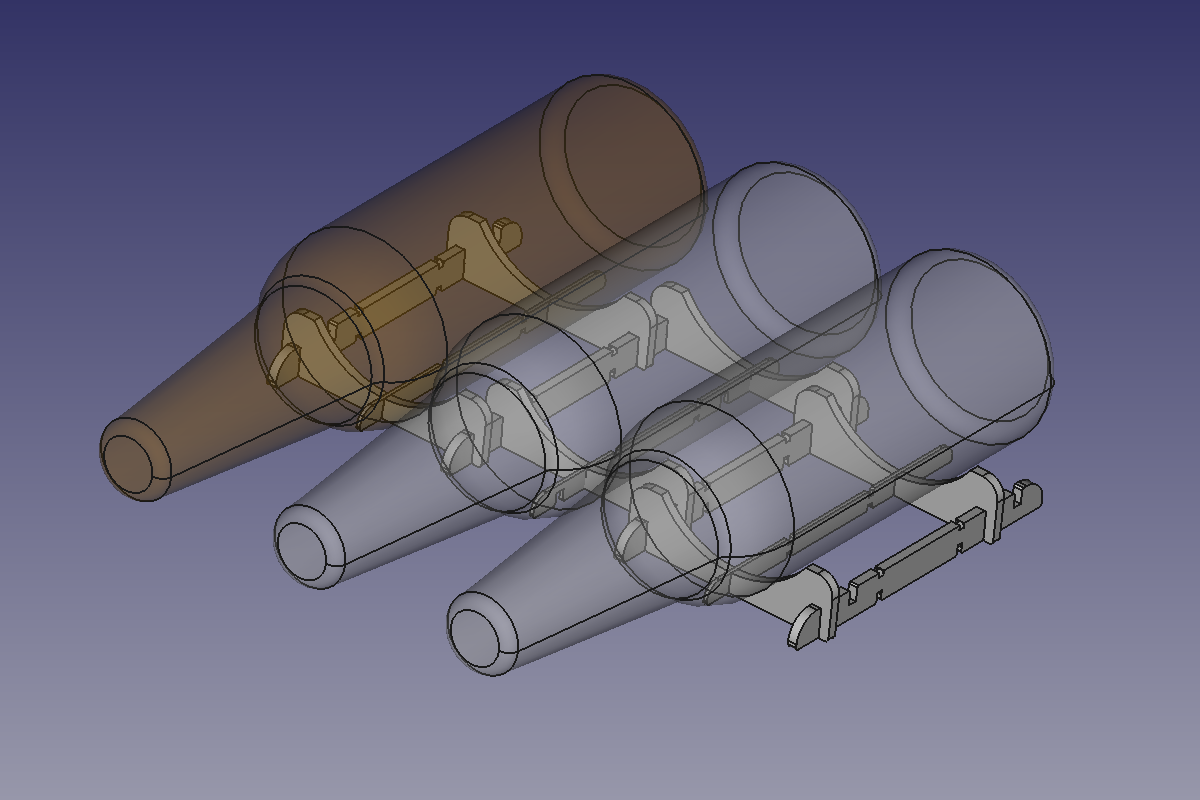

Just print the “single” version first, then you can add as many “extensions” as you want.

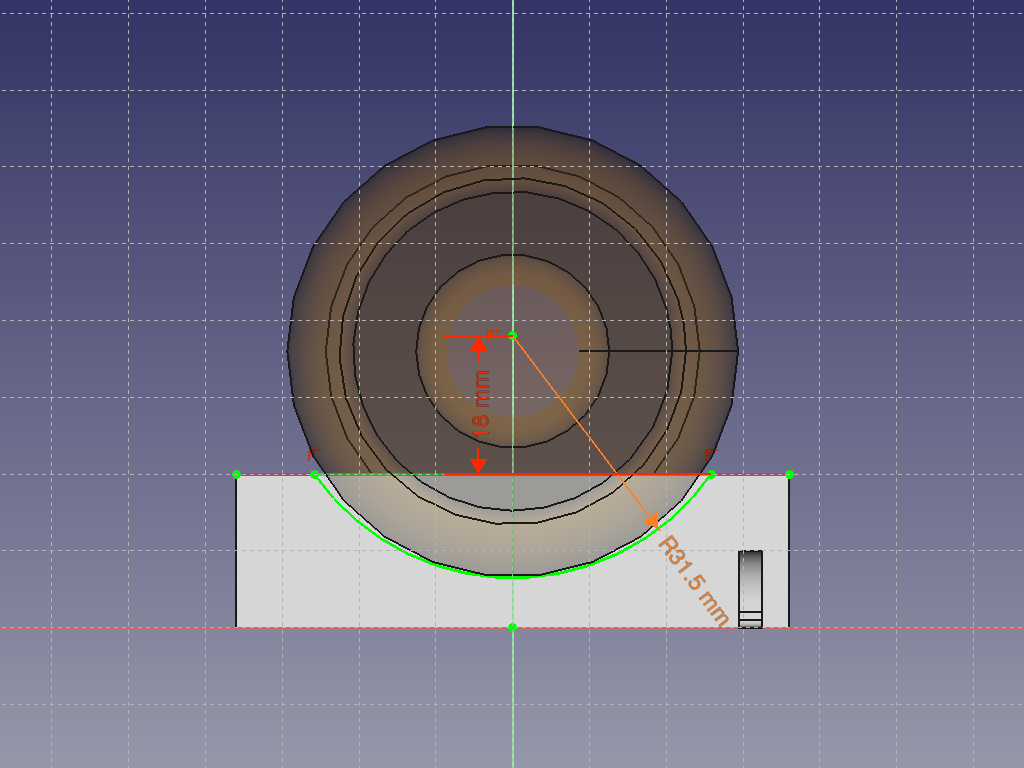

The rack is designed to hold bottle with diameter up to 63 mm and trunk length up to 120 mm, but I attached also the source FreeCAD file, so you can adjust the pieces.

Upgrade

• 2022-05-29 (v2):
  • added a support in the middle to prevent the bottle from sliding a bit backward and downward due to reduced collar diameter
  • added space for a rubber band if you are still concerned by slippery, actually I don't use it
