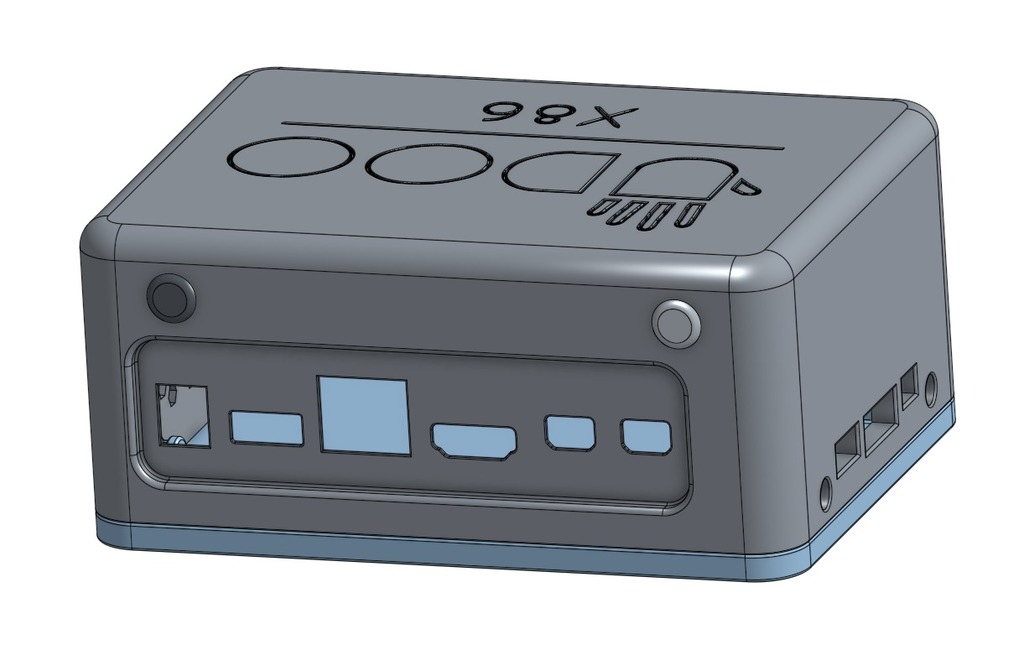

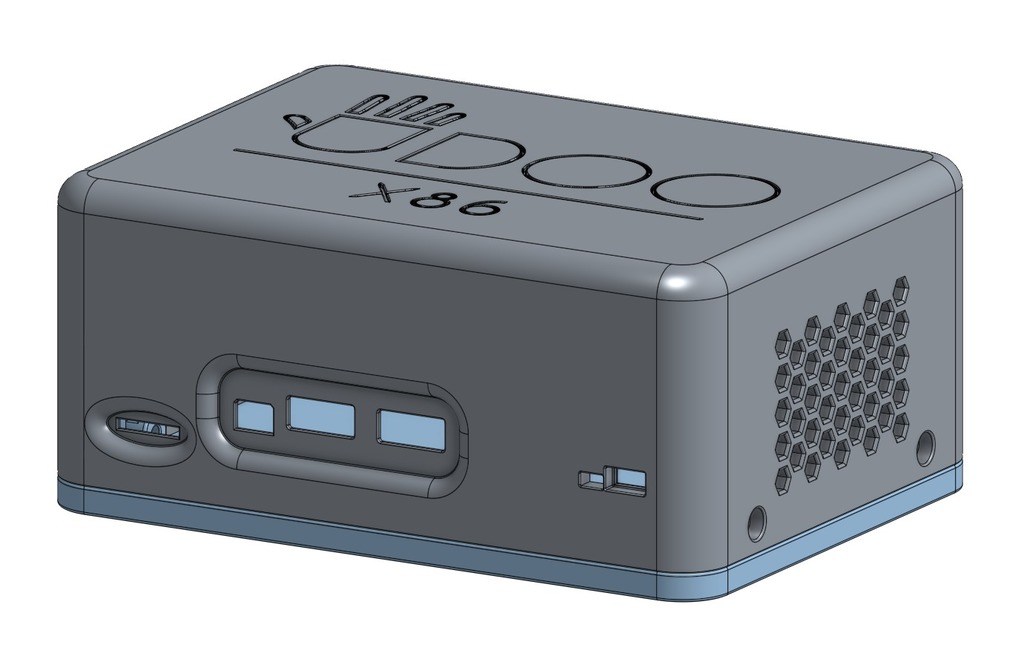

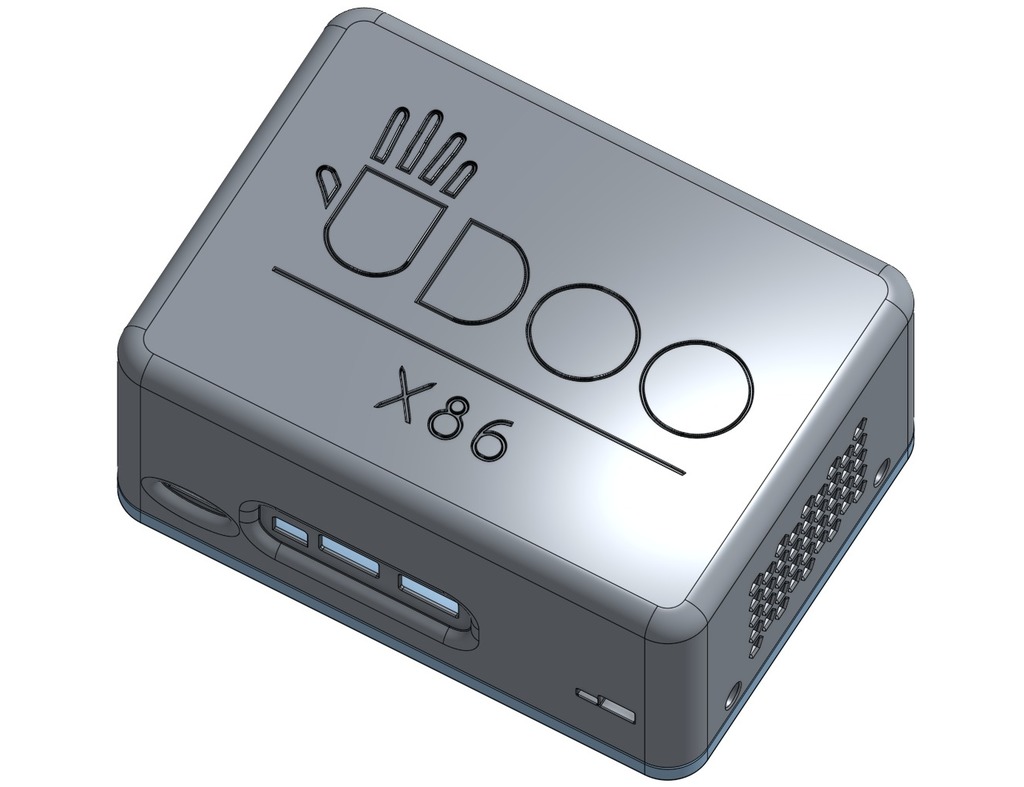

This is a case for the UDOO X86 Single Board Computer, designed in Onshape.

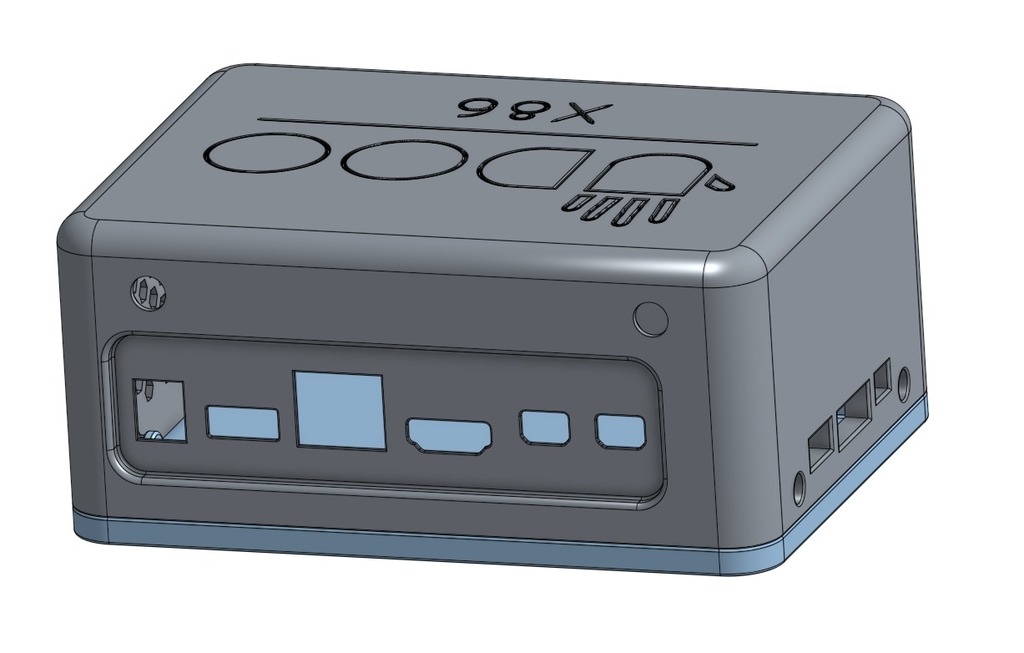

I've added some holes and plugs for SMA Female RF connectors for those with the Ultra edition of the card, or have just added a wifi mini pcie card - you'll want to use SMA female jacks with mcx flyleads, and these should mount into the hole in the case and be secured with the nut on the outside of the case.

I've designed it around this type of lead: [https://www.digikey.co.uk/product-detail/en/amphenol-rf-division/245130-01-24.00/ACX2530-ND/5030811](https://www.digikey.co.uk/product-detail/en/amphenol-rf-division/245130-01-24.00/ACX2530-ND/5030811)

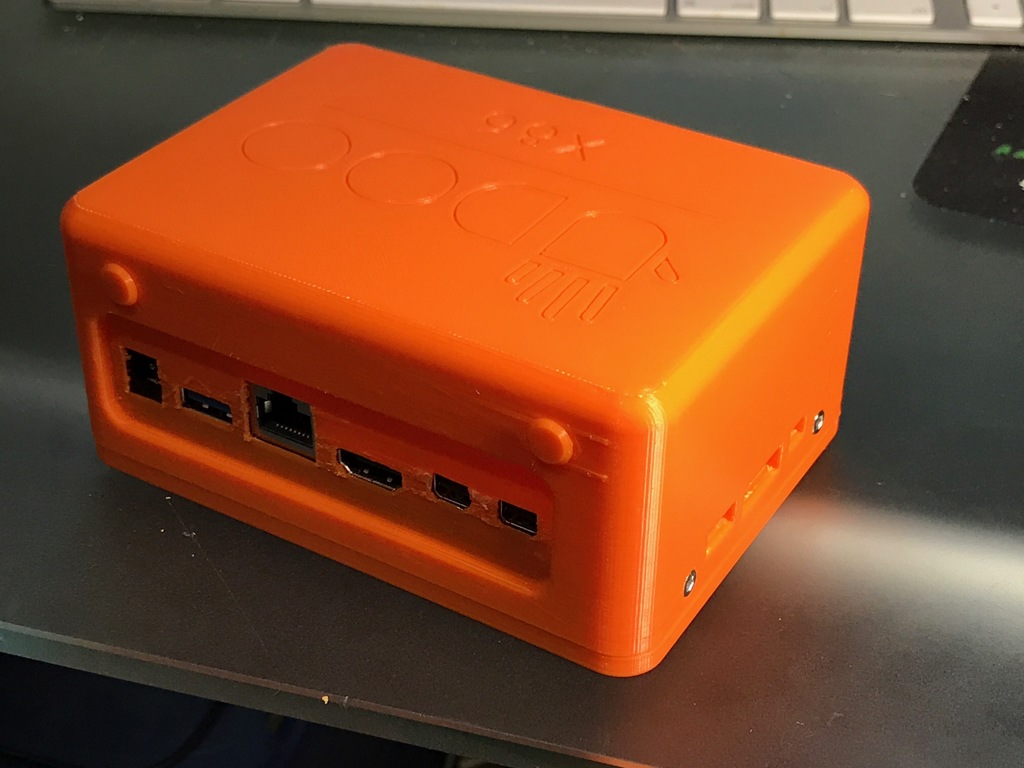

I've printed a version of this off now, and it fits very well, support material was a bit hard to remove around the rear ports due to the wall thickness, so I've thickened that area a little more to hopefully avoid cracking the plastic like I just did...

Print Settings

Printer Brand:

Prusa

Printer:

Rafts:

No

Supports:

Resolution:

0.15mm

Infill:

Notes:

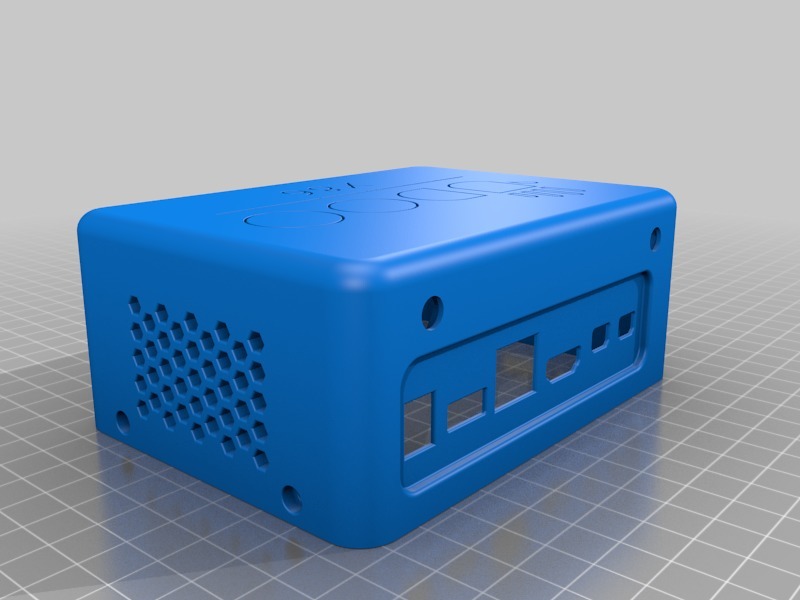

You'll need to flip the top over 180 degrees before printing, The vent-holes might be a bit small, so getting the support material out might be a pain.

Case screws are 4 x M3 Cap Head Hex screws, with the nuts mounted into the sections in the base.

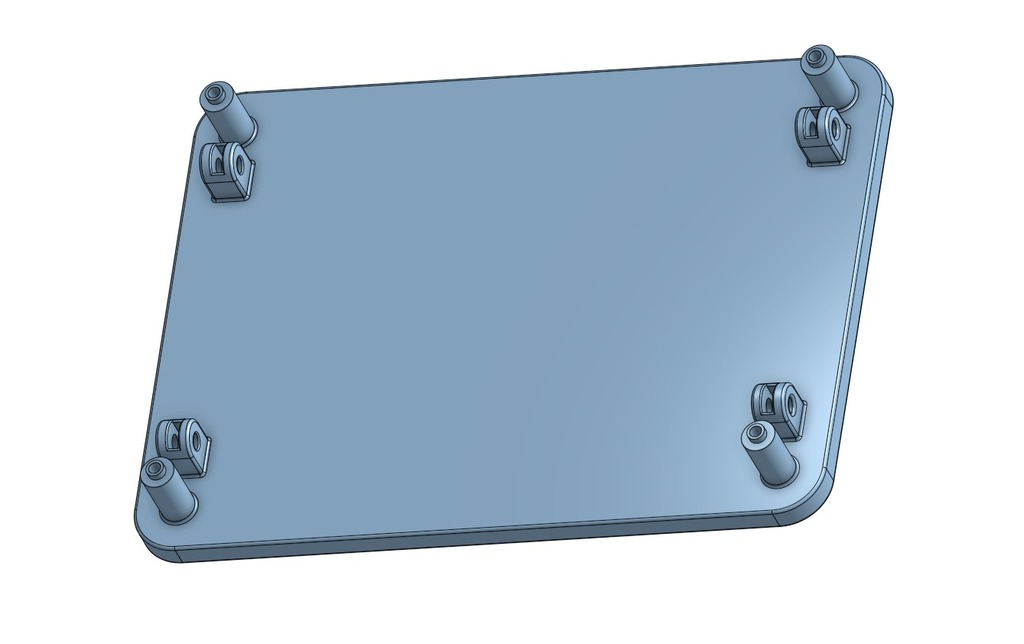

The board should snap into the mounting points on the base, then secured with M2.5 x 5mm machine screws. (These screw into PLA quite nicely I've found.)

How I Designed This

Designed in Onshape, the source files are available here if anyone wants to play with them.

Category: Computer
