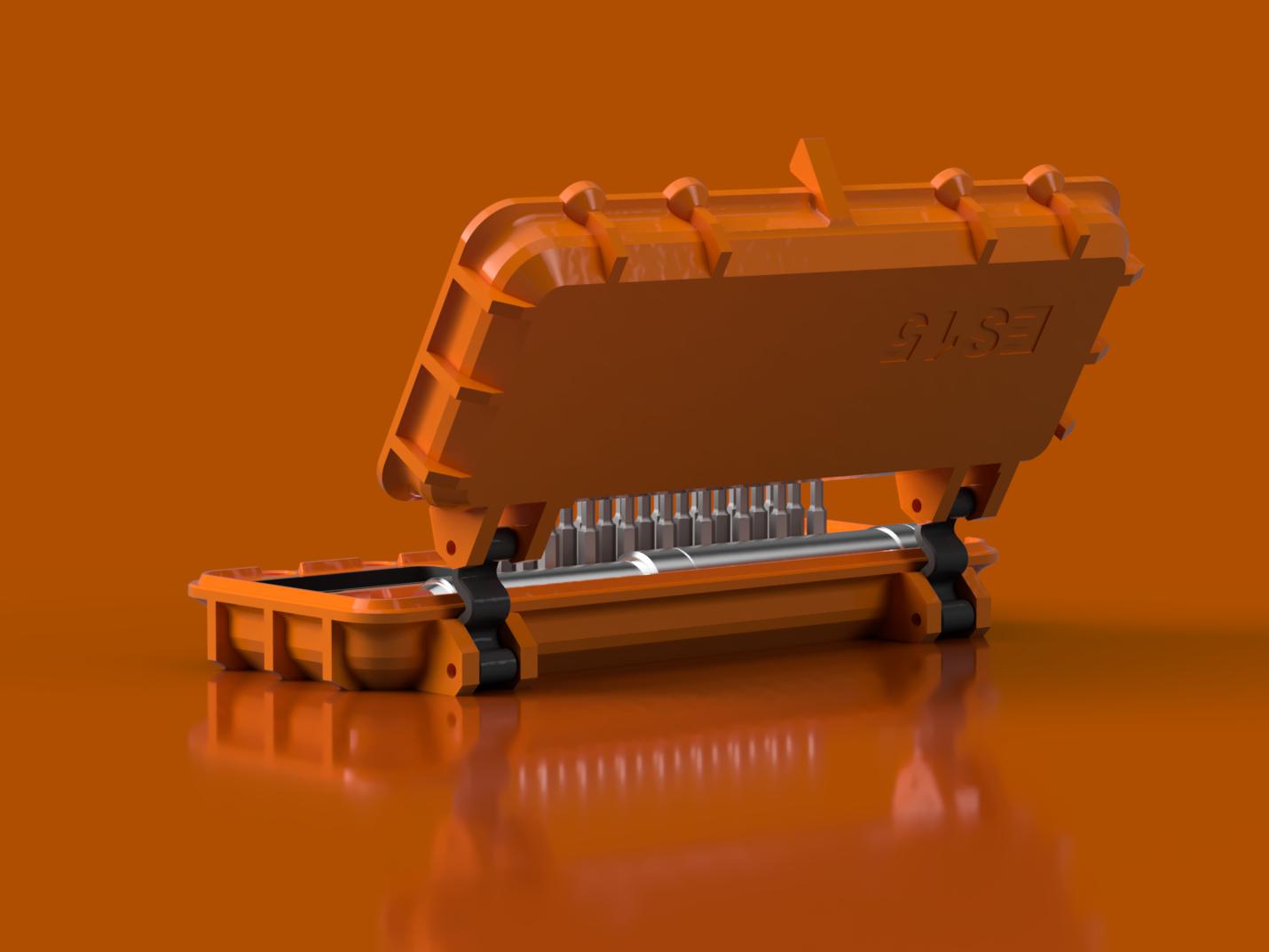

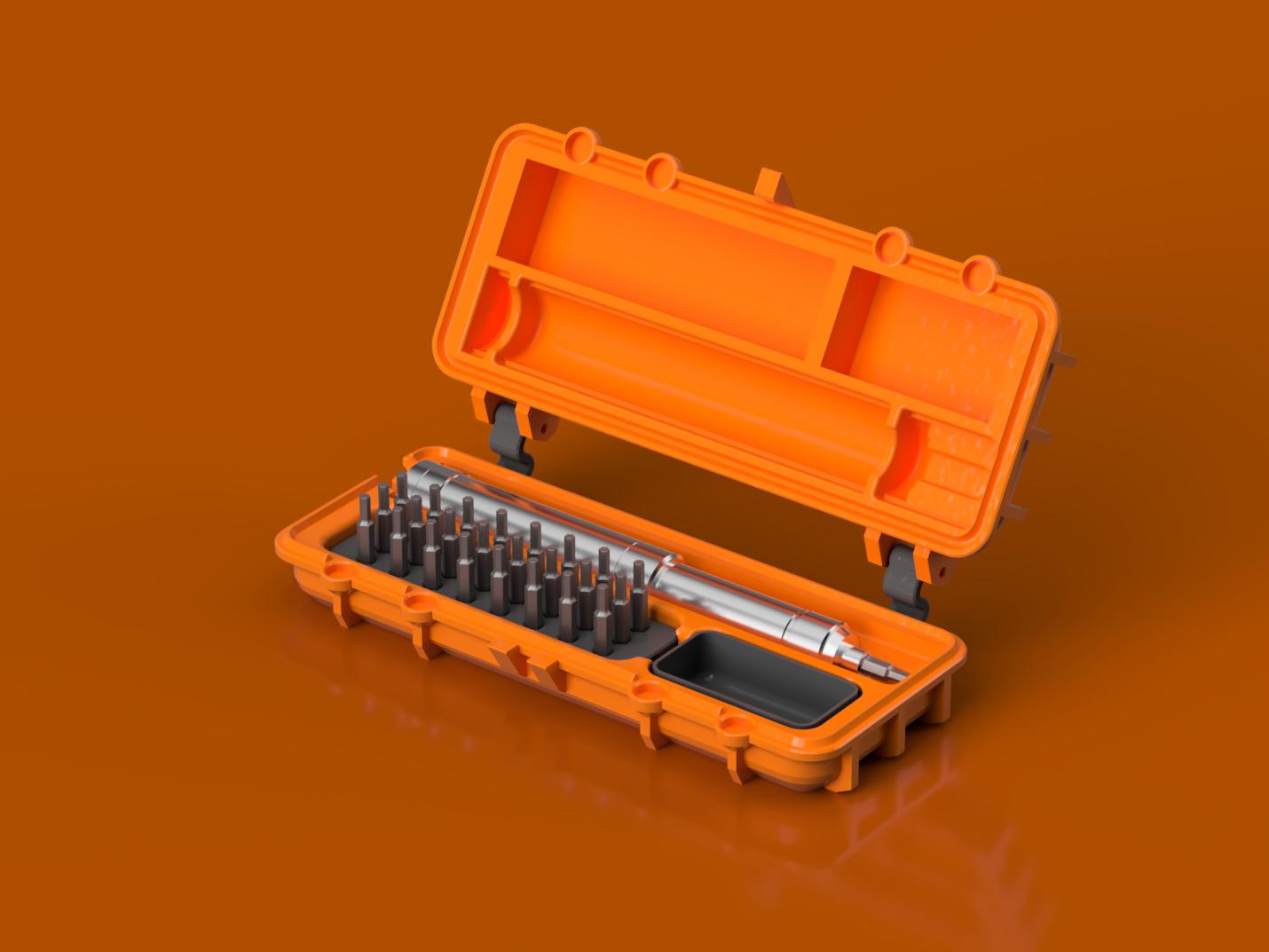

I want to make a case for my miniware ES15 i came with this simple design with minimum hardwares and its can be printed with 180mm bed.

there is alot of options there ! but i have 3d printer to make it and same time to be stackable with my other boxes.

the case uses buttons magnet for closing the case to make it easier to print for every printers tolerances and have more wiggle room for non 100% tuned printers .

If you can't get it 100% right Make it adjustable !

Needs for mounting

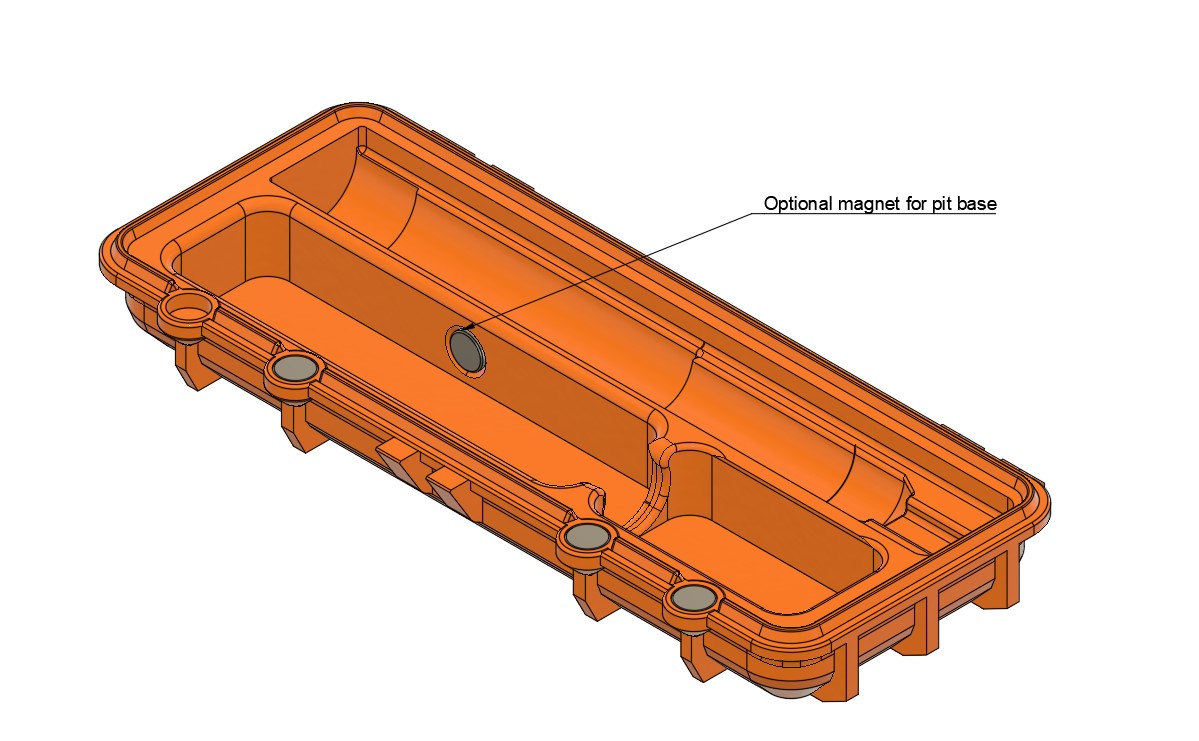

• 8x buttons Magnet of 8x3mm Here !

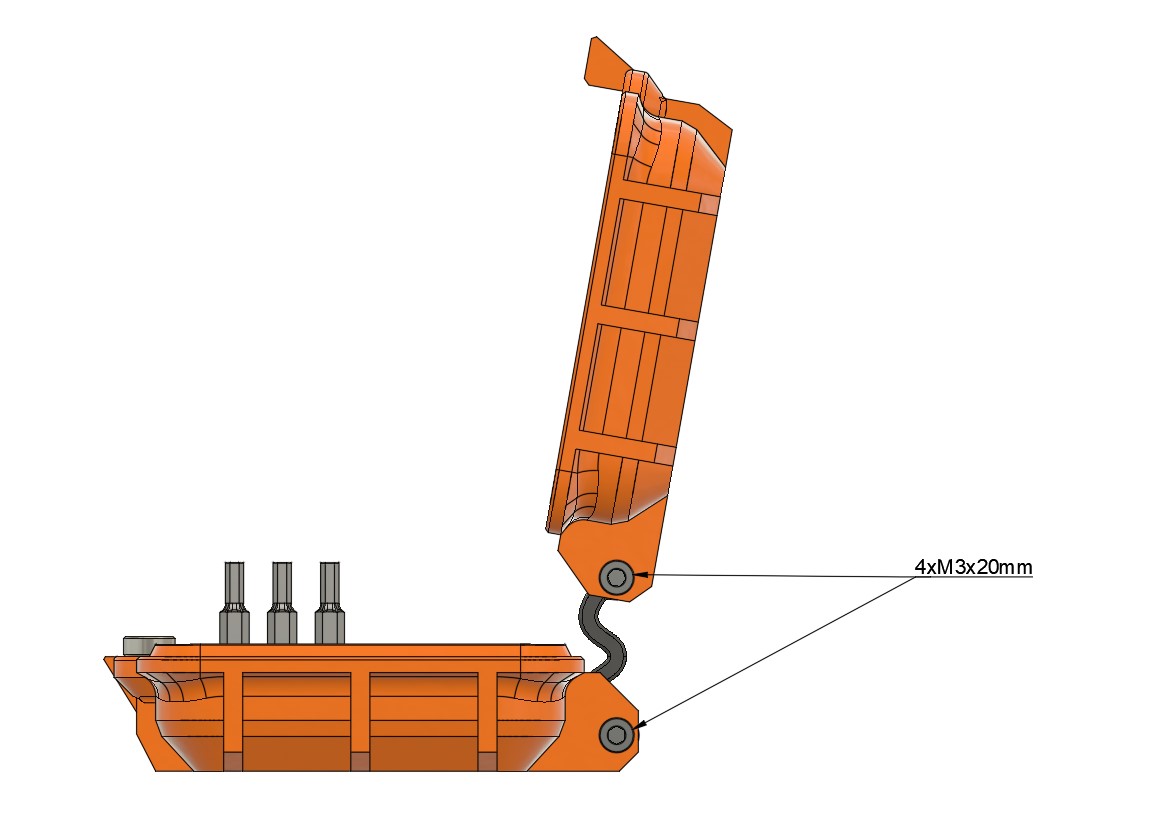

• 4x m3x20mm screws

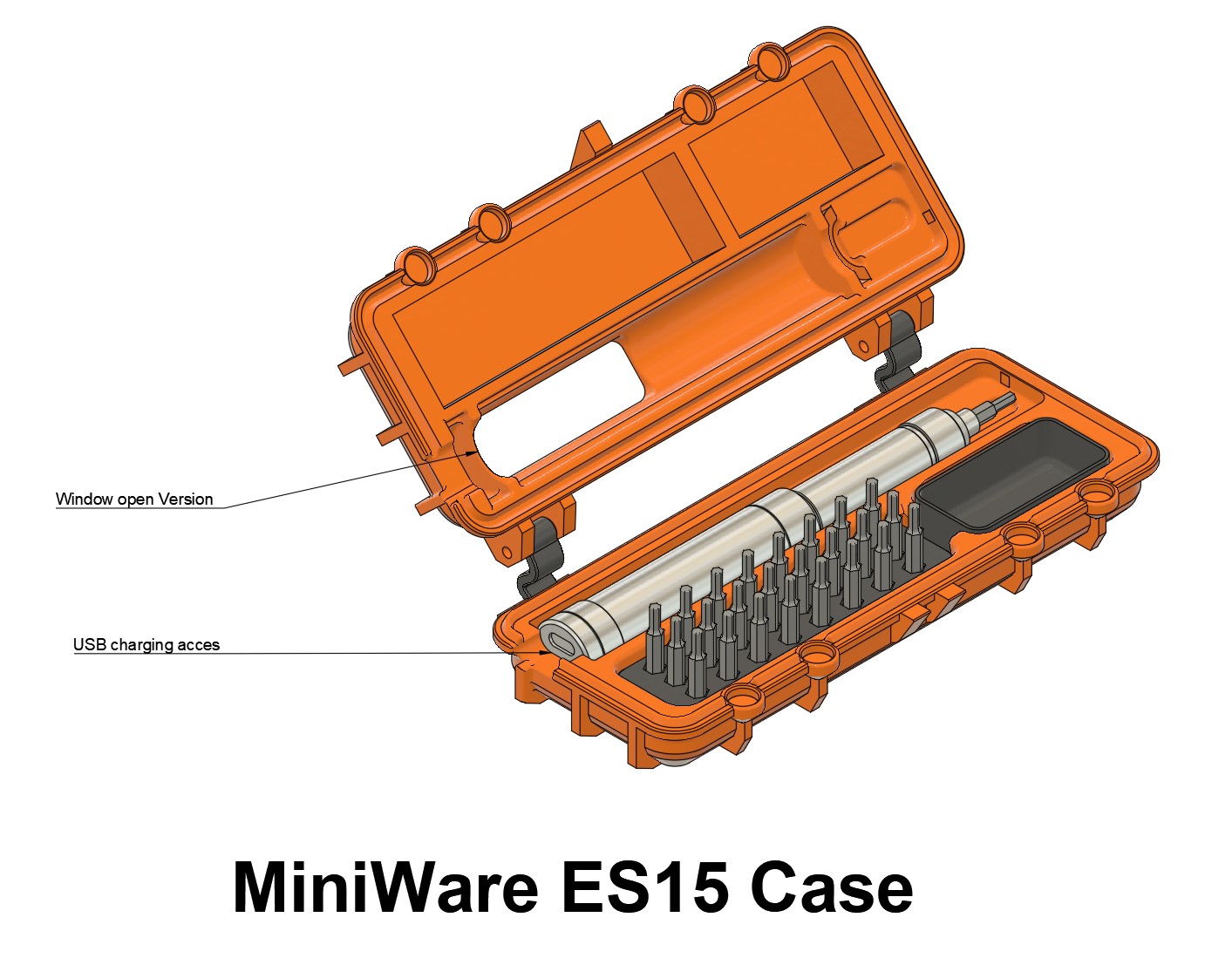

2 version available

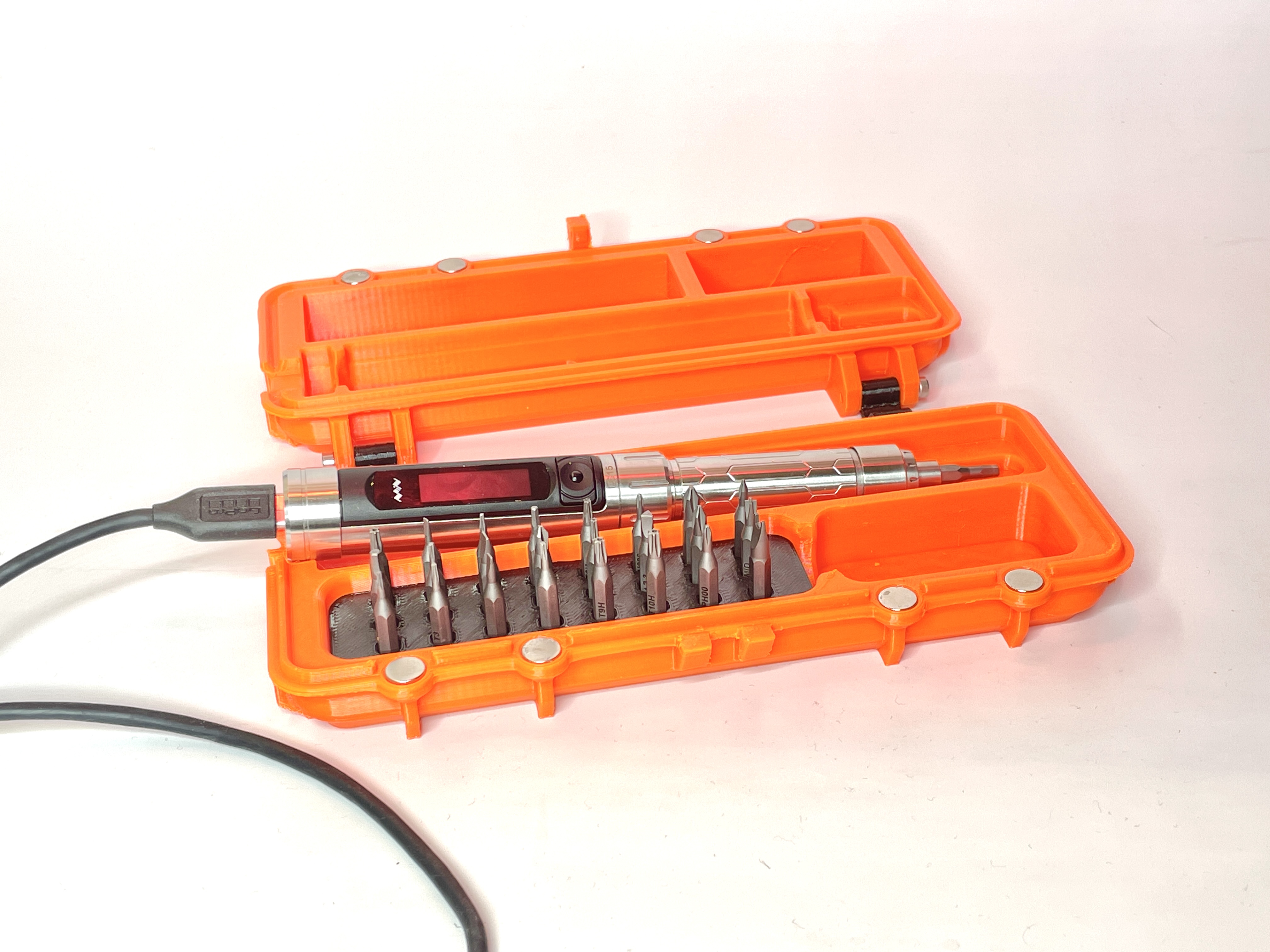

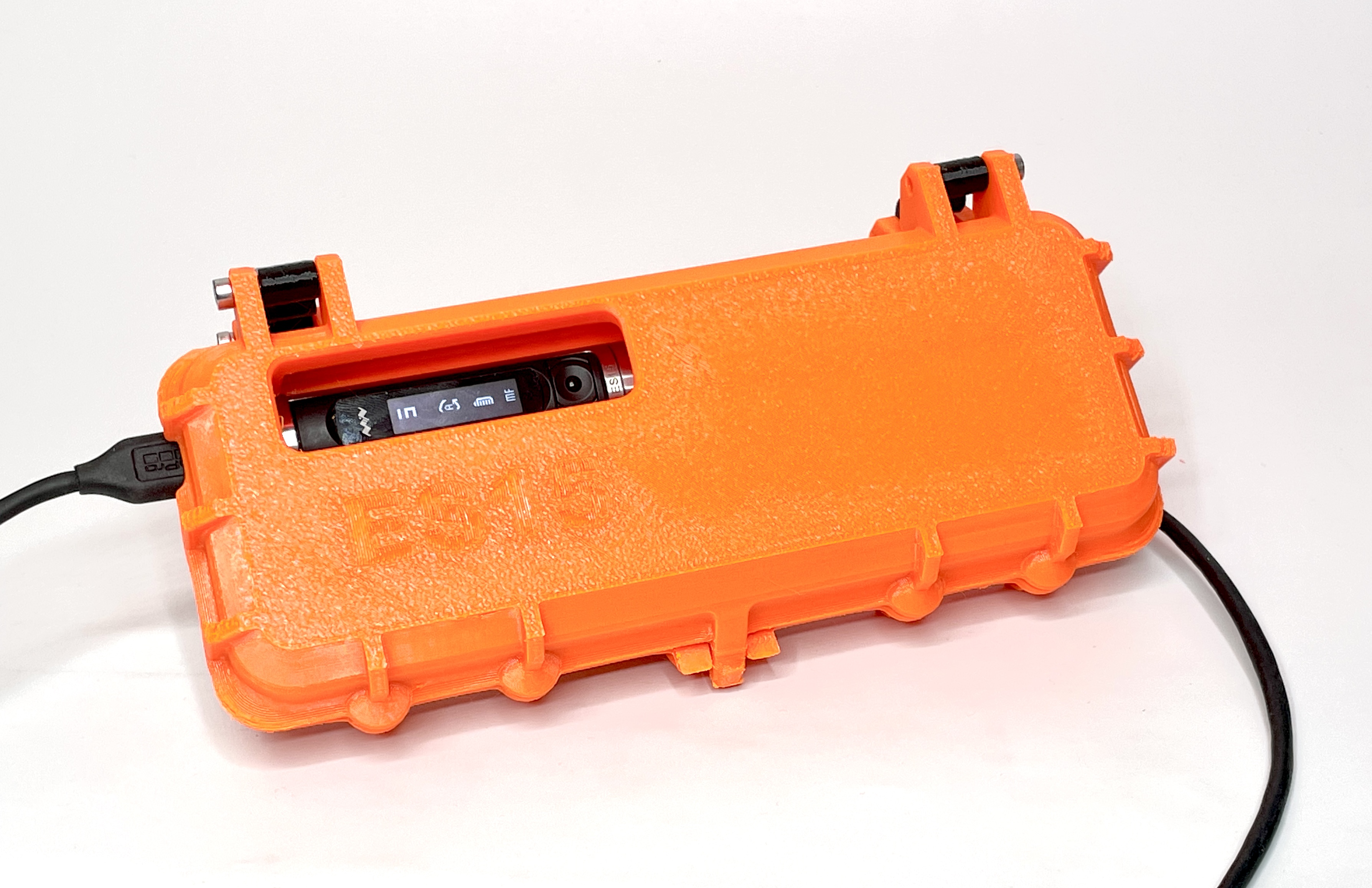

1. one with open window for the display and usb charging port
2. No window No port for charging .

inspiered by Ultimate Parametric Rugged Box HERE !  big thanks to him @ 1st .

Print settings

• 0.2 to 0.25
• 15% infil
• mine printed with Pet-g filament.

Hope You Like it and happy 3d Printing
