Surface 2 go vertical stand

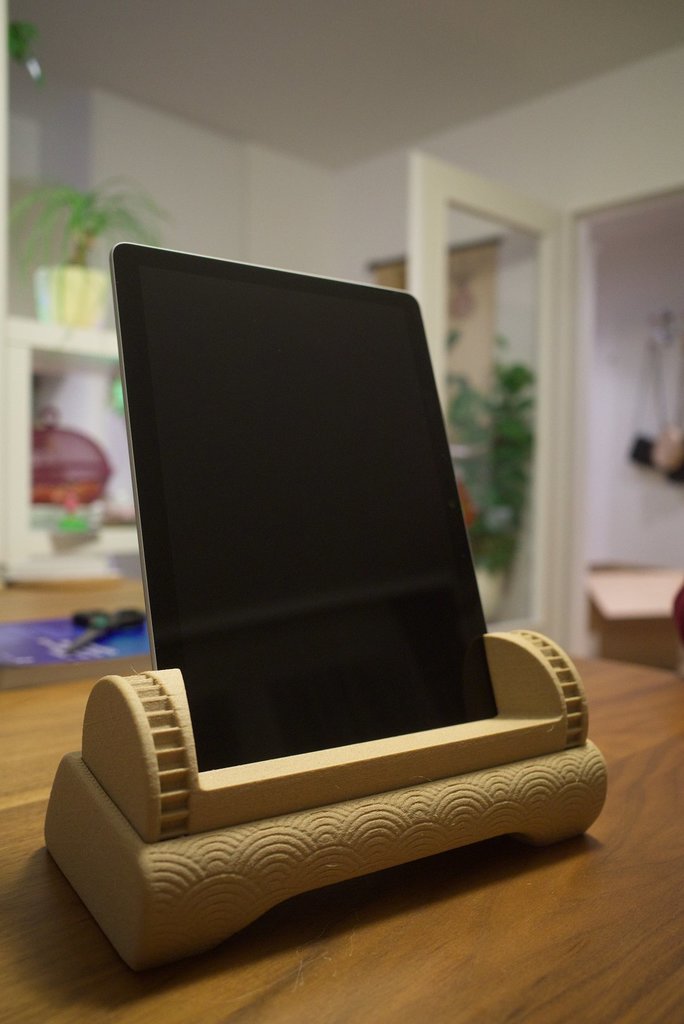

I've been asked to design an adjustable vertical stand for the MS Surface 2 Go (also supposedly fits the 1 go and maybe even more?) and since there were no requirements in portability, I came up with this... kind of... thing.

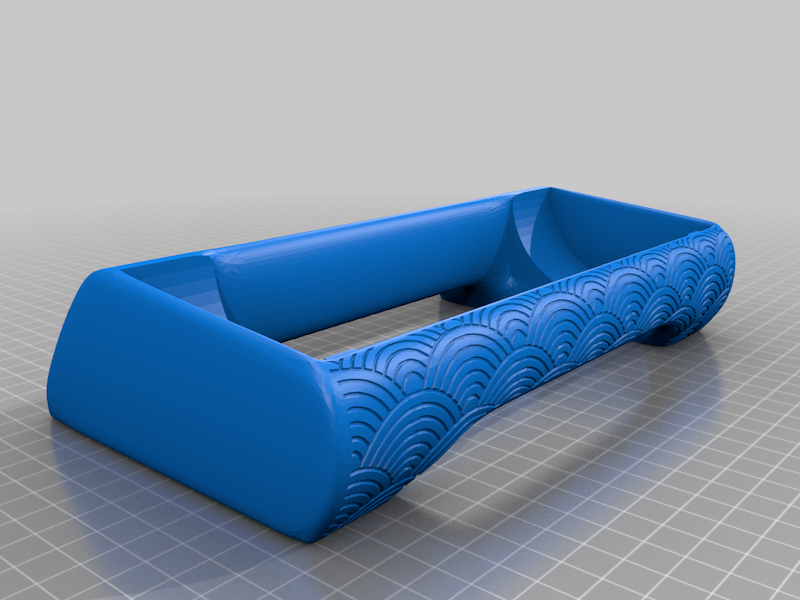

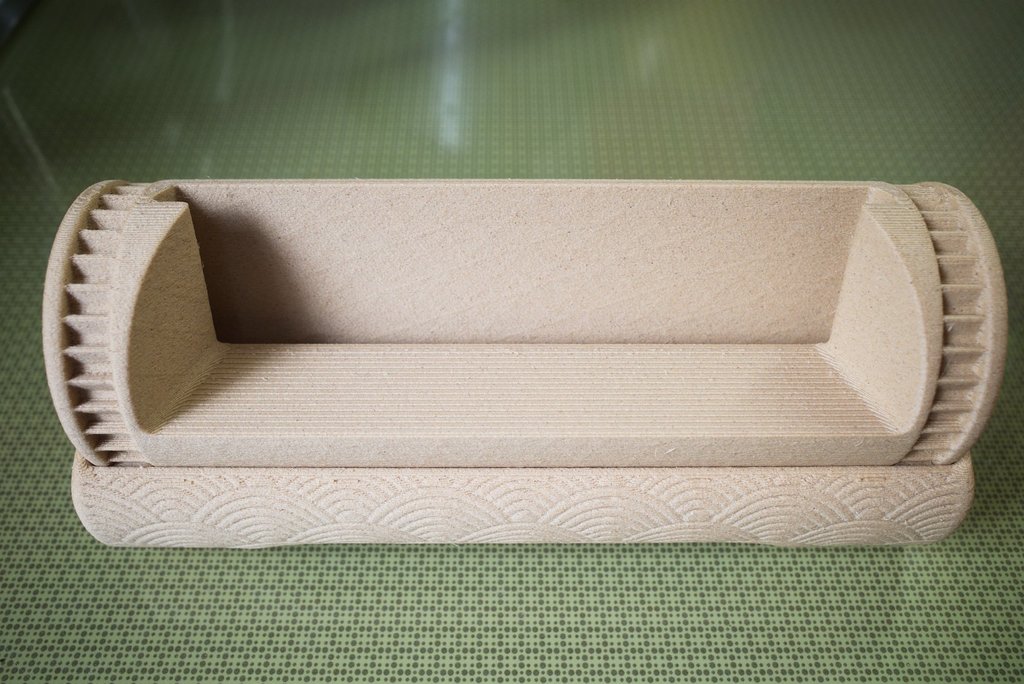

Function should be self explanatory. There's an opening on the bottom for wiring and angles from 90 to ~45°(?) should be balanced quite fine. I also left some space around the LCD in order to enable swipe and stuff.

Maybe add some rubber feet in case you're going to use it on a smooth surface.

Print Settings

Printer Brand:

Wanhao

Printer:

Duplicator9

Rafts:

Supports:

Yes

Resolution:

400

Infill:

15%

Filament: Extrudr PLA + wood Fichte (Spruce)

Notes:

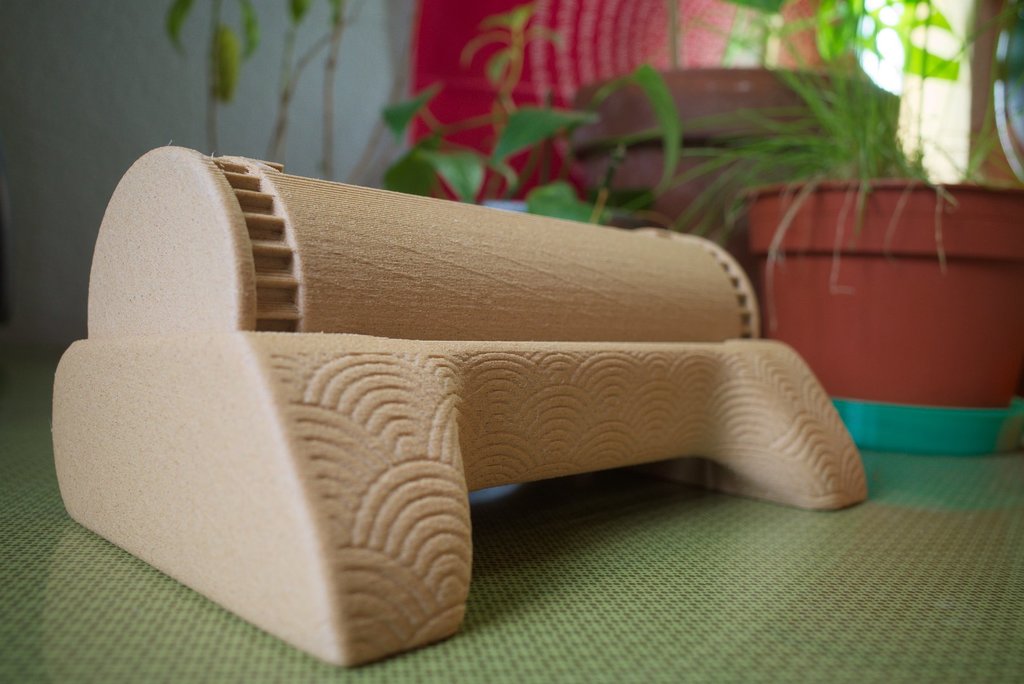

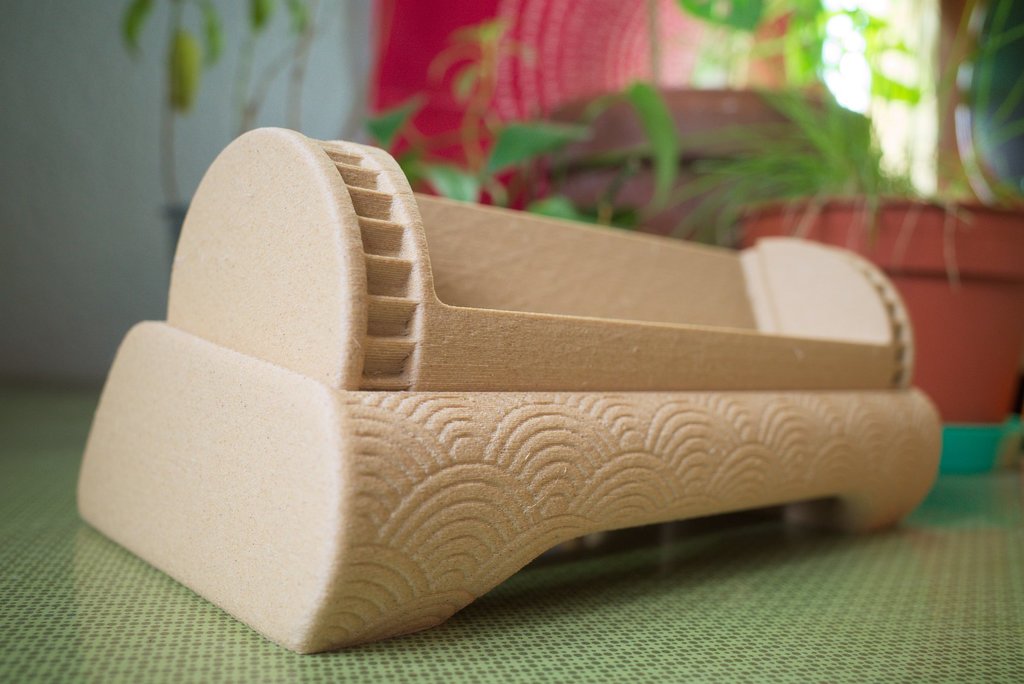

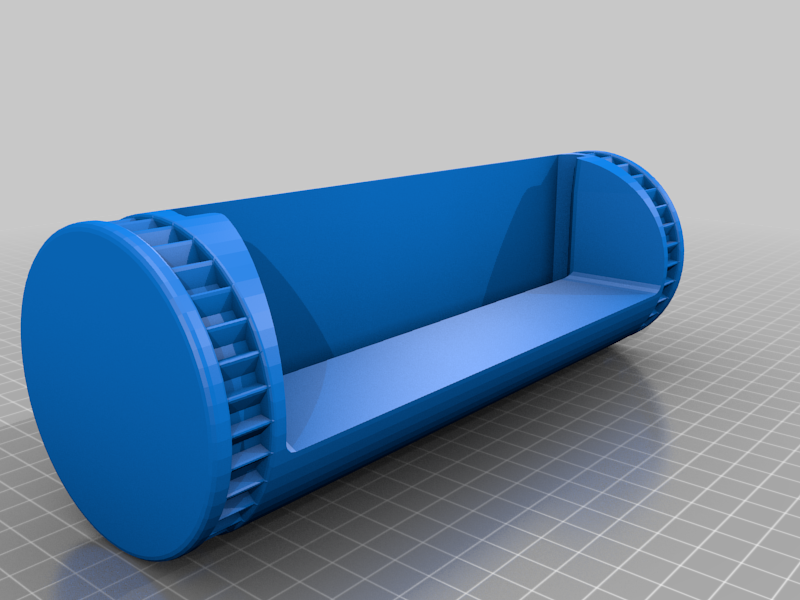

Support is recommended for both parts but only really necessary for the cylinder. Have a look at my pictures to see best printing orientation. That cylindrical part surprisingly turned out almost perfect (apart from some infill pattern visible on the perimeters) with a lot of fan power.

In general it's a tight fit, so make sure to set something like horizontal expansion to -0.1 or -0.2 in your slicer for one of the parts. Or you can just grind it in... which won't give a nice surface I guess.

I printed this with a 0,6mm and rough layers in wood PLA (Extrudr BDP Fichte) but since this material doesn't go along well with hot parts I'm not sure if it will last forever, but it'll probably be ok. In case you're worried, just print in PETG or similar.
