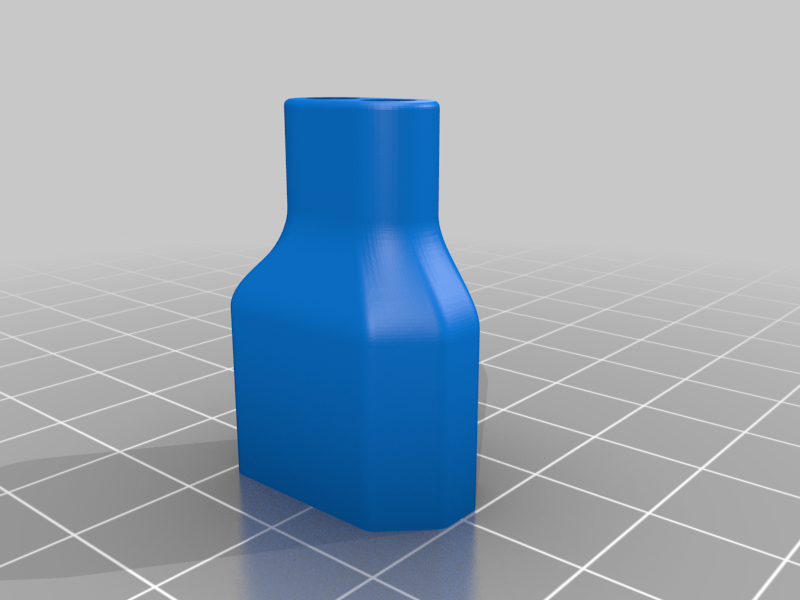

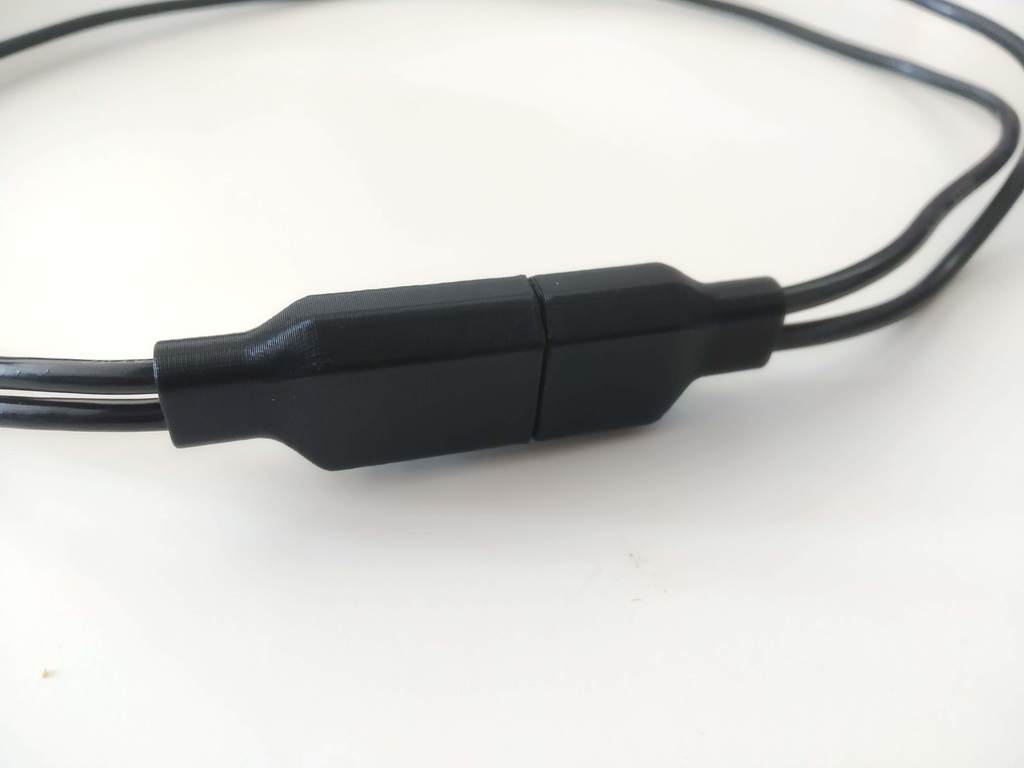

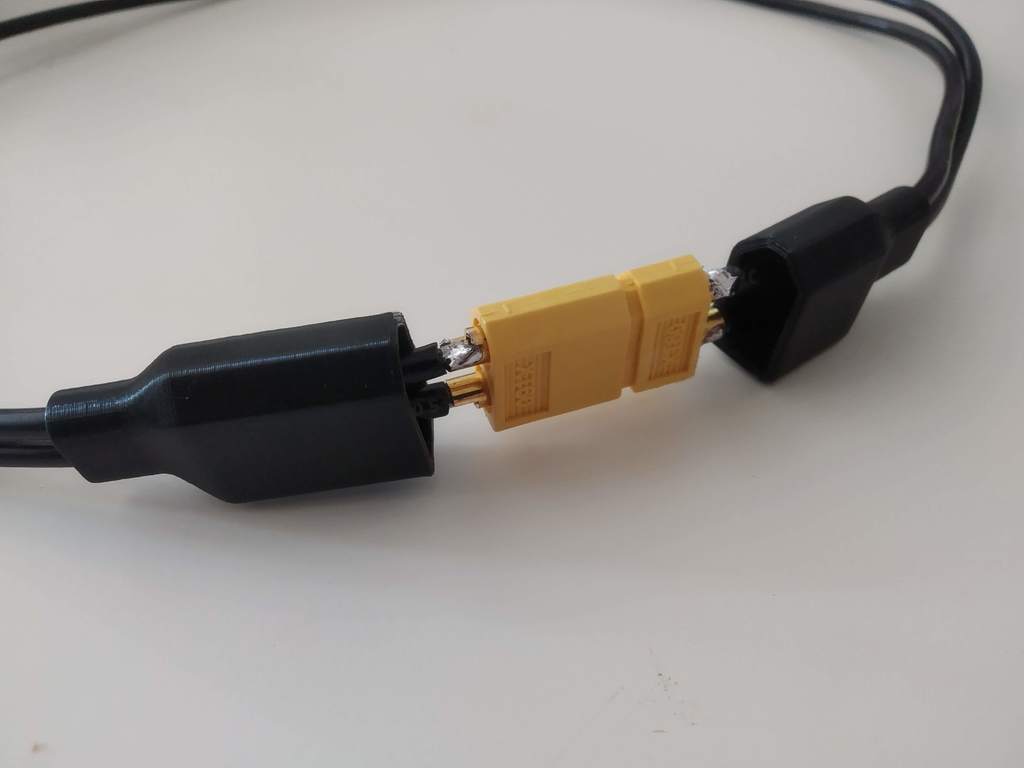

A set of covers for a straight-through XT60 connection (mainly so I can avoid shrink tubing).

Has 2 separate 4mm diameter wire holes. The fit is a bit loose but suits my requirements.

I printed on a raft - without one, you may need to cut some of the inner edge to fit the connector. Note that not all connector brands may be the same.

No supports needed.

SAFETY: Please please keep in mind that you should solder your connectors really well. With these covers you won't be able to see if the wire might have come loose inside - so it is probably still safer to individually heat shrink the connections, especially if you are sending a lot of unfused current down them.

How I Designed This

Fusion360 - Drawings, Extrusions, Offset Planes, 1 Loft Extrude + 2 Loft Cuts, Edge Radius

Category: R/C Vehicles
