Mini V-Block Clamp

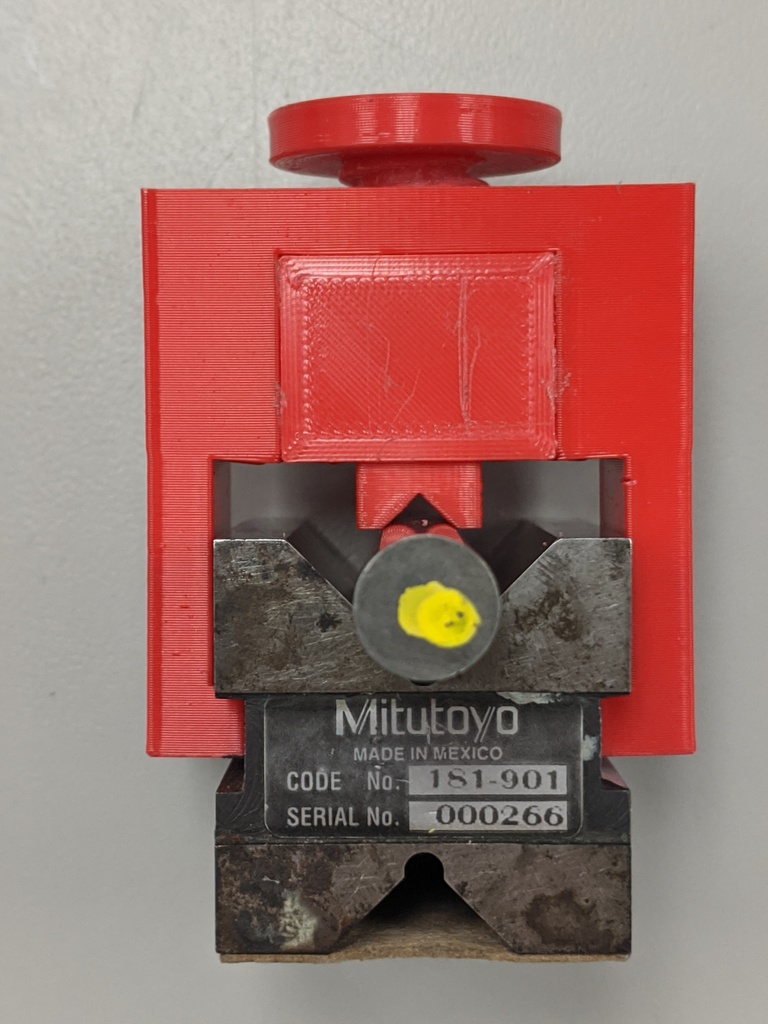

I didn't have clamps for my small Mitutoyo V-Blocks at work and got tired of holding pin gages with clay so I designed a simple clamp. I needed it to be somewhat low profile to fit onto a visual measuring machine.

Print Settings

Printer Brand:

Creality

Printer:

Ender 3 Pro

Rafts:

Doesn't Matter

Supports:

Yes

Resolution:

Infill:

20%

Filament: Stronghero3D PLA Red

Notes:

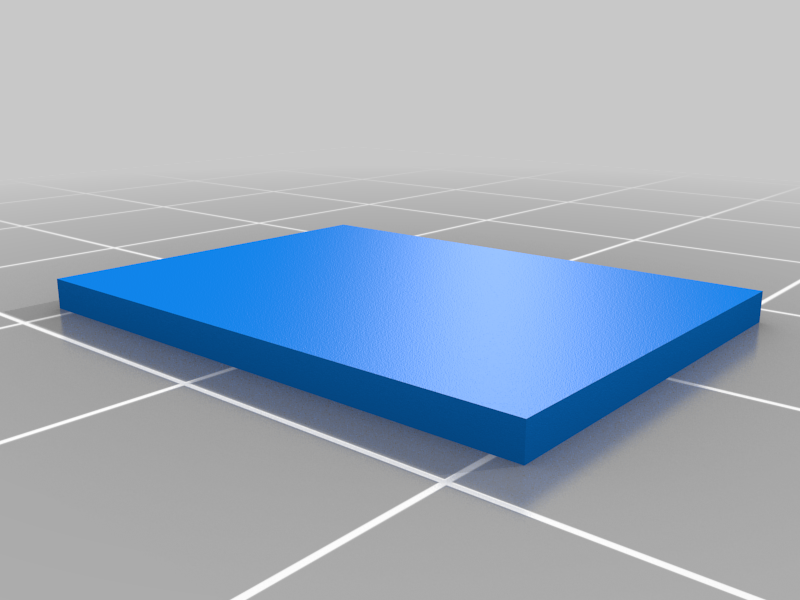

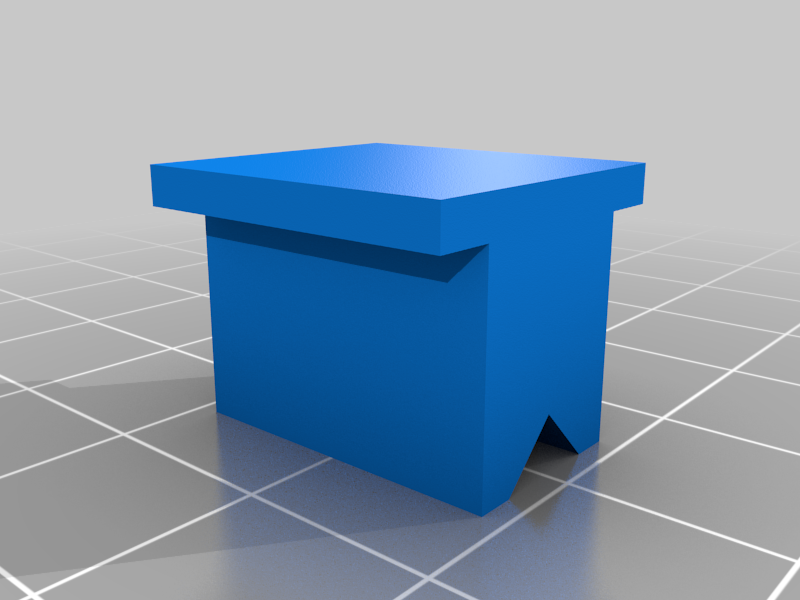

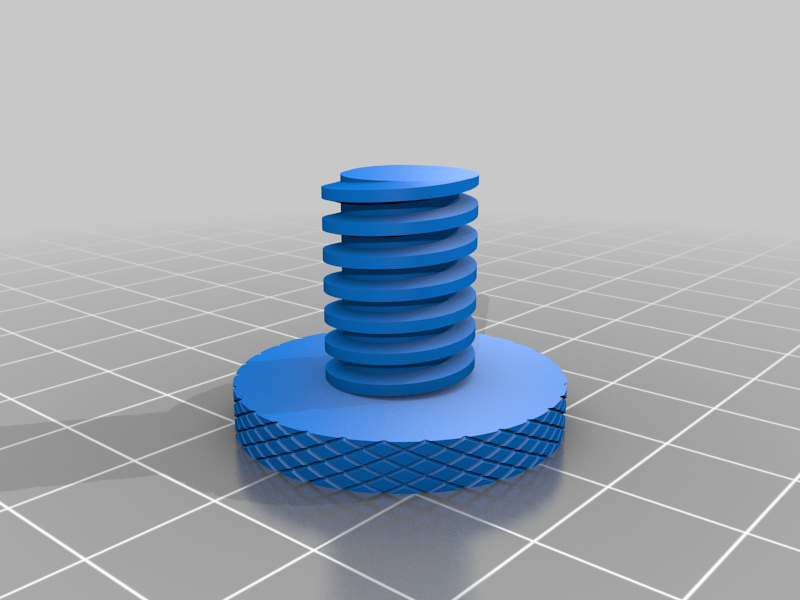

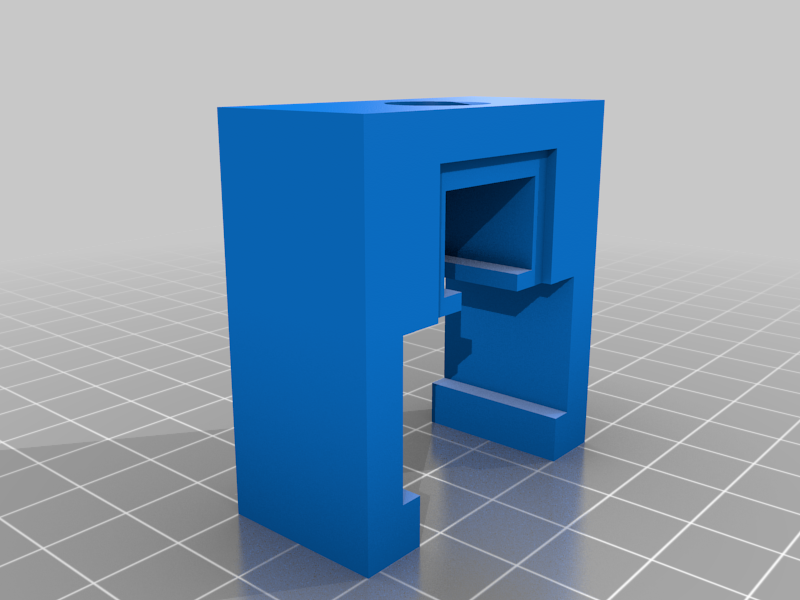

Printed screw and block so that the threaded parts are aligned on X and Y axis as I was unsure if the threads would work on the Z axis. Doing this way requires supports.

If you print it aligned with Z, let me know if it works.
