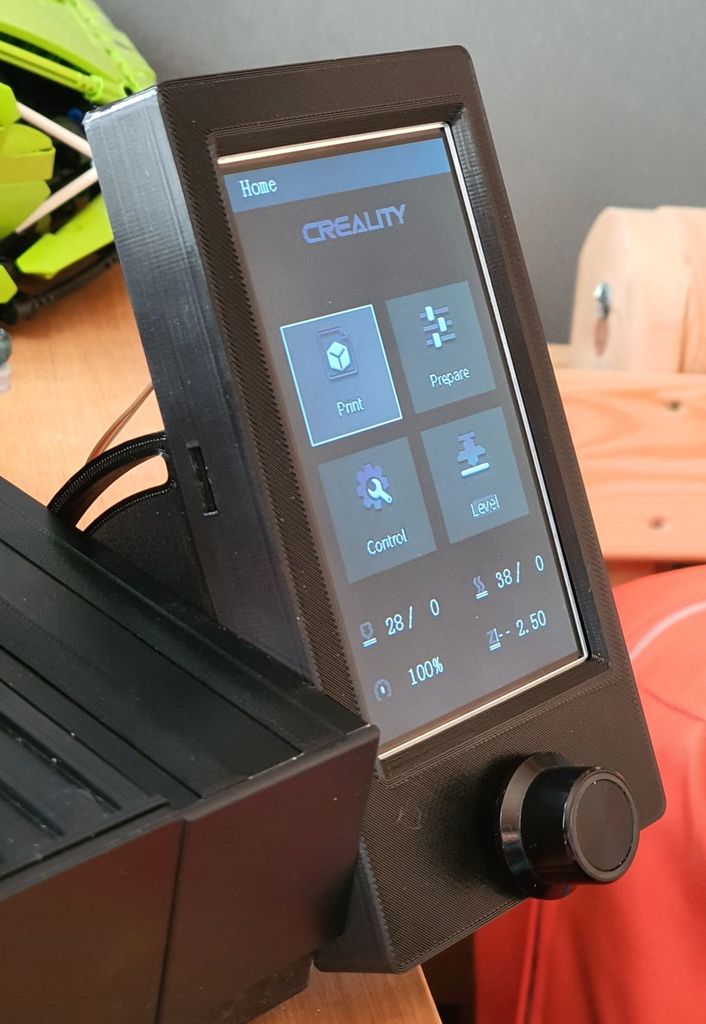

Ender 3 v2 Replacement Screen Case

A replacement screen case and bracket.

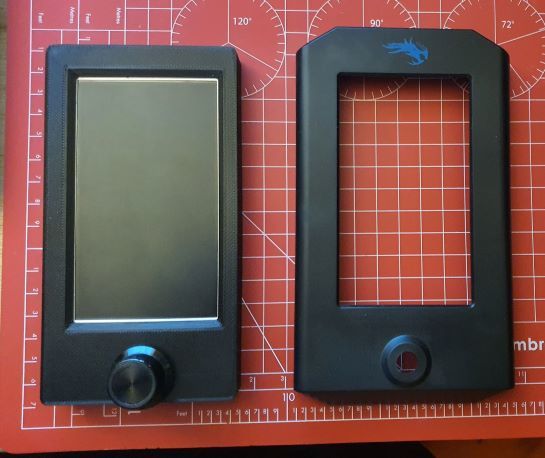

This houses the original screen and knob but reduces the case from 94 x 161mm to 72 x 145mm. I've also included easy access to the SD Card slot on the rear of the unit.

The case uses a centralised pair of mounting slots, so if you want to put this on the opposite side of the printer, just print the mount in reverse.

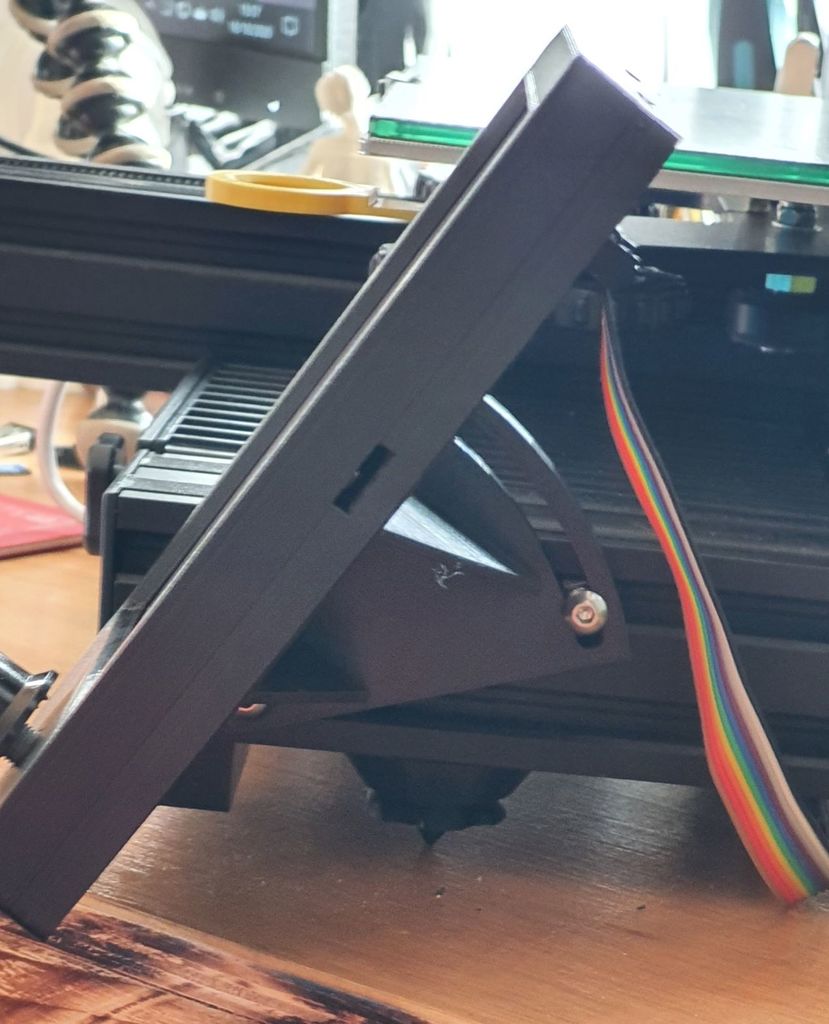

The mount is adjustable for angle, as in my previous mount design.

Print Settings

Printer Brand:

Creality

Printer:

Ender 3

Rafts:

Supports:

Yes

Resolution:

0.2

Infill:

15%

Filament: TechnologyOutlet PLA Black

Notes:

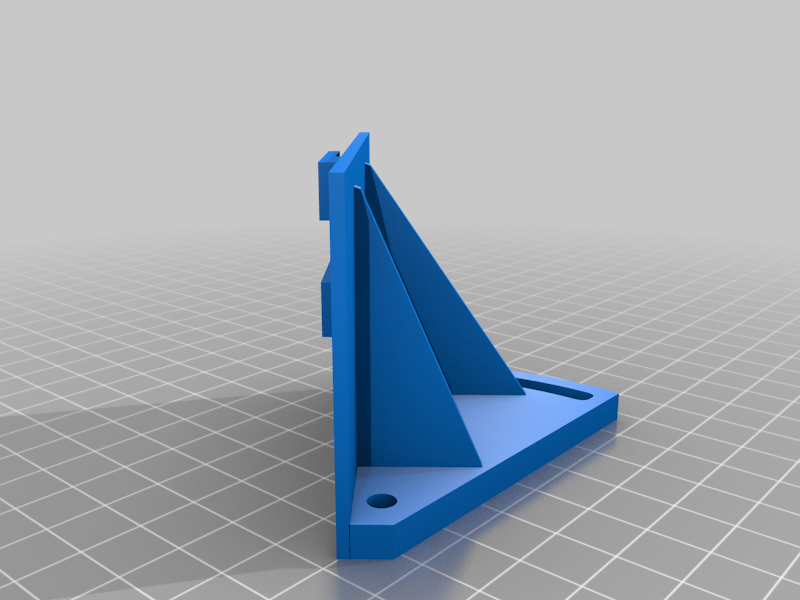

The mount will print orientated as supplied with the side plate on the bed. Support is needed for the sliding locator feet but there's minimal waste. As I said above, just mirror the model of the mount to fit this on the left hand side of the printer if required.

The front panel of the case includes internal ridges to help hold the circuit board in. Ensure the support on these is removed before fitting the circuit board. The old screw holes in the board should press firmly into the posts in the corners.

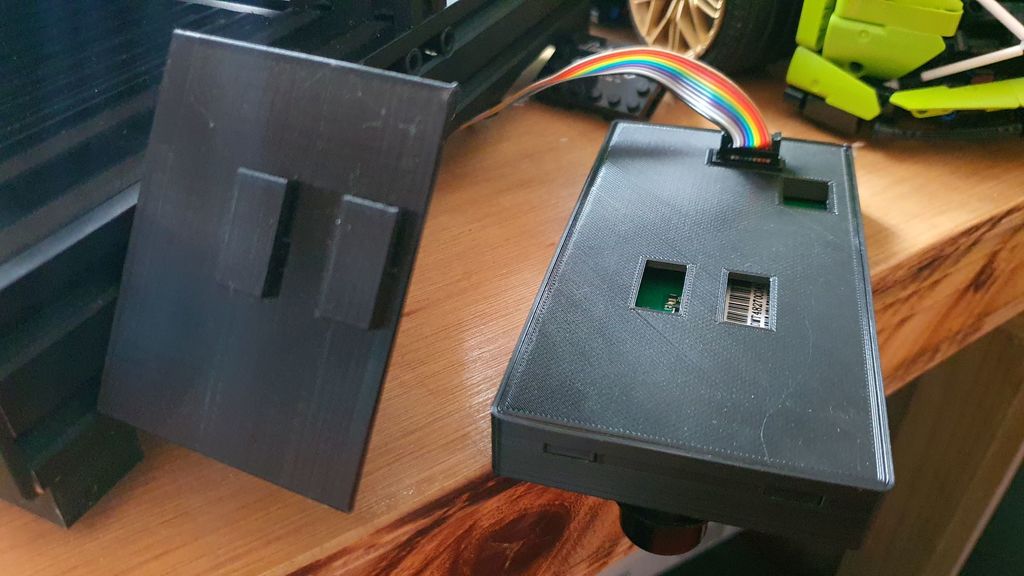

The rear panel of the case snaps into place using locators at the top and bottom. Ensure support in the front part has these pushed through and the case should hold together and hold the screen firmly.

You don't need the screws now!

The case should slide onto the mount firmly. The first couple of times this might be a bit stiff.

My photos are of a slightly earlier design with extra case holes on the sides of the front case. These are not needed and not present in the uploaded models.
