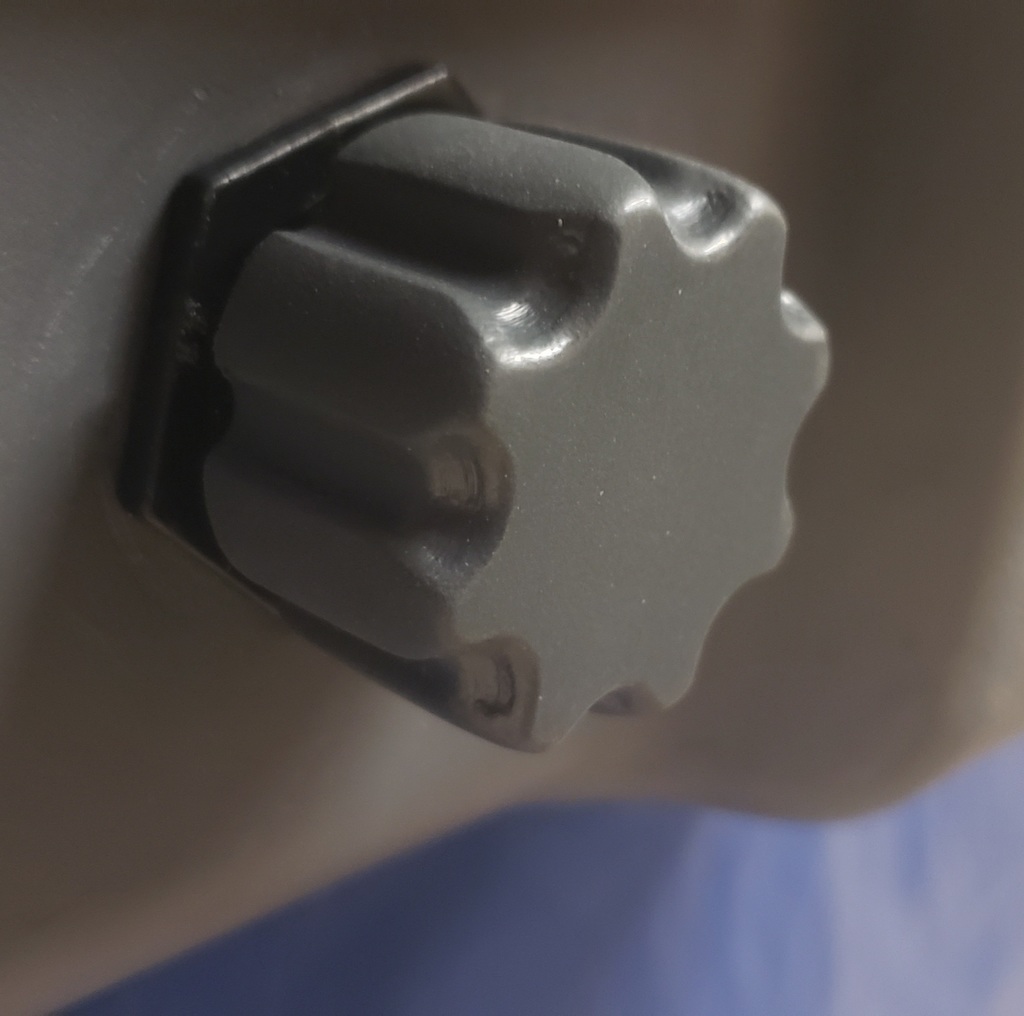

Igloo BXM cooler drain plug cap

This is a replacement drain plug cap for a Igloo BXM cooler. It may also fit other Igloo cooler and even other brands, but that has not been tested.

Threads are tighter than original, but operate smoothly.

The addition of a 26mm OD O-ring or other gasket is required to guarantee seal. There is a gap in the bottom of the threads that will accommodate up to a 5mm O ring or other seal A couple of coats of a rubberized spray, such as Plasti Dip it is recommended on the outside. This improves grip on the knob, and the tactile feel

Print with the opening up and you should not need supports. Supports on threats my prove impossible to remove while maintaining function of the threads

Print Settings

Printer Brand:

Monoprice

Printer:

Maker Select

Rafts:

Supports:

Resolution:

0.15

Infill:

20%

Filament: eSun PLA+ Black

Notes:

I dialed the print speed back to 30 mm/s to ensure thread resolution. It may work faster just as well.

How I Designed This ===================

Fusion 360
