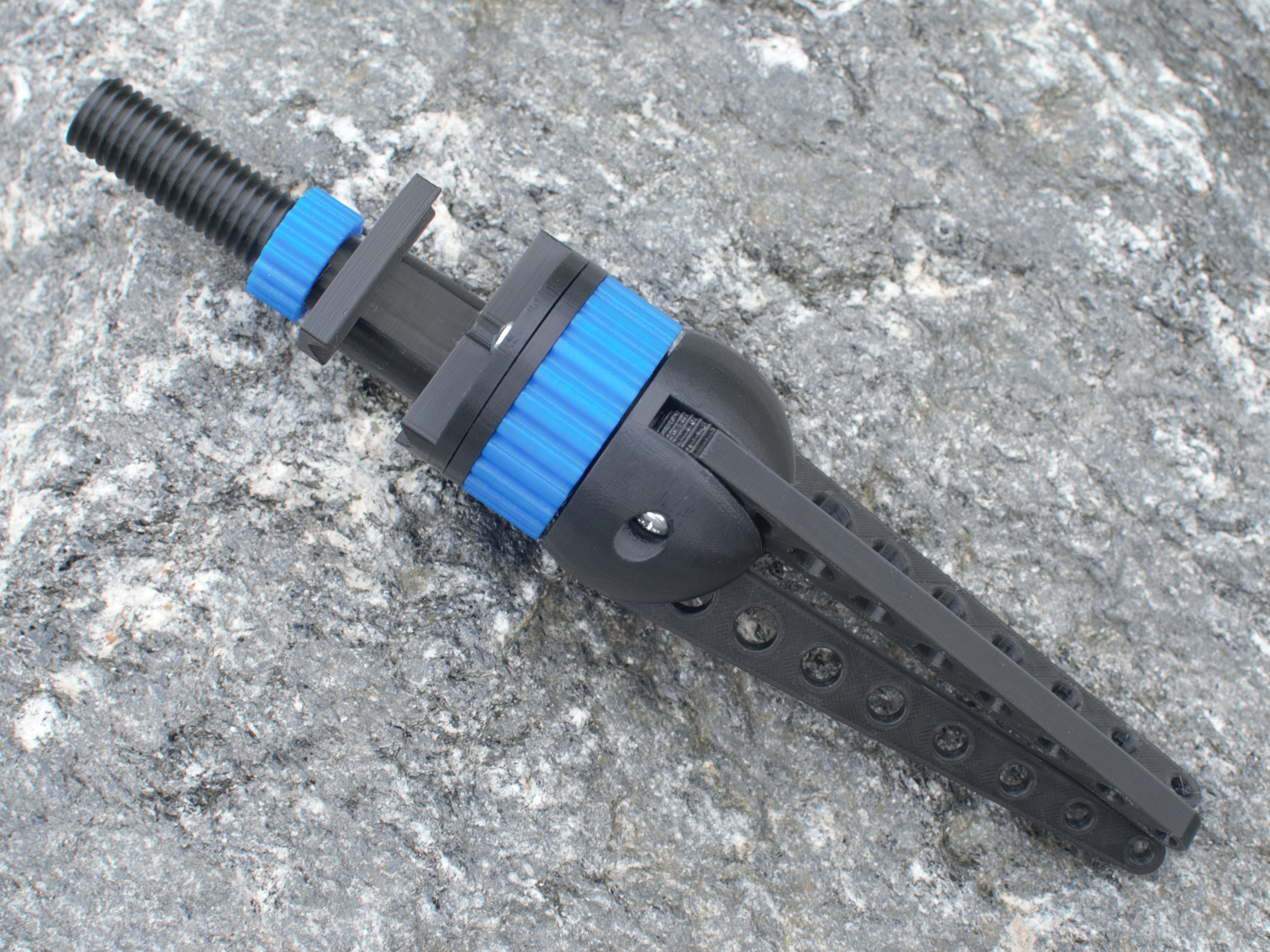

Sturdy tripod with modular mounting plate.

I included smartphone holder (PhoneHolder_(1-3).stl) and mount for 1/4 inch camera bolt (Plate_QuarterInch_Bolt.stl).

For those who would like to create their own mount for their device i included Fusion 360 file about Blank plate (PlateBlank.f3d).

Happy printing!

Print instructions

Additional Hardware:
3pc m4 x 20-25mm screws for legs.
1pc m4 x 20-30mm screw for lock assembly.
3pc m4 x 12-20mm srews for mounting plate.
Screws can't be with traditional hex head, since they have to be used with screwdriver.
Maximum head with: 8.5mm
Longer your screws are stronger your tripod is.

Assembly:

1. Insert Tripod_Lock into Tripod_Ball with teeth facing inwards.
2. Screw Tripod_Ring into Tripod_Lock. (Threads are left handed)
3. Insert Tripod_Top into its hole and secure it with screw (lock assembly).
4. You can figure out rest yourself :)
   If you face any problems i'm happy to help.
