Another Screen-door replacement handle.

I checked first and many of the versions I found were a bit to small or tried to include the locking mechanism. We don't need our screen-door to lock so it didn't make sense.

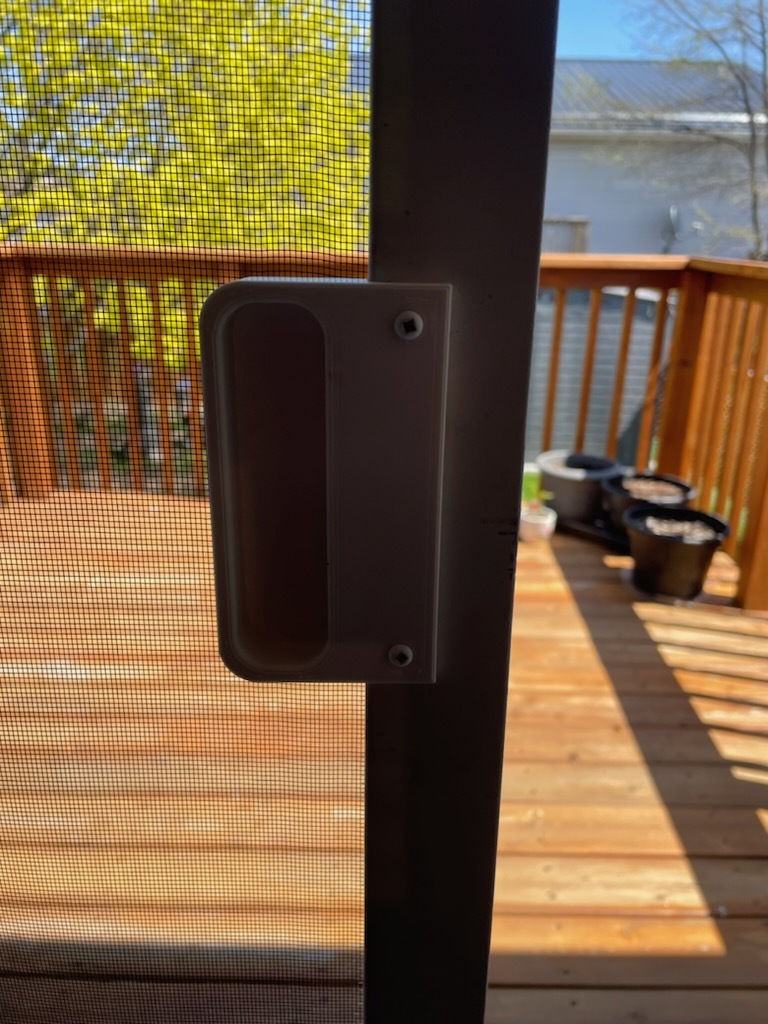

I sized this one to be just a bit larger to cover-up any of the old holes. Printed in PETG this should likely outlast the door at this point and not discolor like ABS or PP that is typical of these handles.

Outside and inside screws are slightly offset in case you need to use longer fasteners for attacment.

Handle is 108mm long and 60mm wide with the recess on the inside at 16.5mm.

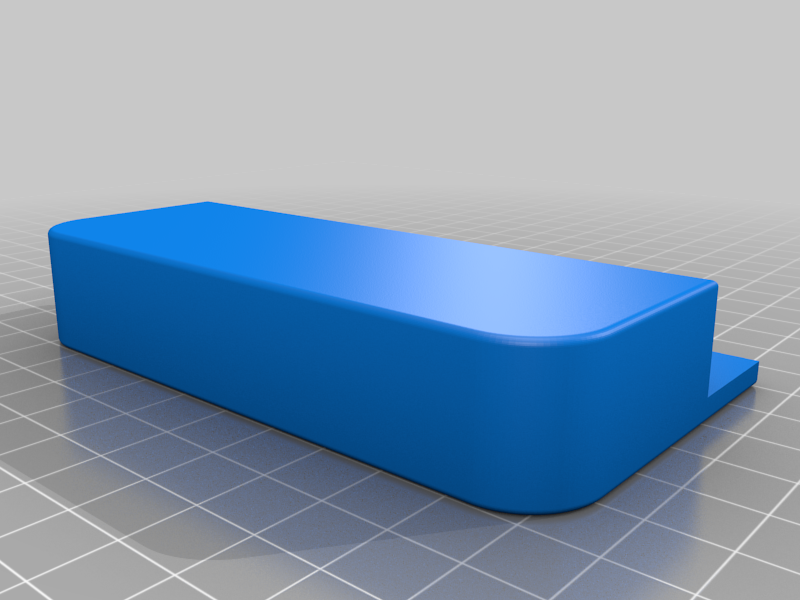

Inside handle could be printed upside down with bridging on the recess and supports. However, that may leave a stringy-appearance in the recess. I printed mine with supports as you won't see the inside part that the supports attached-to anyway.

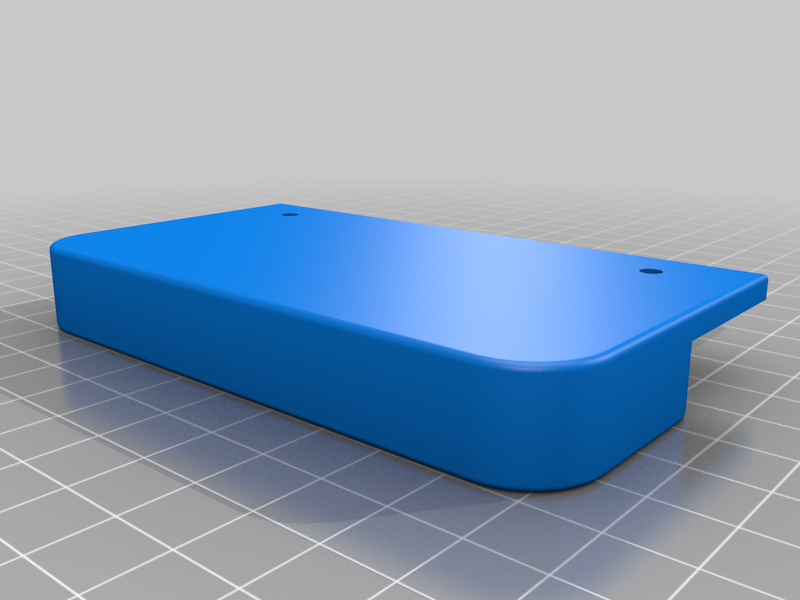

Outside handle can print flat and does-not need supports.

If you use-it, please post a make!

Or Buy me a Beer!

Print Settings

Printer Brand:

Prusa

Printer:

I3 MK3S

Supports:

Doesn't Matter

Resolution:

.2

Infill:

20%

Filament:

Polymaker PETG

White
