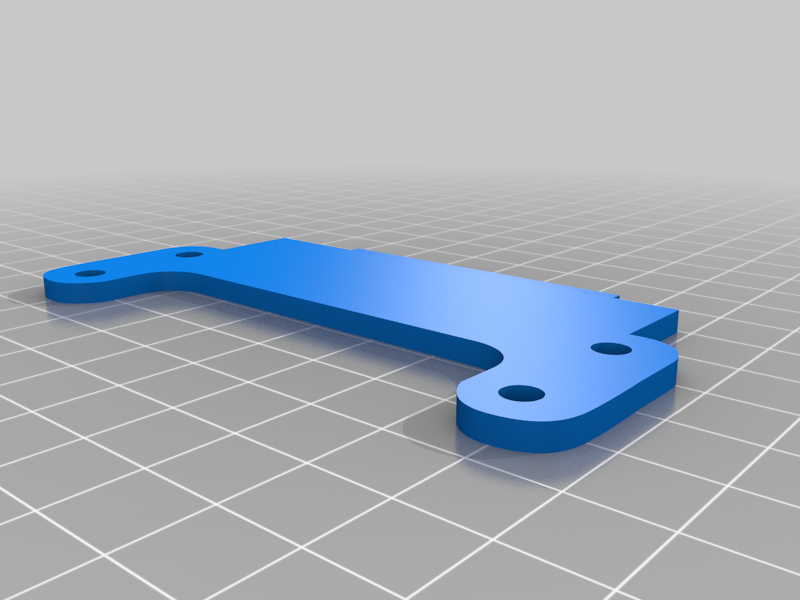

An SSD bracket to hold internal SSD drives for a MacPro 2019.

Print flat on the build plate no need for supports or rafts - ensure the thicken portion is on top. Updated Jan 7 - had to shorten the holes for the SSD - didn't realize it would be different from a 3.5 drive. You will still need to file the holes a bit to get the perfect fit.

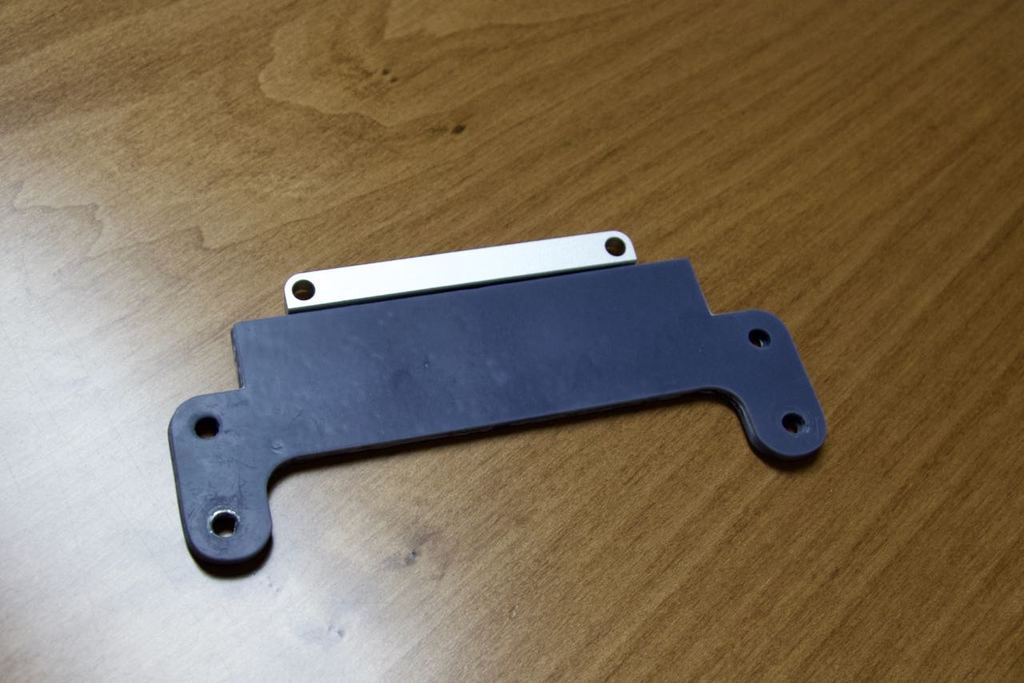

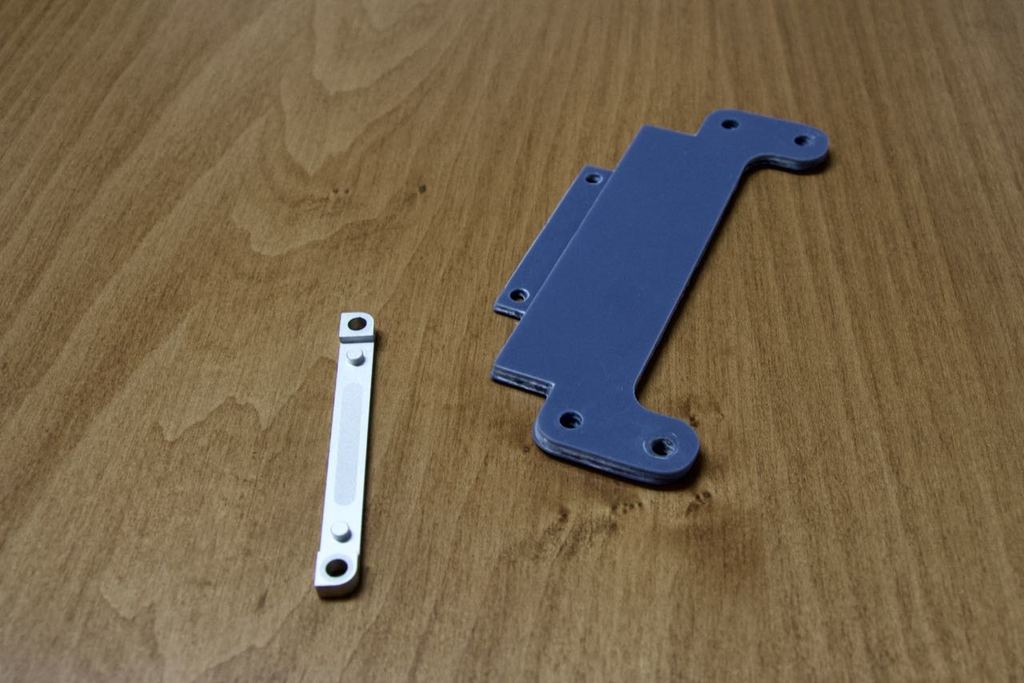

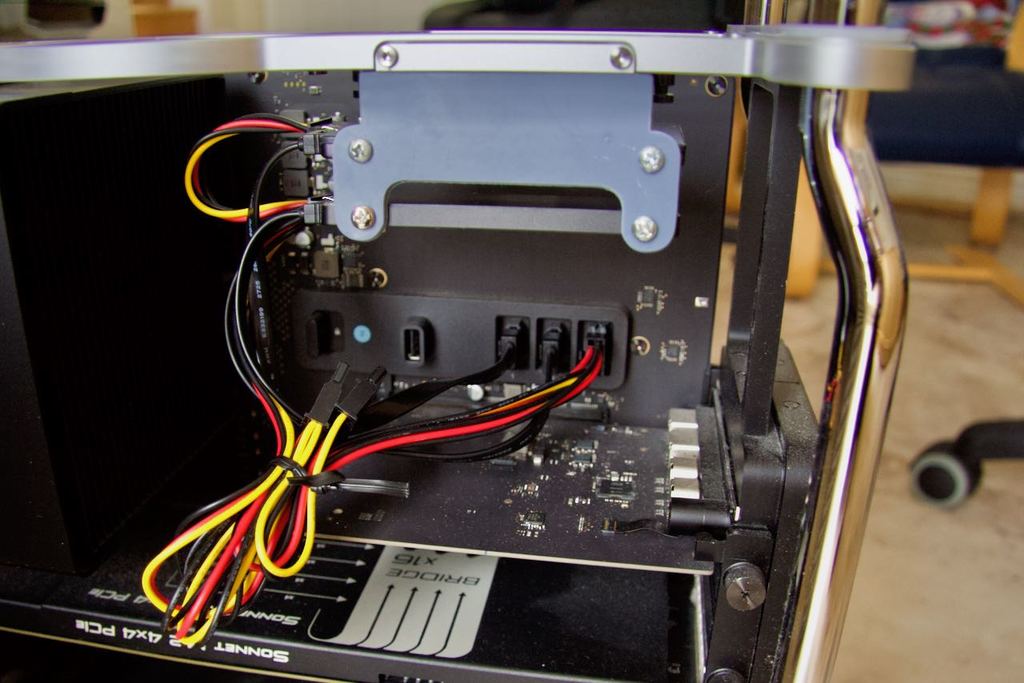

The small metal clamp you see in the photos comes off the MacPro frame - look up from the SATA data and power connectors. The 3D printed bracket is designed to sandwich inside the metal clamp.

Please "like" this file if you collect or download it.

You will also need (I ordered these from Aliexpress):

2 of these:

SATA Cable straight 25 cm [https://www.aliexpress.com/item/10000021938520.html?spm=a2g0o.9042311.0.0.4dcb4c4dcvgR2v](https://www.aliexpress.com/item/10000021938520.html?spm=a2g0o.9042311.0.0.4dcb4c4dcvgR2v)

mini 10pin to 4 port SATA 15pin HDD Hard Driver Power Supply Cable [https://www.aliexpress.com/item/1005002884525867.html?spm=a2g0o.9042311.0.0.4dcb4c4dcvgR2v](https://www.aliexpress.com/item/1005002884525867.html?spm=a2g0o.9042311.0.0.4dcb4c4dcvgR2v)
