Descrição

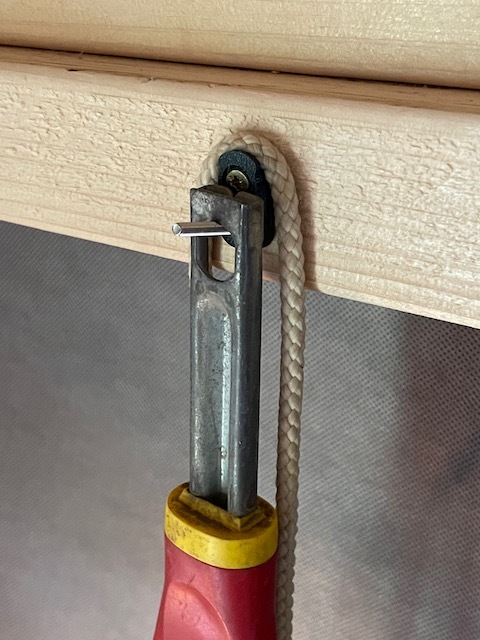

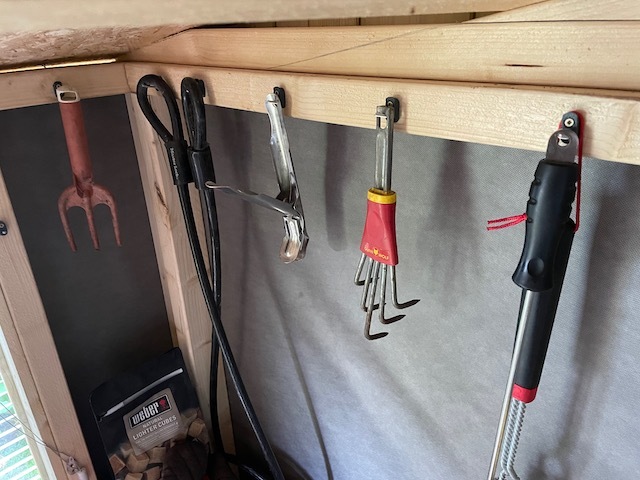

I needed hooks to hang tools in my wooden garden shed. I felt lazy to buy some so I thought why not create some and 3D print them?
But I was afraid it would not stand the weight of my tools and that whatever the design it would break way too soon.
So I thought I should use some metal in my design. And then I realized I had a whole bunch of M3 hex head screws in my drawers!

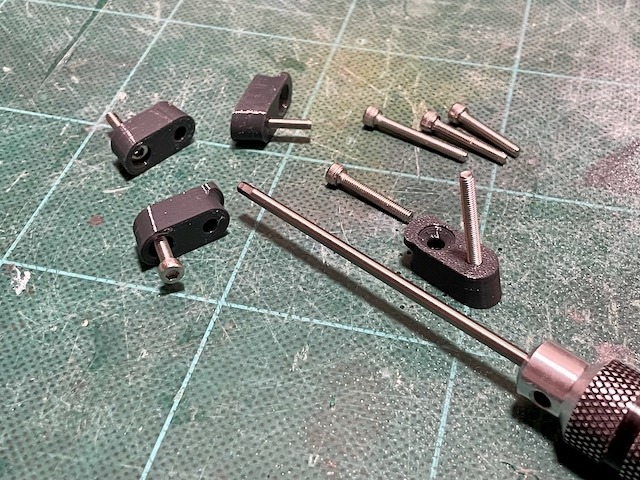

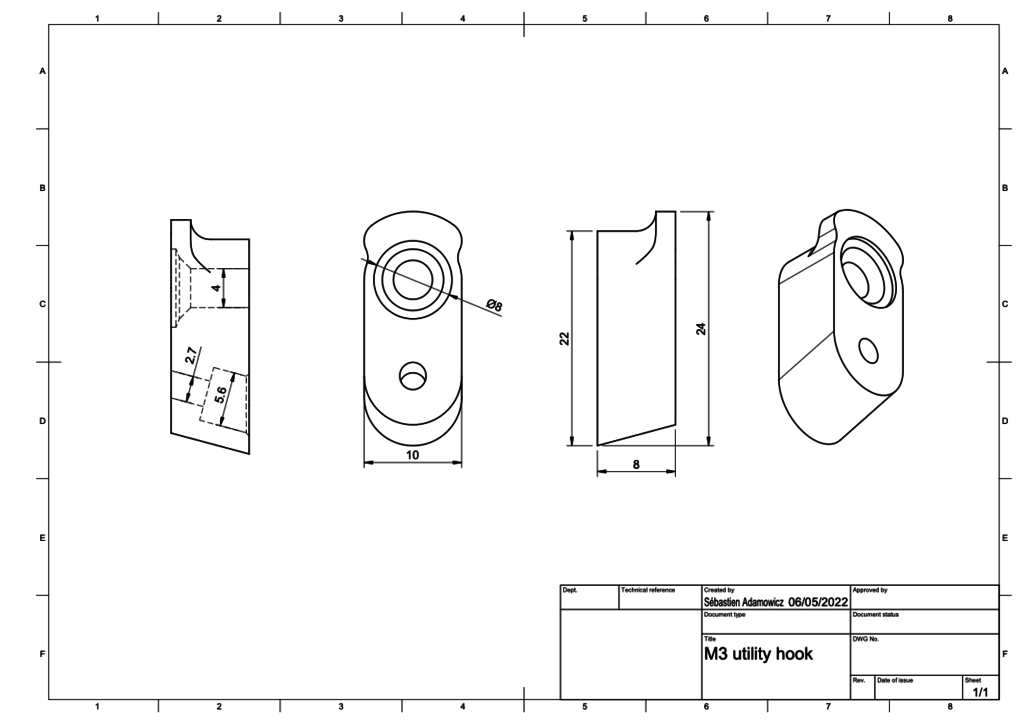

And this is it: a 3D printed hook with a steel rod made of M3 hex head screws. The M3 screw comes out of the plastic part at a 15° angle which seems right to me. You simply attach the hook to a panel with a small standard wood screw.
Since there are many sizes of M3 screws, you can choose the depth of the hook since it only depends on the length of the screw. I used up to M3x25 lengths.

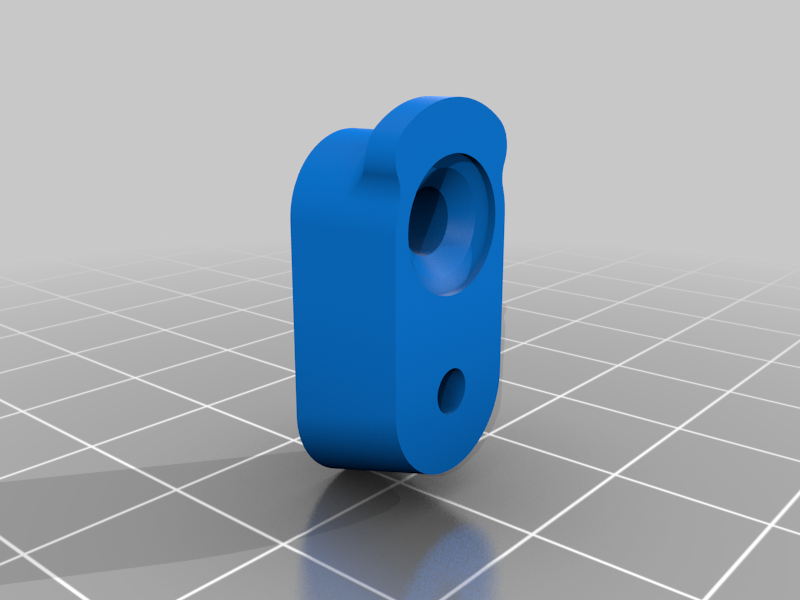

The "crest" version features a little flange on the top of the plastic part that can hold a suspended object or tool attached to a string.
Print Settings
Printer Brand:
Prusa
Printer:
I3 MK3S
Rafts:
No
Supports:
No
Resolution:
0.2
Infill:
20%
Filament:
Prusament PETG PETG or PLA
Notes:
Print these 'face down' and you won't need any support.
You can use PLA or PETG. I prefer PETG for that kind of use since it is less brittle than PLA.
Category: Organization
