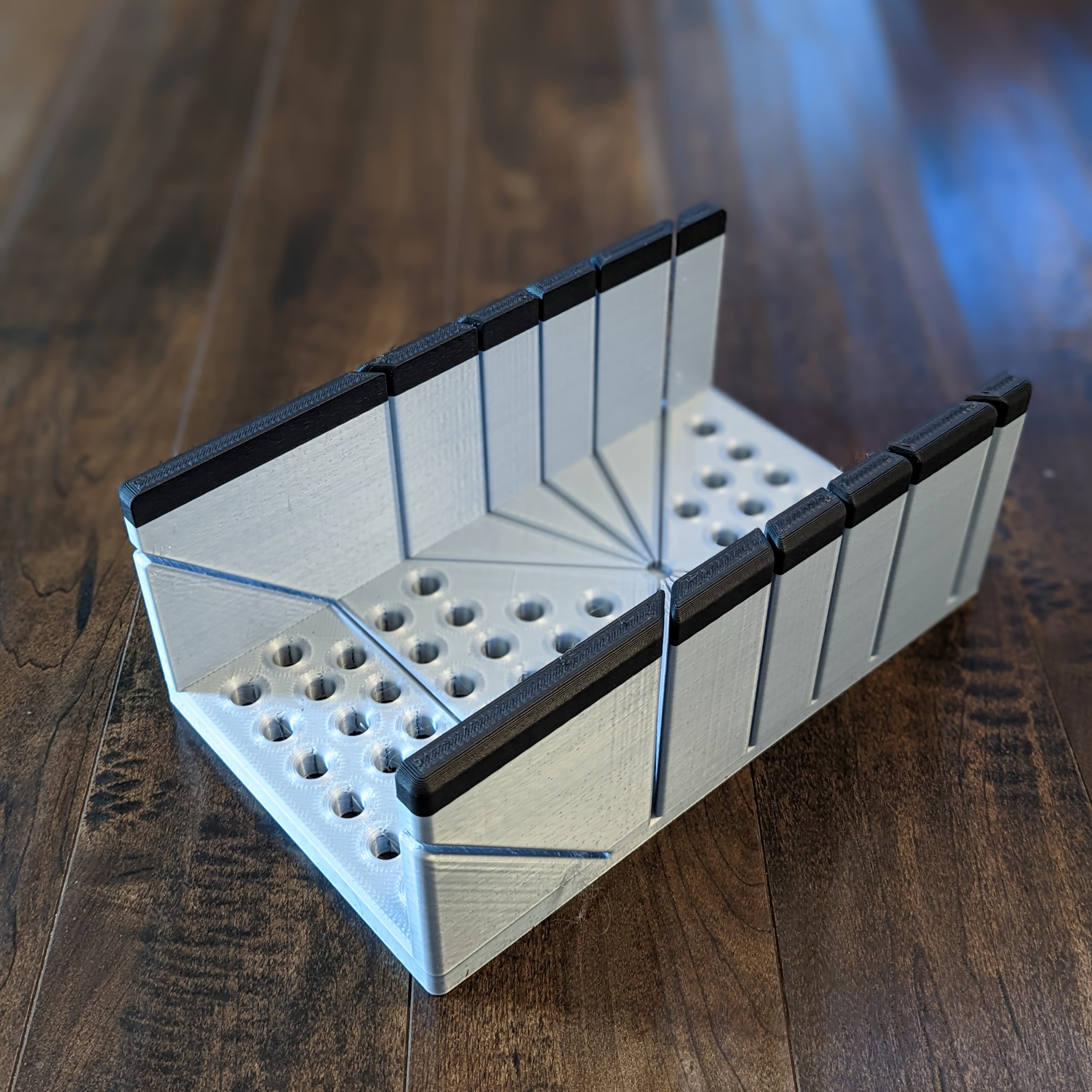

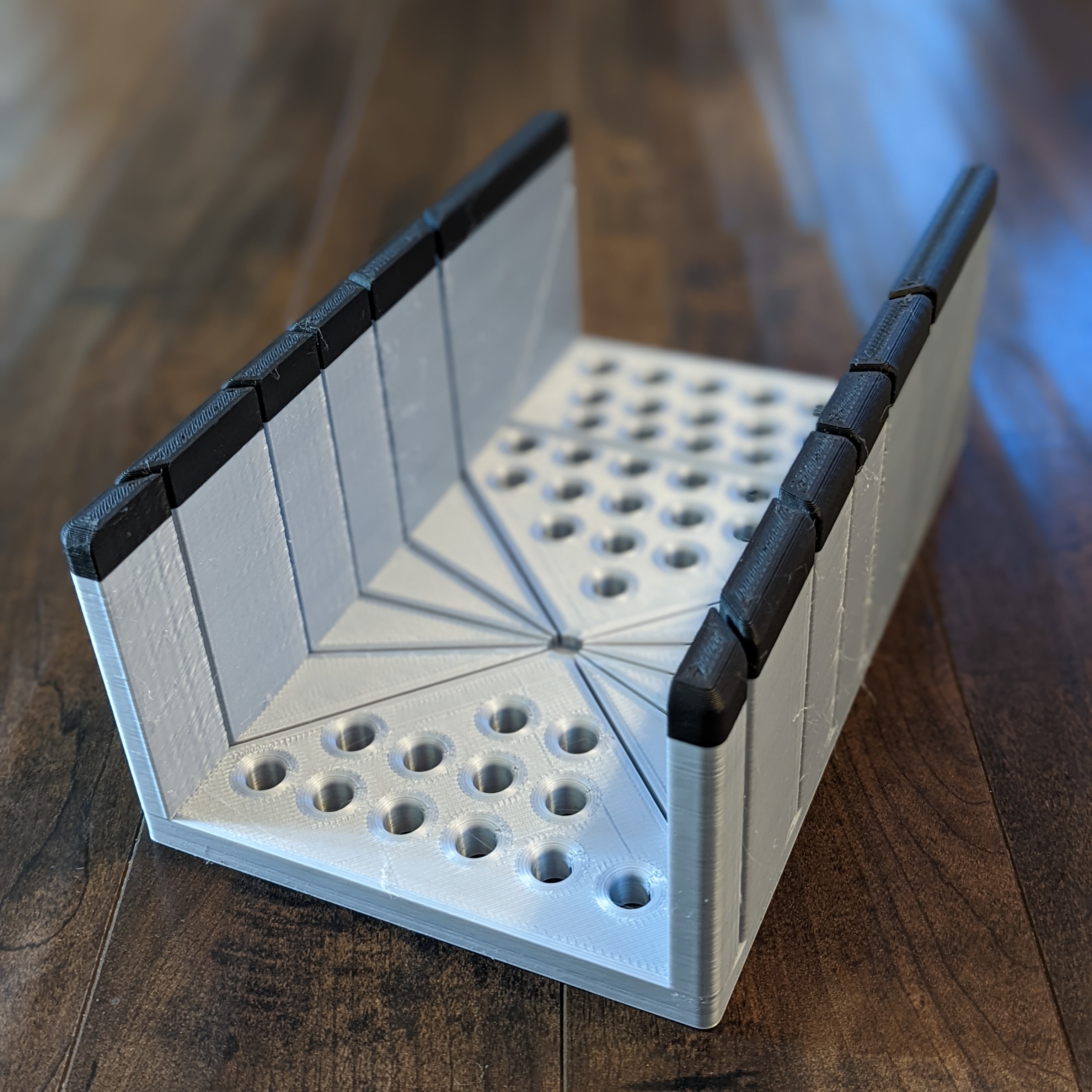

Large mitre box for sawing precise angles with a hand saw. Can be used to cut boards up to 6" wide. Available angles are 0°, 22.5° and 45°, as well as one vertical 45° angle.

Outside dimensions of the box:

• 298mm long (11.73")
• 177.8mm wide (7")
• 114.3mm tall (4.5")

Inspired by the Stanley Deluxe Clamping Mitre Box. Compatible pegs can be found here: [https://www.thingiverse.com/thing:2435496](https://www.thingiverse.com/thing:2435496). Two of these pegs can be used to clamp any size board to the box while cutting. I've included an unmodified STL of this peg with this Thing for convenience.

Requires a large print bed to print! It's the maximum size I can print on my Artillery Sidewinder X2 (300mm). I printed with a 0.8mm nozzle with Cura's "Draft" quality (0.32mm layer height). I started with an almost-new spool of silver PLA filament and still ran out about 95% of the way through.

Update: One of the tall edge pieces broke off within the first few minutes of me using it 🥲  I would recommend printing in something strong than PLA and/or with thicker walls/more infill than I did.
