Descrição

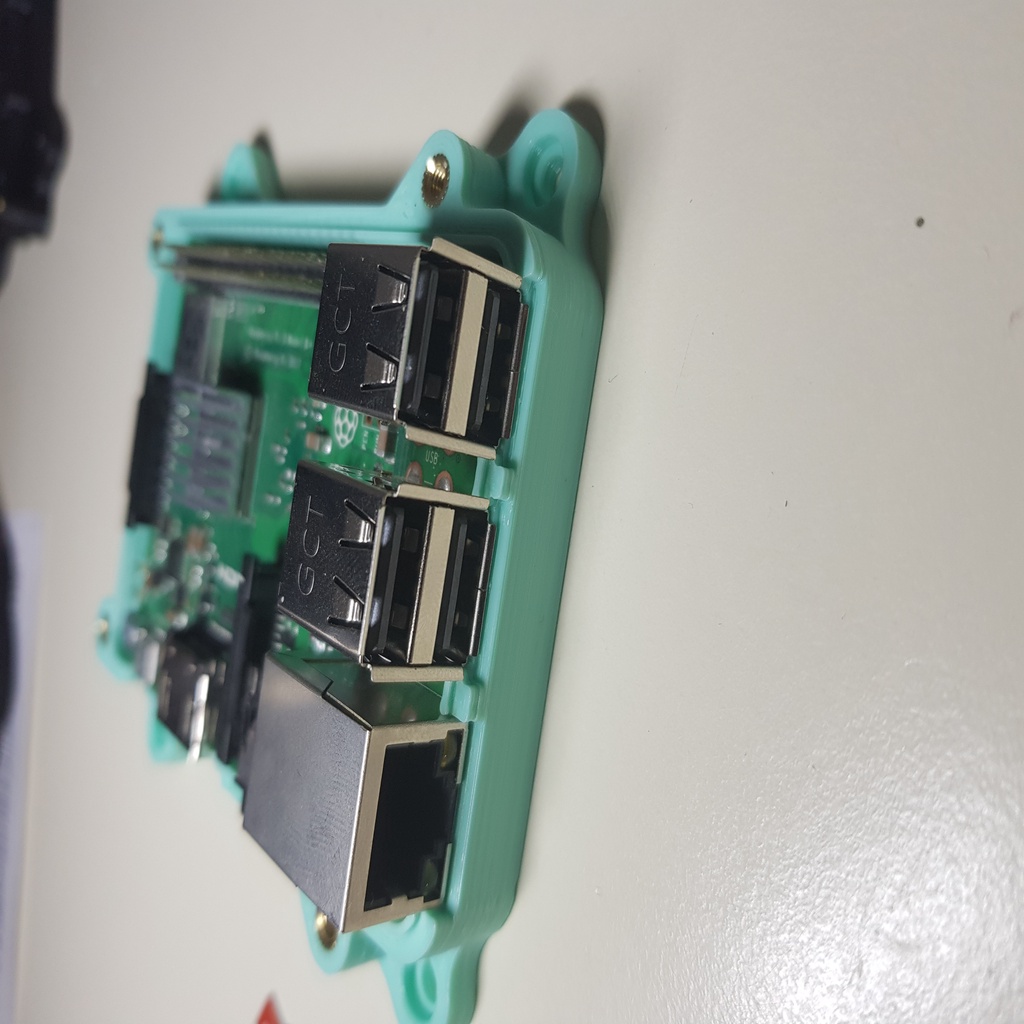

How it started: I wanted to make a case for my Raspberry PI 3 that fits my needs, that also can be easily modified in the future.
BOM:
- 8 x 3mm hex screws(length: 8mm)
- 8 x 3mm nut inserts M3x5x5mm(I got them from here: [https://www.aliexpress.com/item/32818101417.html?spm=a2g0s.9042311.0.0.2b254c4d5iyV0e](https://www.aliexpress.com/item/32818101417.html?spm=a2g0s.9042311.0.0.2b254c4d5iyV0e))

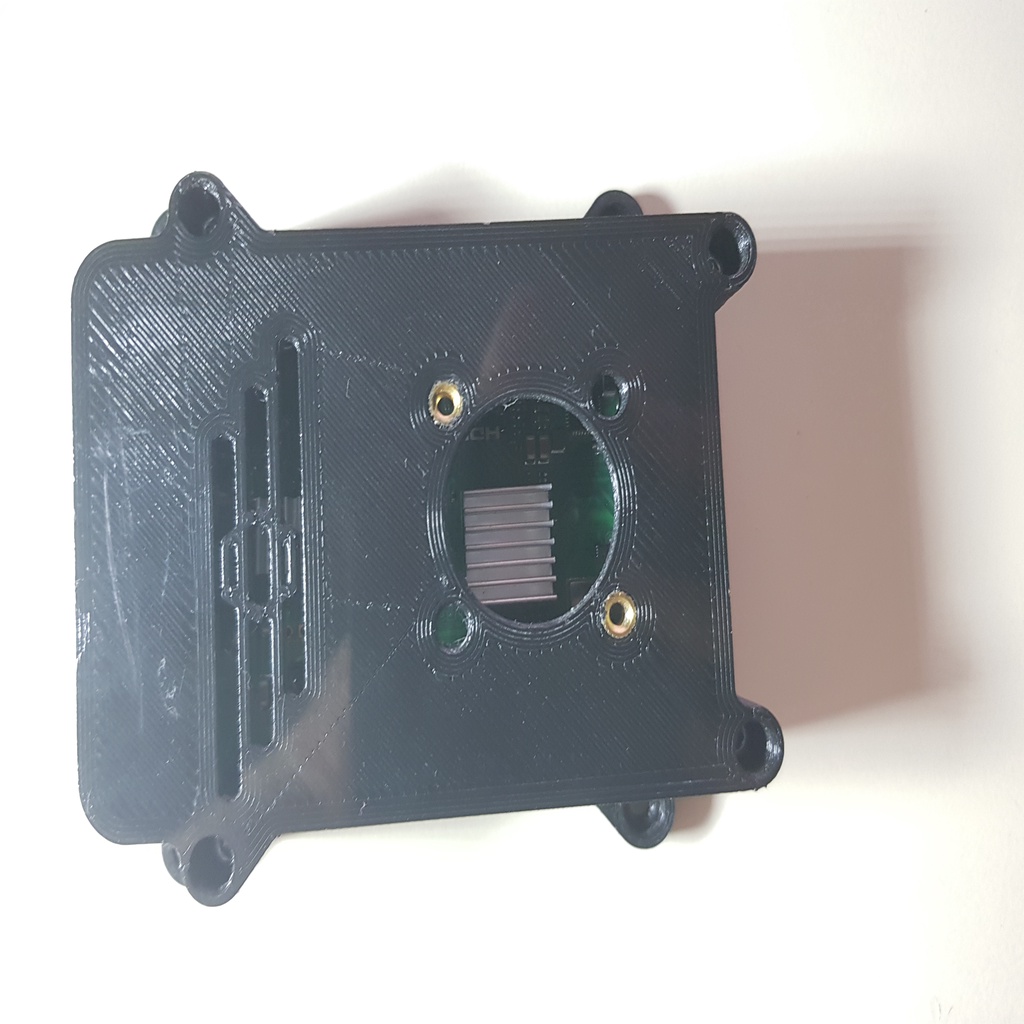

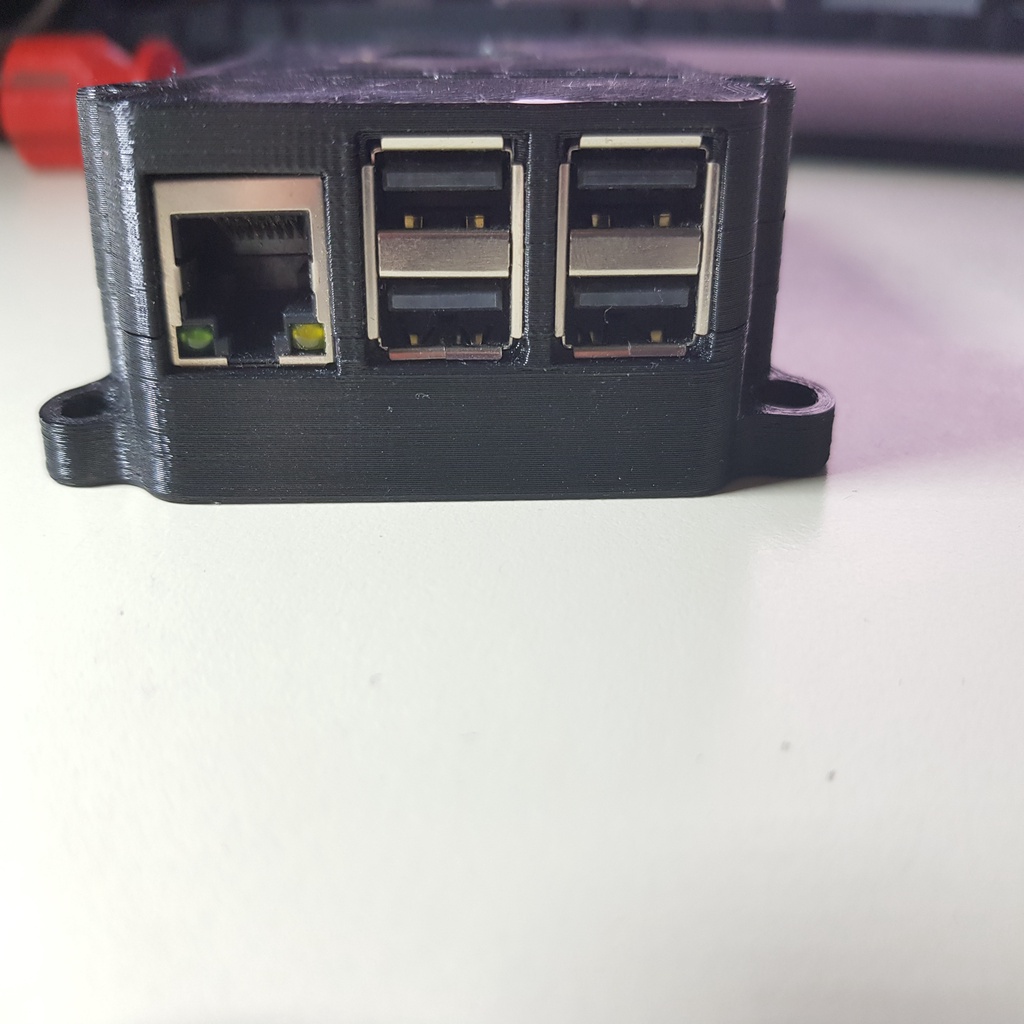

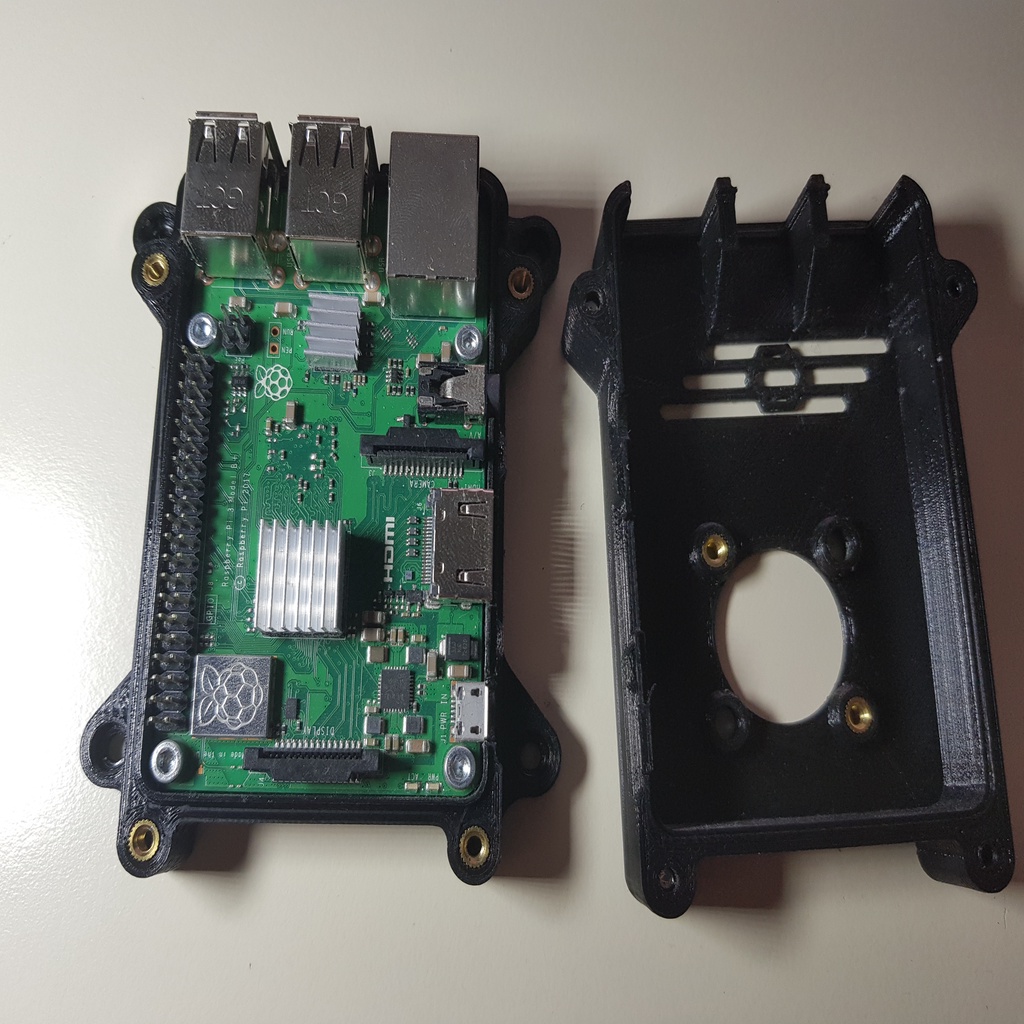

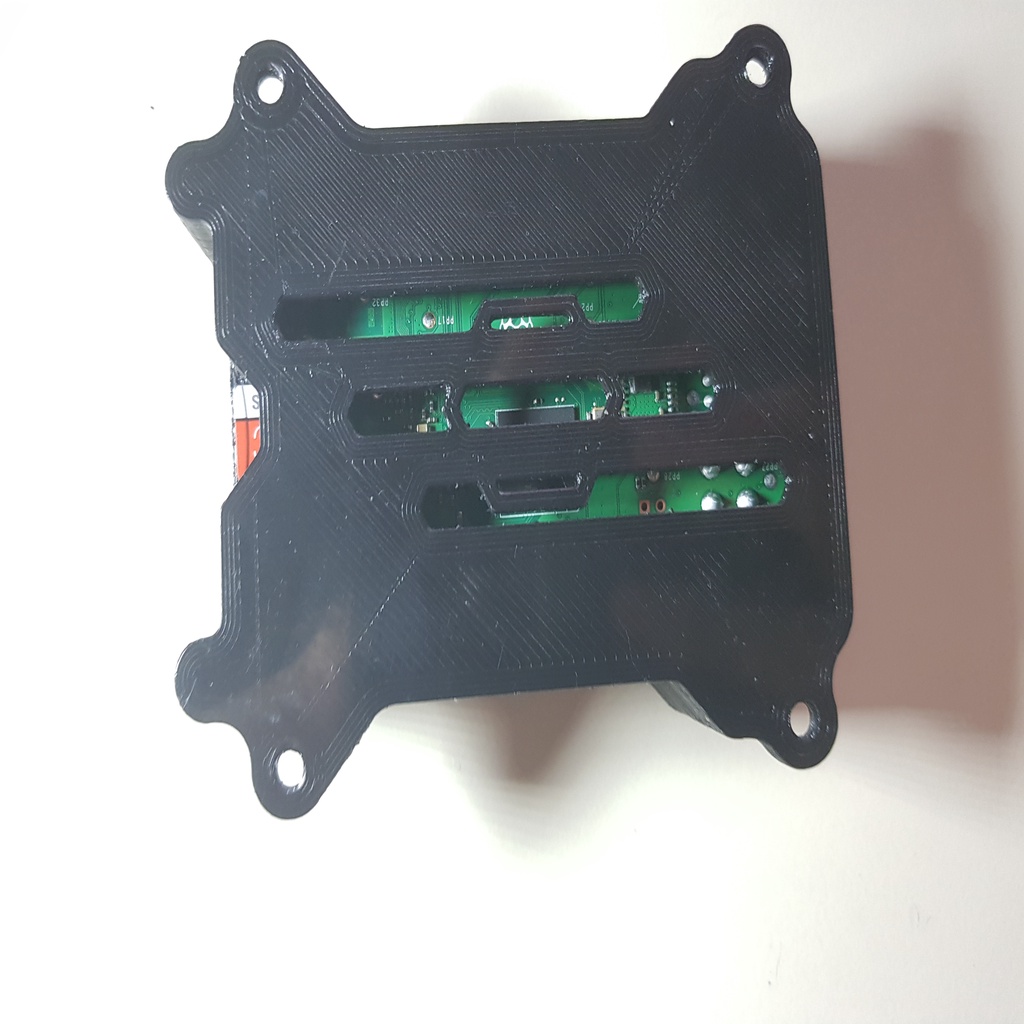

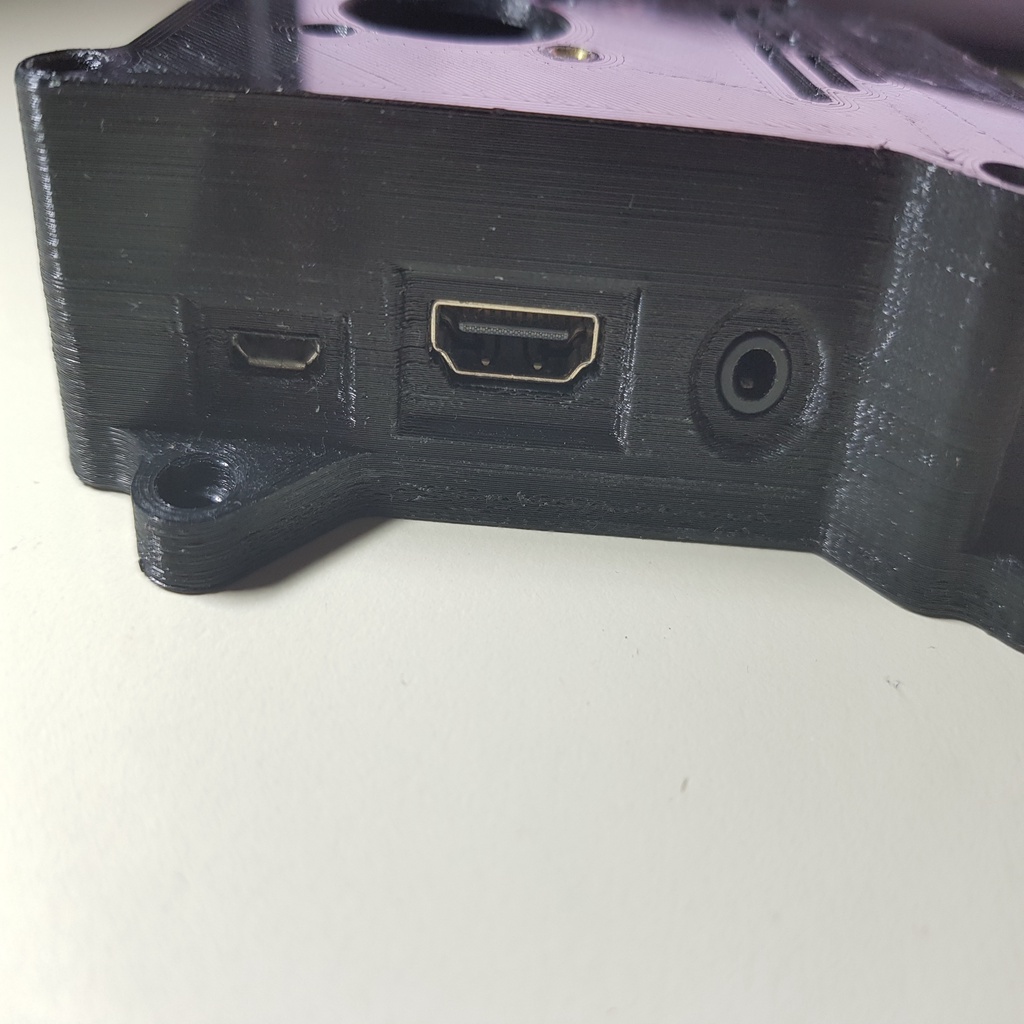

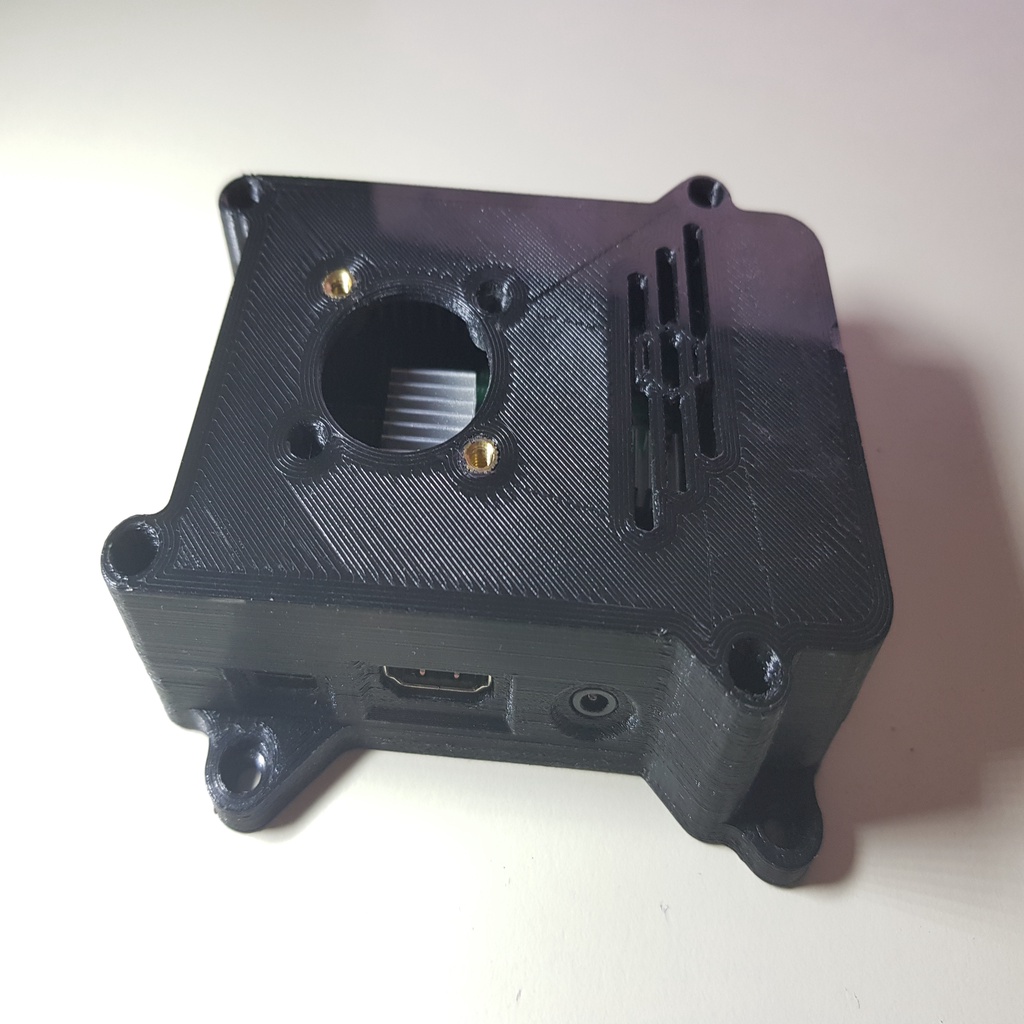

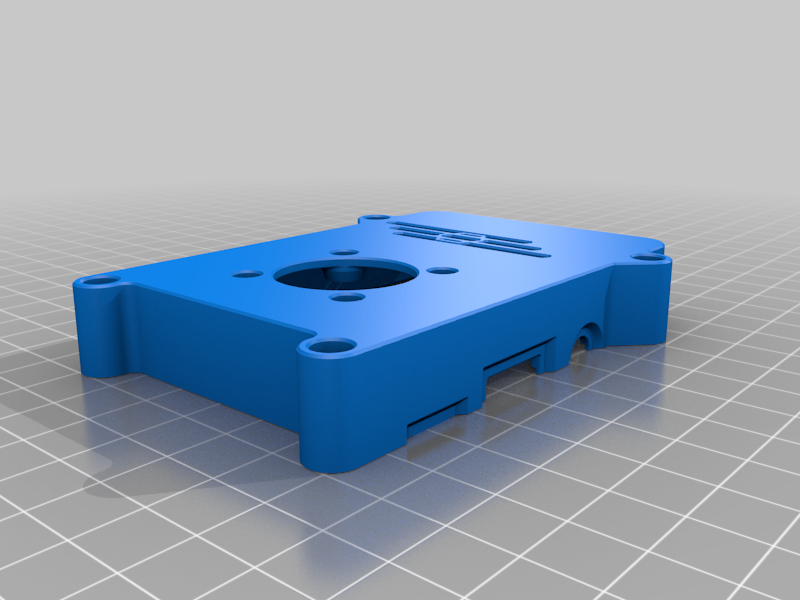

24/08/2019: The version currently uploaded is for VESA75 mount with active cooling with a 30mm fan(12v fan runned at 5v to be really silent).
I'm using this case for 8 months now, didn't had any overheating problem with my raspberry(it run 24/7 in this time).

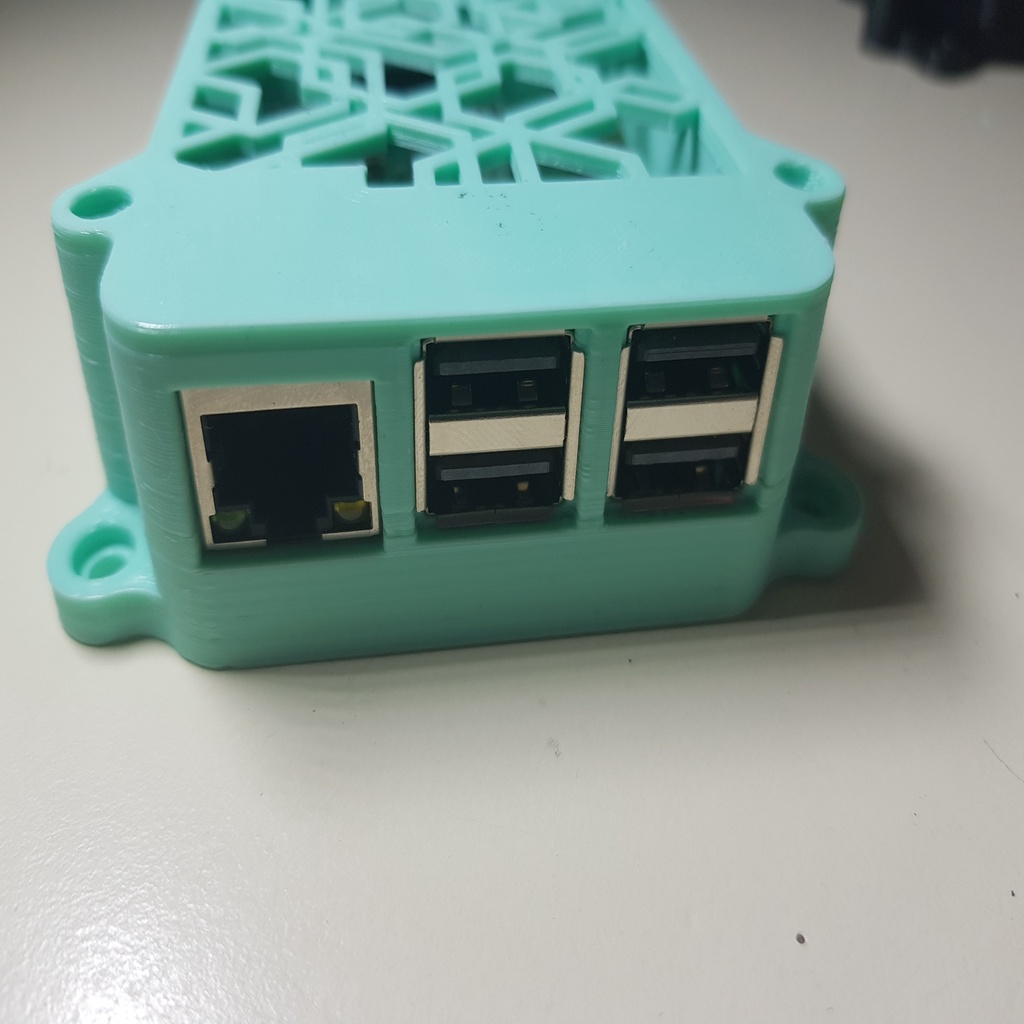

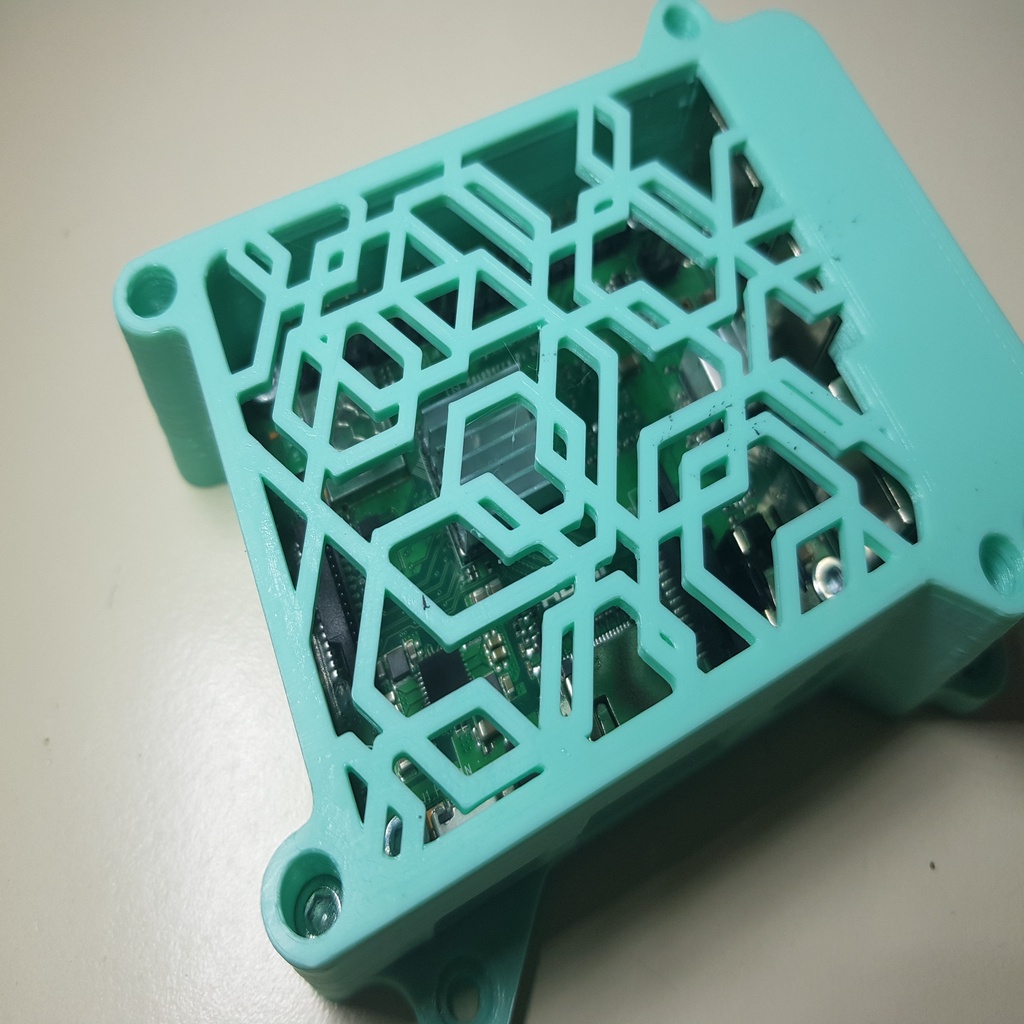

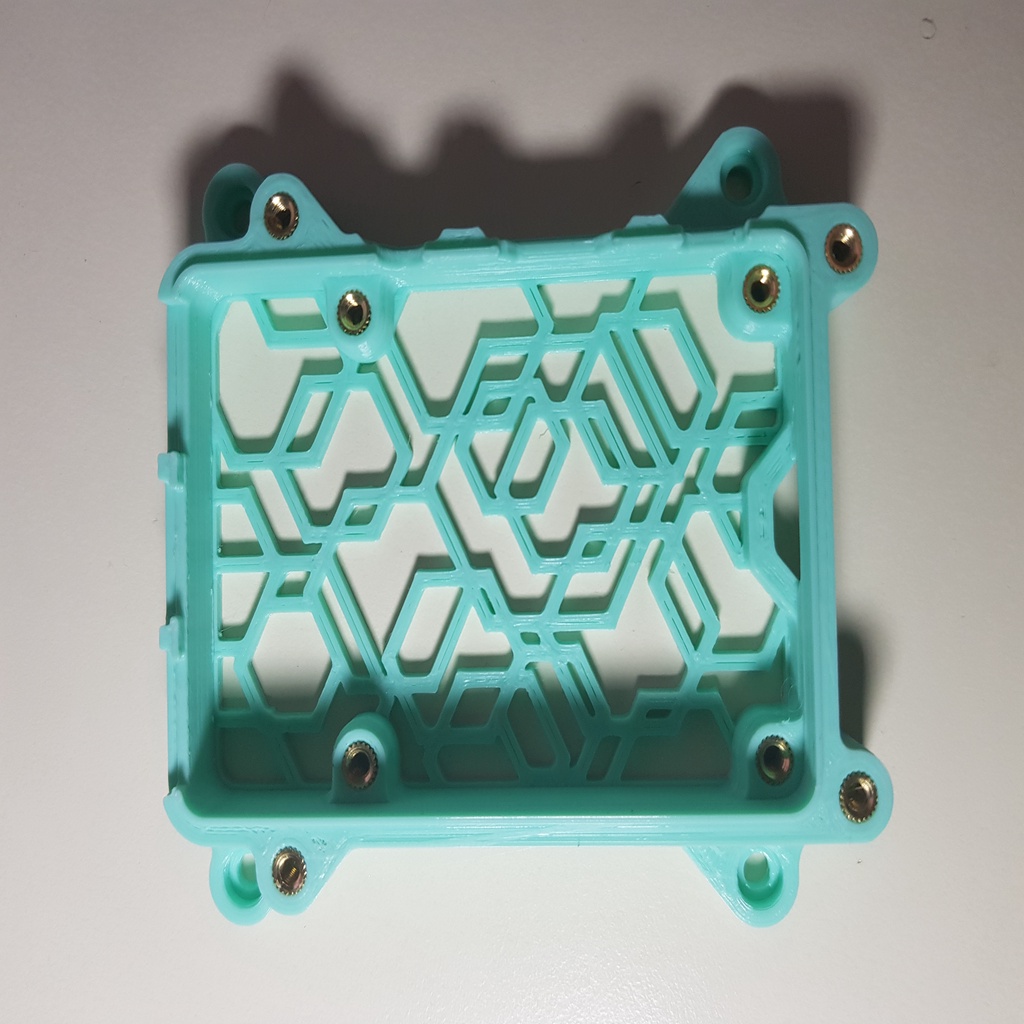

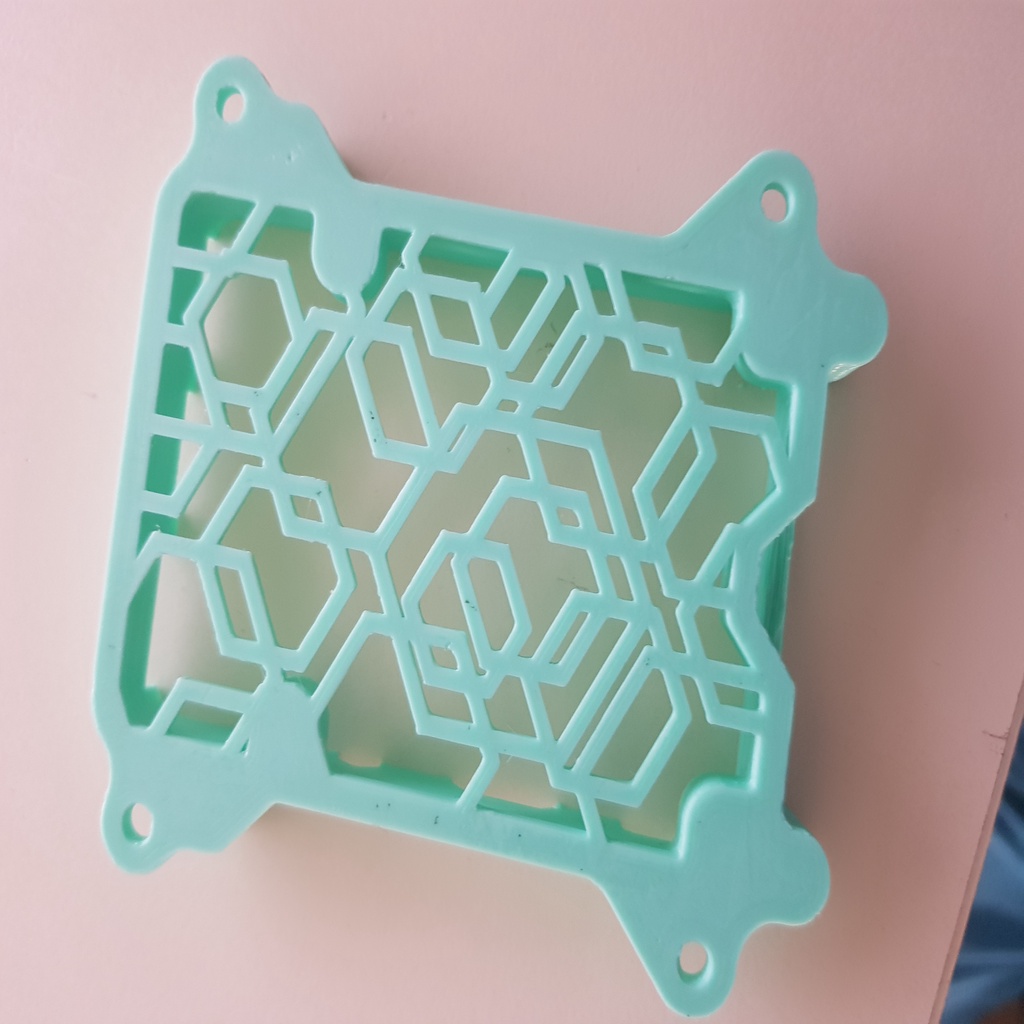

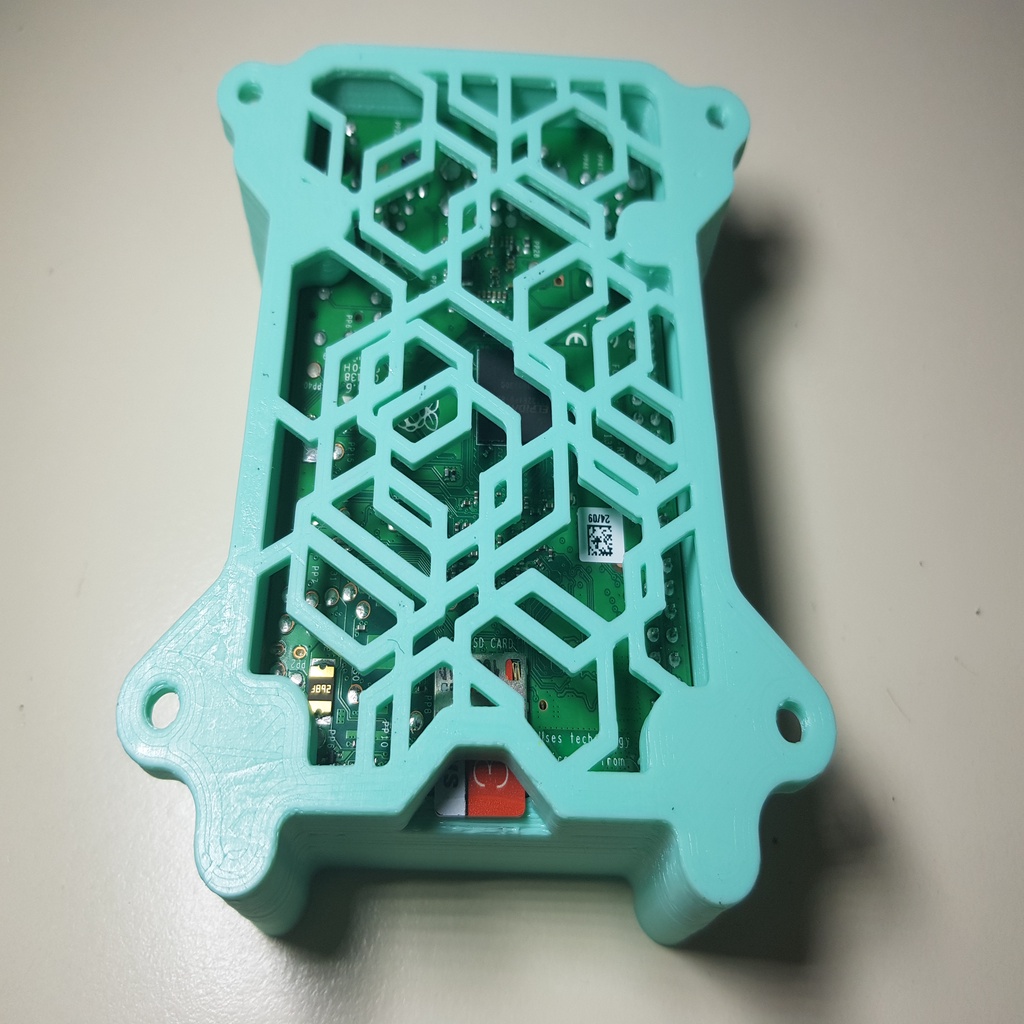

01/09/2019: Added the VESA75 passive cooling case. Added BOM
24/05/2020: Added VESA100 support + small fixes for both VESA versions

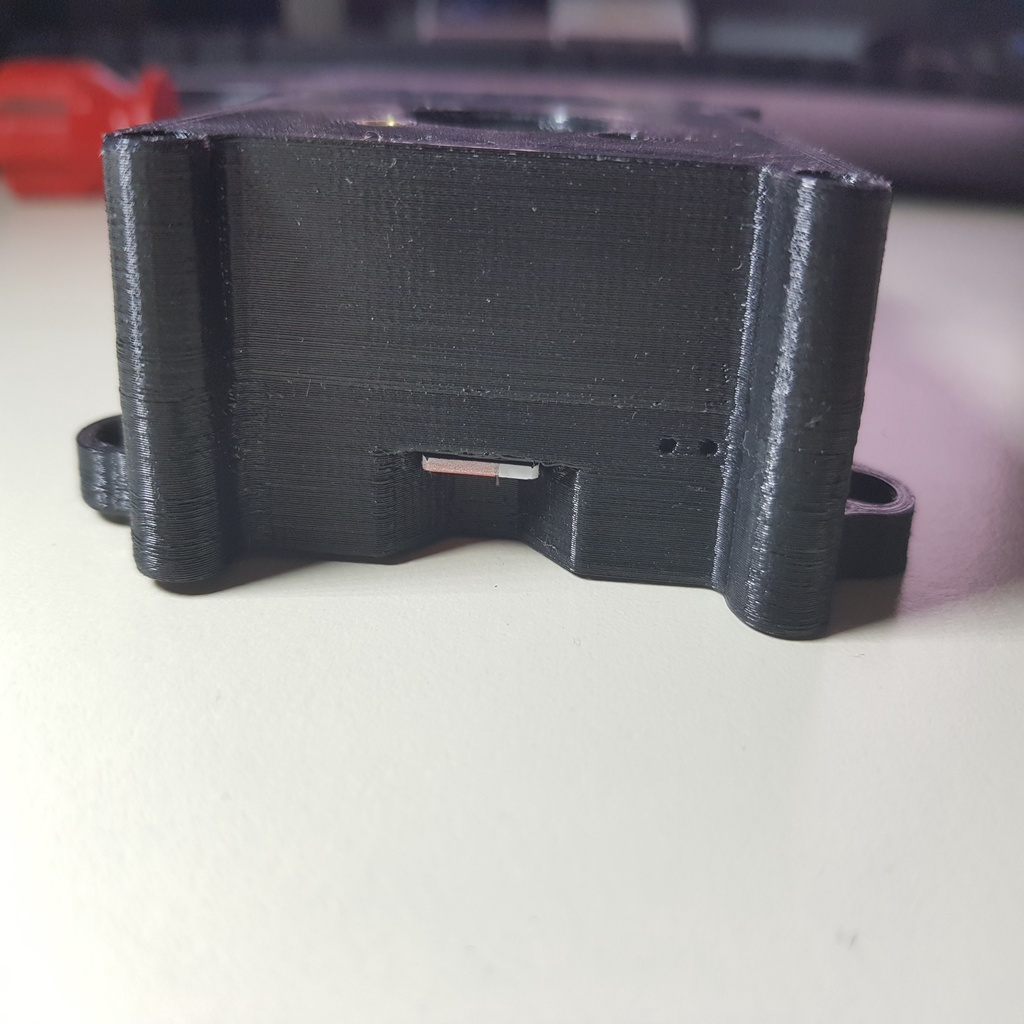

Problem fixed: Not enough room above the SD card slot <- Increased the room above the SD card slot.

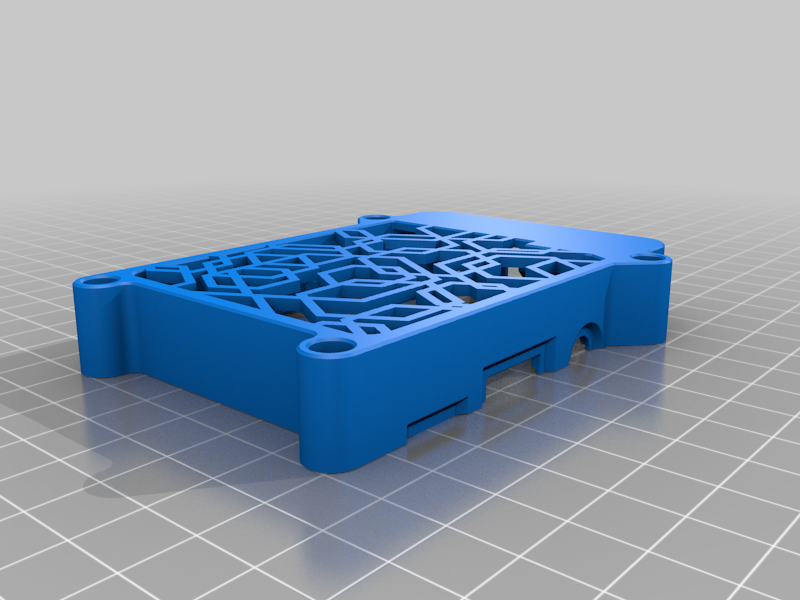

- VESA top compatible with new versions of VESA bottom(V1.1)
New Versions:

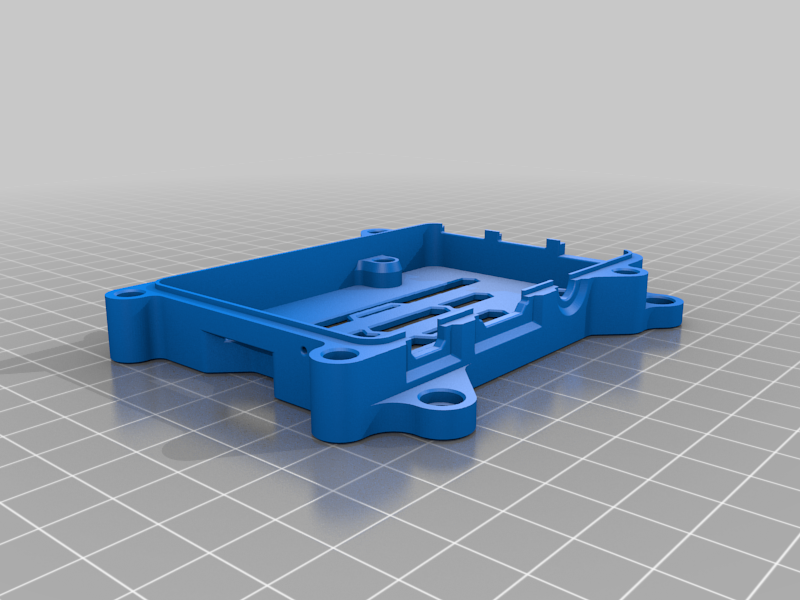

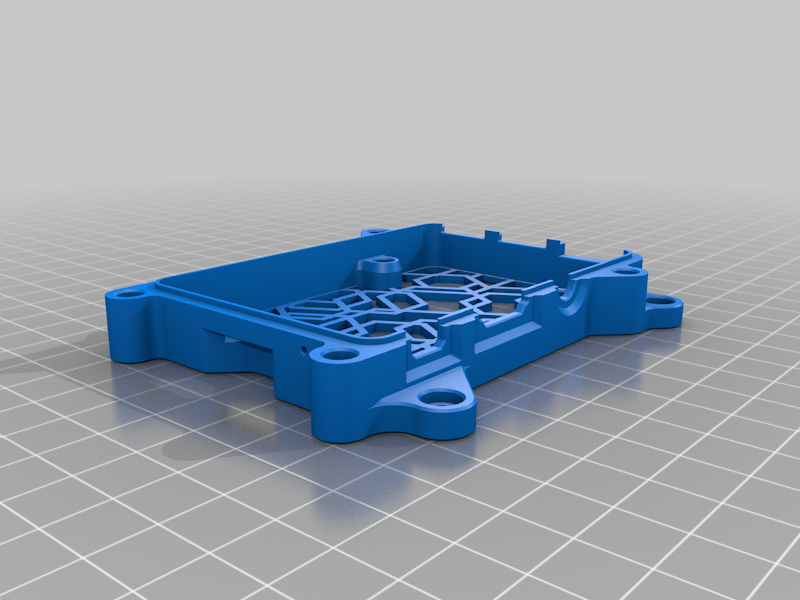

- VESA75 bottom: v1.1

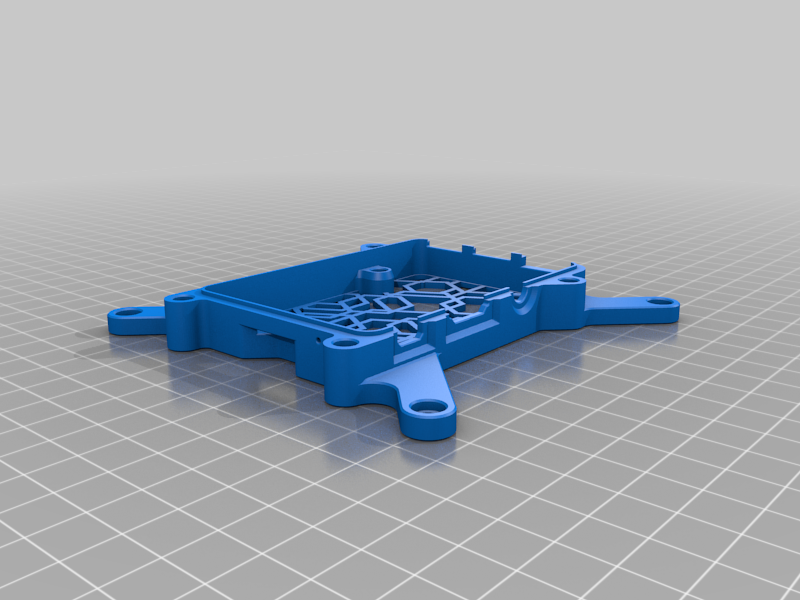

- VESA100 bottom: v1.1
You can print it in any material!
Feedback is welcome!
Print Settings
Printer:
Custom frame made by me
Rafts:
Doesn't Matter
Supports:
No
Resolution:
0.2
Infill:
25%
Filament:
any any
any
Category: DIY
