This Green Lantern ring is designed to use a CR1616 battery and the four pin square (piranha) LEDs.

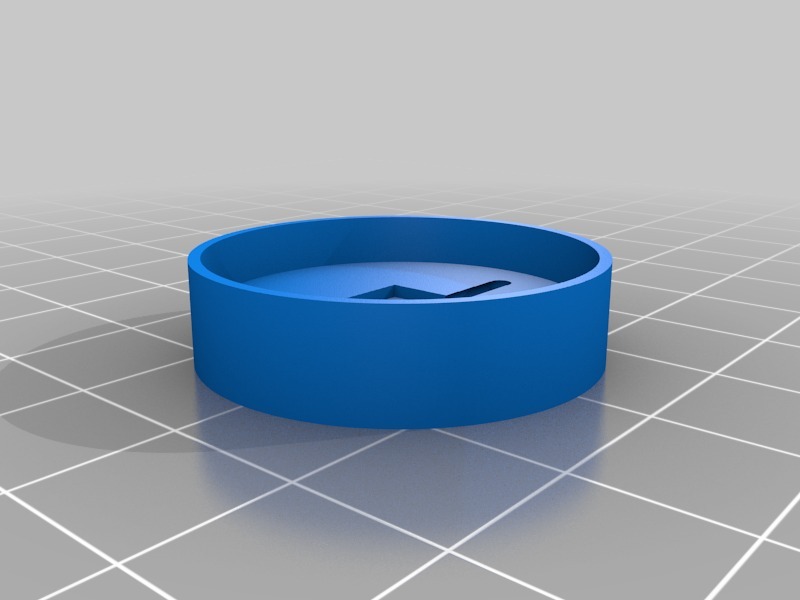

The middle piece holds the battery and led and is used to pressure fit the top lense to the ring base

Print Settings

Printer:

XYZ DaVinci 1.0

Rafts:

No

Supports:

No

Resolution:

.4

Infill:

None

Notes:

Mine is printed with Green PETG. I decided to not use any infill, but you can defiantly print it with the infill level you would prefer. Also if your system is not good at bridging you should probably use some supports.

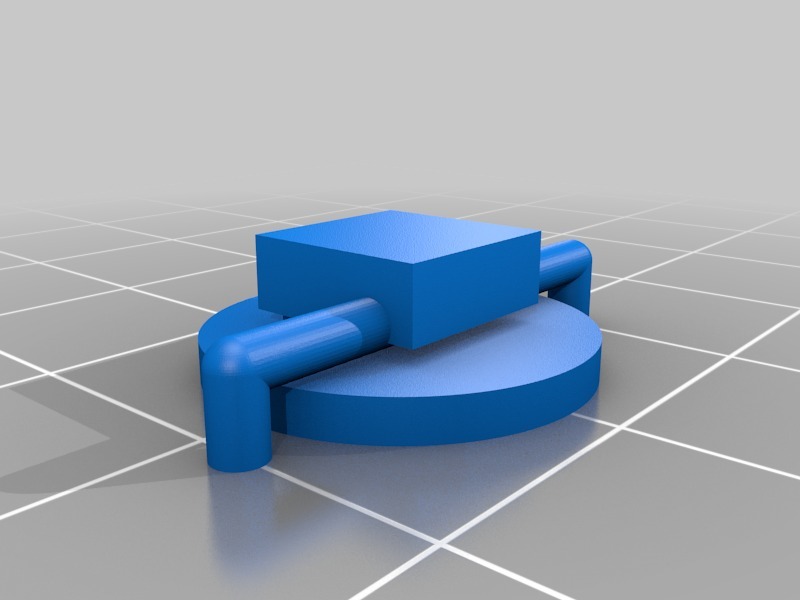

Don't worry about printing the battery and led model. That is there to help those who need to resize the ring make sure the battery and led will still fit.

Post-Printing

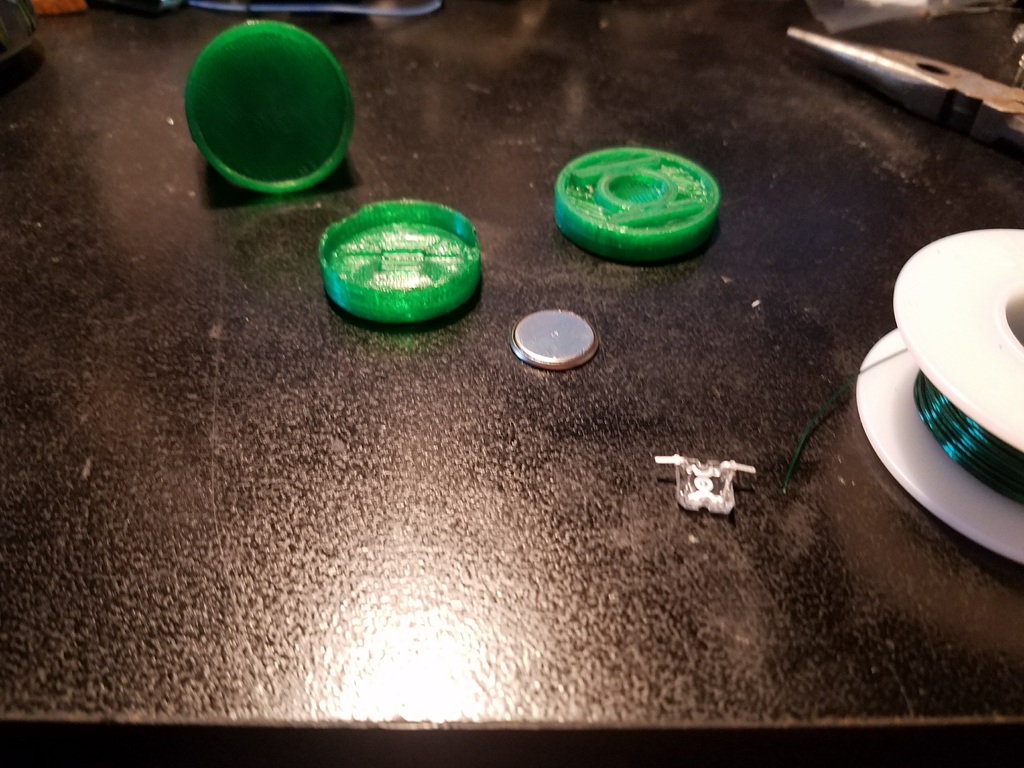

All the parts.

The parts.

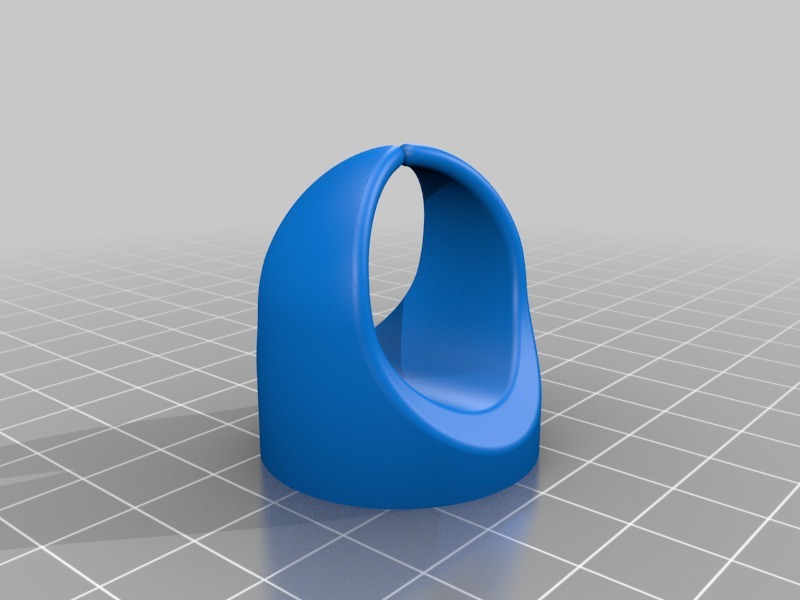

1. Ring base
2. Led / battery tray

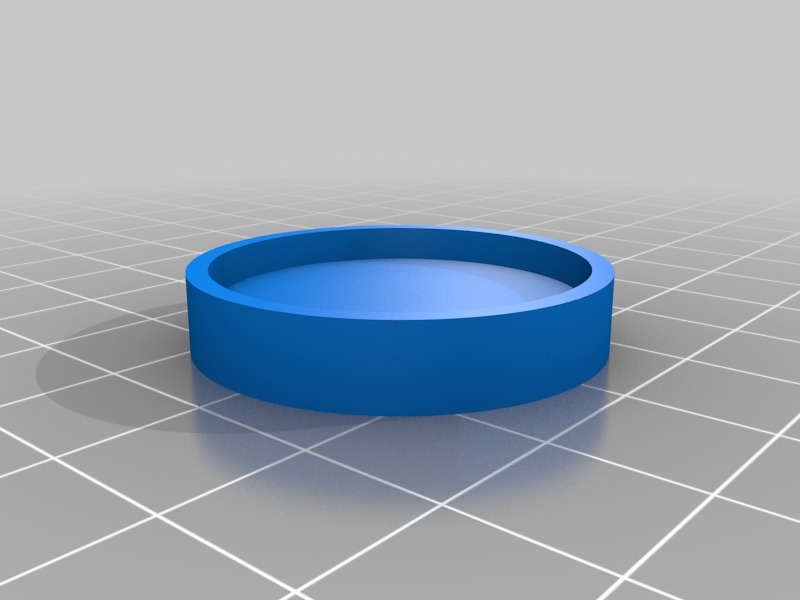

3. Ring Face
4. Battery
5. LED
6. Wire

Note the legs of the led folded down.

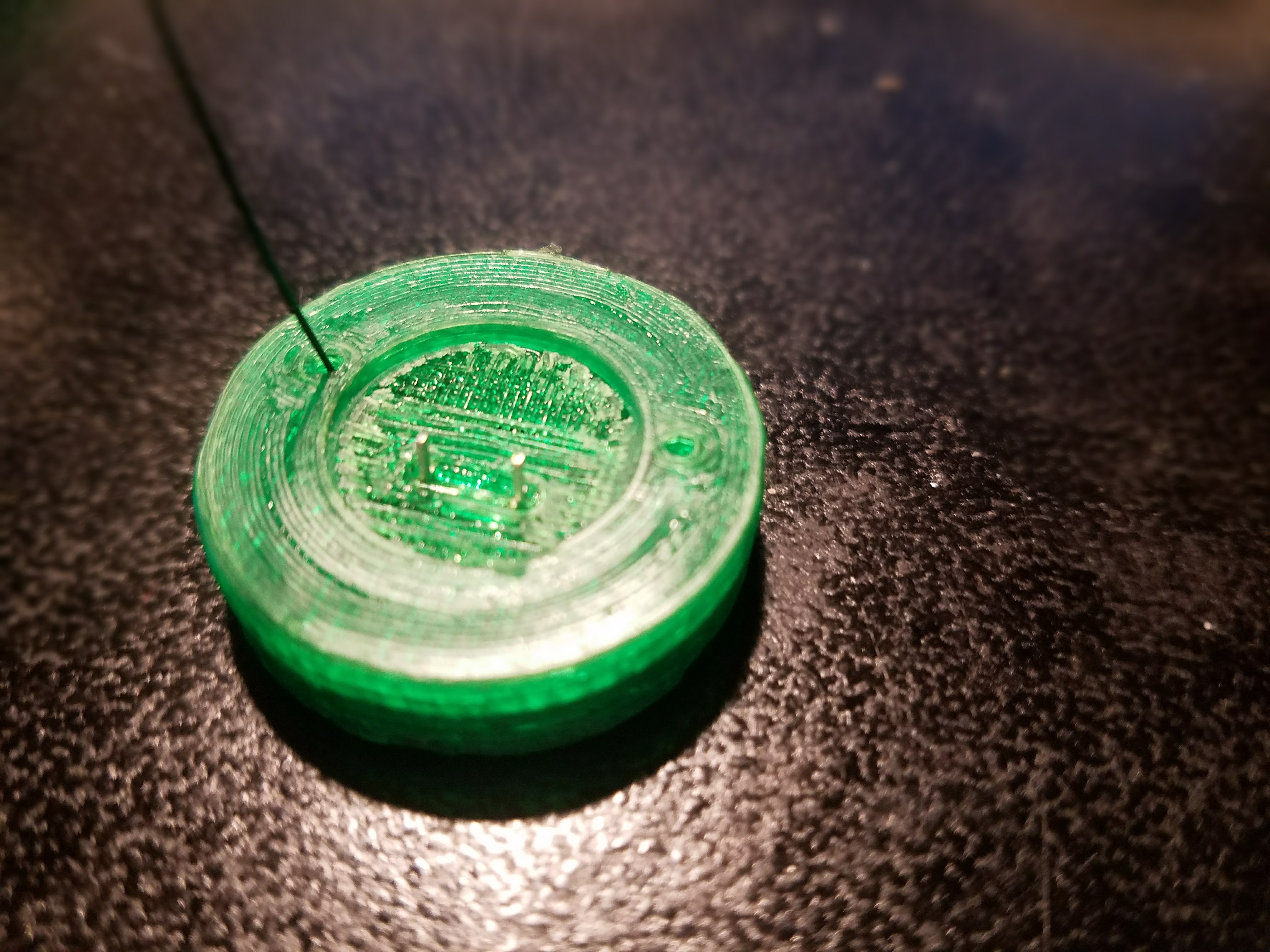

LED in Tray

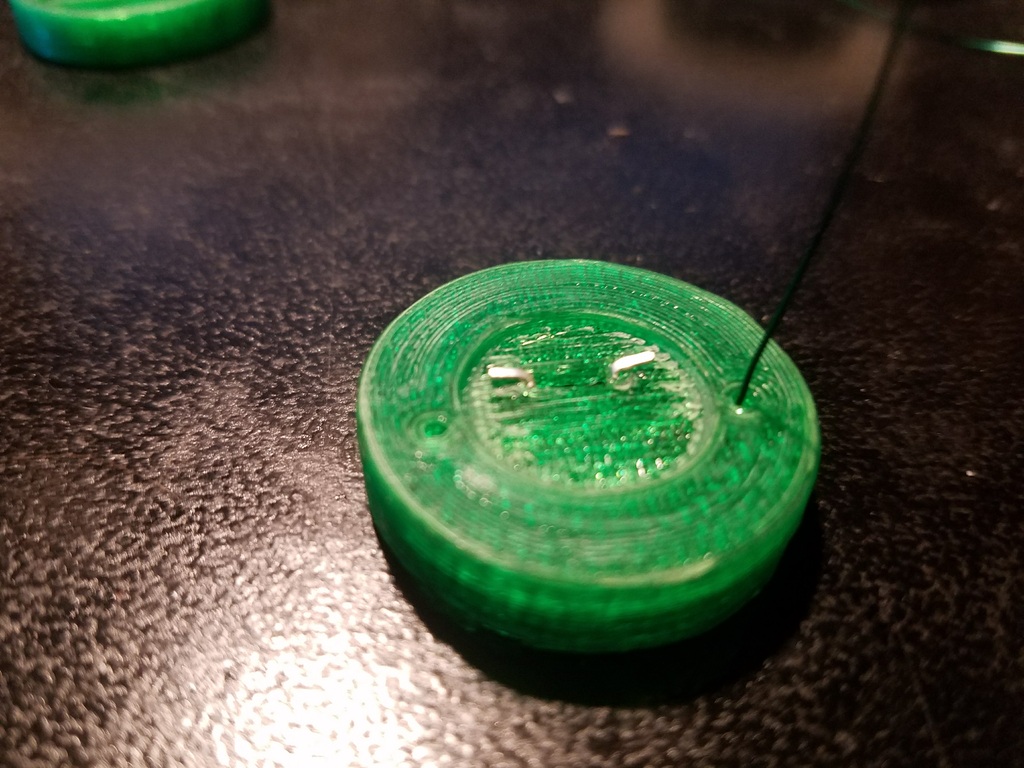

Solder the wire to one of the folded legs of the LED and hten feed the wire through one of the two holes in the tray.

Then press the two unbent legs through the slit in the tray.

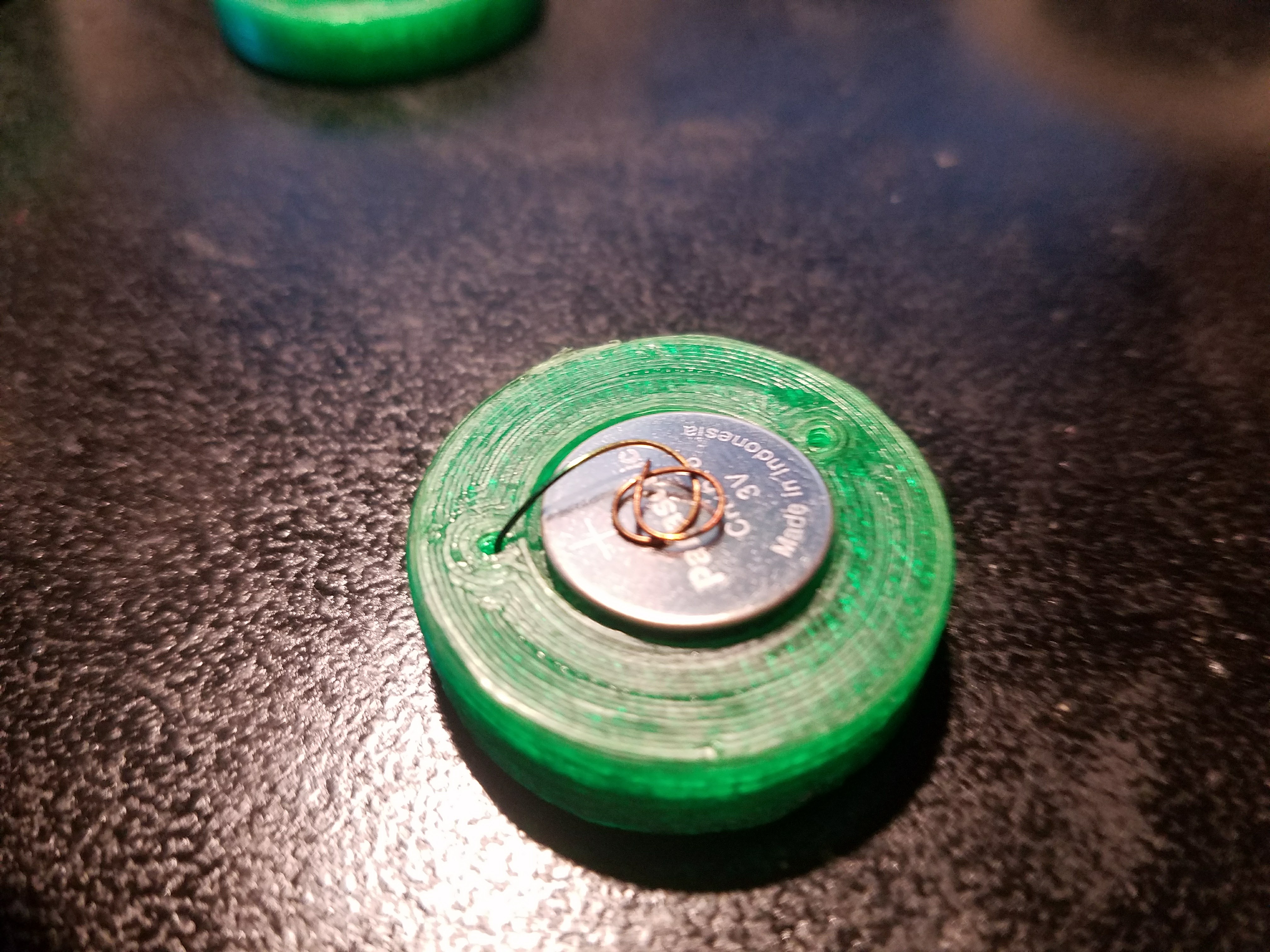

Battery side of tray

Bend the legs to hold the led in place and provide contact for the battery.

Bend the wire to to back of the battery.

I coiled the wire some to help with the contact.

now press the tray in between the base and the face.

If your led does not turn on try turning your battery over.
