Overview

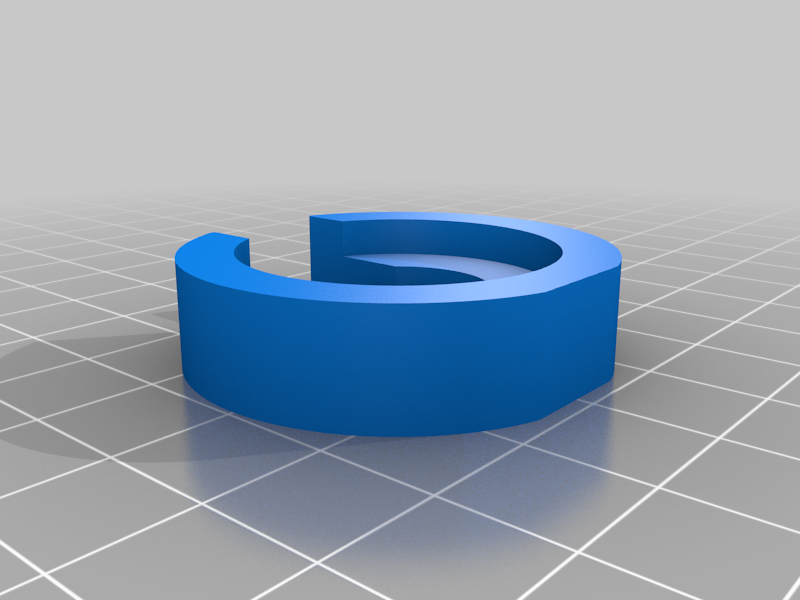

This is a series of air volume spacers specifically for the Fox Float X and Fox DPX2 mountain bike suspension shocks. The CAD is roughly based off of the five piece kit that Fox sells.

Revisions

May 23, 2020 - Initial Release

June 13, 2020 - Added 0.86 in^3 Spacer

Available Configurations

Listed below are the series of volumes available within this release:

0.2 in^3

0.3 in^3

0.4 in^3

0.6 in^3

0.68 in^3

0.74 in^3

Additional Disclaimer

This is a non-official release for these suspension shocks, and should be treated as such. Installing this print could create damage to your shock, and potentially void any warranty. Therefore please use with caution.

Print Settings

Print should be done in a high-temp, impact resistant material; ABS, Nylon, PC.

If you are not printing at 100% infill, you will need to get a final volume estimation from your slicer, on it's "print material estimation".

Rough estimates below assume masses based on 100% infill with ABS. Use these estimations in order to determine final volume when adjusting part infill.

0.2 = 3.4g

0.3 = 4.89g

0.4 = 6.55g

0.6 = 10.04g

0.68 = 11.4g

0.74 = 12.18g
