Overview

This design is for a modular electronics enclosure for 3D printers. It utilizes a enclosure / tray system, which allows users to create a new tray if different electronics are needed. This configuration is setup to support an Mainboard (MKS Gen L, SKR 1.3, SKR 1.4, SKR 1.4 Turbo, & SKR Mini) , External Mosfet Board, and Raspberry Pi. All Hardware used in this design is M3.

Revisions

Initial Release - September 5, 2020

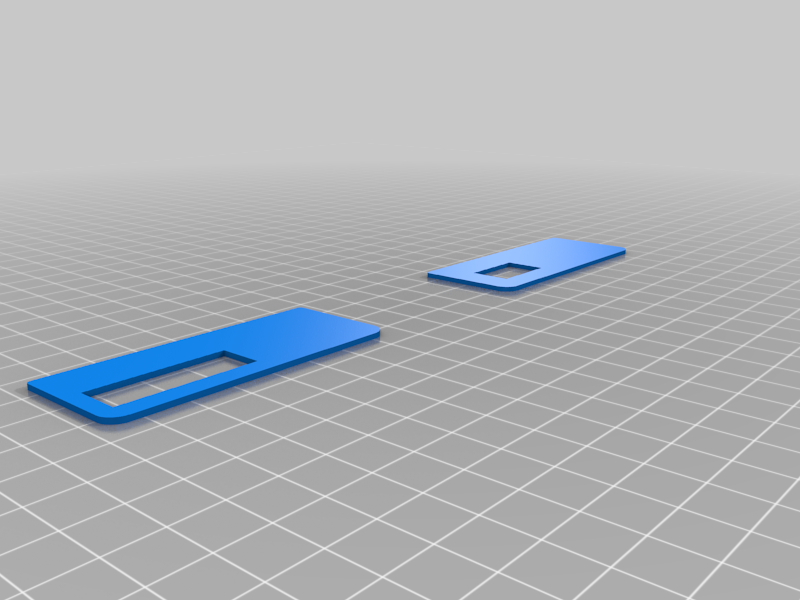

Updates to design; Lid closure fasteners from one to three, added stl files for skr mini. - October 25, 2020

Detailed Description

This design was intended to be fully customization for other users. As it features:

• Simple tray system for mounting all electronics inside the housing
• Simple I/O panels which can be changed
• Mounting locations for the housing on two different sides
• Plastic knock-out features for cable egress

The current configuration uploaded is optimized for:

• MKS Gen L/SKR 1.3/SKR 1.4
• External Mosfet
• Rasp Pi B+

Current Hardware Needed:

• 6X - M3 Hex Nuts
• 17X - M3X10mm Screws
• 1X - M3X25mm Screw
• 2X or 3X - M6 Screws for mounting onto your printer frame

Printed BOM:

• 1X - Blanking Panel 1
• 1X - Blanking Panel 2
• 5X - 1mm Spacer
• 1X - Base
• 2X - Hinge Pin
• 1X - Electronics Chassis
• 1X - Lid

Print Settings:

Material: PETG or ABS

Infill: 30%

Layer Resolution: 0.2mm

Support Needed: No
