Rocket Designed to fly off 29mm motors for best performance.

The Rocket glues (super glue / CA glue) together

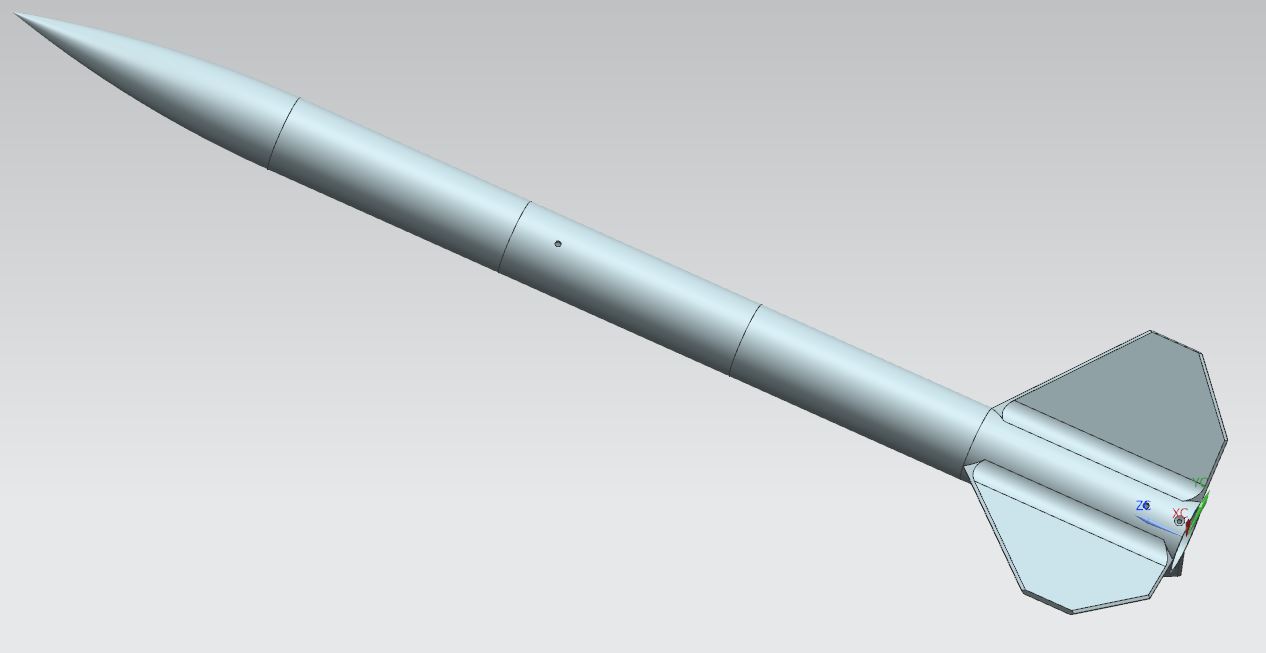

The pieces stack from Top→Down as follows

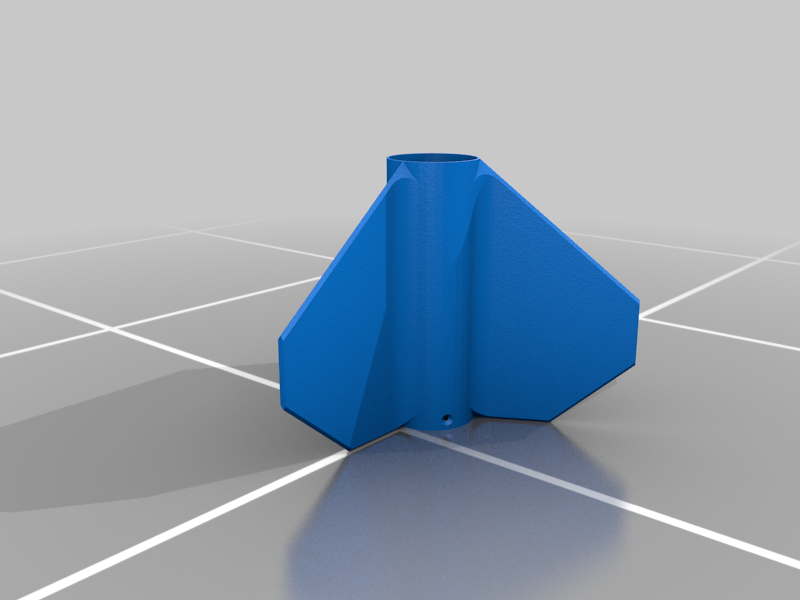

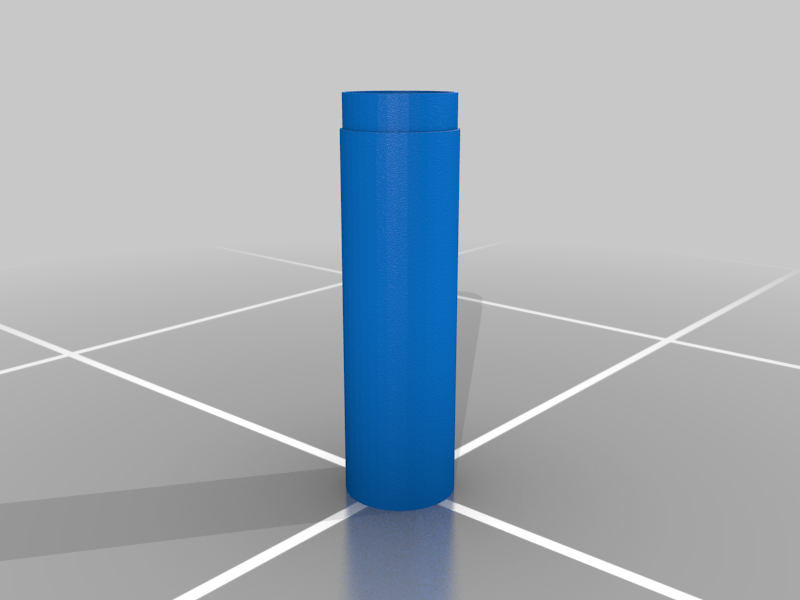

          - Nose Cone, BS3, BS2, BS1, FINCAN

Rail buttons can be mounted to the printed holes (be sure to line these up as you glue it together).

You can alternatively glue a standard Estes launch lug to the exterior (Uses lots of glue if you take this path).

Recommend using thin kevlar shock cord to tie between motor mount and nose cone.

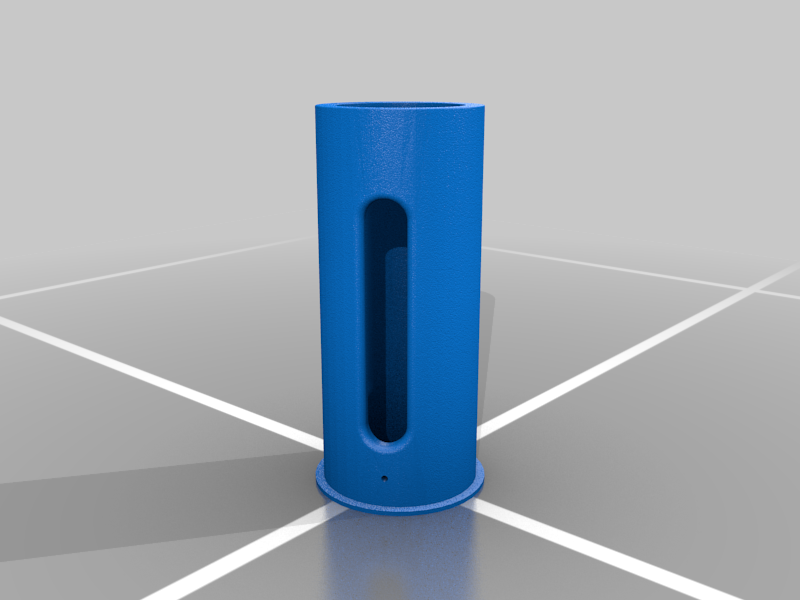

Motor mount screws in with (3) 4-40 x 1/2 in screws.

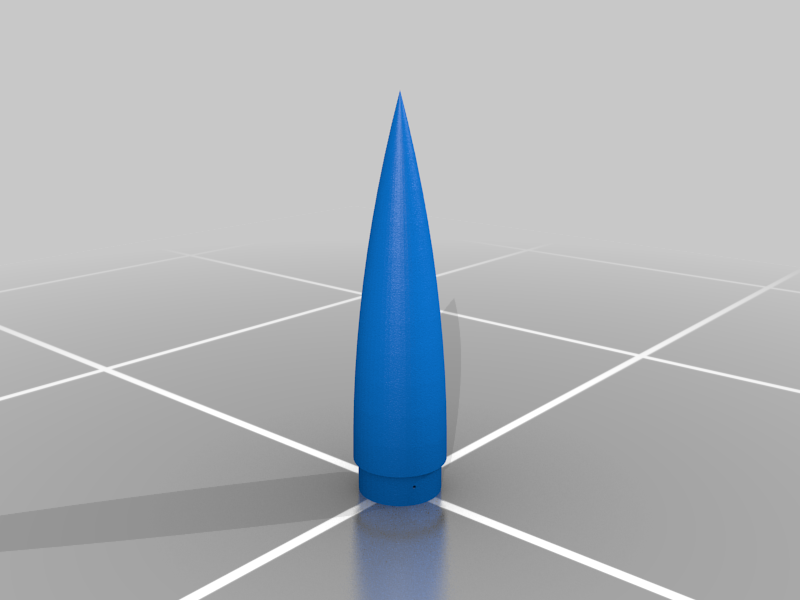

Nose cone infill is adjusted to adjust rocket stability (aka weighting the nose cone)

Warning if parachute is packed improperly rocket will CATO at apogee.

Video of build available: [https://youtu.be/tL4k_gFz-PA](https://youtu.be/tL4k_gFz-PA)

Early Prototype Test Launch: [https://youtu.be/ScVH8IsliAU](https://youtu.be/ScVH8IsliAU)

Other Rocket Designs can be found at: [https://inverted-pursuits-lab.square.site/](https://inverted-pursuits-lab.square.site/)

Print Settings

Printer Brand:

Prusa

Printer:

I3 MK3S

Rafts:

Doesn't Matter

Supports:

Yes

Resolution:

0.2

Infill:

15%

Filament: NA PETG NA

Notes:

Weight of nose cone can be adjusted by changing infill of that part to help stabilize the rocket

How I Designed This ===================

Rocket missing 1 body section
