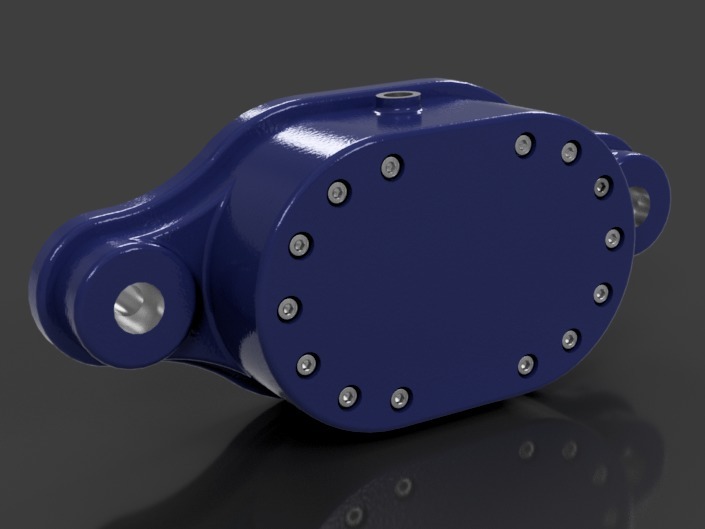

Gear Pump with mountable housing
Hey folks,
This is one of my first projects that I had to create while studying at the technical college.

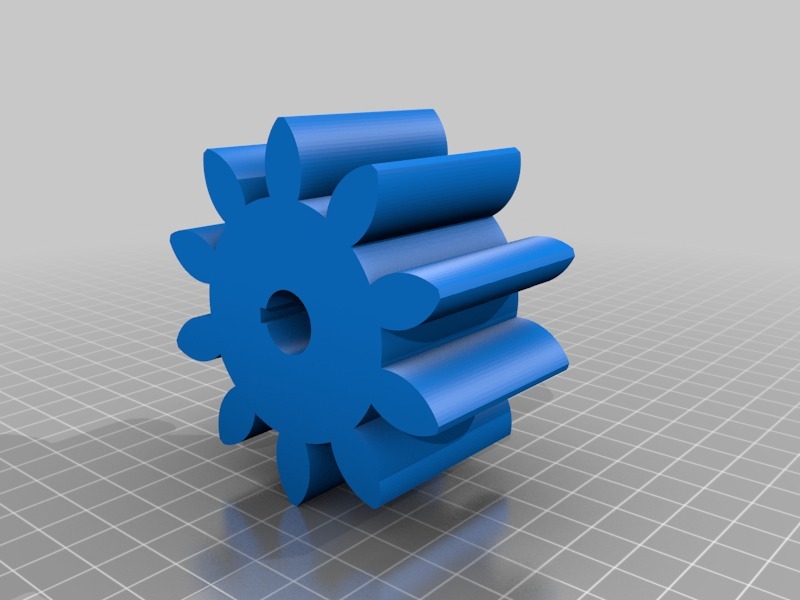

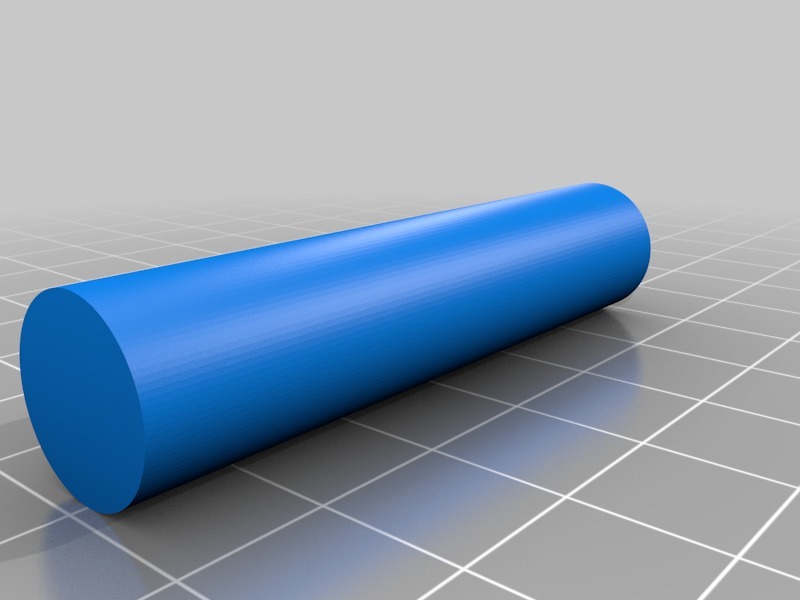

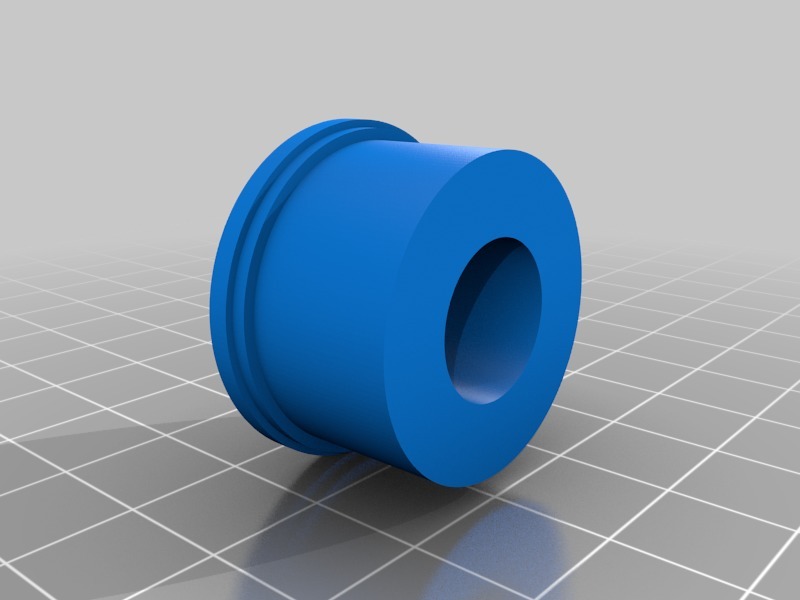

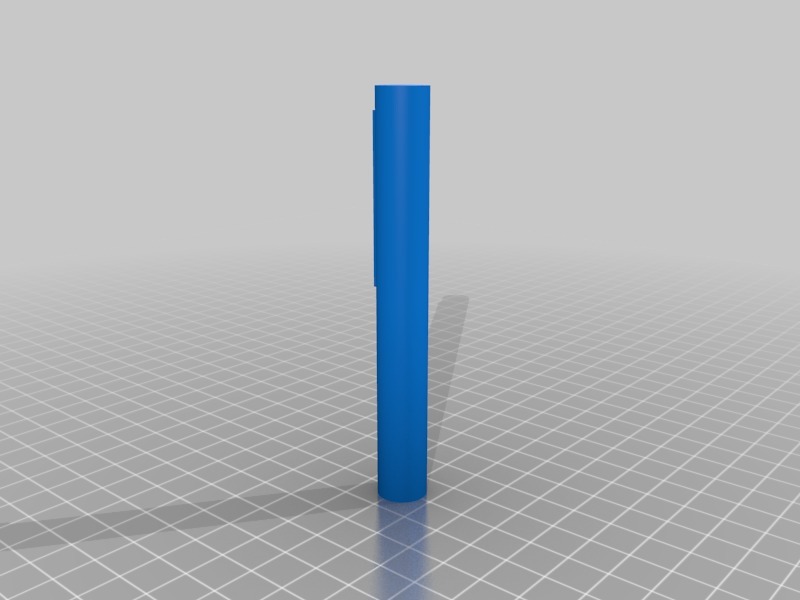

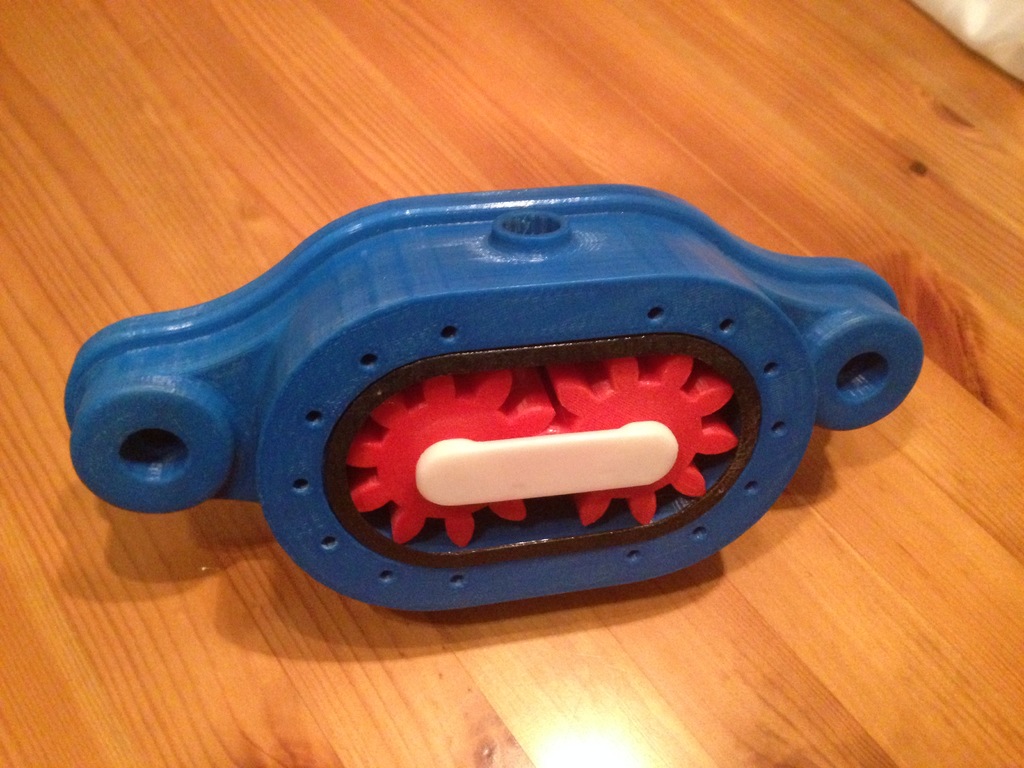

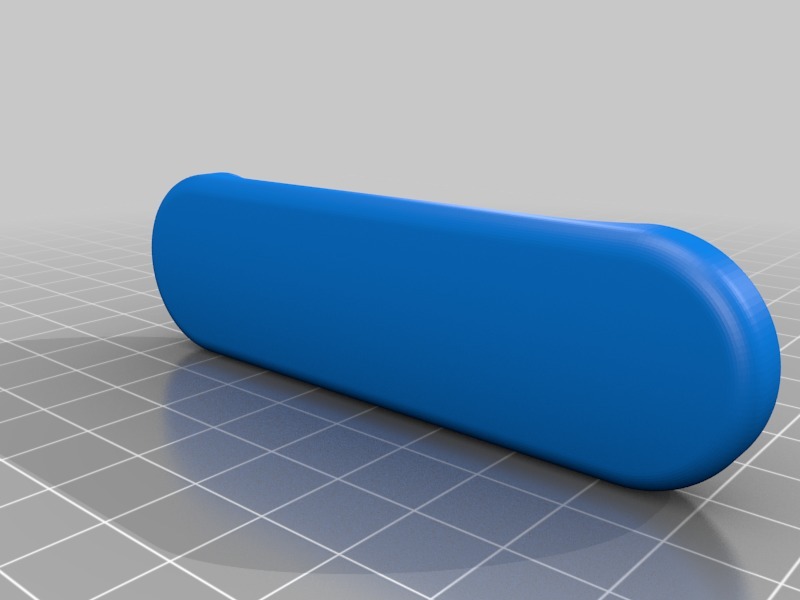

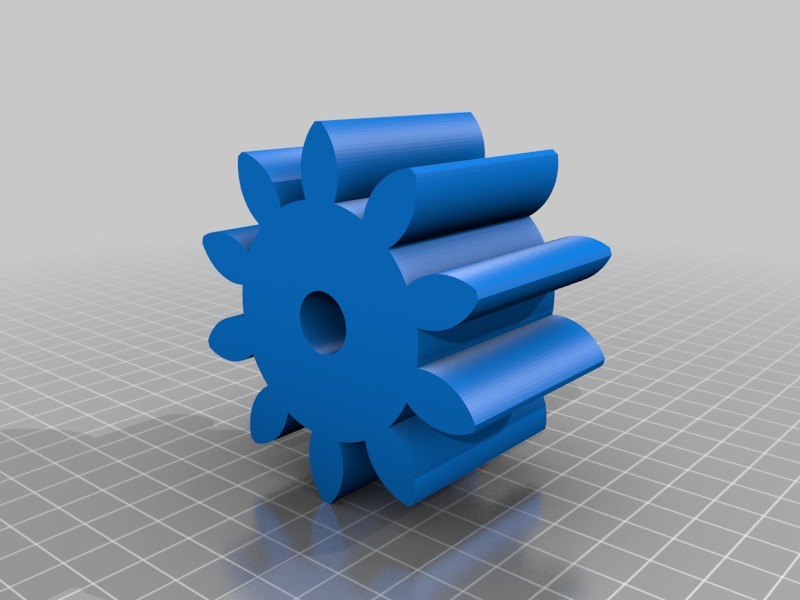

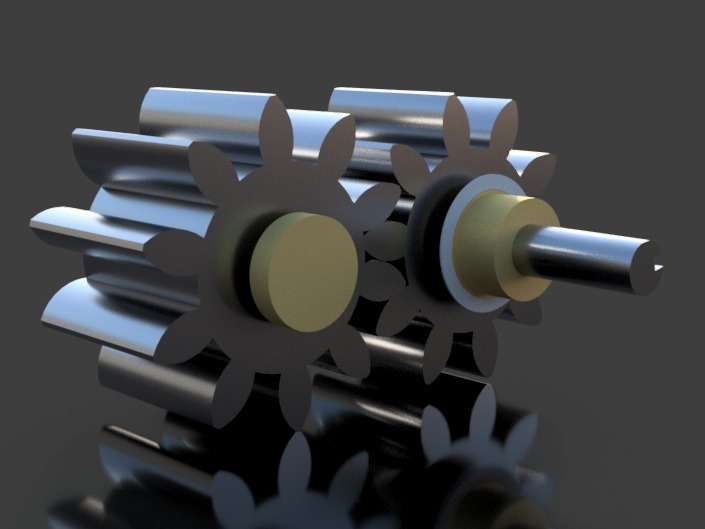

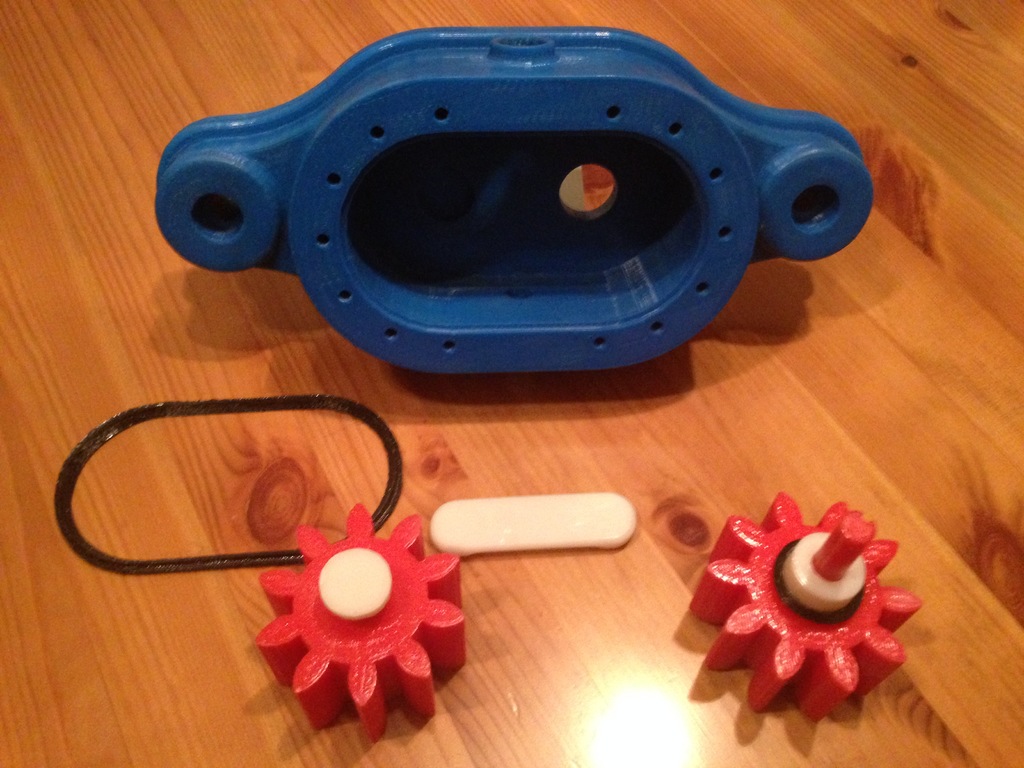

The gear pump has a rotating and a driven axle (red), which are mounted in brass press bearings (white).

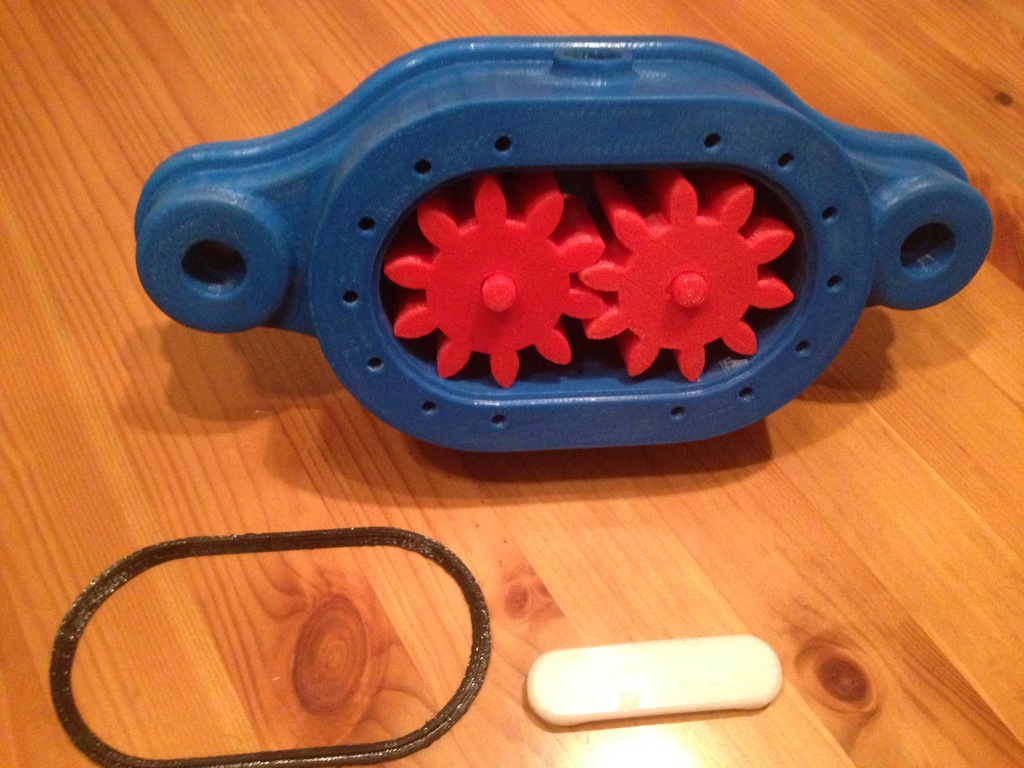

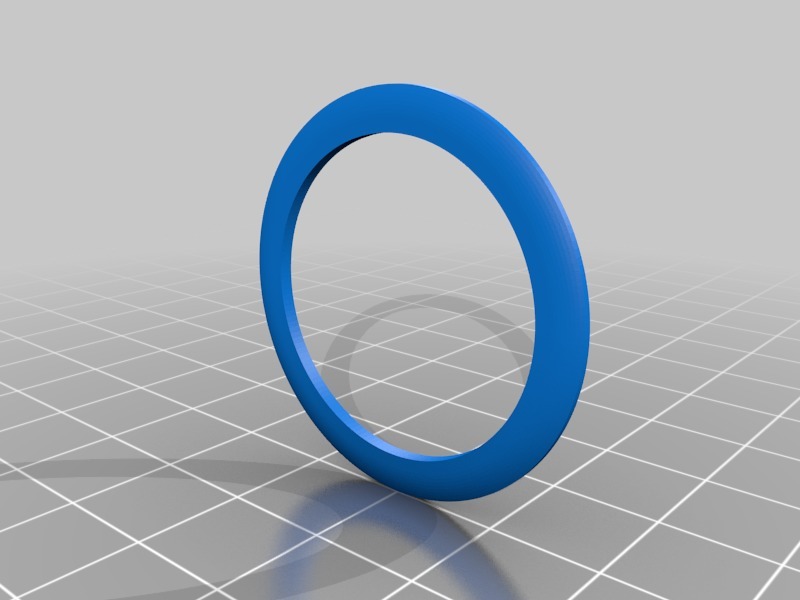

The housing cover and drive axle are sealed by two seals that I printed in the model with black flex filament.
After completion, I tested the printed pump, it is even pumped, however, far less than previously calculated.
This is probably due to the greater deviation than in a CNC machined, on the other hand also to leaks in the drive axle.
The pump is therefore rather intended as a model.
have fun cheers,
Steffen ;-)
Print Settings
Printer Brand:
MakerBot
Printer:
MakerBot Replicator 2X
Rafts:
Doesn't Matter
Supports:
Doesn't Matter
Resolution:
0,2 mm
Infill:
10%
Notes:

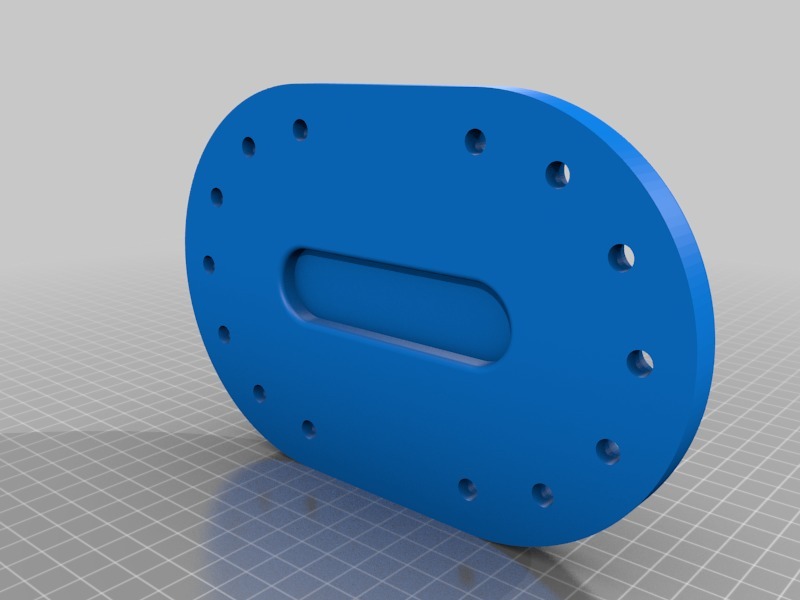

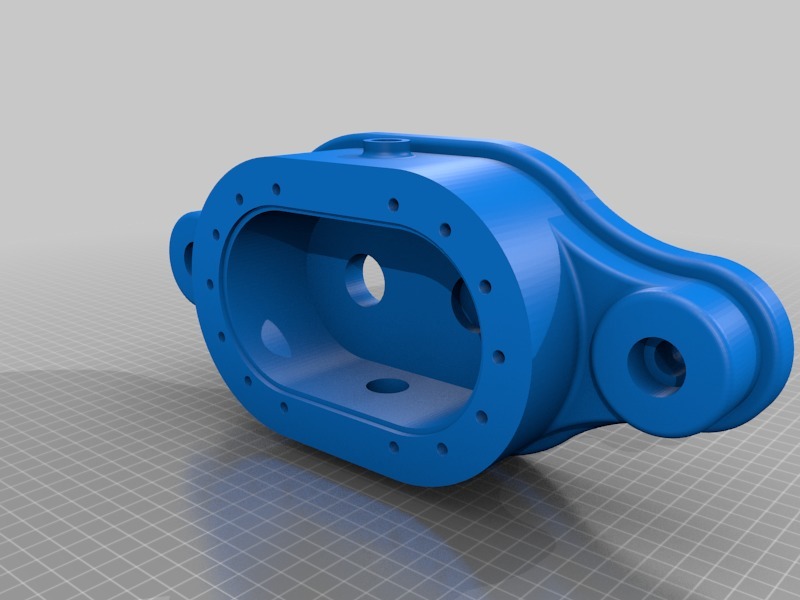

The case and lid were printed in blue with the best possible resolution and 10% infill.
The drive part, such as axles, gears in red with a resolution of 0.2mm & 10% Infill. Press bearing in white with 0,2mm & 15% infill.

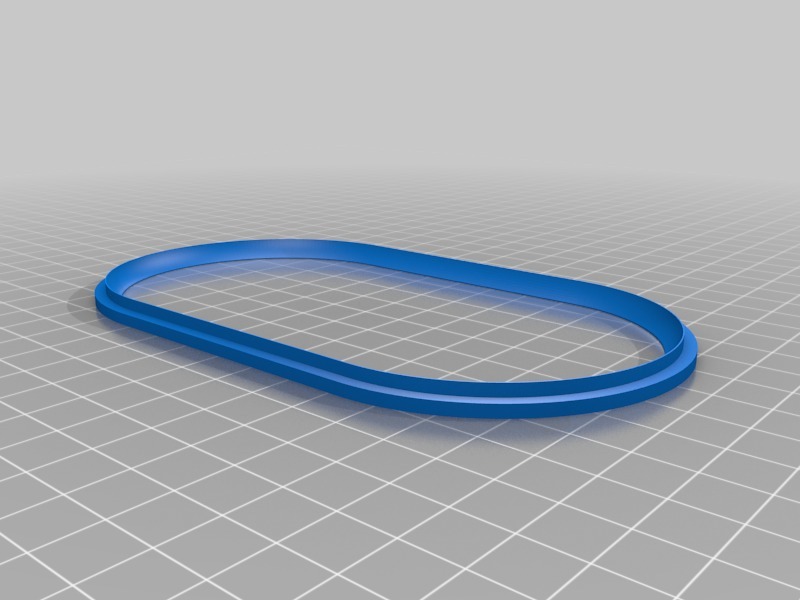

The seals (frontplate and drive axle) were printed with black flex filament in 0.2mm and 100% infill, as they are very small and optimally durable for the model purpose.
Category: Engineering
