Descrição

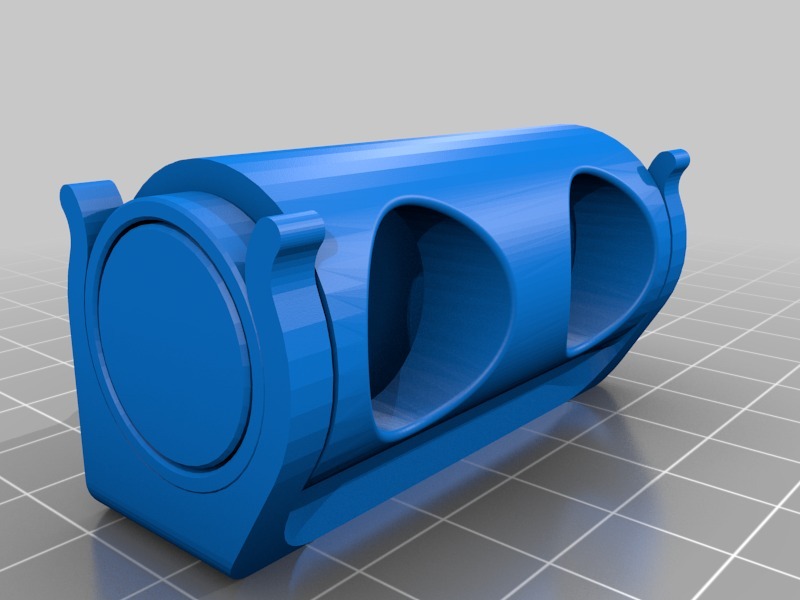

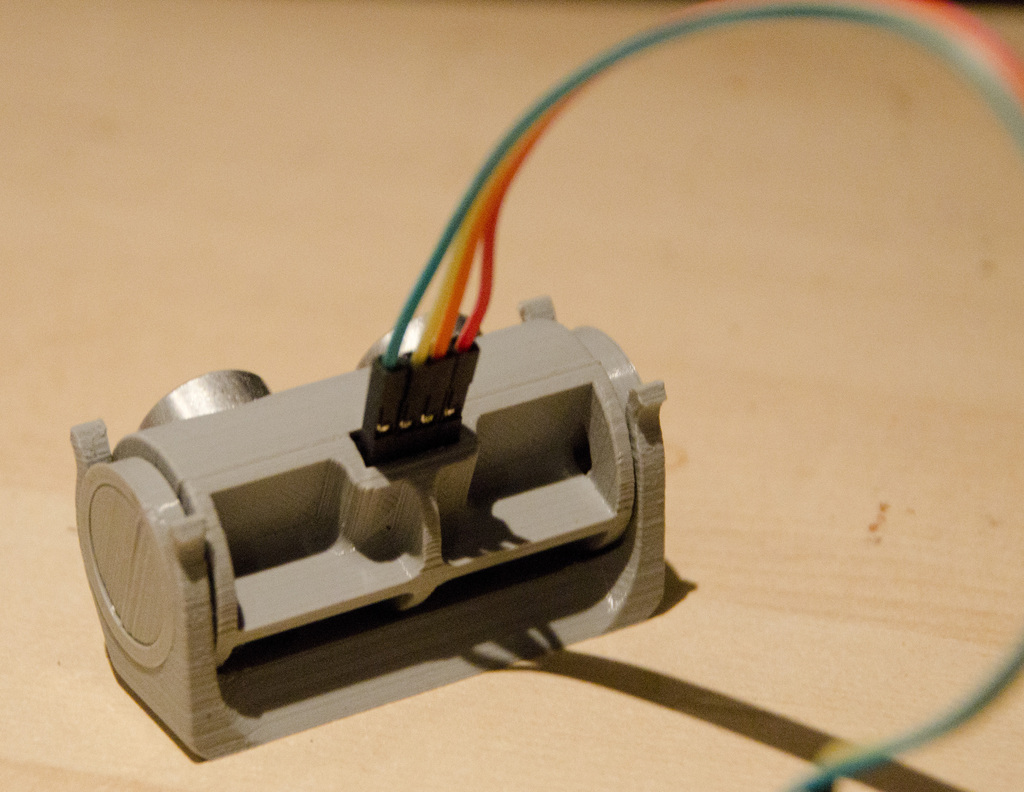

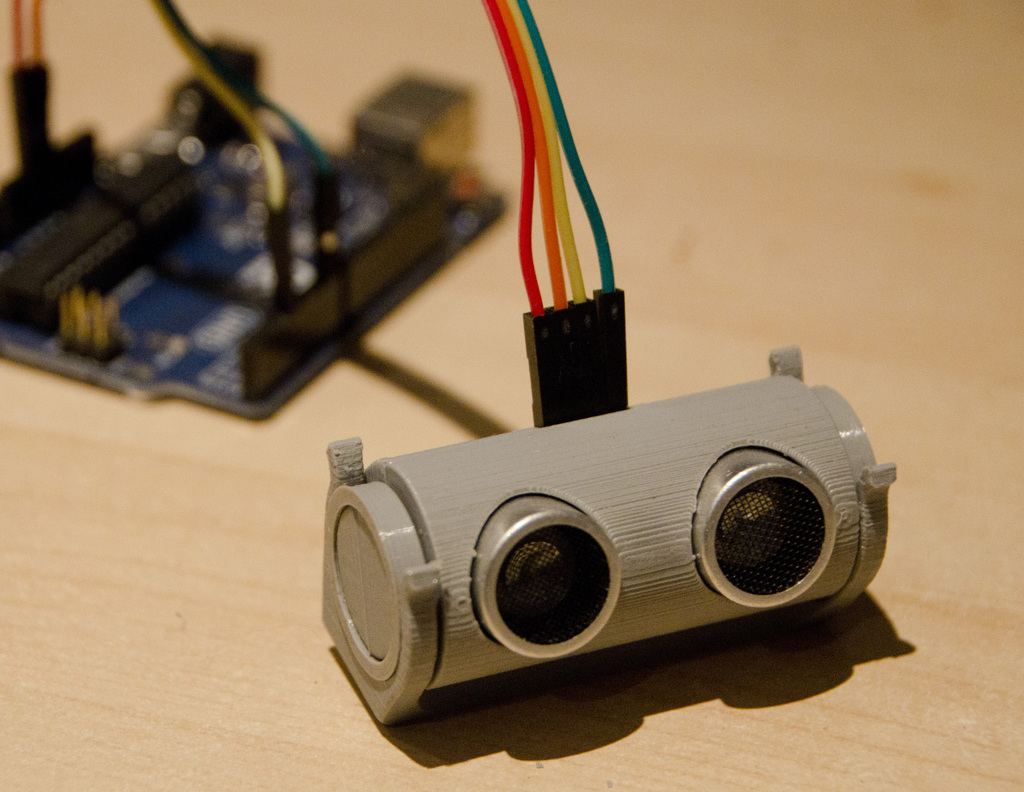

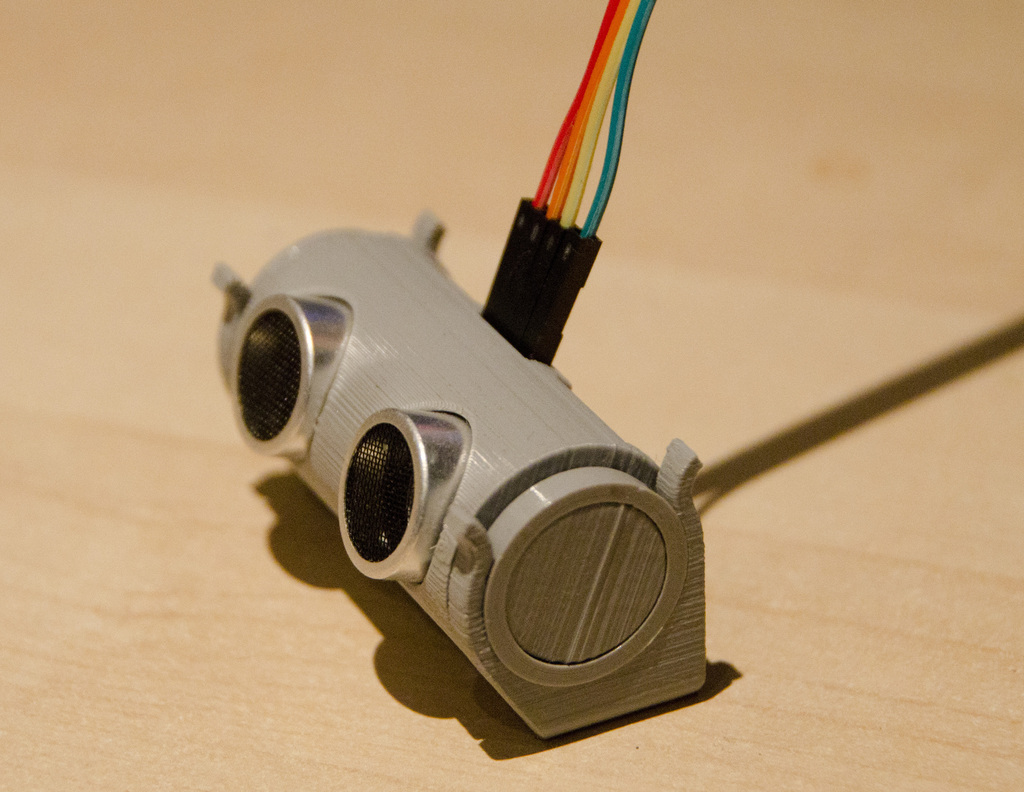

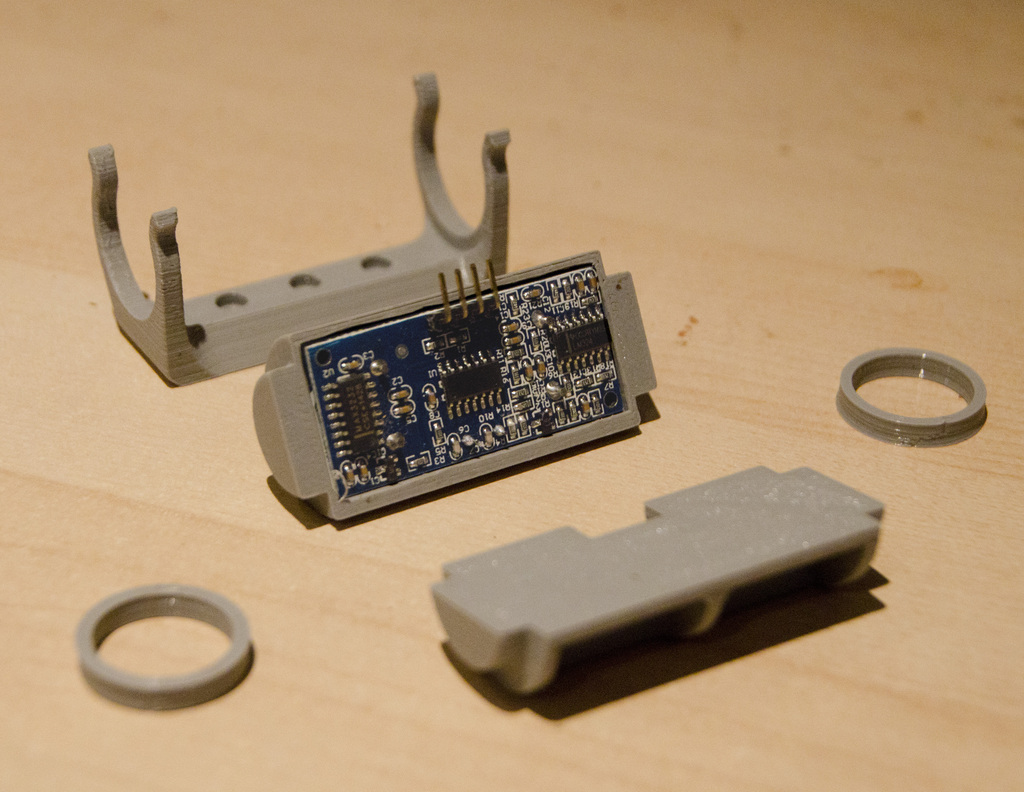

This is a casing & supporting cradle for HC-SR04 (Ultrasonic Distance Sensor).
Key features:
- No screws or adhesive need to assemble the unit itself.
- The vertical angle of the HC-SR04 can easily be adjusted by tilting it up or down in the cradle.
- The horizontal angle can be adjusted or fixed depending on how many screws u use to secure it too whatever.
- For convenience the intact casing containing the HC-SR04 can easily be removed by hand from the cradle. The cradle itself is intended to be secured more permanently my screws.
Printing notes:
Use support structures when printing:

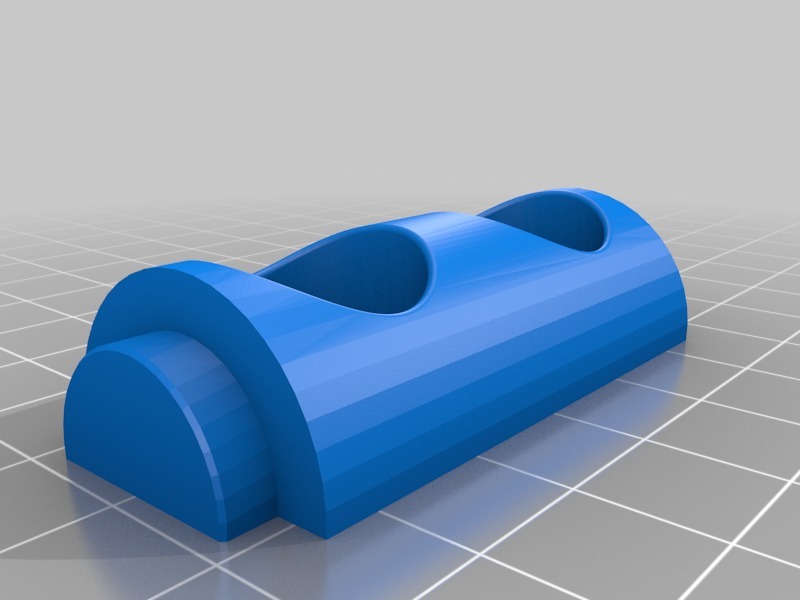

- front_00.STL
- back_00.STL
Category: Gadgets
Printables
HC-SR04 Casing + Angle Adjustable Cradle
Publicado em 4 de set de 2022
82
Curtidas
555
Downloads
7
Impressões
Categoria
Other Gadgets
Tags
robot
sensor
arduino
electronics
robotics
thingiverse
microcontroller
rangefinder
Licença
Creative Commons — Attribution
Arquivos (6)
NOT_for_PRINTING_Assembled.STL
882.2 KB

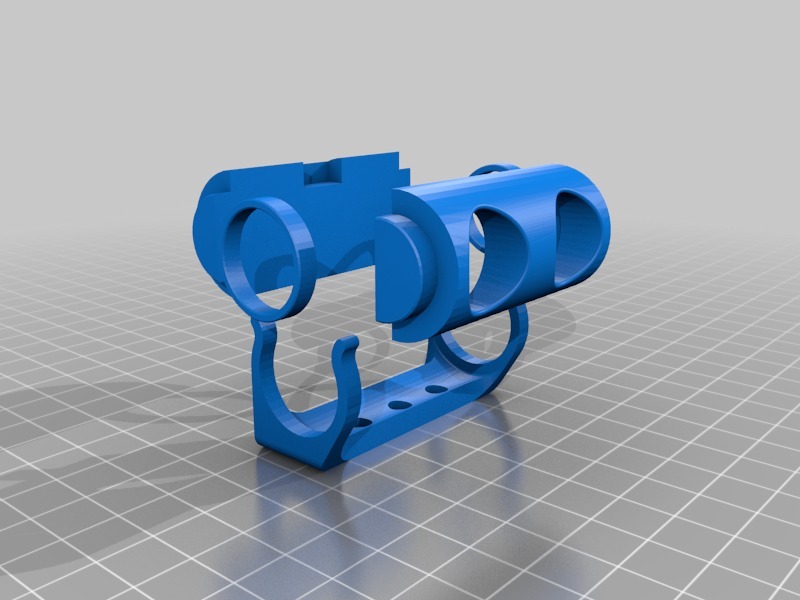

NOT_for_PRINTING_Exploded.STL
880.2 KB

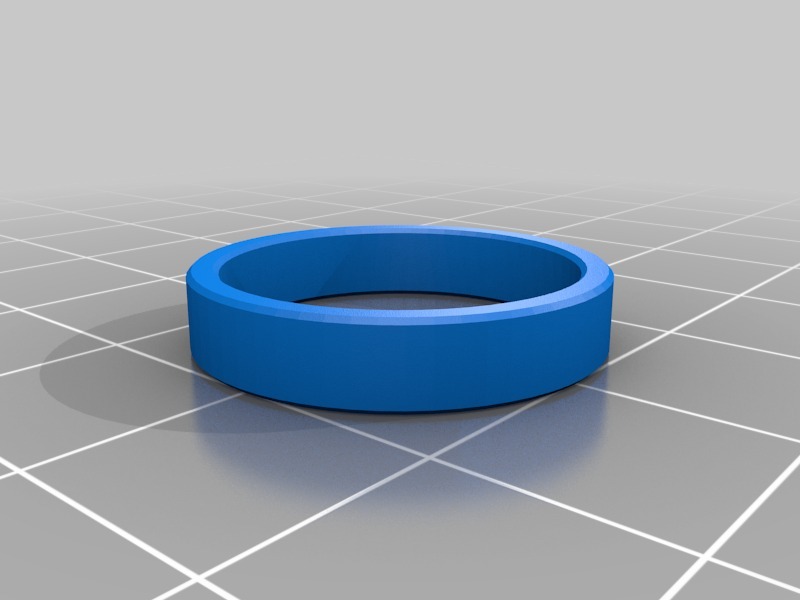

ring_00.STL
56.7 KB

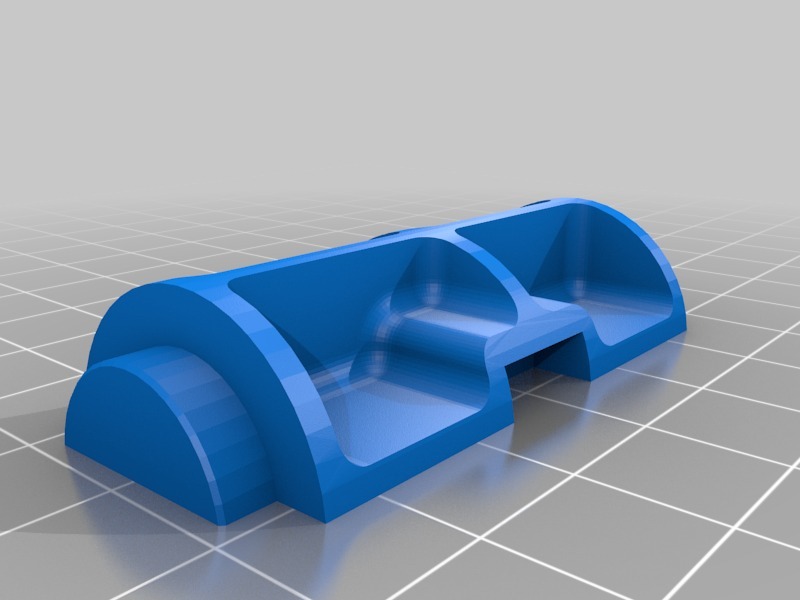

back_00.STL
191.5 KB
front_00.STL
409.7 KB

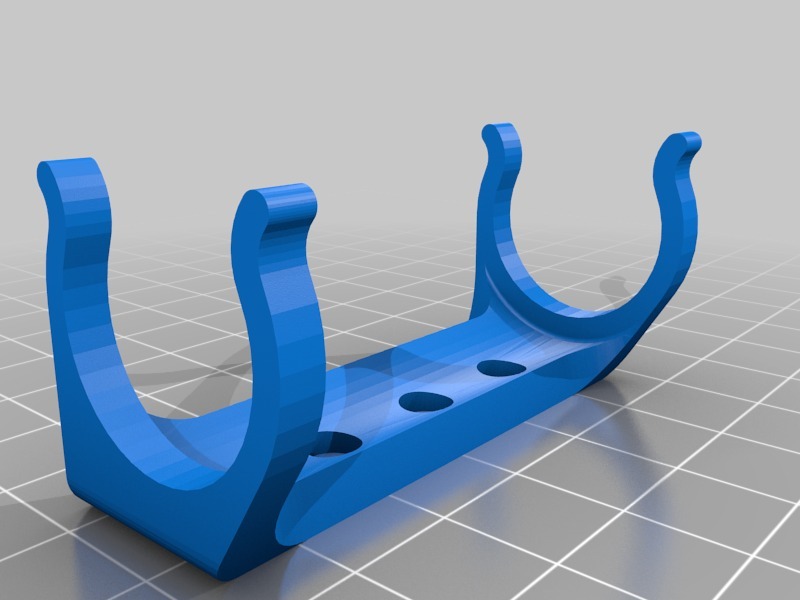

cradle_00.STL
168.8 KB
