Foot Button for Sonoff Basic

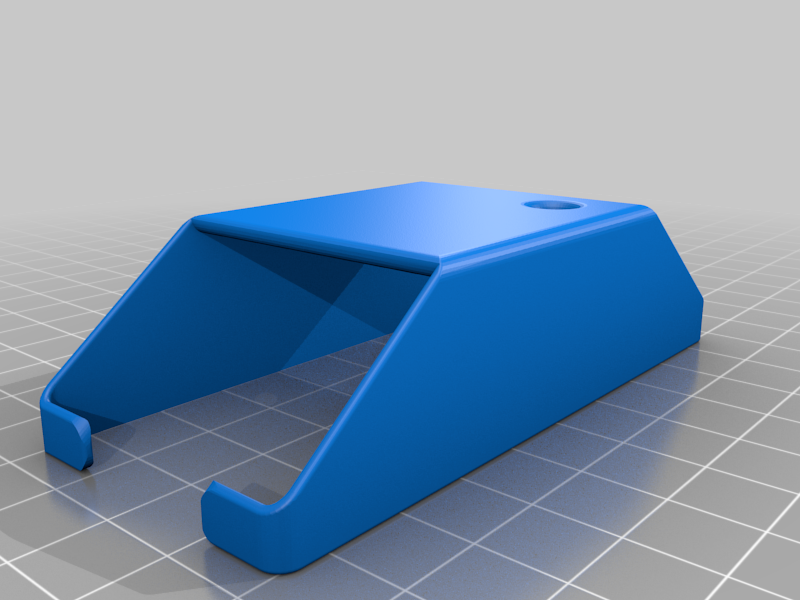

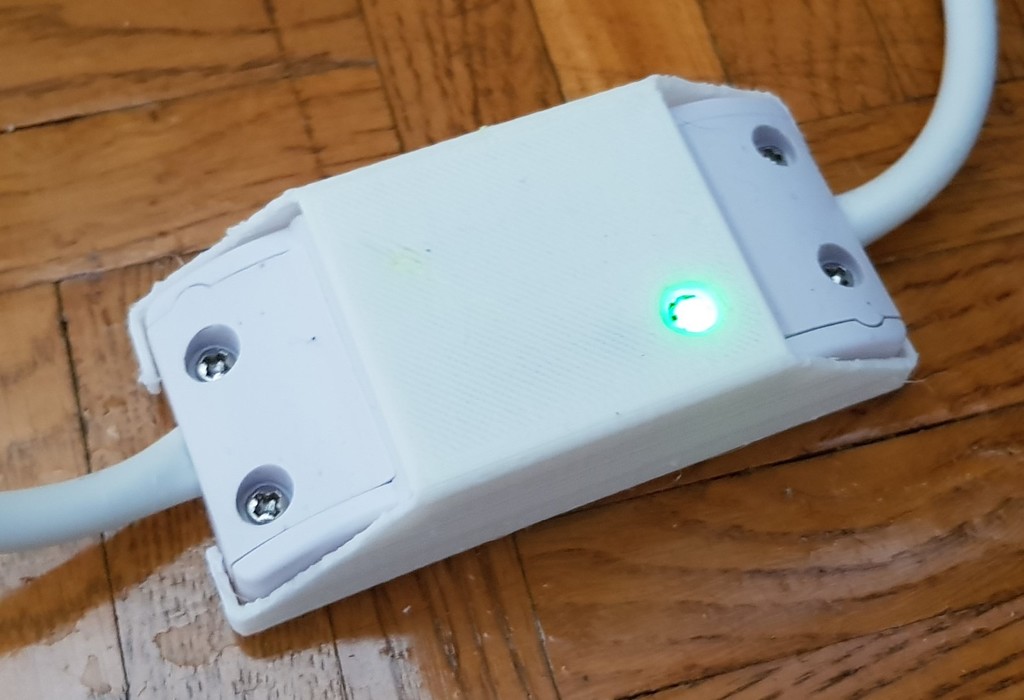

This is a simple button for Sonoff Basic to be able to switch it by foot. It will operate on top of the tiny built-in button. It has a small hole for the built-in button, so you should not be able to break the built-in button even if smashing hard the foot button (theoretically designed, not tested hard, and this may depend on your print, so keep it gentle :-)) The space between the foot button and the sonoff should be enough to allow a smooth slide between the two.

Print Settings

Printer Brand:

Anet

Printer:

Rafts:

Supports:

Yes

Resolution:

0.3

Notes:

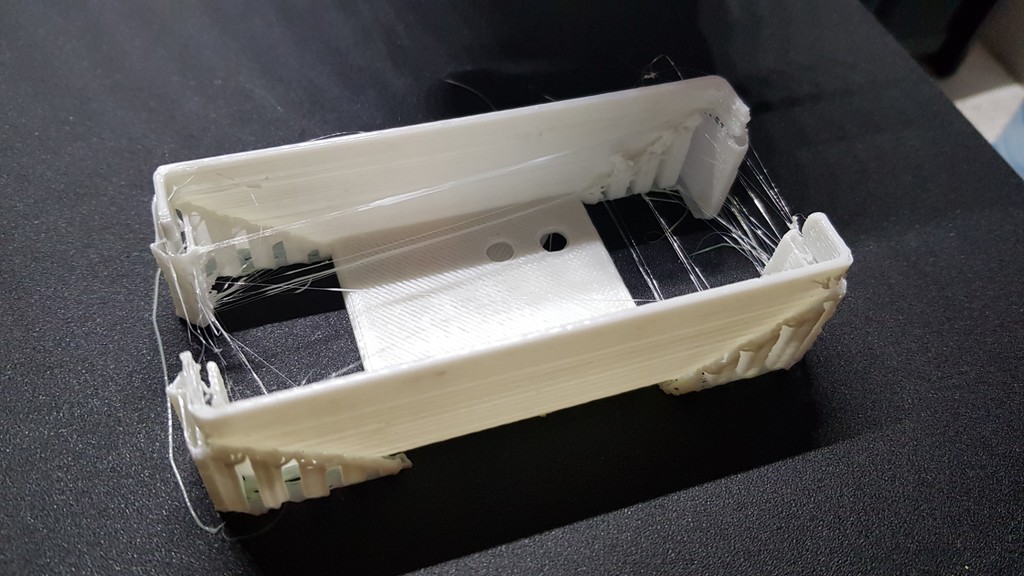

To print you should rotate the design to face down the bed. You will certainly need some supports to print. I have chosen to desactivate brim to have clean edges and fillets on the top surface, but as the supports may need some bed adhesion, I have activated the horizontal expansion of supports and brim for supports options in Cura.

Category: Office
