This is a great way to cleanly terminate an z-axis cable chain on the Ender-3.

It's designed to terminate the cable chain where the wires naturally split just below the extruder stepper motor. It also doesn't interfere with any filament guides you might already have installed.

It aligns perfectly with this Z-Axis Cable Chain Stepper Mount, or any other frame centered mount.

Best of all, no screws required!

Thanks johnniewhiskey for your great chain.

Print Settings

Rafts:

No

Supports:

No

Resolution:

0.2

Infill:

30%

Post-Printing

Installation:

1. Insert the mount into the two small holes just under the extruder stepper.

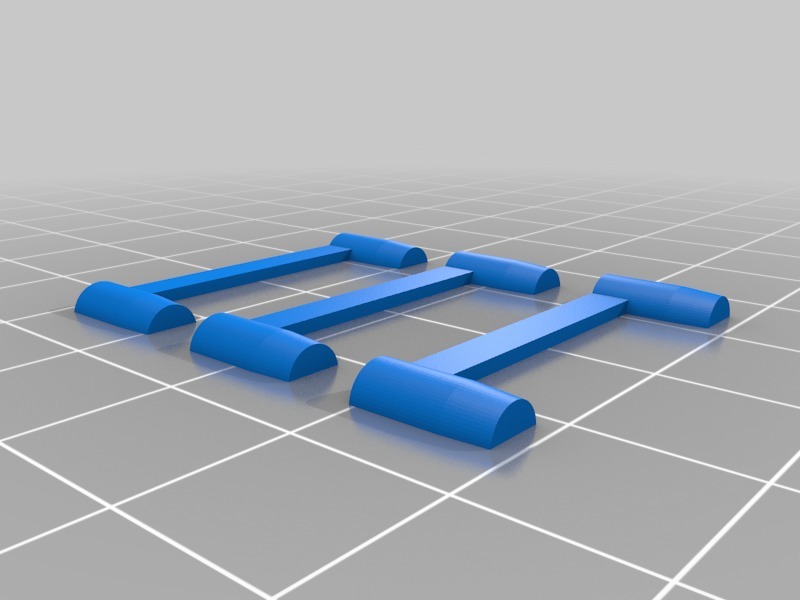

2. Slide one of the shims into the remaining gap to keep the mount in place.

(I have provided a couple sizes to ensure this is a nice snug fit) 3. Attach chain and route wires as you like.

Category: 3D Printer Parts
