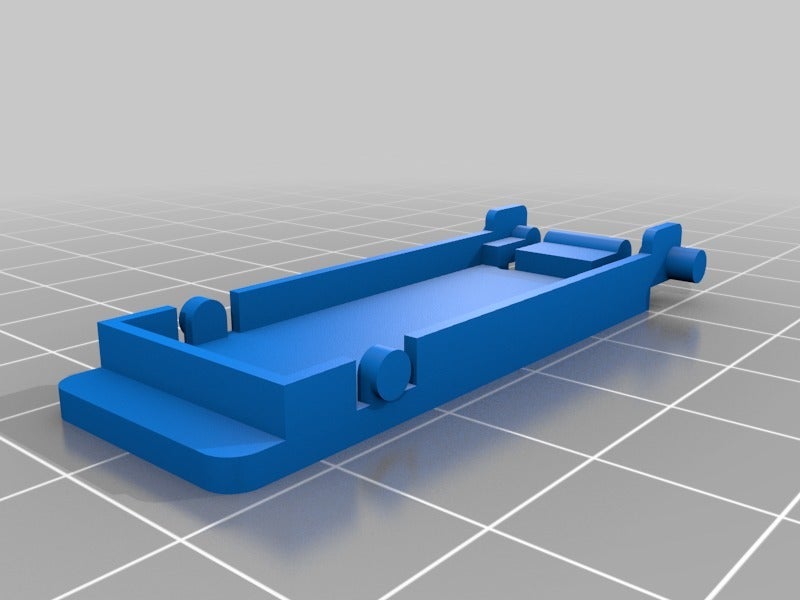

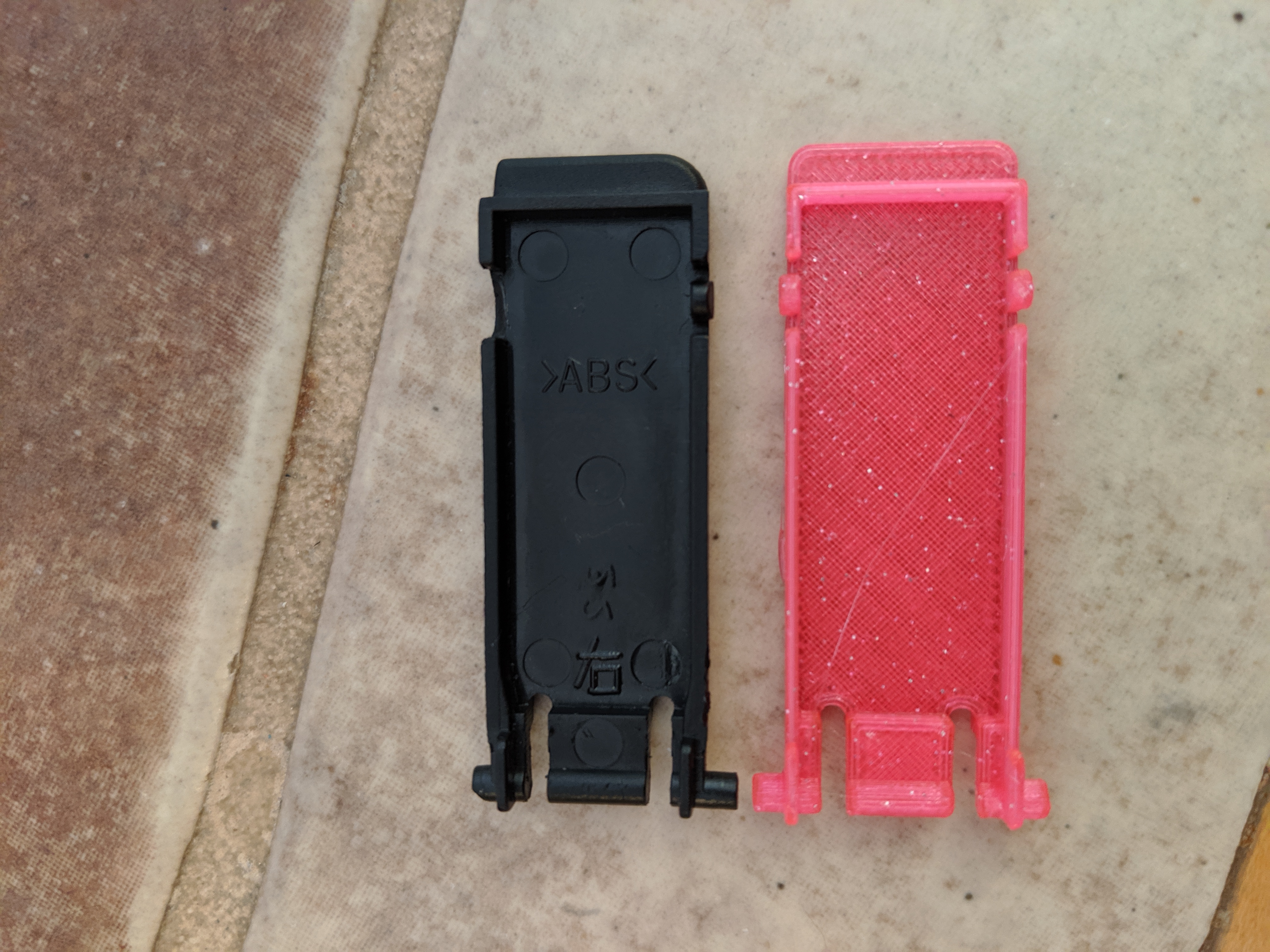

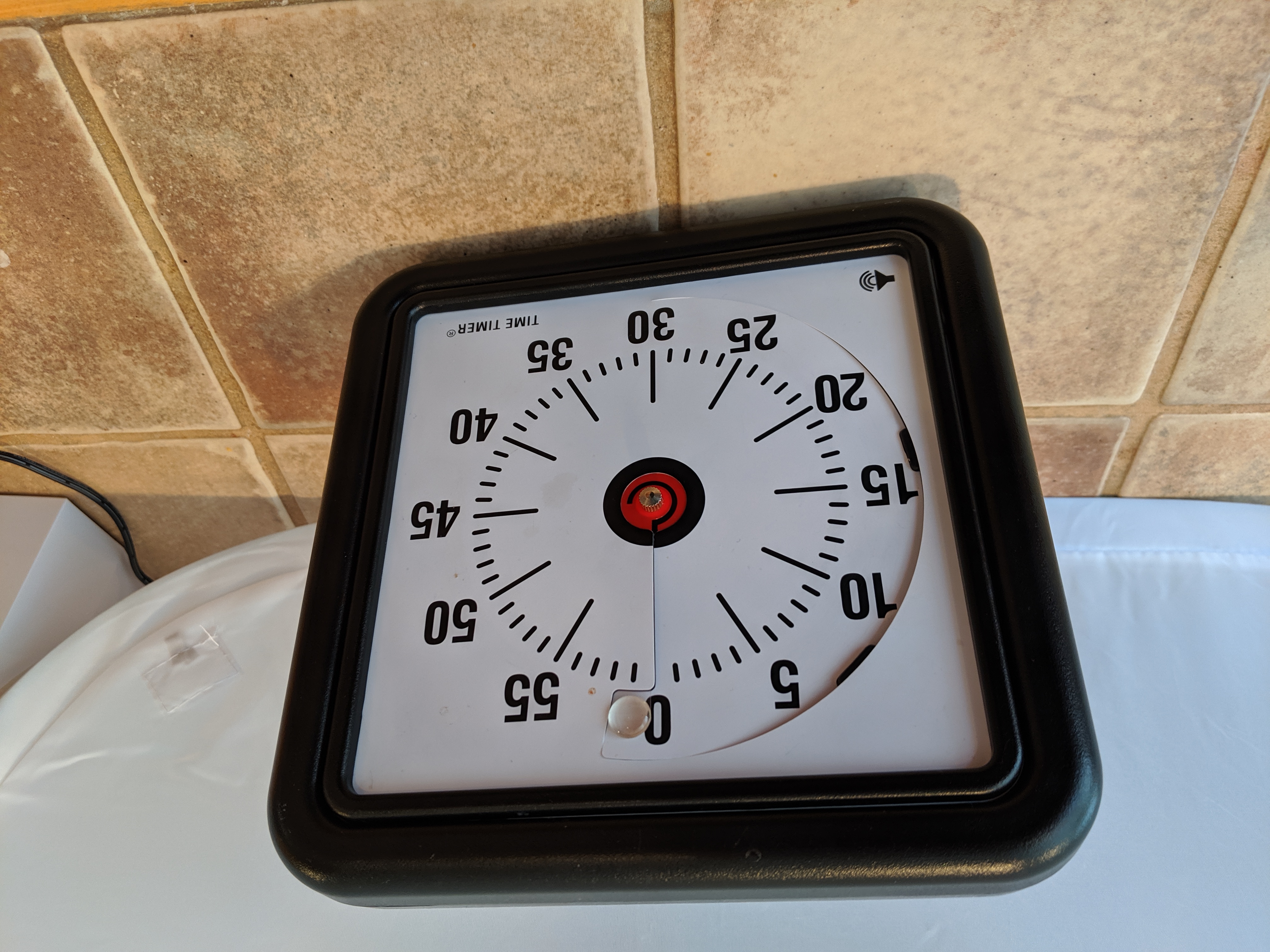

Replacement foot for my son's Time Timer 8" clock. The original foot was brittle and broke. I recommend printing in a more flexible filament than PLA, such as PETG, so you can get the foot into the holes in the back of the clock.

Print instructions

Category: Replacement Parts Print Settings

Printer Brand: Prusa

Printer: I3 MK3S

Rafts: Doesn't Matter

Supports: Yes

Resolution: .15 mm

Infill: 15%

Filament: 3dX Tech PetG Sparkle Pink Post-Printing

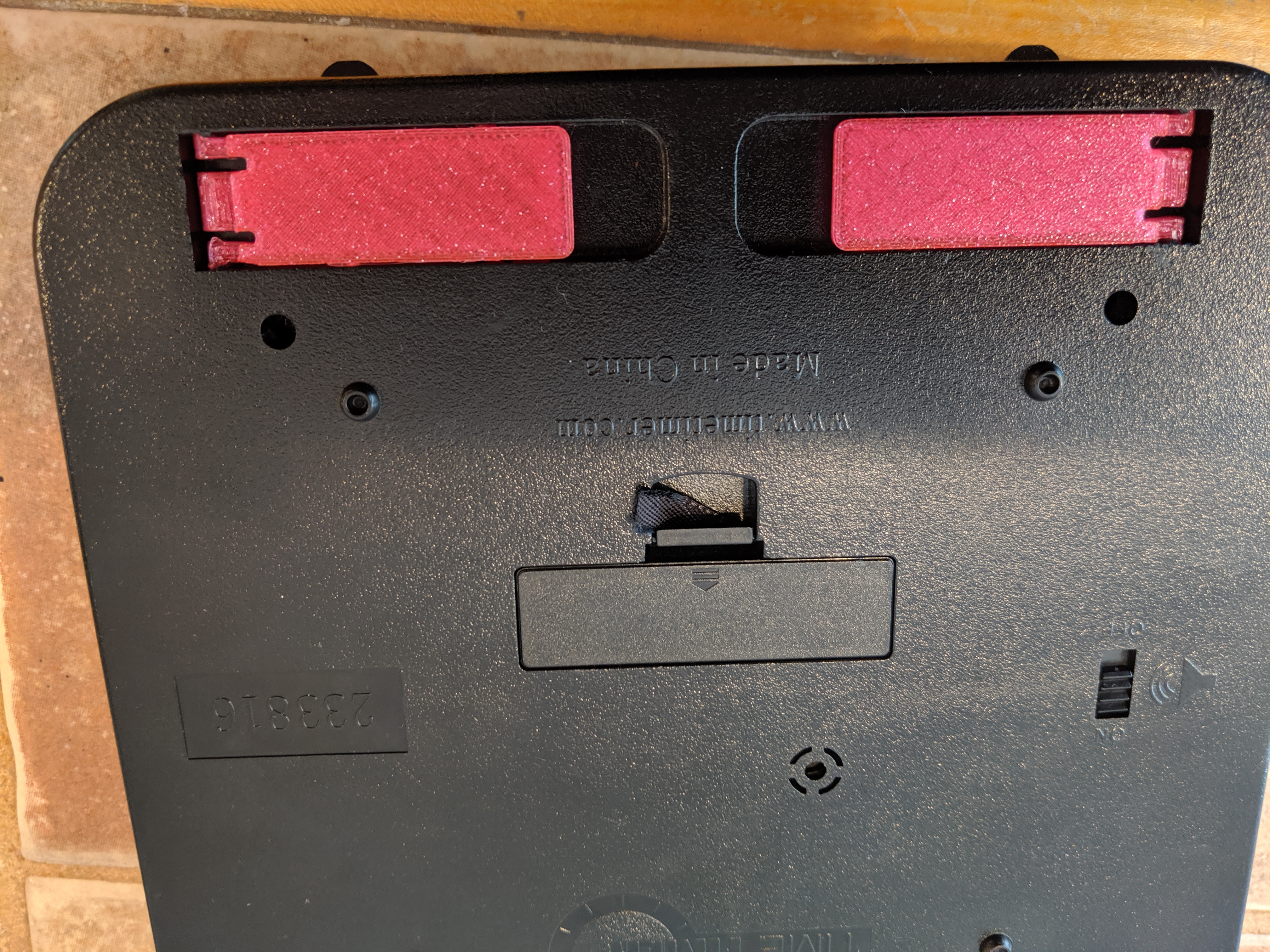

I used pliers to gently bend the foot into the holes in the clock. Because I used a more flexible filament like PETG, it worked great.

How I Designed This

I used OnShape.

You can copy the original and edit it here:
[https://cad.onshape.com/documents/8fbeb86d7cc7f07c7b8e1175/w/b37ae83372b75d354a2f97c2/e/f23aee156720a3b4b5779cf0](https://cad.onshape.com/documents/8fbeb86d7cc7f07c7b8e1175/w/b37ae83372b75d354a2f97c2/e/f23aee156720a3b4b5779cf0)
