Inspired by walttriano conversion for an Ender.

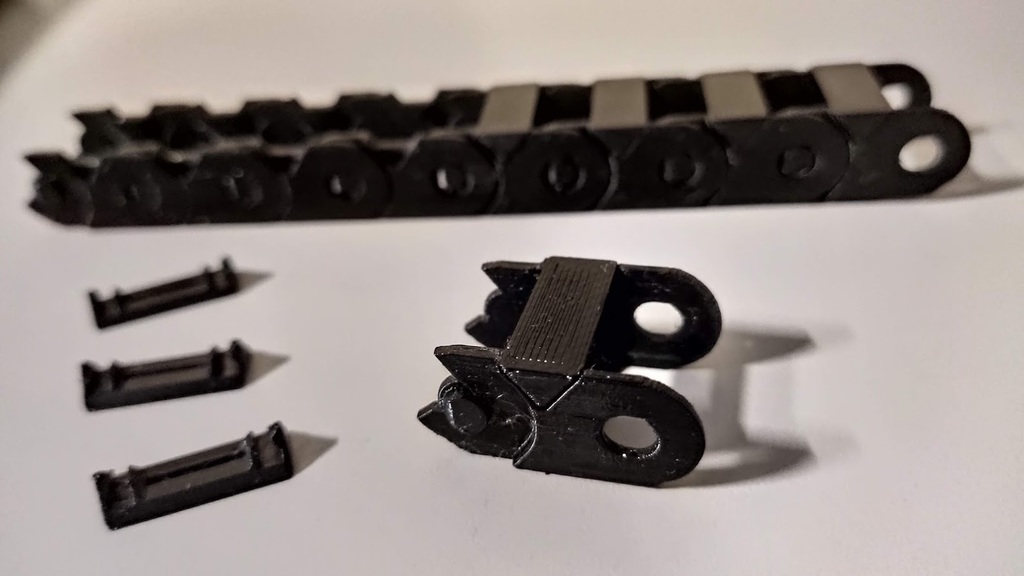

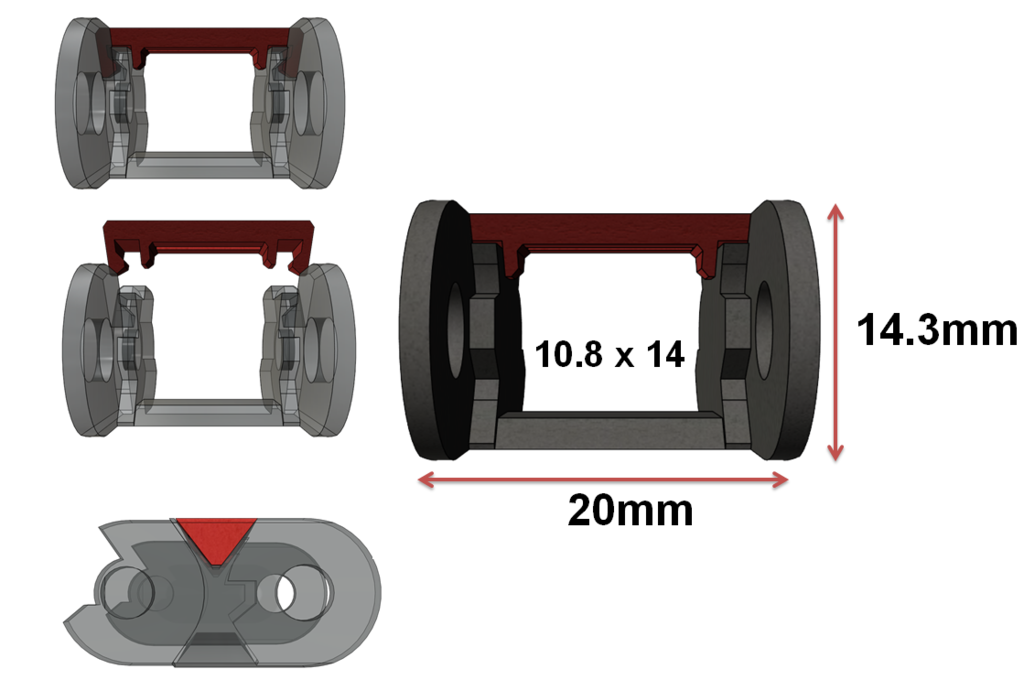

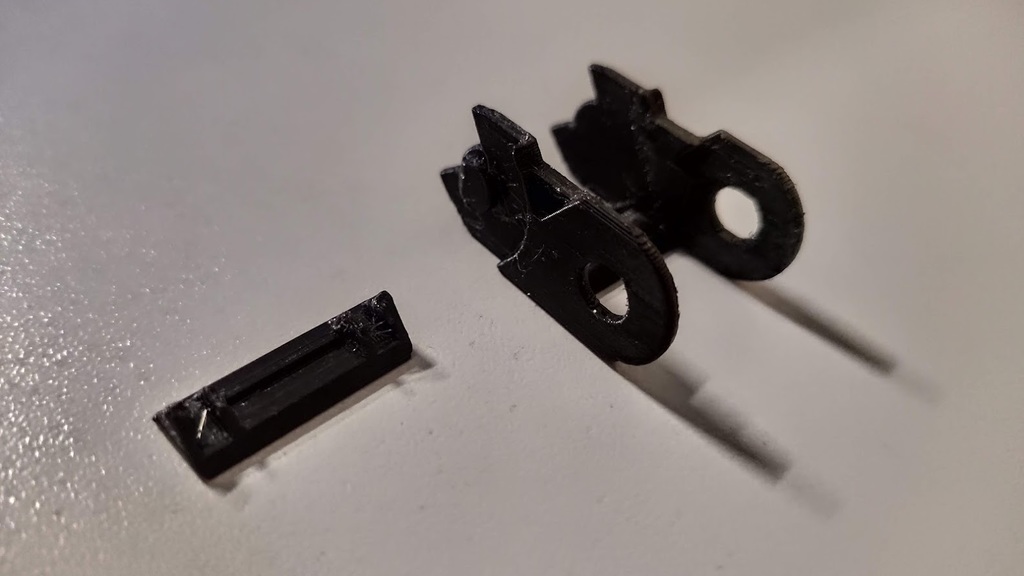

Designed for the width of the x-axis profile 20mm in my Ender 3. It has a latch that allows you to easily arrange and close the cables.

Demo video:

Status of this project:

• First release

v1.0 printed, and after testing

• 2022-02-27

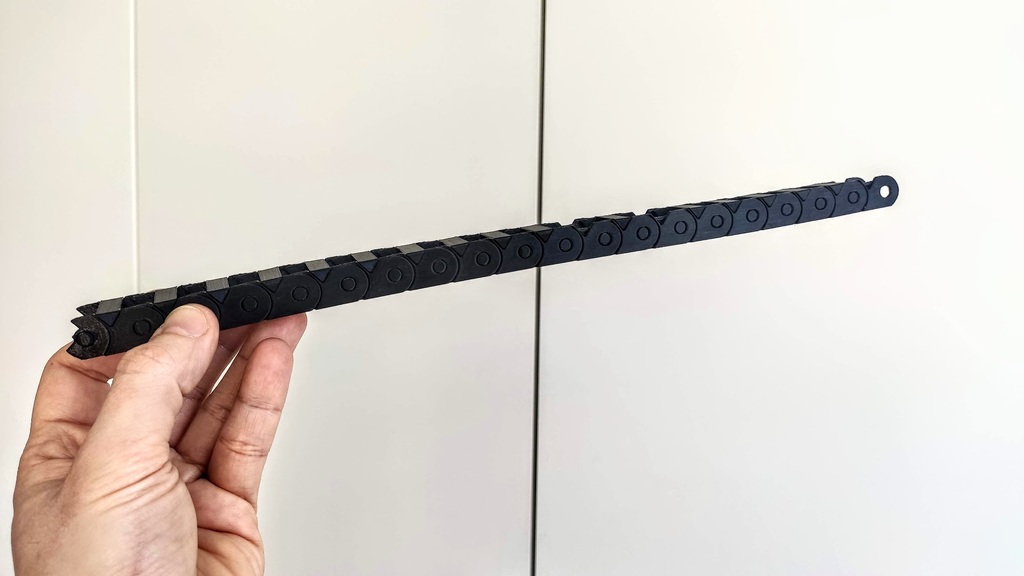

update to v1.1 printed, more adjustments and less deflection of the straight chain.

• 2022-03-05

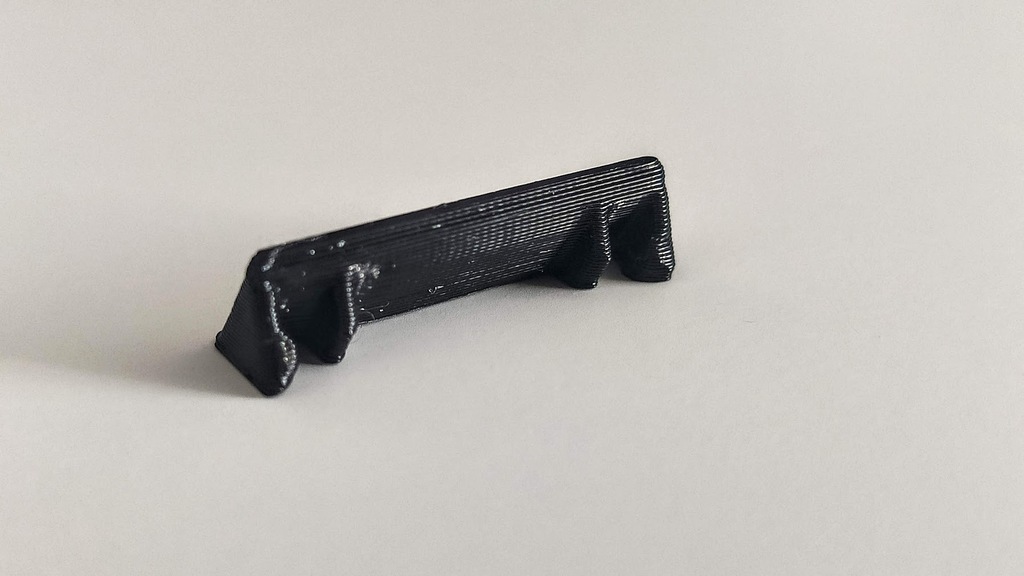

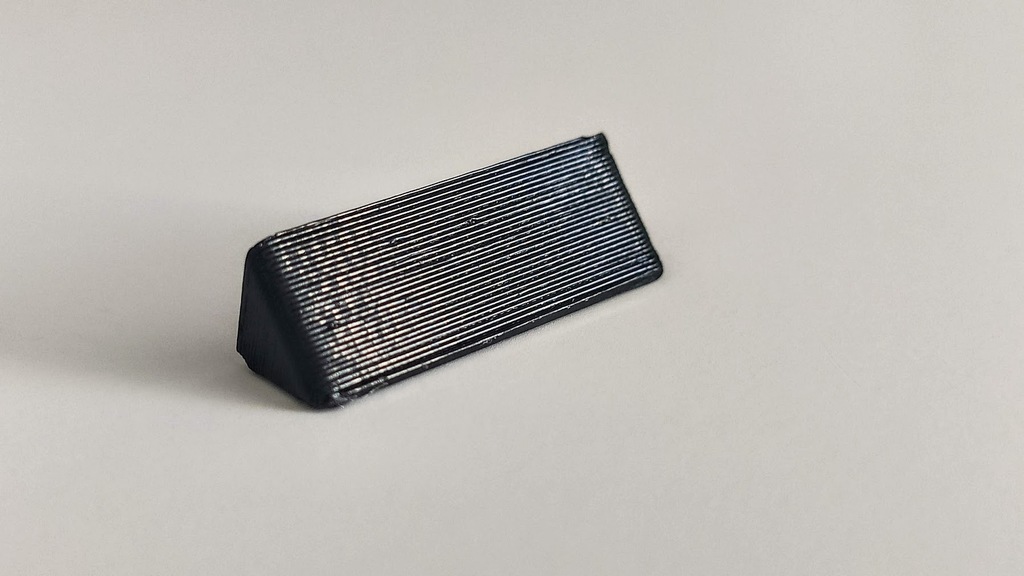

update latch to v1.1 - new fit and print position, v1.0 deleted.

• 2022-03-14

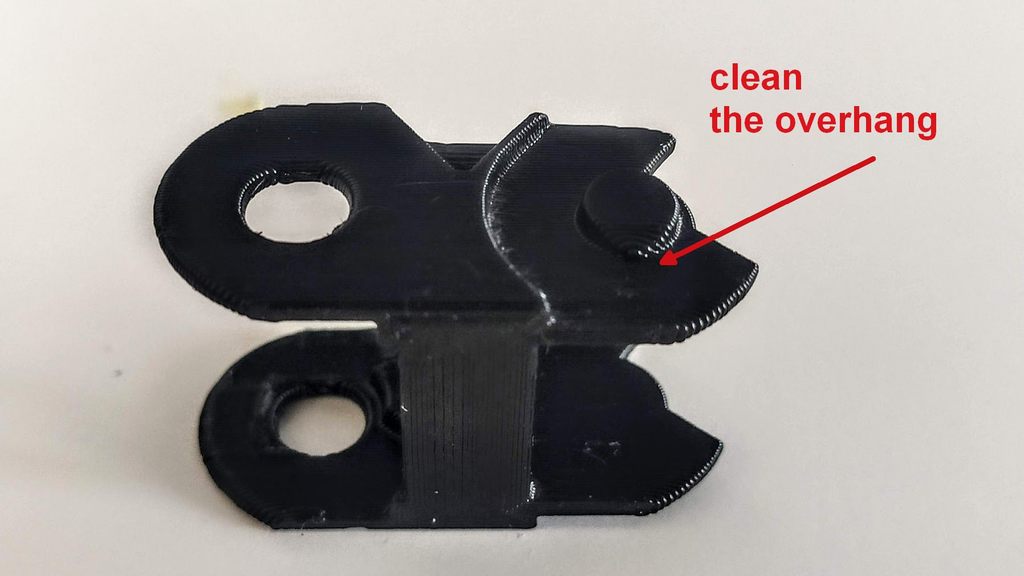

update to v1.2 - printed

Thanks to the Kaligma user and his suggestions and the Devazarus user, new changes have been made - improved linearity.

Additionally, I changed a few details that came to light while improving my printer.

How to print optimally:

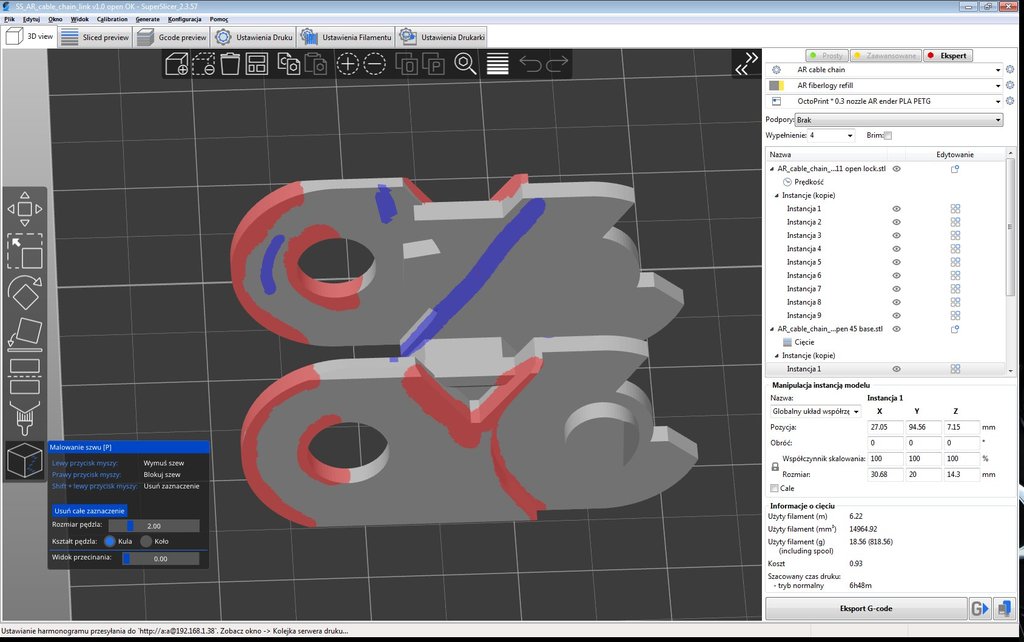

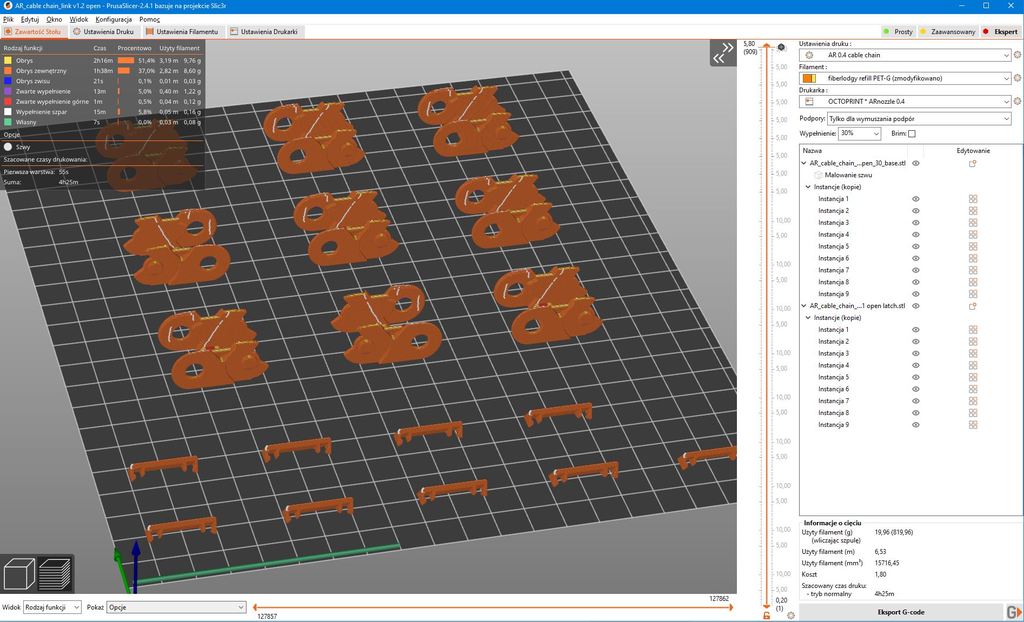

Keep position from stl file to optimally print all parts.

nozzle: 0.4mm or less

layer height: 0.2mm

top and bottom layers: 5

no need support.

The 0.6mm nozzle does not work well in such precise prints - I checked.

Part printed in PETG and checked, latch fits very well.

Disclaimer:

I try to release the most optimized model possible, however remember - use this thing at your own risk.

Feel free to share and any modification

and

If my free design is useful for you, please leave a comment, picture for my motivation on the project page, I am waiting for you! You can also buy me a coffee through paypal if you can and if you want. [https://www.paypal.com/paypalme/ArkadiuszRatajczyk](https://www.paypal.com/paypalme/ArkadiuszRatajczyk)

Thank you very much for every word and help in the development of my inventions. Thanks.

Peace and enjoy.
