Descrição
Round box

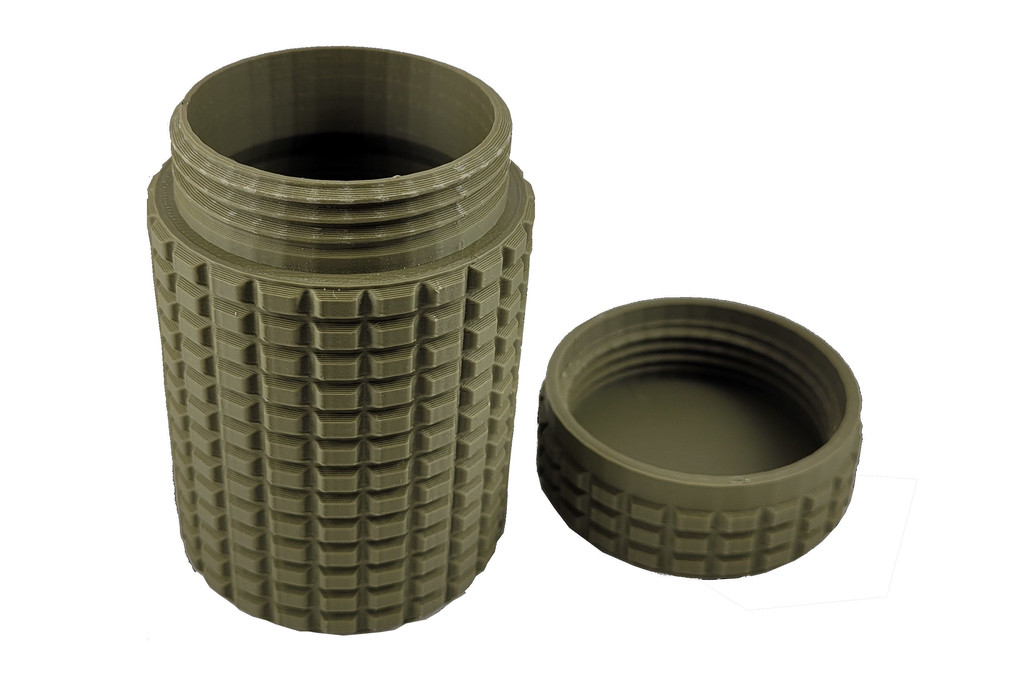

The box has a grippy surface and a threaded lid.

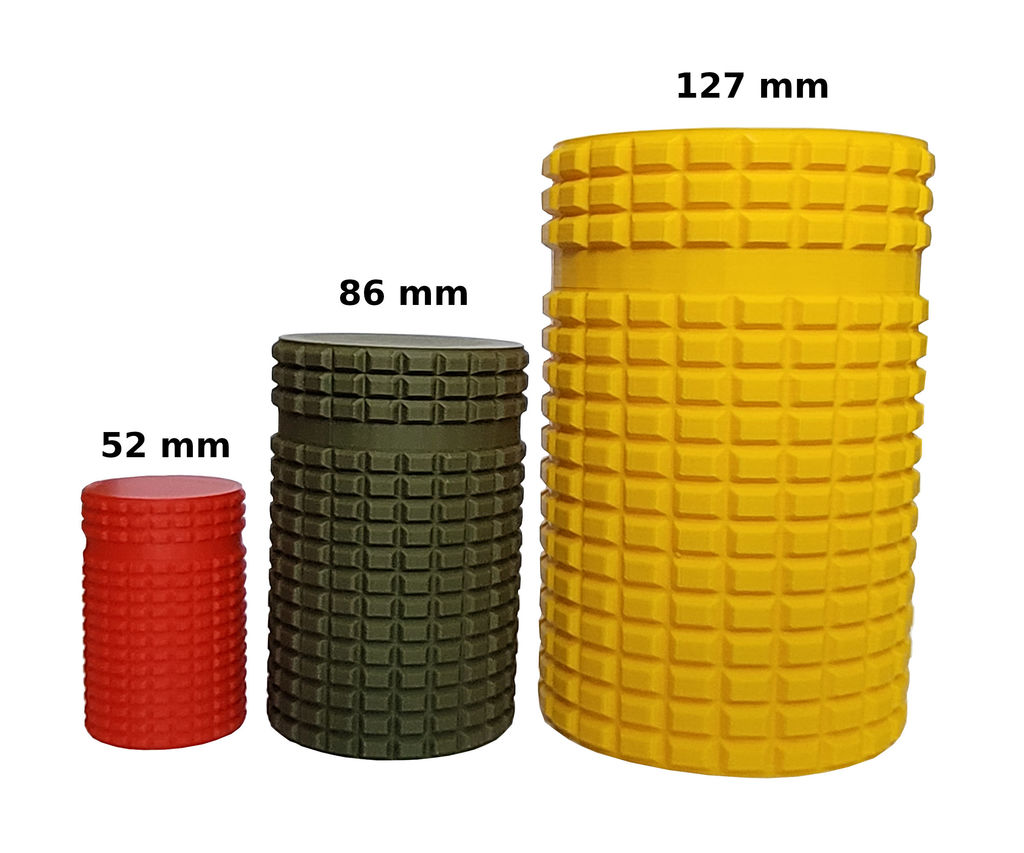

Small box:
Height with lid 5.2 cm (2.1 inches). Diameter 3.5 cm (1.4 inches).
Medium box:
Height with lid 8.6 cm (3.4 inches). Diameter 5.6 cm (2.2 inches).
Large box:
Height with lid 12.7 cm (5.0 inches). Diameter 8.3 cm (3.3 inches).
The tolerance between box and lid is enough for the lid to be screwed onto the box.
Position the box with the bottom to the build surface.

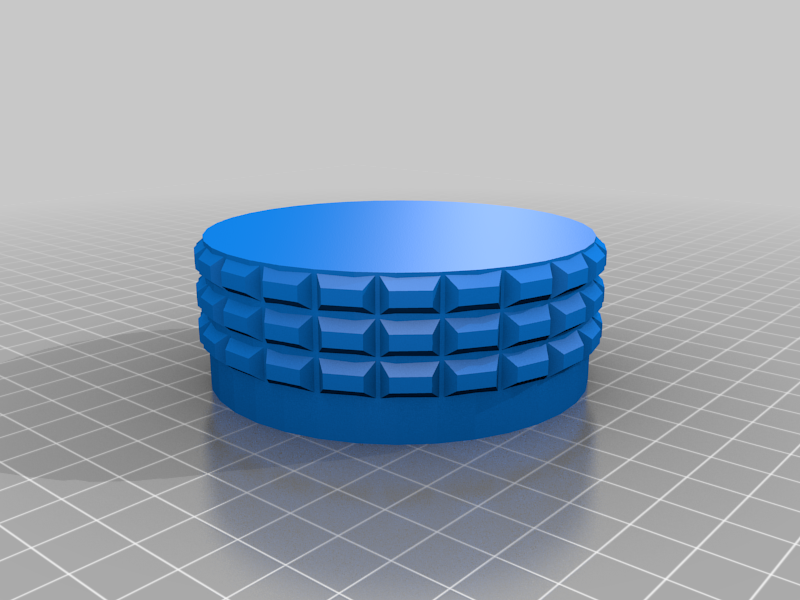

Position the lid with the flat top part to the build surface. No supports are needed.
2022-01-06 Added small and large box
Now there are 3 boxes to choose from. The small box can e. g. hold 2 € coins. Enjoy printing this item.

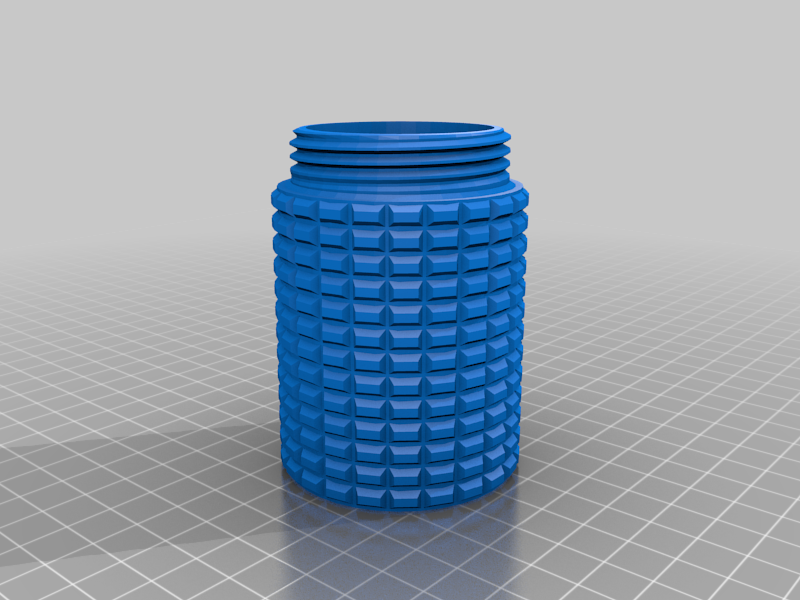

2022-03-10 Corrected 86 mm box
The bottom part of the 86 mm box had an error. Uploaded new version with file name "Box 86 mm bottom 02.stl".
Print Settings
Printer:
FLSUN Super Racer
Rafts:
No
Supports:
No
Resolution:
0.15 mm layer height
Infill:
20 %
Filament:
Any Any rigid filament, e. g. PLA, PETG.
Any
Notes:
Do not scale the box in your slicer program, as this would also scale the tolerance between box and lid. As a result the lid maybe does not fit.
Box design
The box was designed with Blender starting from a nut and bolt from the bolt factory. Both items were heavily modified to get the box bottom and the lid.
Category: Containers
