What:
- Grid: Simple grid system for drawers to sit in and keep them from sliding around. These grids were designed for quick printing and based on 55mm x 55mm dimensions. There are three grids to choose from that basically max out with what my printer can do. I generally use CA glue to stick the grids to the bottom of the drawer and it seems to work well.

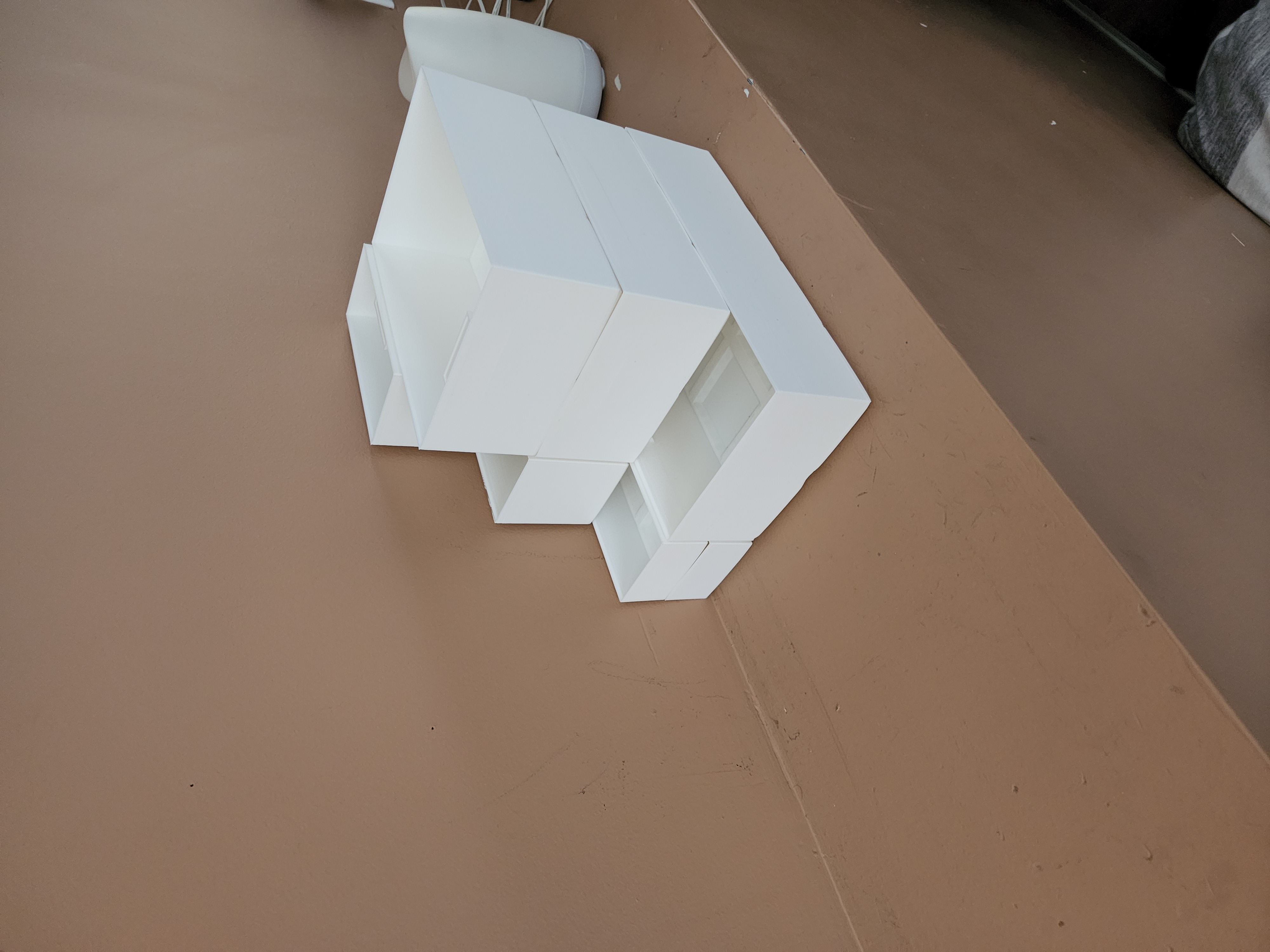

- Bins: Arrangement of bins in various sizes and orientations to work with a standard grid system . The grids sit in drawers for bins to sit in and keep them from sliding around. The grids were designed for quick printing and based on 55mm x 55mm dimensions so the bins are also based on that 55mm x 55mm design in various heights and you can stack them as well. Available in various heights: 35.25mm, 47.75mm, 65mm, 90mm, 92.75mm, 125mm. The .25|.75 heights are the bins intended for stacking since some height is lost when stacked.
- Notes: you will lose a bit of overall height when the bins are stacked but I am revising my models to compensate. In the future I might come up with another option that has less slop to it and don't need to compensate but for now these are working great for me. Also there is a good amount of clearance on the base which I could tighten up but again, these work great for me. There are many ways to make this work and other grid systems out there so make sure you look around if these aren't for you :)
How:
- Printer: Elegoo Netptue 2S
- Nozzle: 0.4mm
- Modelling Software: Fusion 360
- Slicer: Cura Modified CHEP FF (0.28)
- Filament: Overture PLA Black 1.75MM
Why:
- Mostly I just wanted to learn Fusion 360 and this was the best way to explore parametric design while having something functional. My desk drawers are a mess and look so much better now. There are plenty of tweaks I would like to make but for now these do the job for me.
Where:
Printables
Parametric Grid and Bin Storage
Publicado em 30 de abr de 2022
9
Curtidas
36
Downloads
Categoria
Organizers
Licença
Creative Commons — Attribution — Noncommercial — Share Alike
Arquivos (69)
A1 - 65mm - 2x2.3mf
82.1 KB
A1 - 65mm - 1x2.3mf
74.5 KB
A1 - 65mm - 2x3.3mf
85.2 KB
A1 - 65mm - 3x2.3mf
75.1 KB
A1 - 65mm - 2x1.3mf
80.7 KB
A1 - 65mm - 4x1.3mf
73.6 KB
A1 - 65mm - 1x4.3mf
71.9 KB
A1 - 65mm - 1x1.3mf
81.4 KB
A1 - 65mm - 4x3.3mf
78 KB
A1 - 65mm - 3x3.3mf
76.6 KB
A1 - 65mm - 4x2.3mf
75 KB
A1 - 65mm - 4x4.3mf
80.2 KB
A1 - 65mm - 3x1.3mf
73.4 KB
A1 - 65mm - 1x3.3mf
84 KB
A1 - 65mm - 2x4.3mf
77.5 KB
A1 - 65mm - 3x4.3mf
78.6 KB
B1 - 90mm - 4x1.3mf
75.9 KB
B1 - 90mm - 3x4.3mf
78.3 KB
B1 - 90mm - 3x3.3mf
76.8 KB
B1 - 90mm - 4x3.3mf
77.9 KB
B1 - 90mm - 1x2.3mf
73.4 KB
B1 - 90mm - 2x3.3mf
76.1 KB
B1 - 90mm - 2x1.3mf
74.6 KB
B1 - 90mm - 1x1.3mf
73.9 KB
B1 - 90mm - 4x2.3mf
77.9 KB
B1 - 90mm - 3x2.3mf
75.3 KB
B1 - 90mm - 1x4.3mf
75.8 KB
B1 - 90mm - 2x2.3mf
76.6 KB
B1 - 90mm - 3x1.3mf
73.7 KB
B1 - 90mm - 2x4.3mf
77.4 KB
B1 - 90mm - 4x4.3mf
79.9 KB
B1 - 90mm - 1x3.3mf
75.7 KB
C2 - 125mm - 1x1.3mf
71.6 KB
B0_C0 - 47.75mm - 3x2.3mf
75.2 KB
B0_C0 - 47.75mm - 2x2.3mf
67.9 KB
B0_C0 - 47.75mm - 2x1.3mf
73.2 KB
B0_C0 - 47.75mm - 1x4.3mf
68 KB
B0_C0 - 47.75mm - 3x4.3mf
78.9 KB
B0_C0 - 47.75mm - 2x4.3mf
77.6 KB
B0_C0 - 47.75mm - 1x2.3mf
75 KB
B0_C0 - 47.75mm - 1x3.3mf
75.6 KB
B0_C0 - 47.75mm - 1x1.3mf
66.6 KB
B0_C0 - 47.75mm - 4x4.3mf
80.3 KB
B0_C0 - 47.75mm - 4x2.3mf
75.8 KB
B0_C0 - 47.75mm - 3x3.3mf
76.9 KB
B0_C0 - 47.75mm - 3x1.3mf
73.1 KB
B0_C0 - 47.75mm - 4x3.3mf
78.2 KB
B0_C0 - 47.75mm - 4x1.3mf
73.4 KB
B0_C0 - 47.75mm - 2x3.3mf
75.8 KB
A0 - 35.25mm - 4x1.3mf
73.3 KB
A0 - 35.25mm - 3x1.3mf
72.9 KB
A0 - 35.25mm - 1x3.3mf
74.8 KB
A0 - 35.25mm - 2x4.3mf
77.6 KB
A0 - 35.25mm - 2x2.3mf
74.6 KB
A0 - 35.25mm - 4x4.3mf
80.3 KB
A0 - 35.25mm - 2x3.3mf
76.1 KB
A0 - 35.25mm - 1x1.3mf
73.4 KB
A0 - 35.25mm - 1x2.3mf
74.8 KB
A0 - 35.25mm - 3x4.3mf
78.8 KB
A0 - 35.25mm - 4x3.3mf
78.1 KB
A0 - 35.25mm - 2x1.3mf
72.5 KB
A0 - 35.25mm - 3x3.3mf
76.9 KB
A0 - 35.25mm - 1x4.3mf
74.4 KB
A0 - 35.25mm - 4x2.3mf
75.8 KB
A0 - 35.25mm - 3x2.3mf
75.1 KB
C1 - 92.75mm - 1x1.3mf
71.8 KB
Grid - Medium - 3x3.3mf
82.9 KB
Grid - Small - 2x2.3mf
68.2 KB
Grid - Large - 4x4.3mf
86.6 KB
