Modelo 3D GPU SUPPORT BRACKETS (CUSTOM) por Glenn37216 no Printables

Descrição

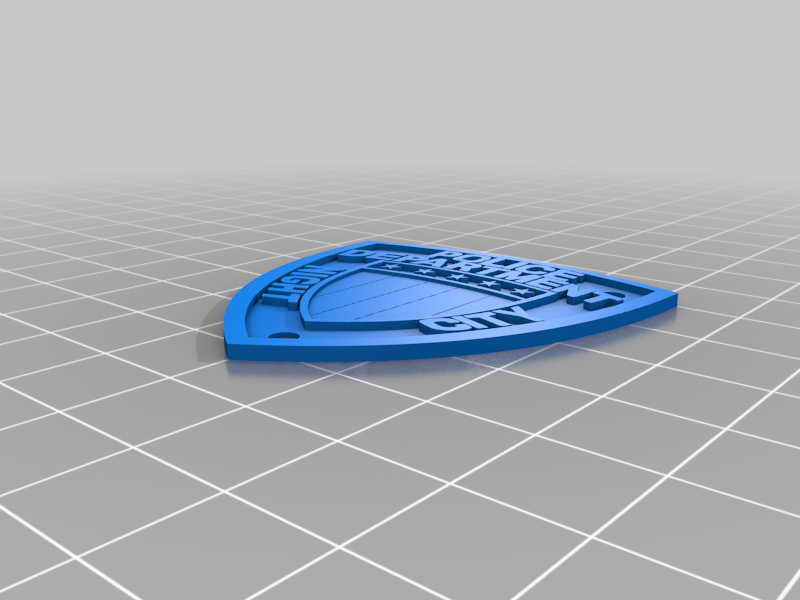

5-2-2021 - Added Night City Police Department (Cyberpunk) Themed Rail and Slider

3 parts: Badge Slider - A , Badge Slider - B , NCPD Rail . Note ! Slider has to be assembled with small screws.

12-3-2020 - Added Phanteks Rail

  • Custom GPU support brackets that consists of 3 pieces - Mount , Rail & Slider.
  • Brackets can be adjusted in or out to support many different types of GPU lengths

and thicknesses.

  • The "Slider" does not have to be used and may not fit on some GPU set ups that have a lower pci slot clearance.

Print Settings

Printer:

Ender 3 v.2

Resolution:

.16

Infill:

20%


Notes:

  • Please print the TOLERANCE TEST before you print the MOUNT or RAIL. You can then make adjustments in your preferred slicer for a tight fit between the sliding joints.

    Be aware of your Z Seam Alignment ! If it falls to one of the corners of the joints it may make it difficult for your printed parts to slide together. If your having difficulty with the TOLERANCE TEST pieces , In your slicer program search for Z Seam Alignment and set it to User Specified. With this setting you can determine the x and y locations. Choose the area of the print that doesn't affect joint alignments.

    Ghostbusters slider printed with supports. All other sliders need no supports.

    Ghostbusters rail may need supports if your printer does not bridge well. (1" bridge on pack)

    PLEASE NOTE :

    If you're having problems printing the tolerance test ... Go to the filament settings in your slicer program and change the extrusion multiplier: increase it if the fit is too loose or decrease it if you were not able to push the parts together. Make sure z seam is on backside of pieces... Check your e steps make sure your not over extruding. These gpu brackets are designed to have a tight fit. Printer calibration is crucial so you may have to tap them together with a tool or rubber mallet.

Category: Computer

Printables

GPU SUPPORT BRACKETS (CUSTOM)

Glenn37216 Glenn37216 (abre em nova aba)

Publicado em 30 de abr de 2022

122
Curtidas
652
Downloads
9
Impressões
Categoria Computers
Tags
computer nvidia gpu ghostbusters cyberpunk2077 cyberpunk thingiverse asus nzxt msi evga ryzen amd gpusupport gigabyte gigabytelogo gtx1080 rtx3080 gtx1070 geforcesupport rtx2070 rtx2080
Licença Creative Commons — Attribution
Arquivos (38)
blank_rail.stl 12.7 KB

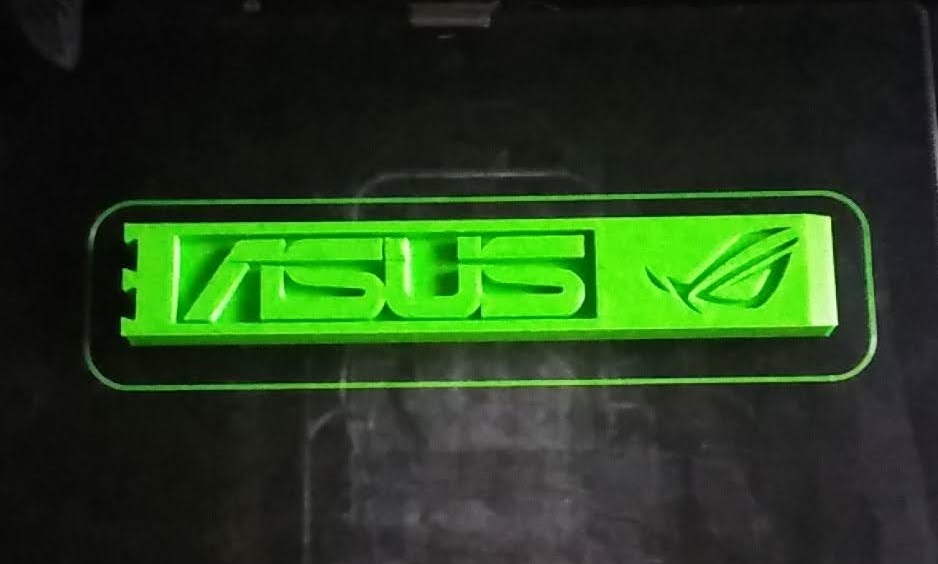

Asus_rail.stl 252.4 KB
GTX_1070.stl 90.9 KB
RTX_2070.stl 95.5 KB
Phanteks_Rail.stl 70.1 KB
jeep_rail.stl 432.7 KB
hole_rail.stl 1.1 MB
aorus_eagle_slider.stl 27.5 KB
intel_rail.stl 1 MB
GTX_1060.stl 113.4 KB
ZEDDEMORE_rail.stl 408.7 KB
VENKMAN_rail.stl 364 KB
shield_slider.stl 41.6 KB
Gigabyte_rail.stl 82.4 KB
Badge_Slider_-_A.stl 1.1 MB
STANTZ_rail.stl 419.9 KB
SPENGLER_rail.stl 437.1 KB
GTX_1080.stl 109 KB
nzxt_rail.stl 47.4 KB
amd_slider.stl 12.6 KB
RTX_3080.stl 138.4 KB
msi_rail.stl 93.3 KB
flame_slider.stl 225.8 KB
NCPD_Rail.stl 65.9 KB
radeon_rail.stl 77.2 KB
Rail_Mount_v2.stl 153.5 KB
RTX_3070.stl 113.3 KB
overclock_rail.stl 163.6 KB
aorus_rail.stl 86.4 KB
127001.stl 265.4 KB
evga_rail.stl 87.4 KB
Badge_Slider_-_B.stl 83.9 KB
GHOST_SLIDER.stl 121.8 KB
geforce_rail.stl 130 KB
RTX_2080.stl 113.2 KB
ryzen_rail.stl 32.1 KB
TOLERANCE_TEST.stl 30.6 KB
EVGA_slider_.stl 78.4 KB
