Raspberry Pi 7 Inch Touchscreen display case

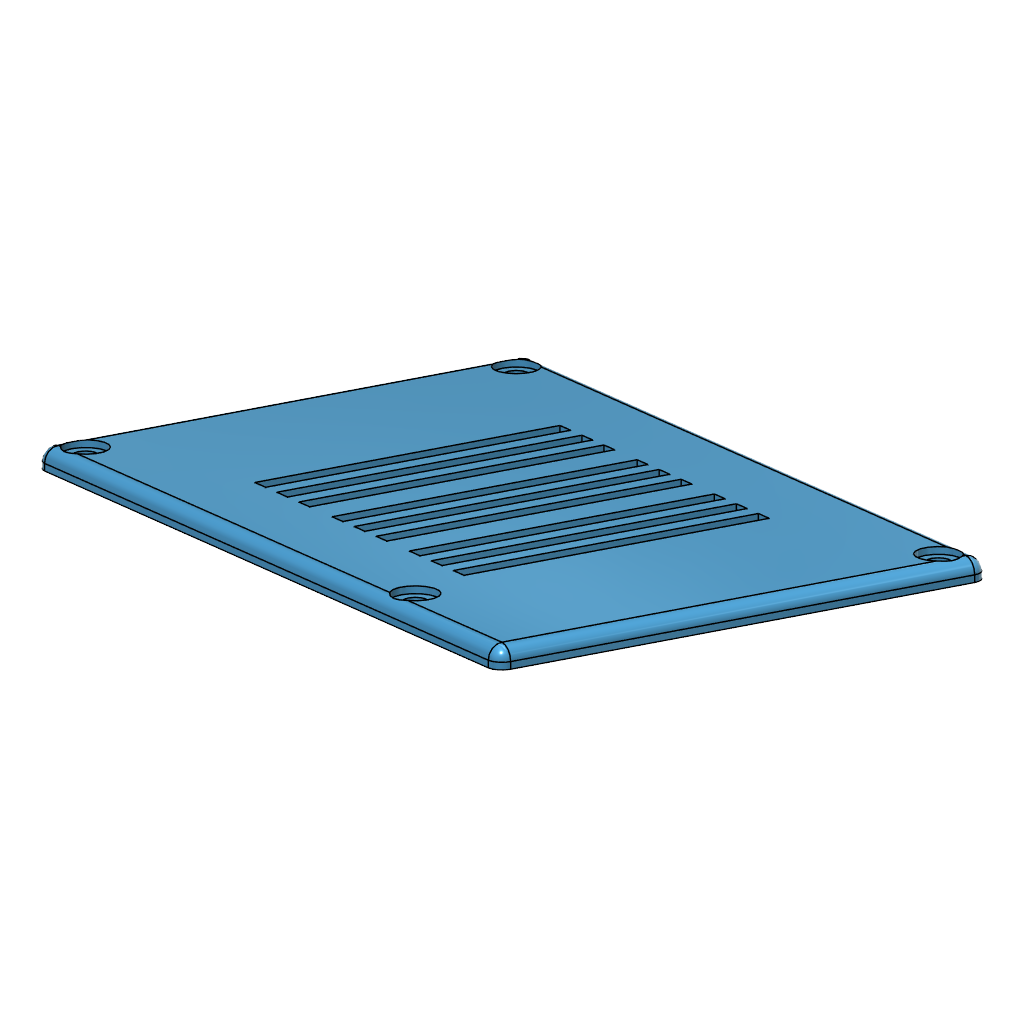

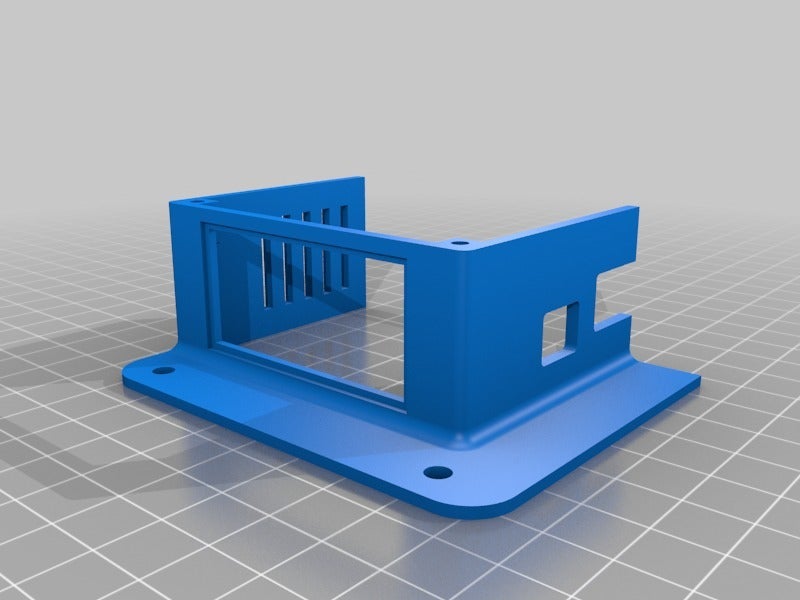

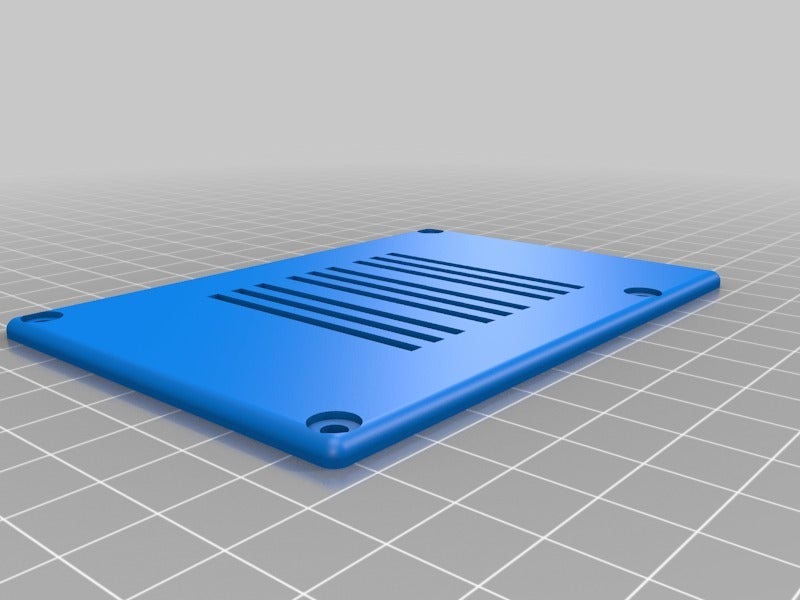

Easy to print solid Raspberry Pi 2 or 3, Official 7 inch touchscreen case. I wanted to keep the black bezel look of the screen and not making it bigger. You will need 4 M3x6 or 8 screws to secure the back cover. There is room inside for the power cables.

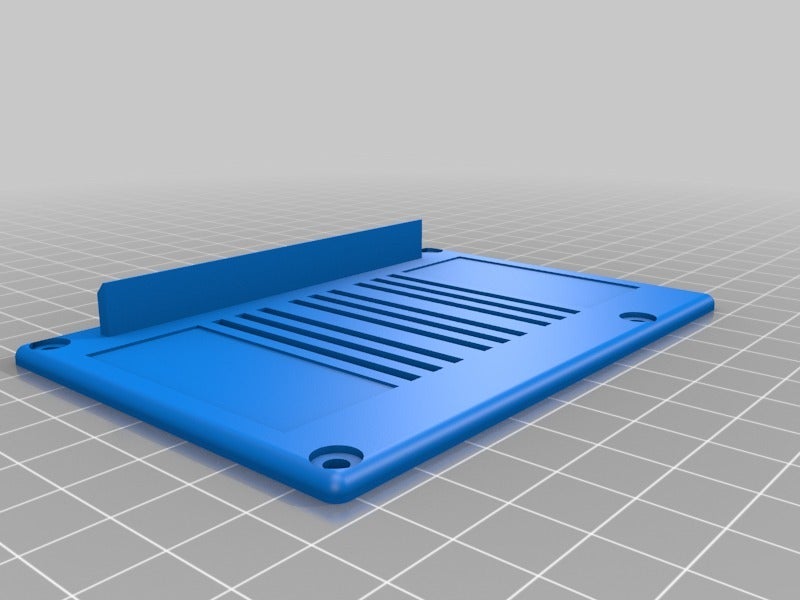

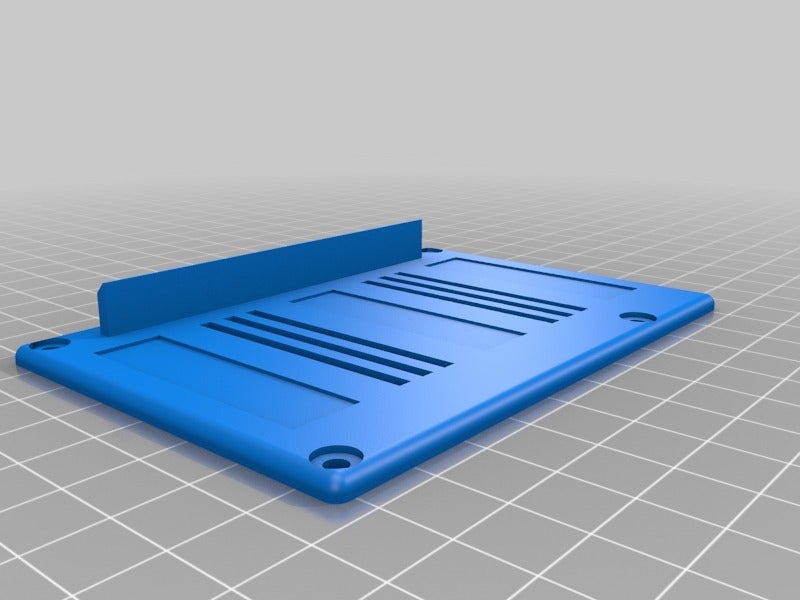

I will use this as a kiosk display and NAS for my Kodi player I have cut out some areas at the back where I can add velcro strips to mount a 2.5 inch HDD.
Enjoy and show off your builds and mods.

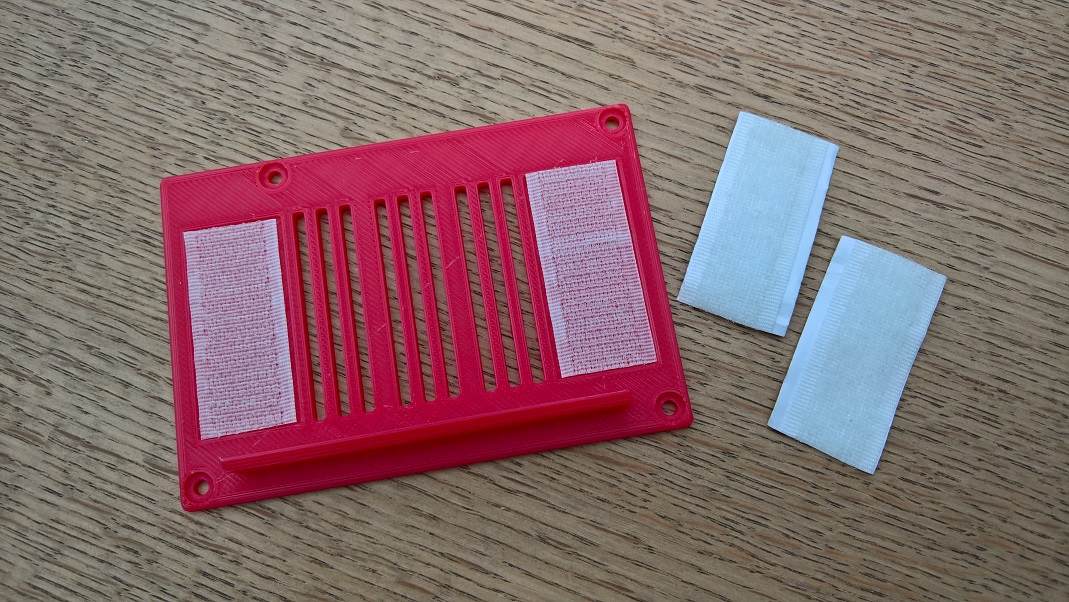

Update 290516: Added 2cm Velcro lid and lid without HDD support.

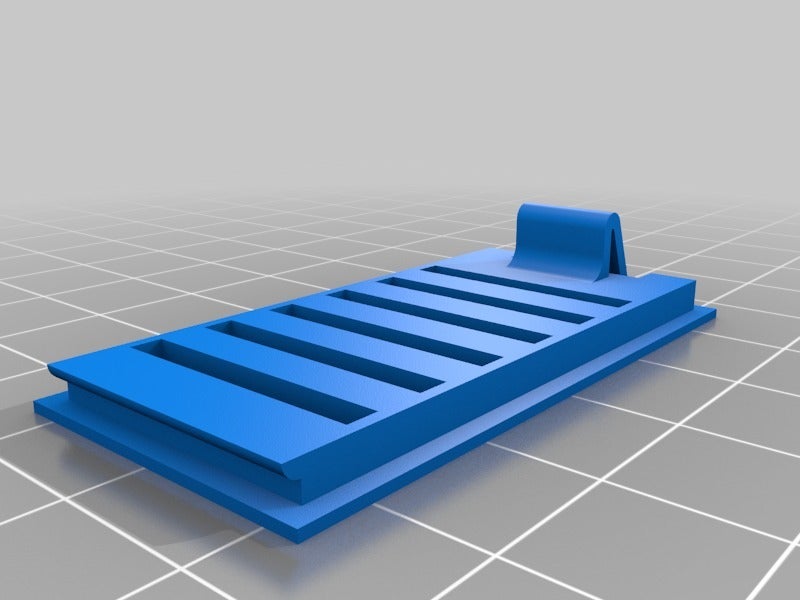

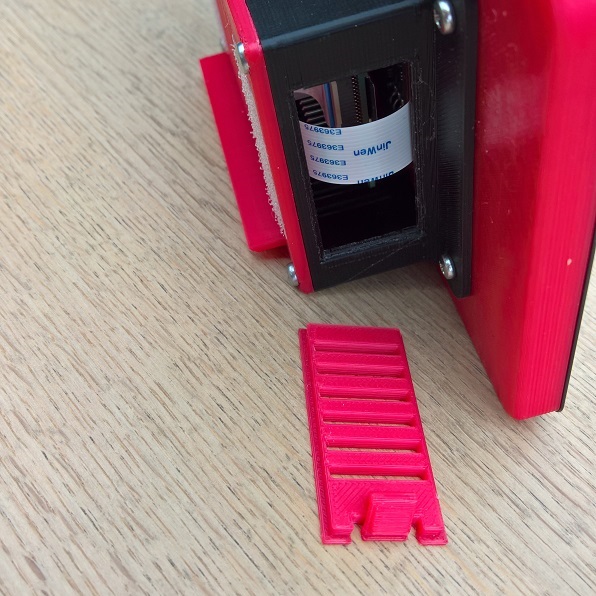

Update 310516: Added new case with little door access to the SD card. Still need small pliers or pincet but it's easier than unscrewing the back lid.

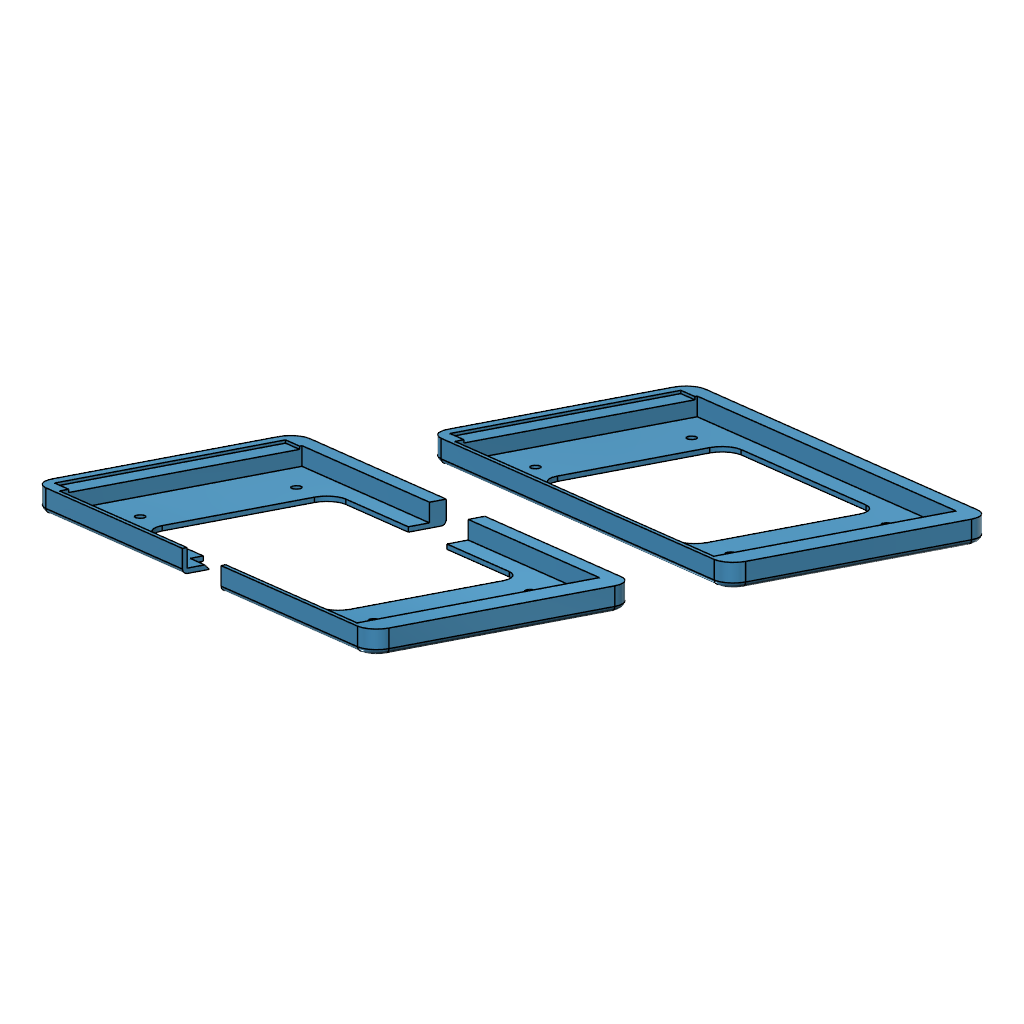

Update 150317: Added split STL for front to enable print on small print beds.

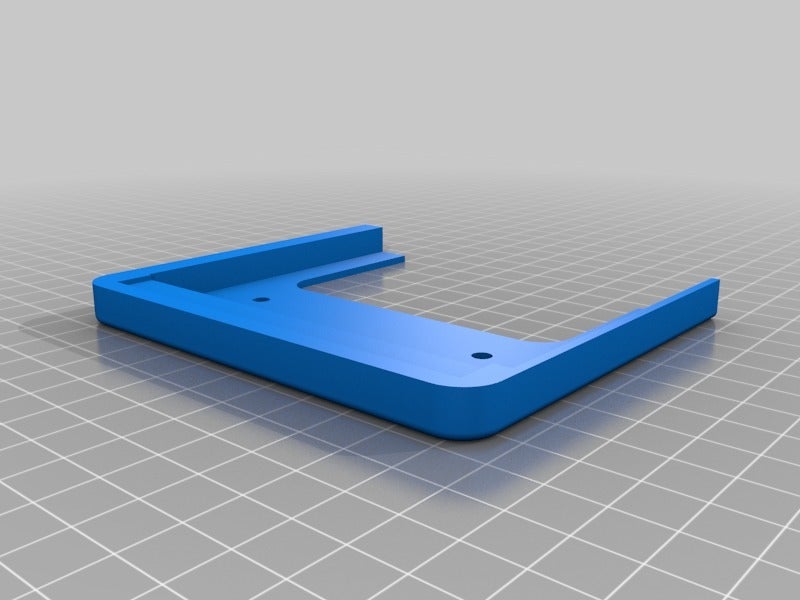

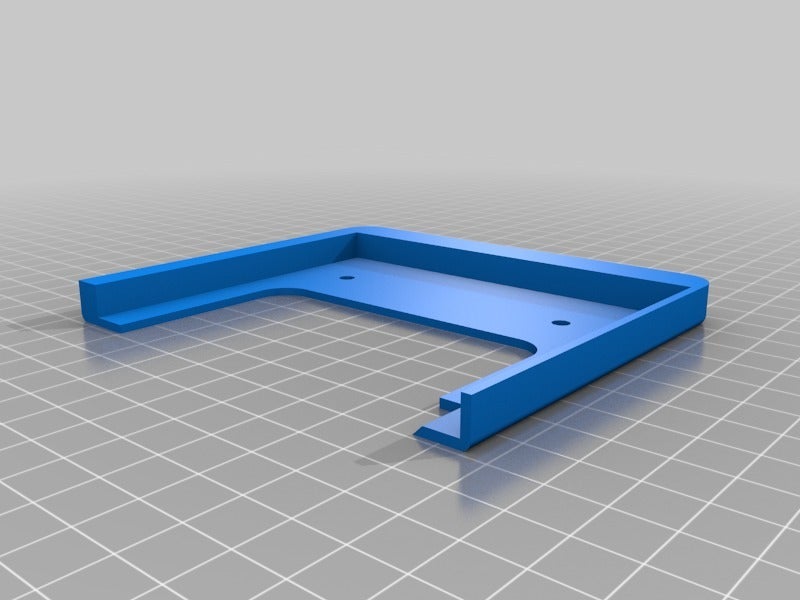

Update 010118: Added split STL for case Left and Right to enable print on small print beds

Update 240418: Added the 123Design source files

Print instructions

Category: Electronics Print Settings

Printer: Prusa i3 Plus

Rafts: No

Supports: Yes

Resolution: 200 um

Infill: 20%

Notes:

I used supports for the Case, others don't need support. To finish the print faster you can use 2 bottom and 3 top layers.
