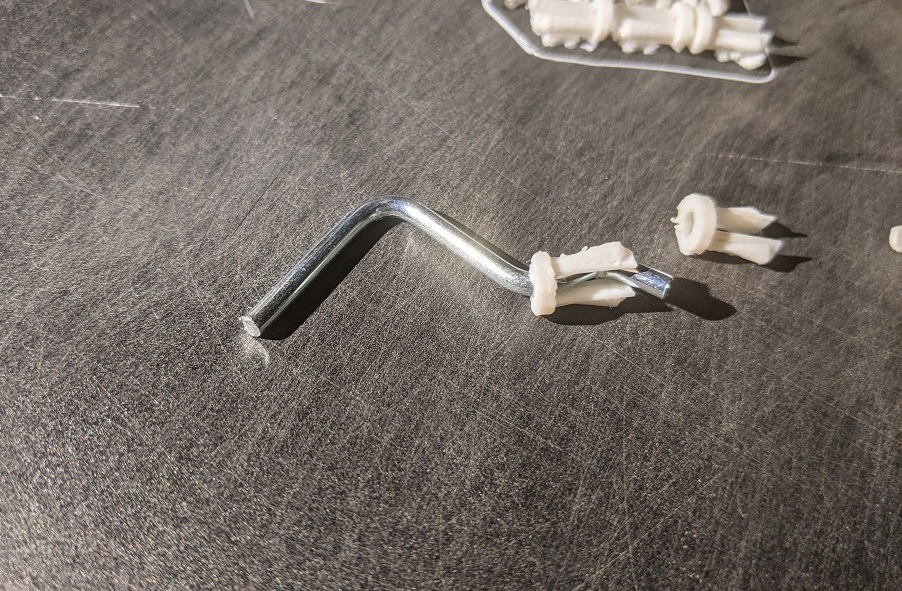

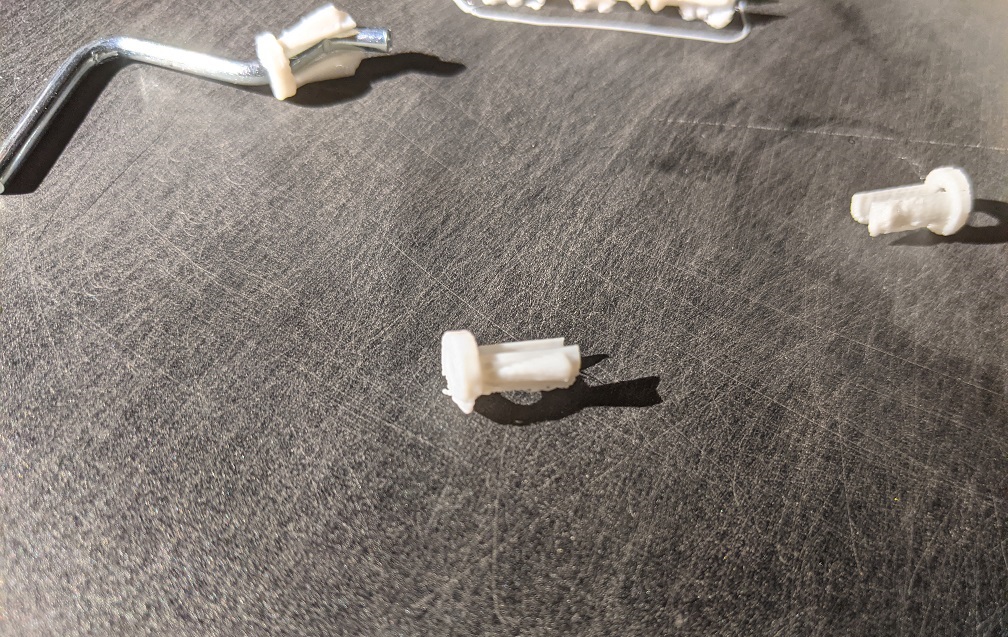

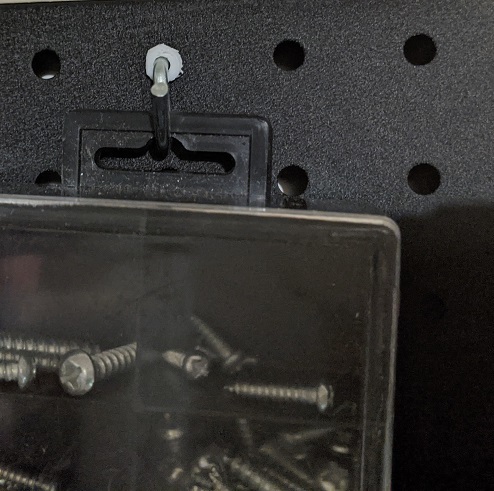

Locking pegboard hook adaptor designed from scratch for my pegboard and hooks.

pegboard is metal, so has very little thickness, with large 6mm holes 25mm apart. The hooks are about 2.7mm diameter

Printing individually went badly, probably because there wasn't enough time for the part to cool Printing ten at once went much better

Printing orientation is horizontal so that the plastic is strong enough to flex through the hole. once through the hole, stress is relieved, and part should last a long time.

Print Settings

Printer Brand:

Wanhao

Printer:

Rafts:

No

Supports:

Resolution:

0.15

Infill:

Filament: generic PLA white

Notes:

I just removed the supports with my thumbnail, although some blobs needed removing with side cutters (my filament is quite old)

How I Designed This

Designed in Tinkercad. Initially as a hollow cylinder to check inner and outer diameters for fit.rnrnThickness of front face picked because I was holding a paddle pop stick, and it felt like it was the thickness I wanted.rnrnLocking wedge was made from two cylinders, matched by eye to the size and placement I wanted for easy insertion and removal
