PC Micro-ATX Modular Test Bench

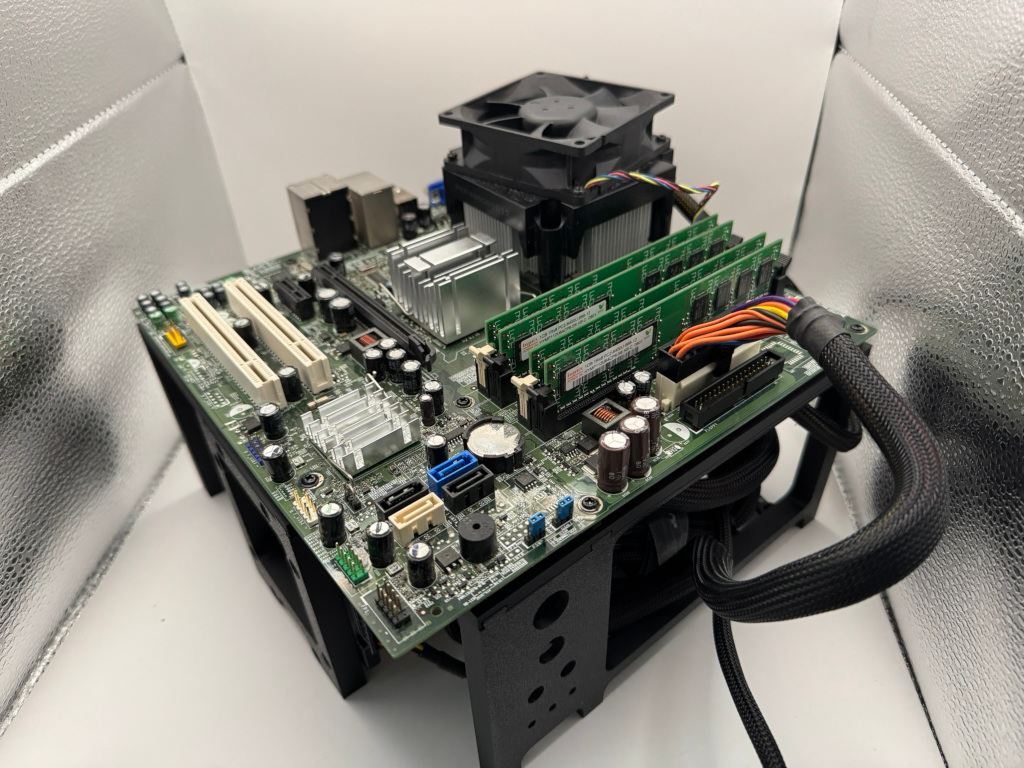

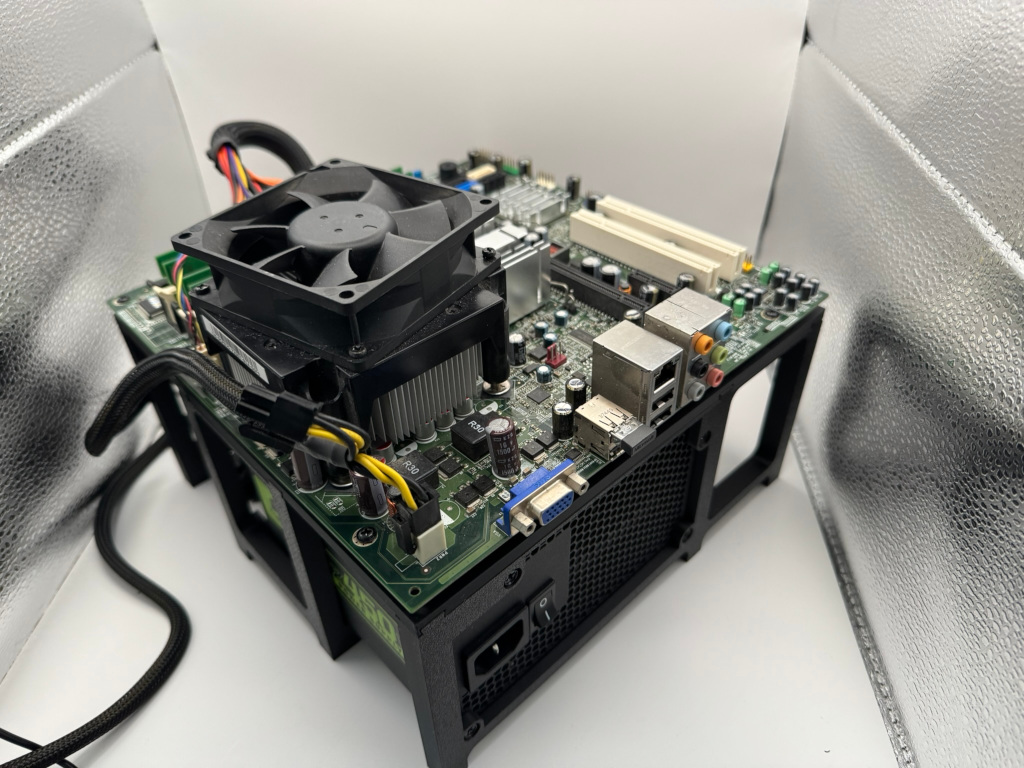

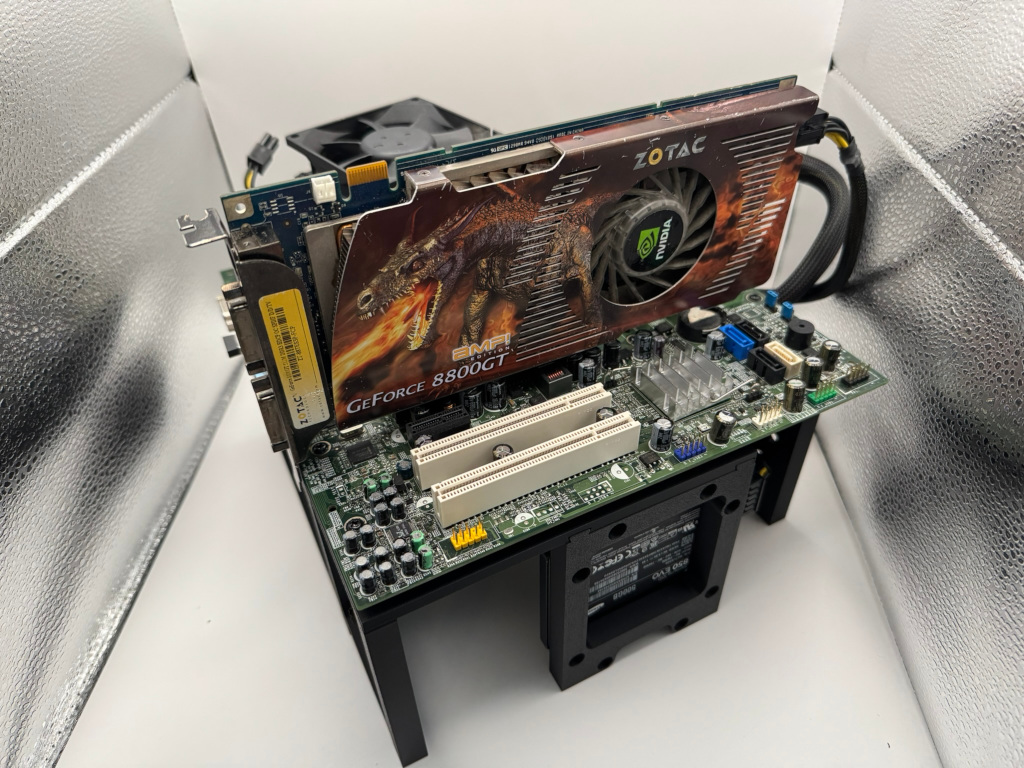

Open air test bench for micro-atx motherboard. Will also fit ITX as the holes align with micro ATX. Probably can also fit a full sized ATX but it will overhang.

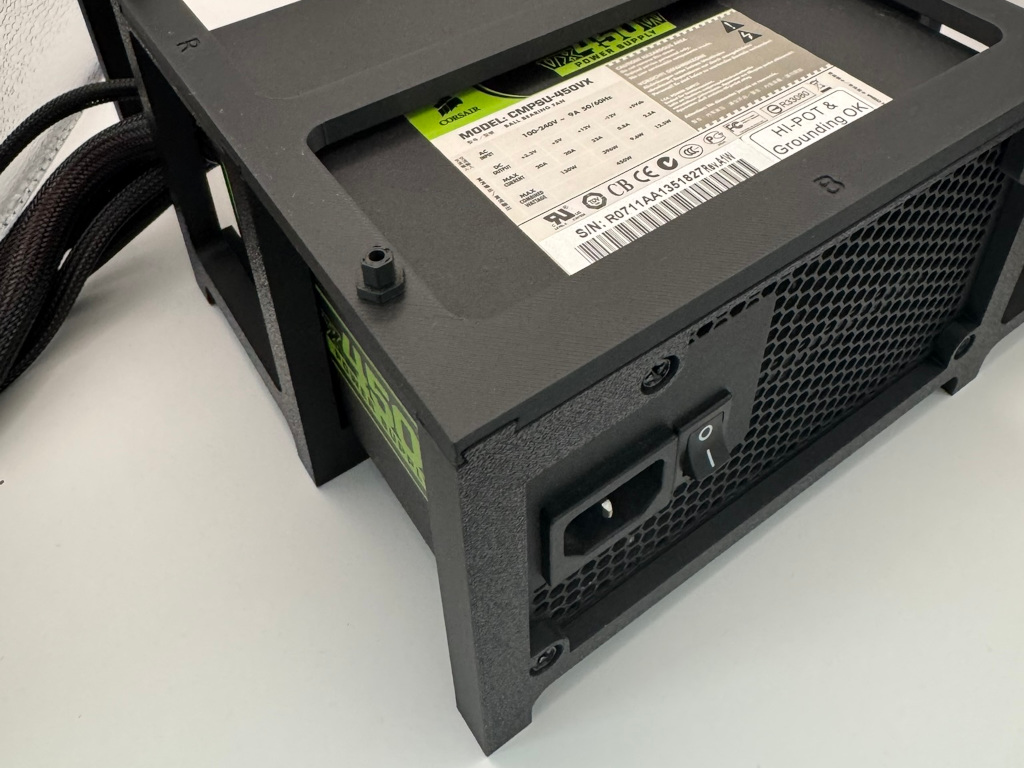

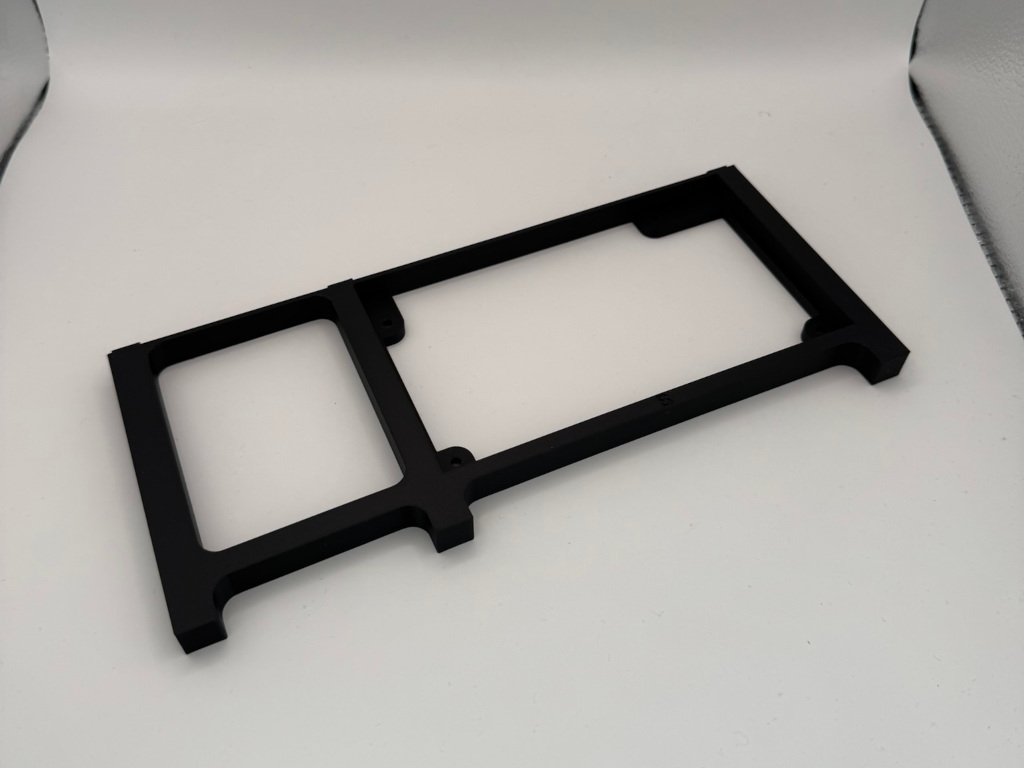

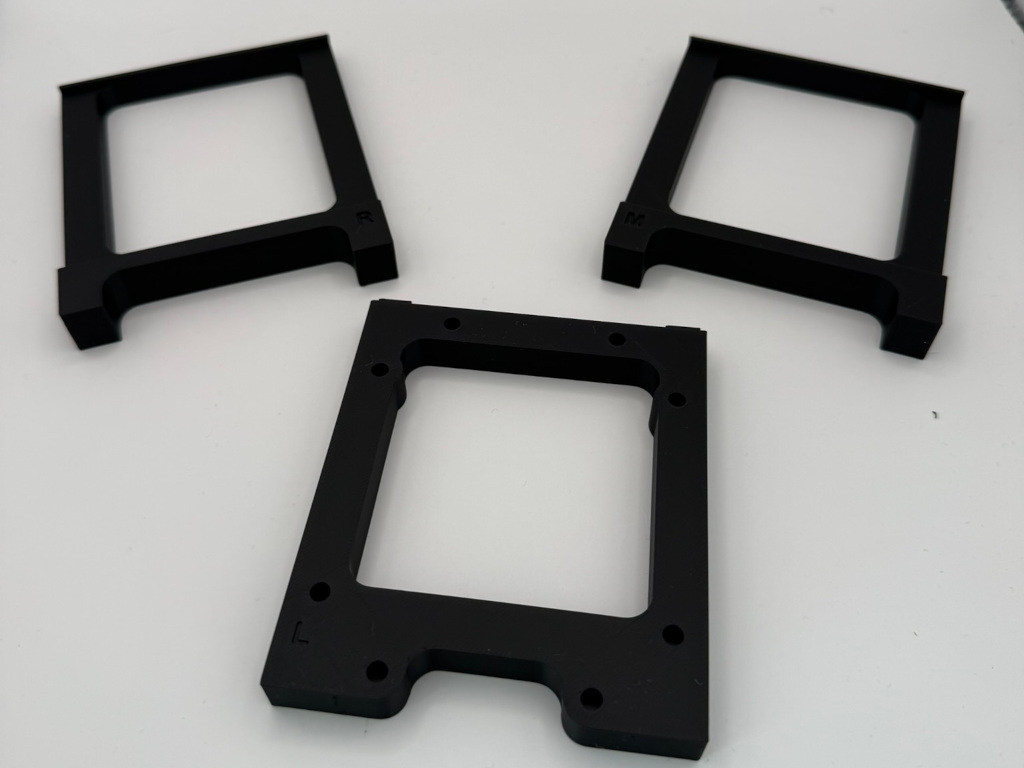

This is a modular design which allows addition of new devices as needed. At the moment this is limited to 2.5" SSD or 3.5" HDD and ATX or SFX PSUs. Have added blank version of the parts as templates.

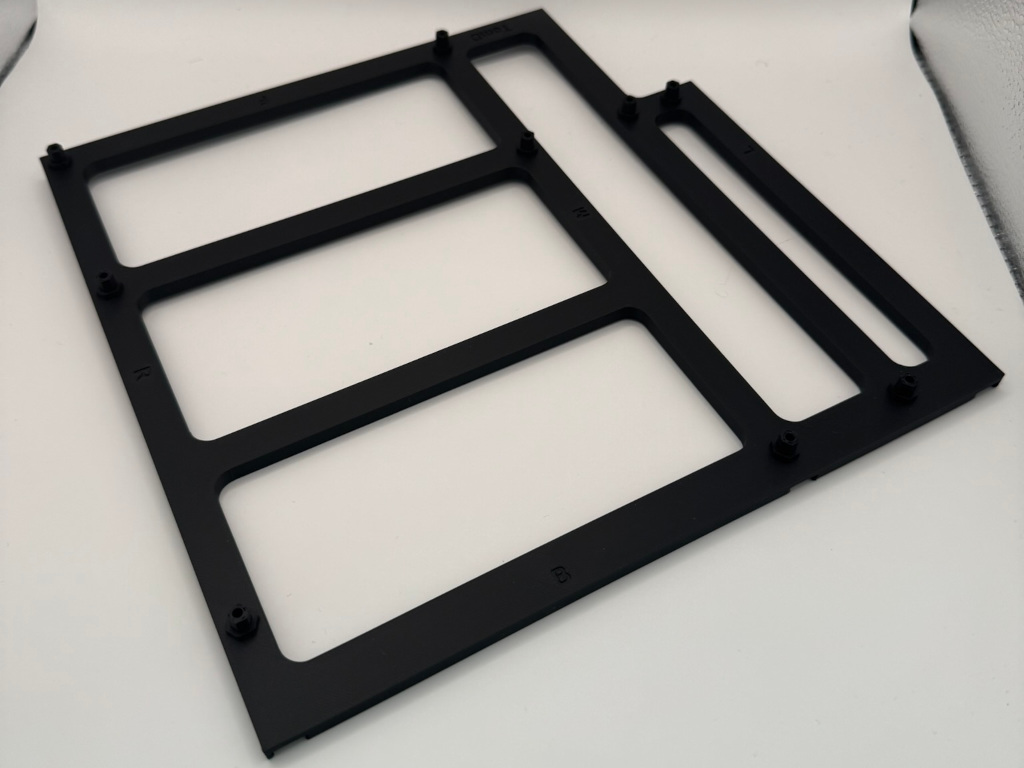

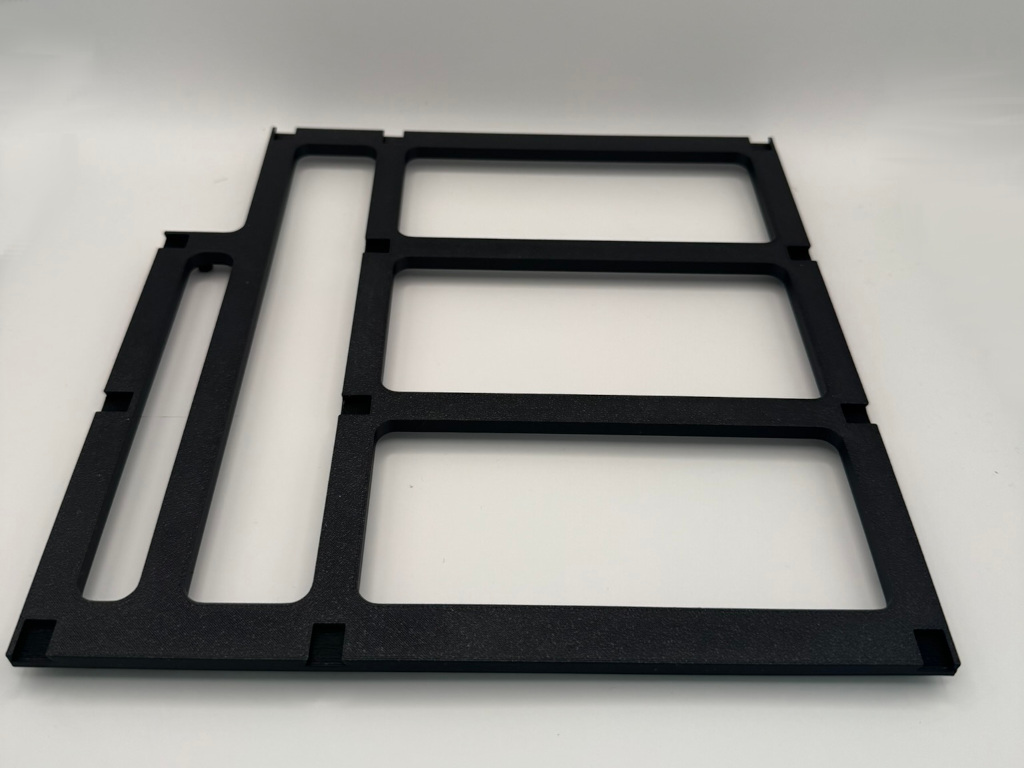

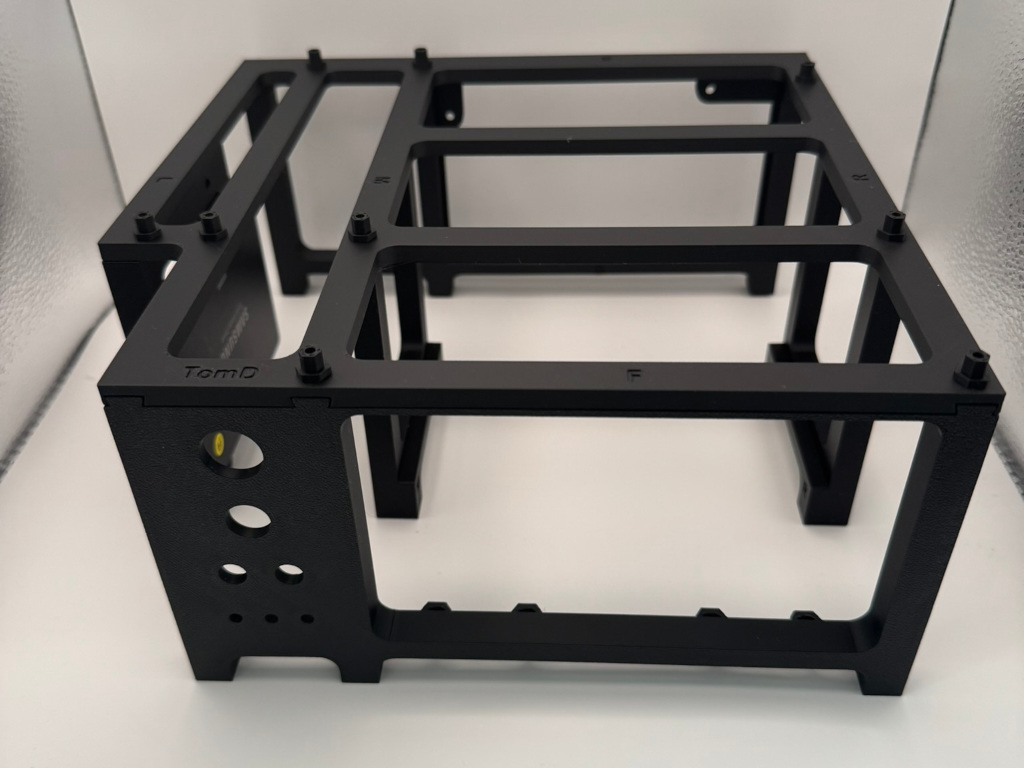

Prints in parts and slots together. Is pretty sturdy and can be glued for extra strength if you want, although that removed the modular part.

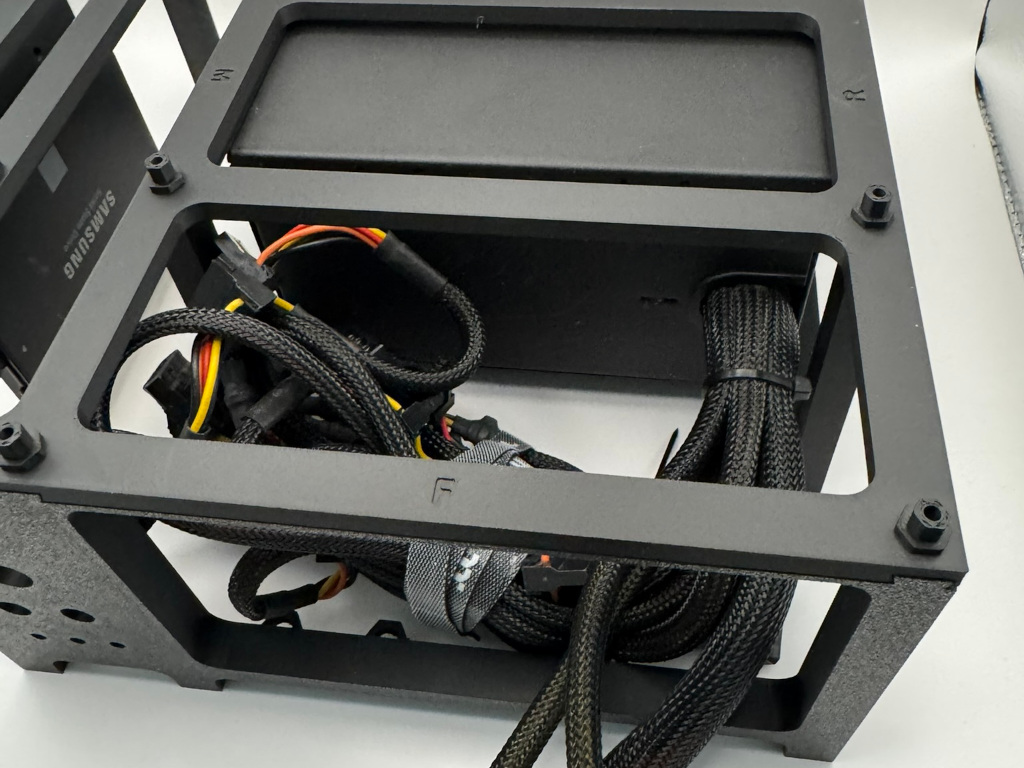

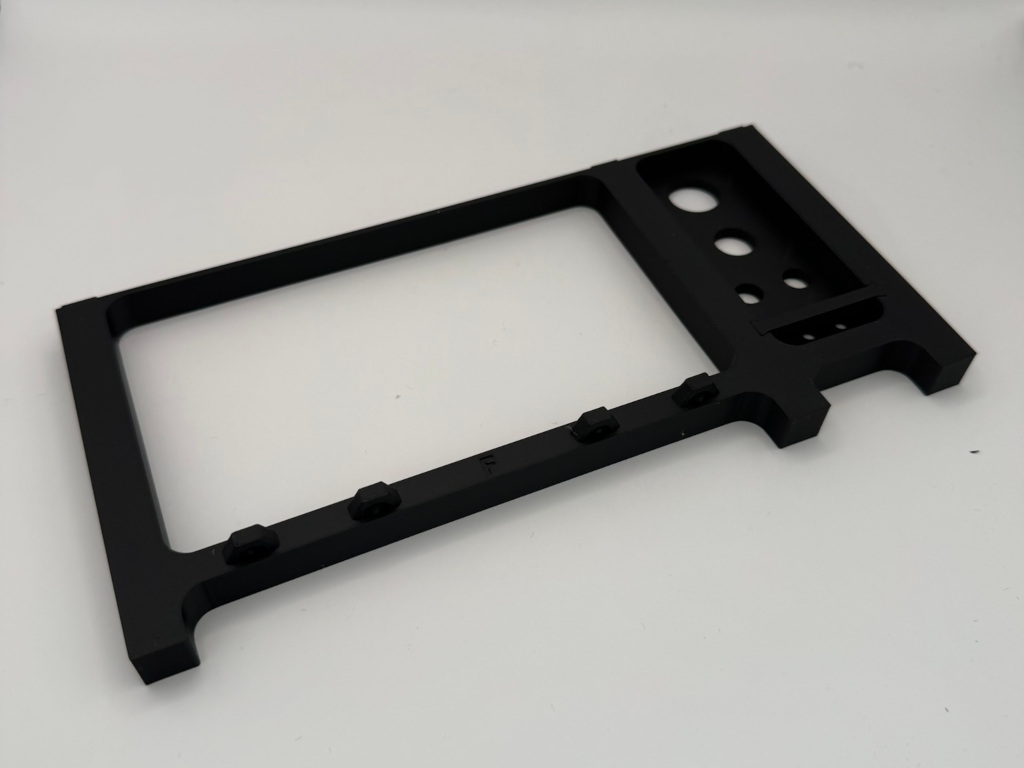

Front part has holes for on/off buttons, reset switches etc... 1x 16mm, 1x 12mm, 2x 8mm & 3x 4mm. Also has cable tie mounts to tidy up the PSU cables.

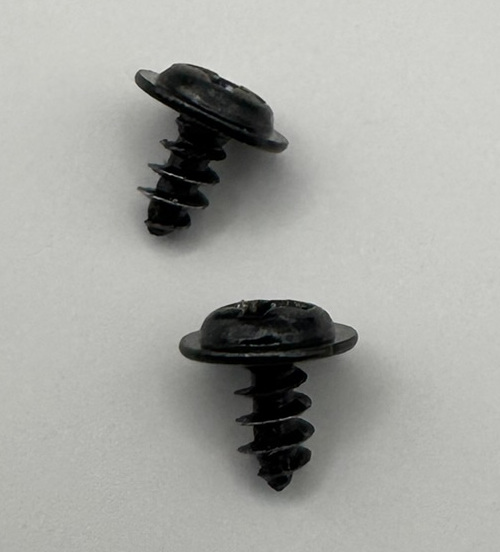

Recommend self tapping screws to connect the motherboard to the top. Image attached of what I use.

Print with supports for the screw holes and joins.
