Summary:

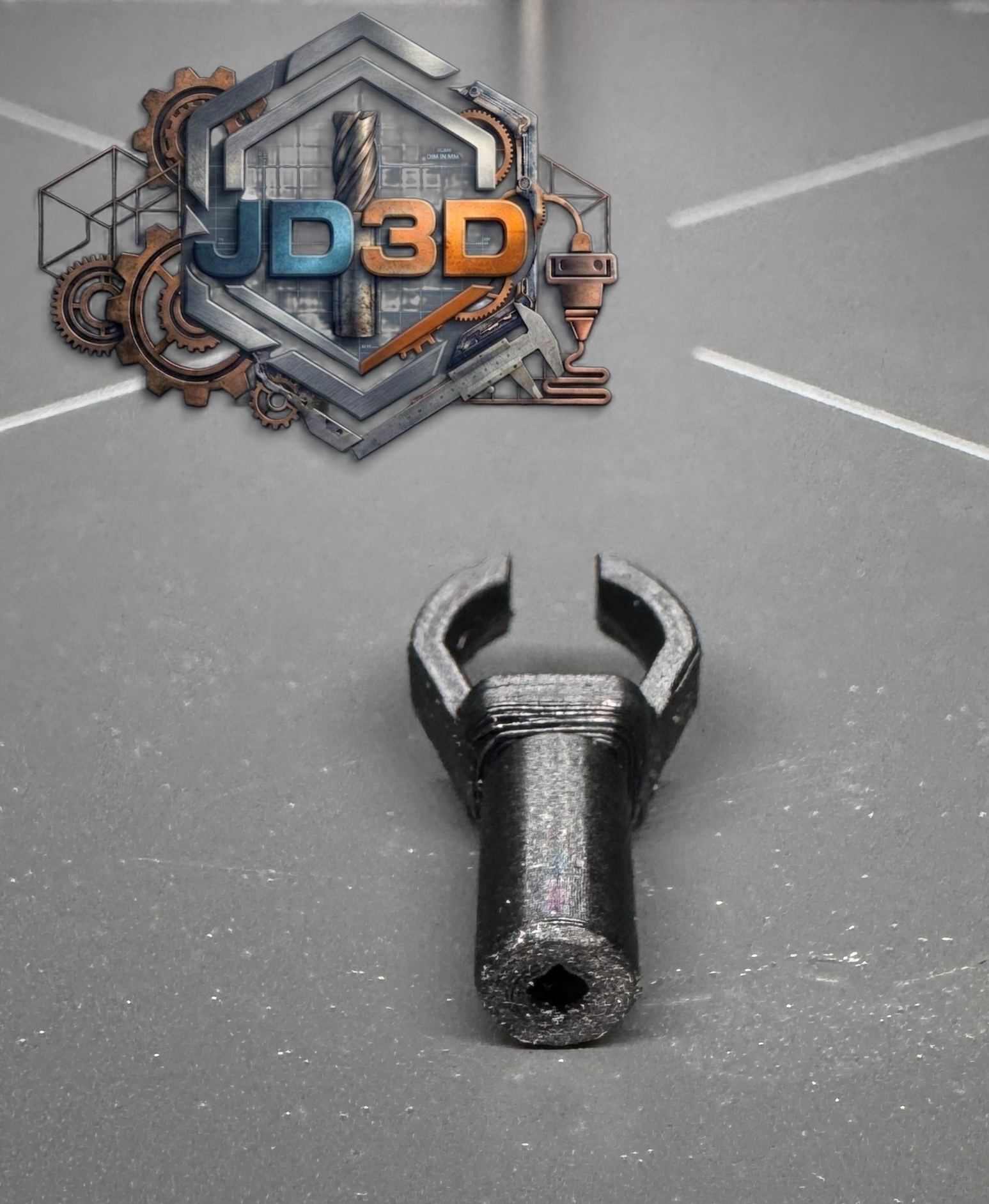

After finding the existing options either unsatisfactory or larger than desired, I designed this plug to better fit the standard quick disconnect fitting. The fitting I am using can be found here for reference. I also created a filament guide for the same fitting.

Features:

• Compatible with standard quick disconnect fittings commonly used with PTFE filament guide tubes

• Integrated filament retainer at the base to prevent filament from dropping into your dry box

• Requires no print supports

• Designed to hang on the PTFE tube when not in use, ensuring the plug is always within reach

Print Parameters:

• Material: Polymaker PLA Pro

• Nozzle: 0.25mm @ 225°C

• Bed: PEI @ 60°C

• Layer Height: 0.12mm

• Supports: None

• Infill: 15% Gyroid

Products:

• Polymaker PLA Pro

• Polymaker Polydryer

• Prusa CoreOne

• PrusaCore One +

• PrusaCore One+ Ultimate

• Prusa MK4

• Prusament PLA

Disclaimer:

• Links may take you to Amazon or Prusa.com for products I endorse and use on a regular basis.

• JD3D is not responsible for any damage or harm caused by improper production, assembly and use.
