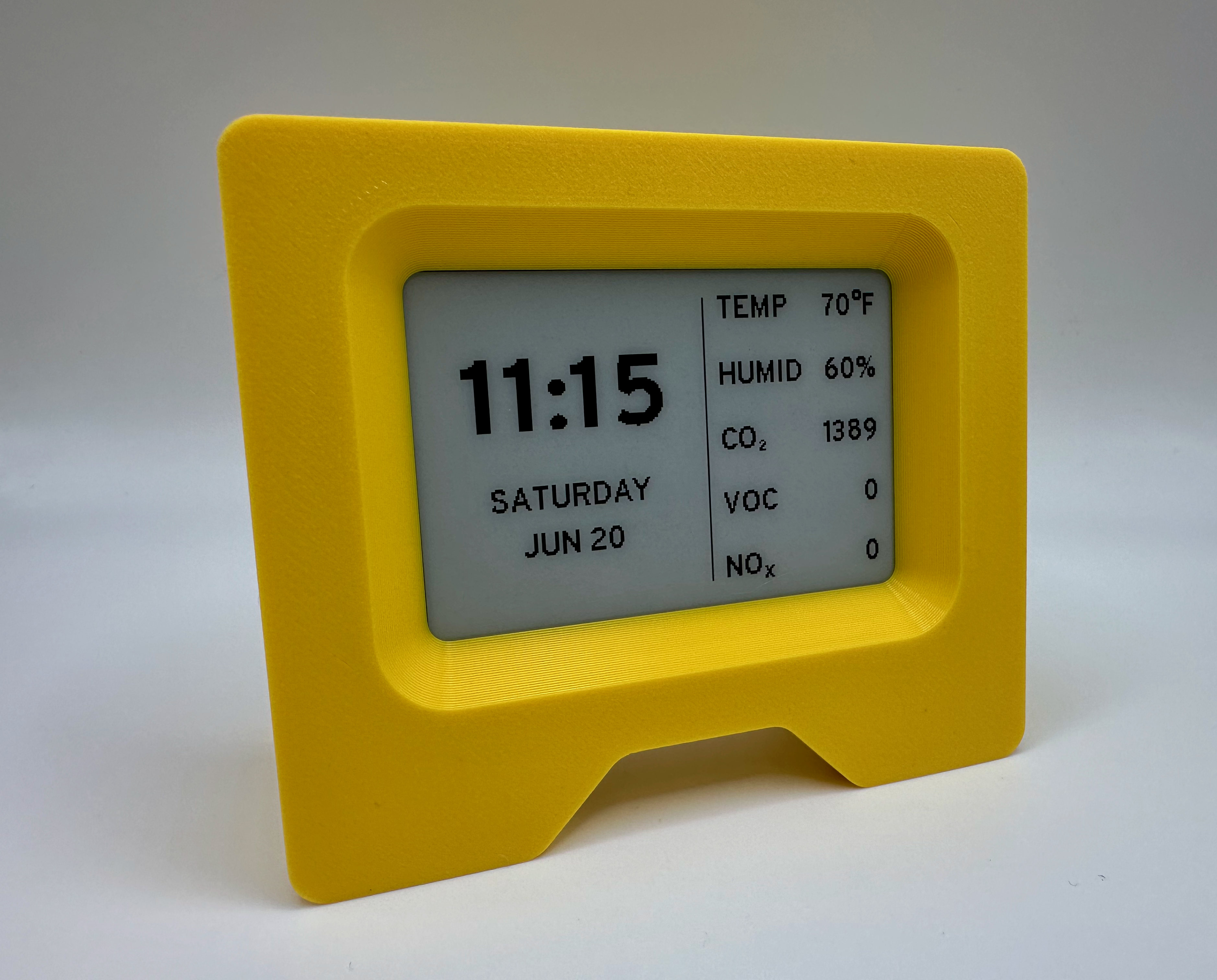

This enclosure works with the board and display assembly found here: [https://bitclock.io](https://bitclock.io)

It's built on similar internal dimensions, but redesigned to solve a couple of issues I had with the original case.

This is being released alongside my alternative firmware for the Bitclock hardware: Bitclock-Redux

If you're interested, I've built my own version of the firmware that includes:

• all sensor readings on the clock face

• simple web admin for configuration

• MQTT + HomeAssistant integration

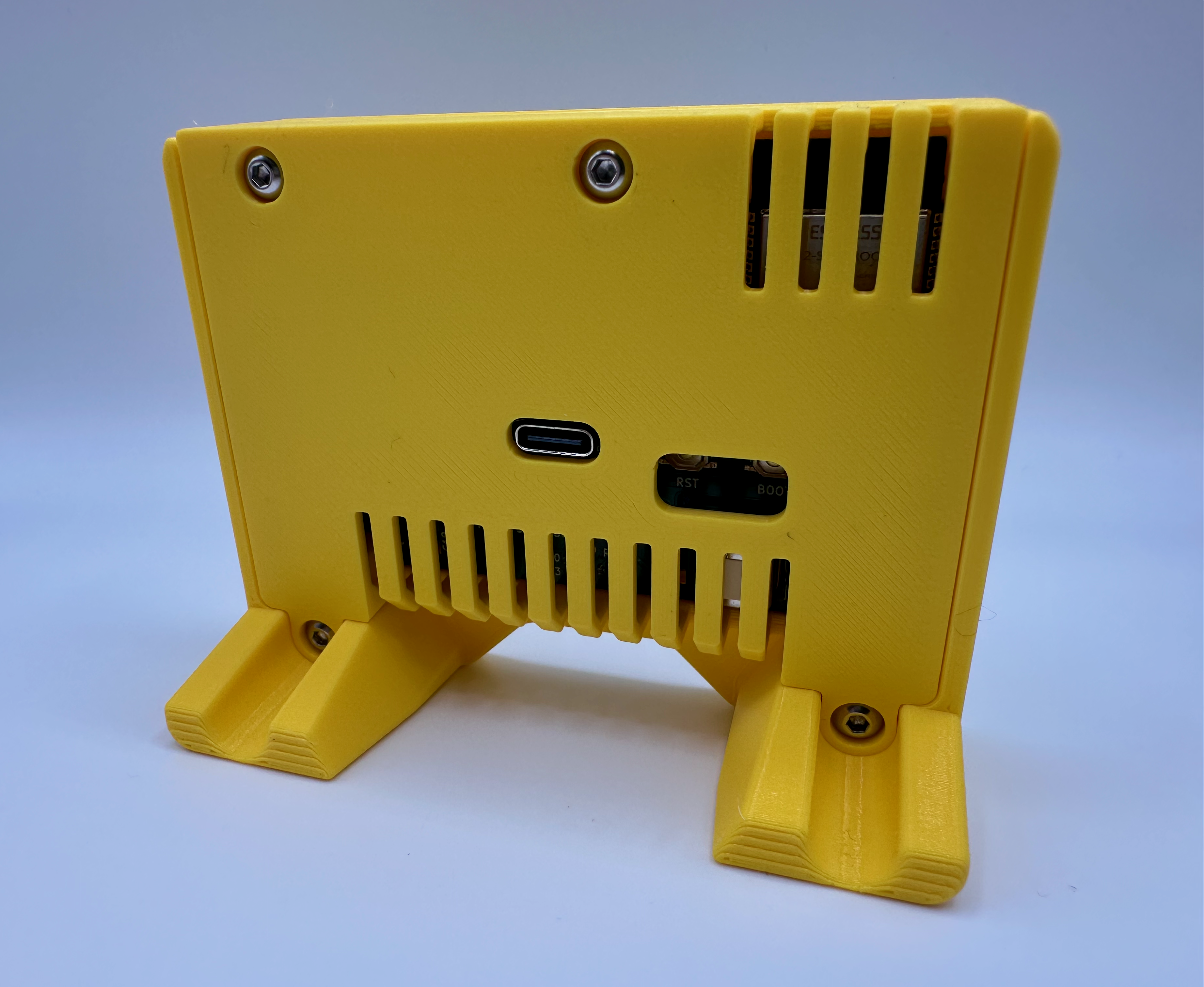

Parts you will need for this model:

• 4 x M3x12 button head screws

• 4 x M3 short threaded inserts - specifically needs to be the short variant. I used THESE.

• 4 x 3M Bumpons (Designed for 3M SJ5302)

Including a step file in case you want to make your own modifications.
