Modelo 3D Gear clamp por Jack no Printables

Descrição

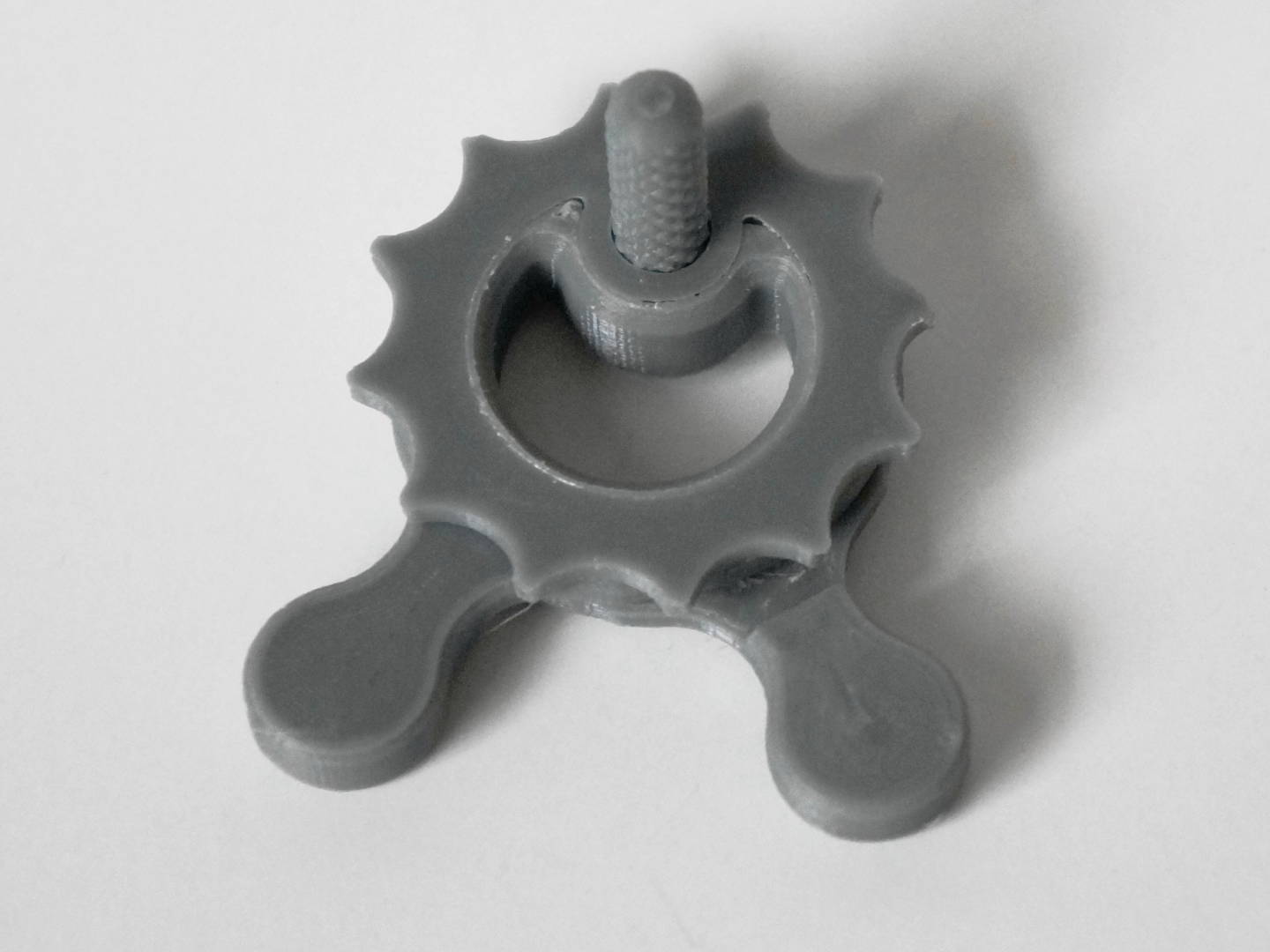

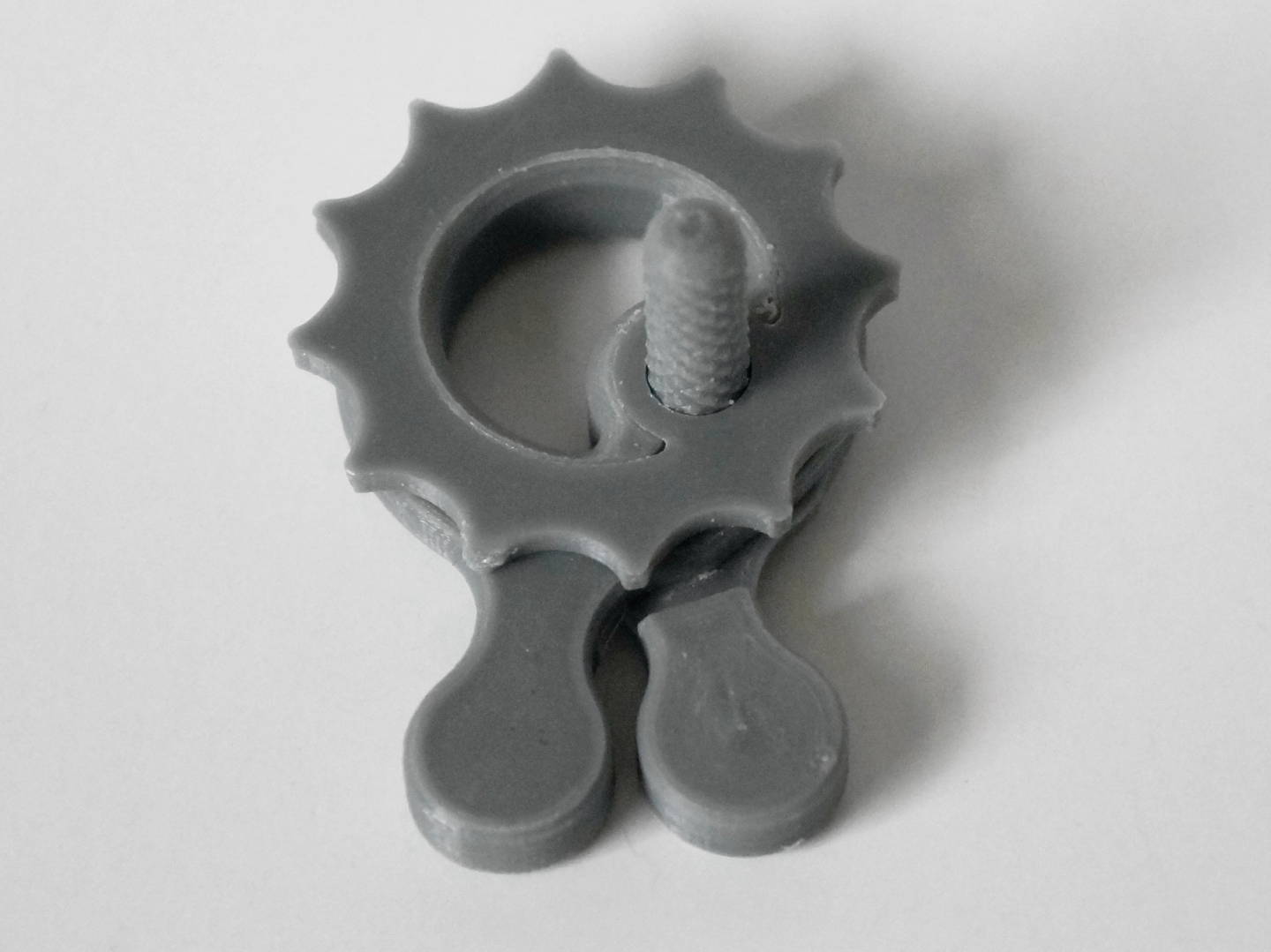

This is more a prototype/demonstrator/tech art than useful.

A working and useful model can be found here

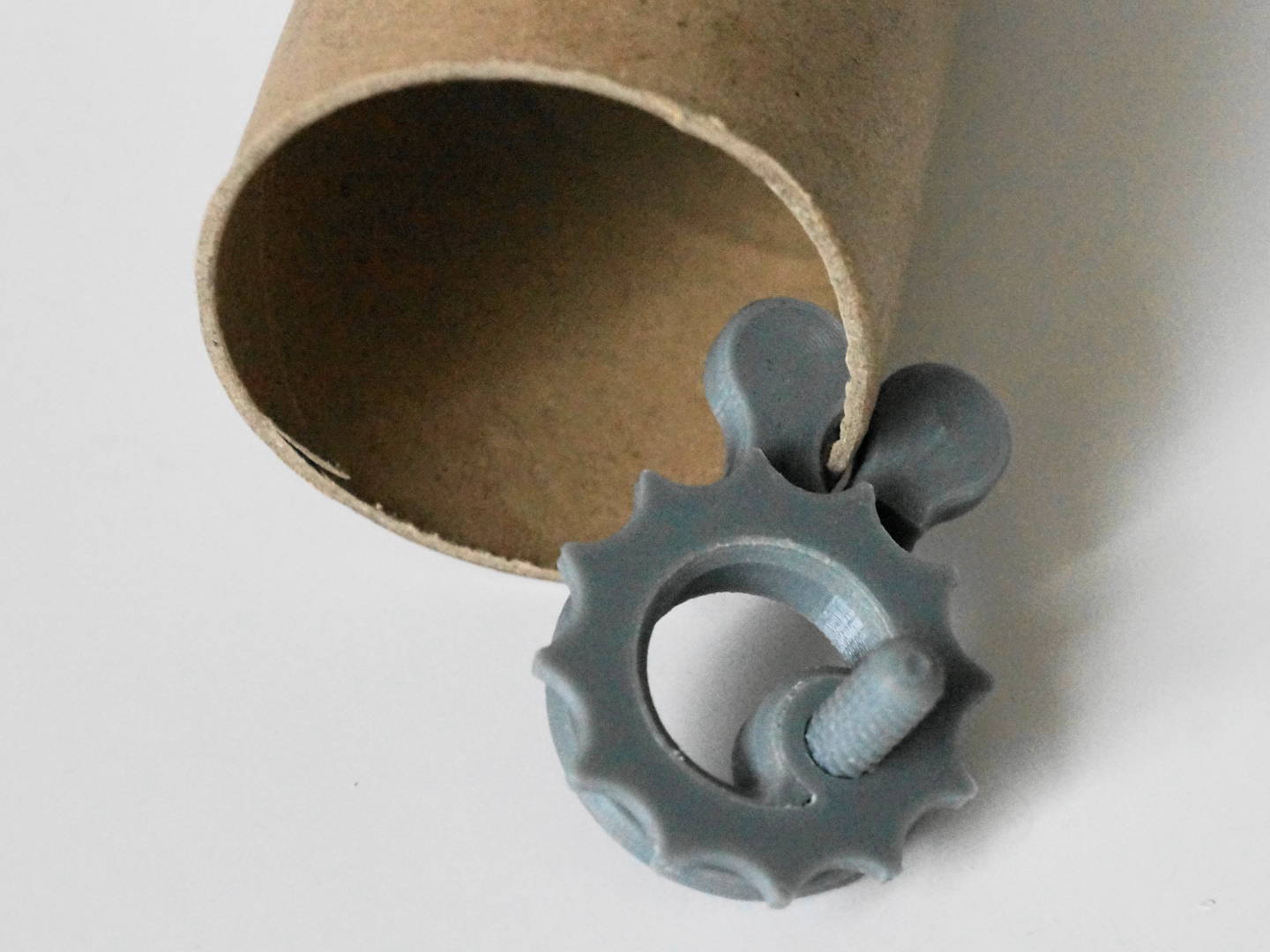

While the reduction would allow high forces - at this scale the gear will slip, so this is more to move things very precise.

Scaled up it would probably work to hold higher forces

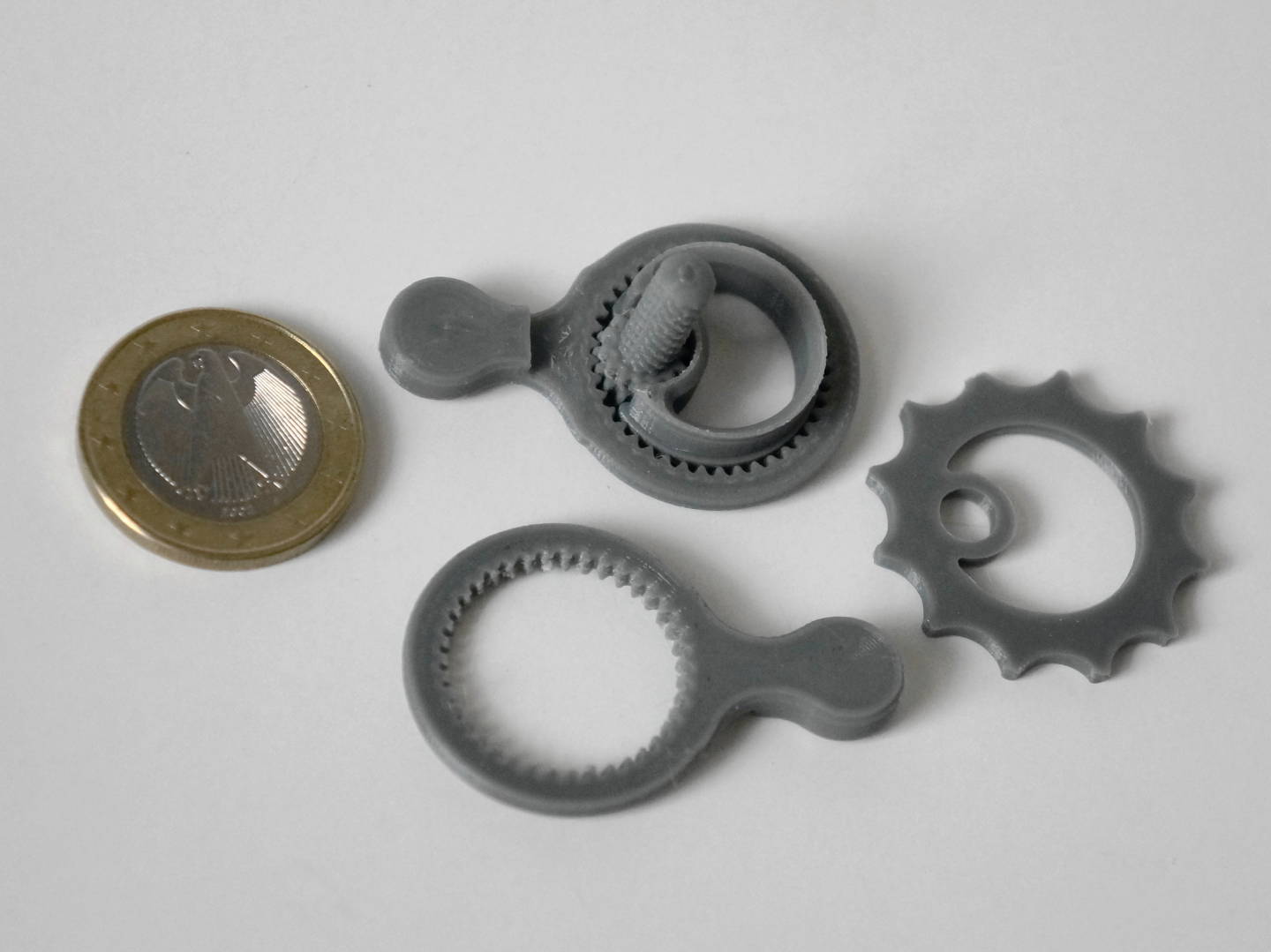

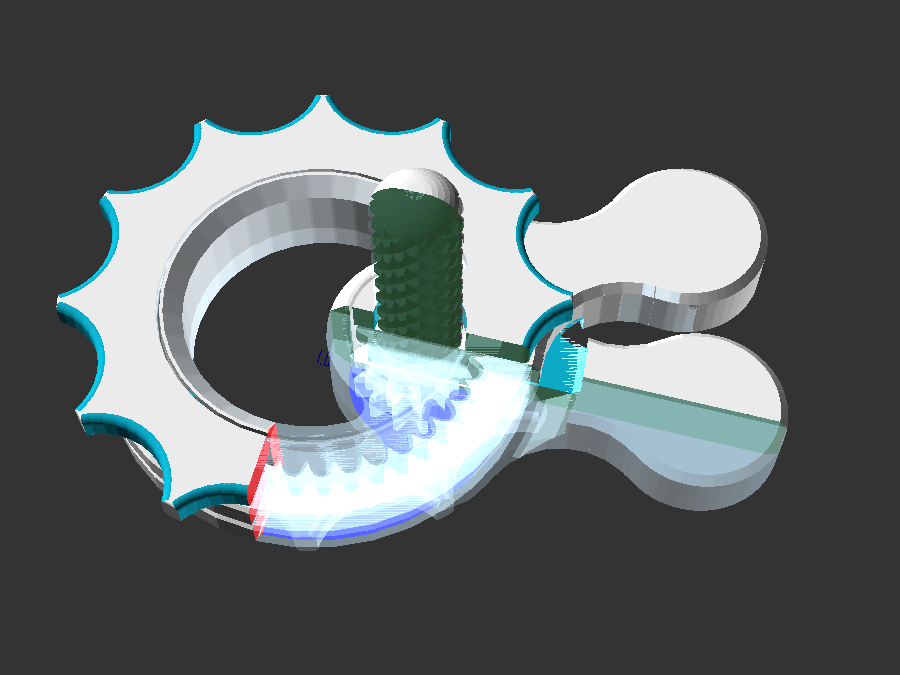

Between the small rod and ring grip is a ratio of ~2.6  while 1 rotation of the knurled rod move the tongs 1 tooth together or 9° (360:40)  wich results in a ratio of 22.4:1 for the grip and ~60:1 for the knurled rod .

Printables

Gear clamp

Publicado em 21 de abr de 2022

24
Curtidas
78
Downloads
Categoria Tools
Tags
gear gears pliers gearbox klemme forceps splitring zwinge
Licença Creative Commons — Public Domain
