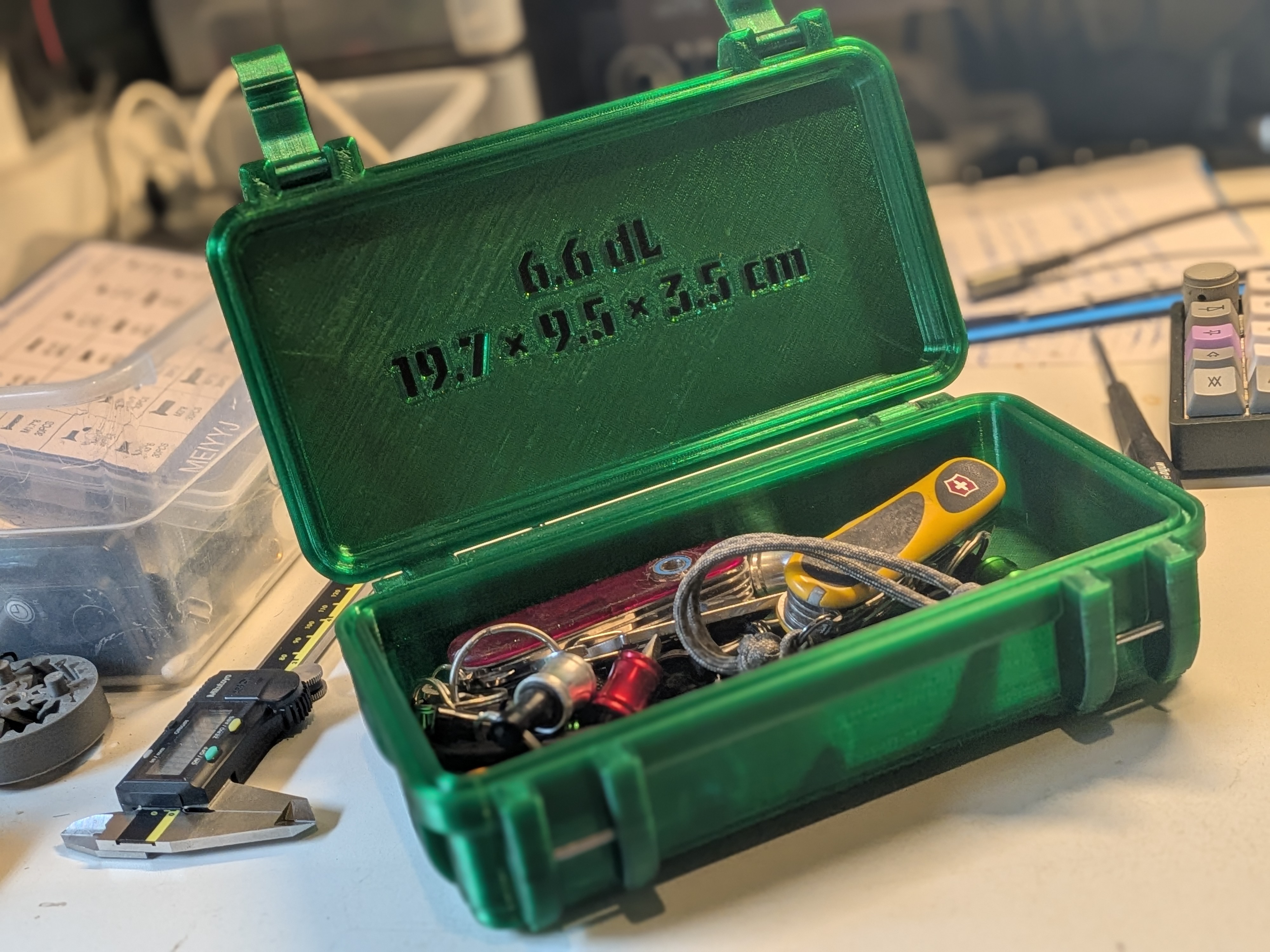

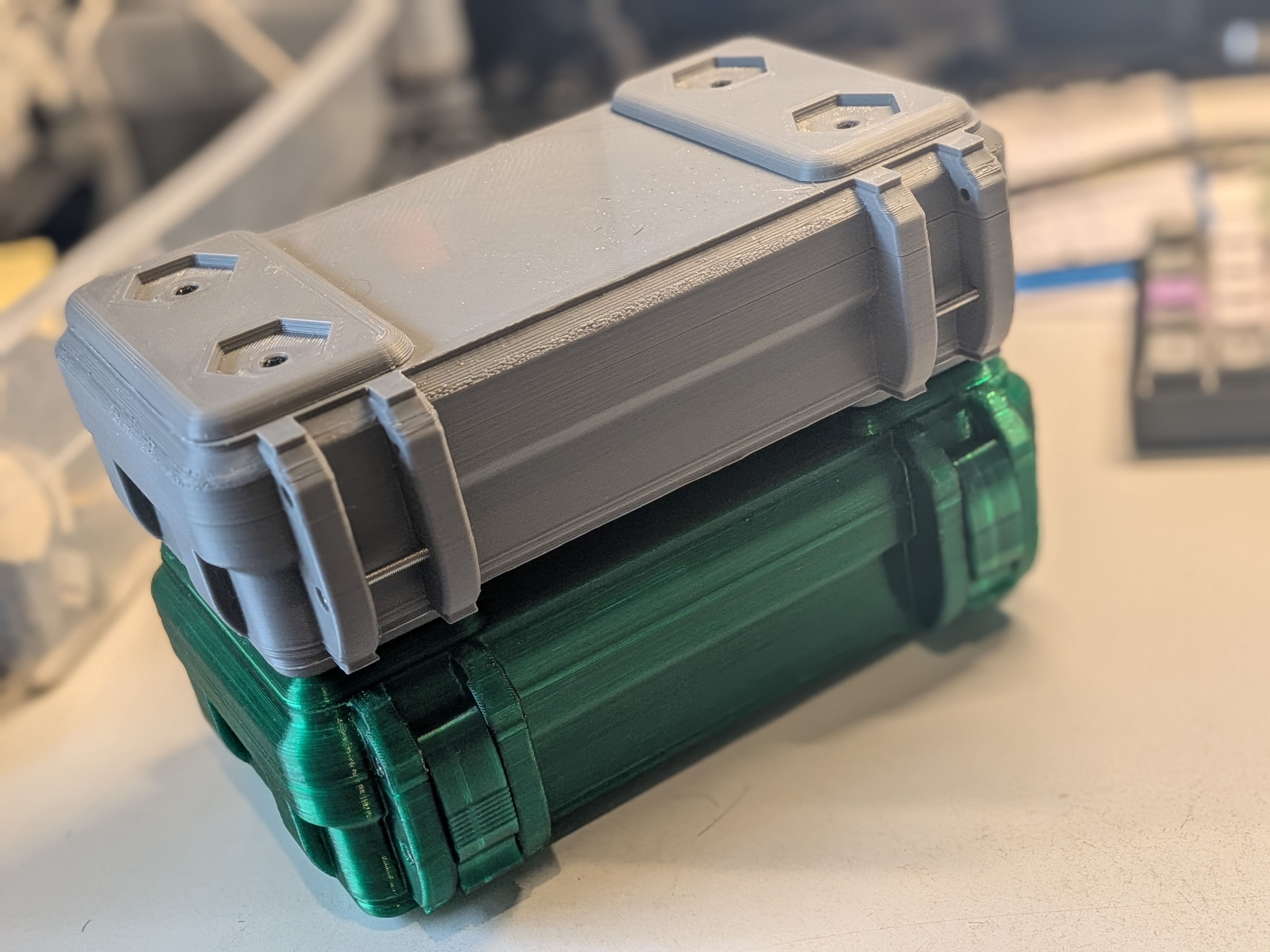

Modelo 3D Stackable Utility Case Low Boy w/ heat inserts por the_guyver no Printables

Descrição

Modifications & Notions

Added holes on the bottom of the case, and the top of the lid for heat inserts

The heat inserts are: 8ct of M3 x4 (height) x5 (outside diameter)

The screws are: 4ct of countersunk M3x4mm screws for the top lid, and 4ct of countersunk M3x10mm screws for the bottom of the container; the outside head diameter of the countersunk screws is about 4.8mm

Instructions

Follow the instructions for the original model for the basic construction as it uses the same screws.

Below are specific for this model:

Install heat inserts into holes on the lid and bottom of the container using soldering iron, until flush with lid / container

Screw the mounts on with the appropriate screws: M3x4 for the lid, and M3x10 for the bottom.

That's it. Enjoy!

Printables

Stackable Utility Case Low Boy w/ heat inserts

Publicado em 5 de jun de 2026

0
Curtidas
3
Downloads
Categoria Organizers
Tags
box case
Licença Creative Commons — Attribution — Noncommercial — Share Alike
Arquivos (2)
bottom.3mf 427.2 KB
lid.3mf 351.5 KB
