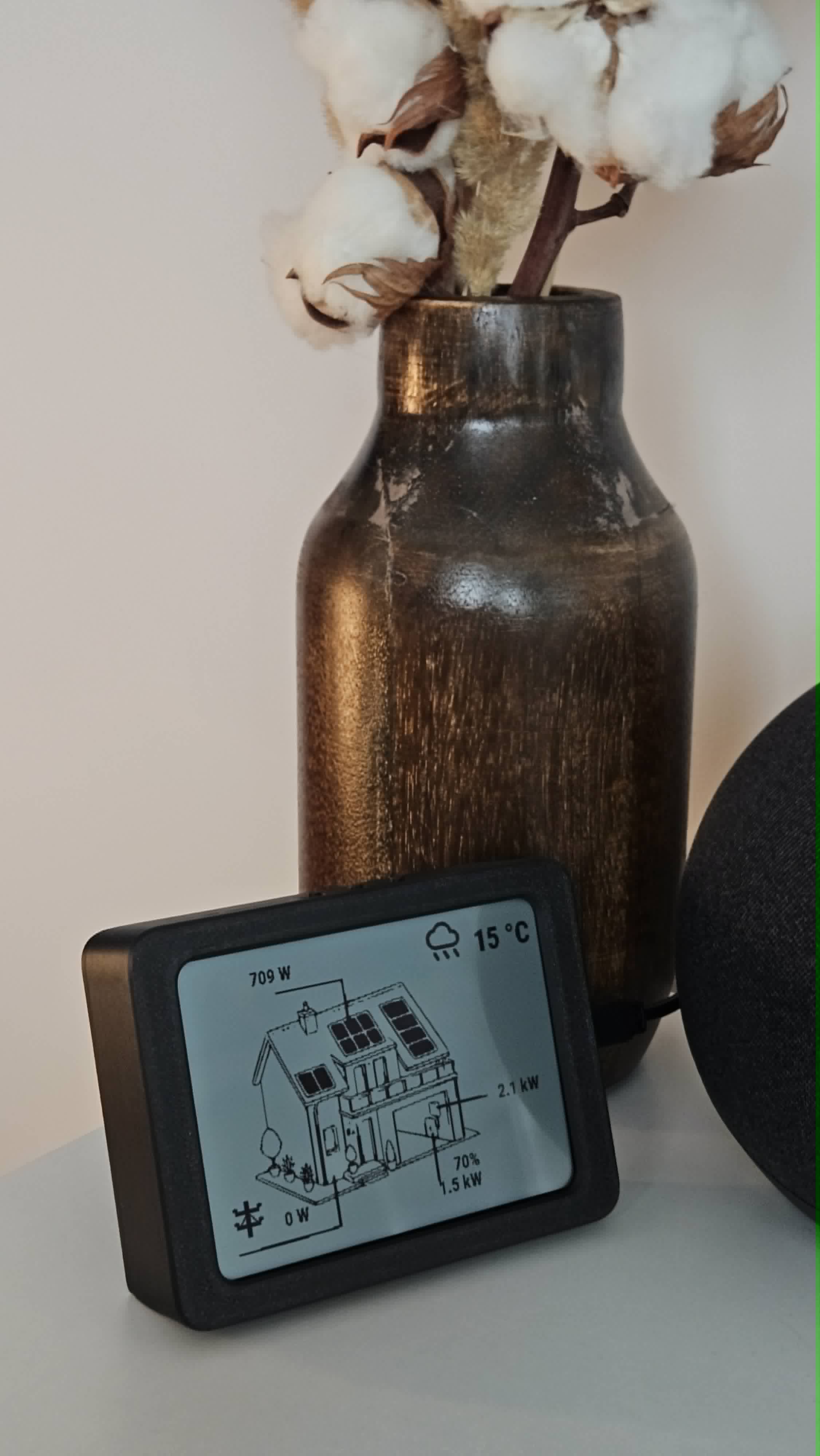

Designed for the Waveshare ESP32-S3 4.2" RLCD display module.

Features:

• Precise fit for the Waveshare ESP32-S3 4.2" RLCD

• 70° viewing angle, ideal for placement on shelves, desks, or TV cabinets

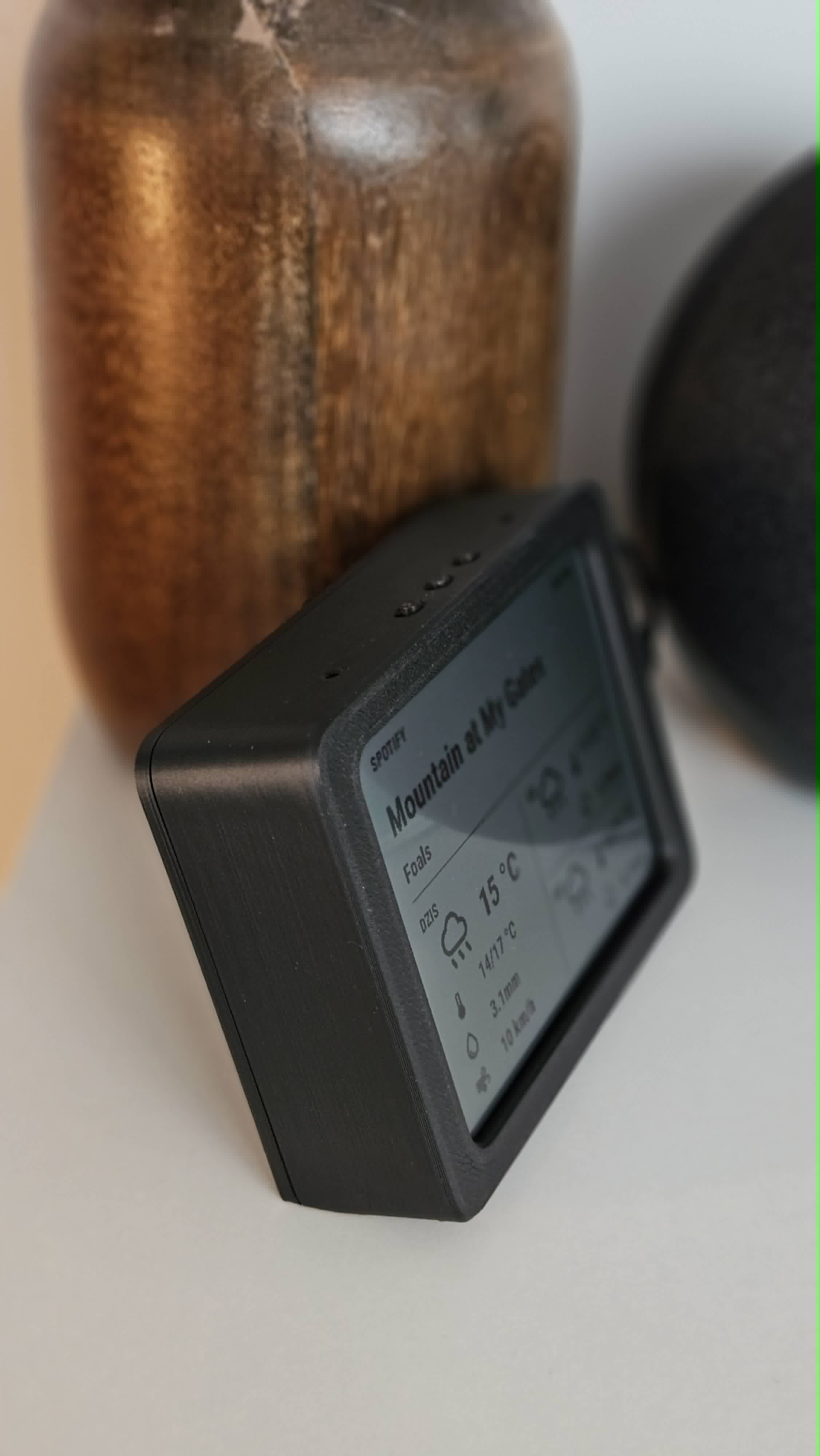

• Easy access to USB connector and buttons

• Simple two-part design + buttons

• Suitable for desktop use

• No supports required

The model was designed in CAD and tested on the original Waveshare board.

Printing recommendations:

• PLA or PETG

• 0.2 mm layer height

• 15–20% infill

Feel free to remix and improve the design.

Acknowledgements

Many thanks to JasonHEngineering for providing the original STEP files that served as the foundation for this project. This enclosure is derived from and inspired by the original design, with modifications made to suit my specific use case.

Original project:
JasonHEngineering GitHub Project
