Mini Display mount V-MINION

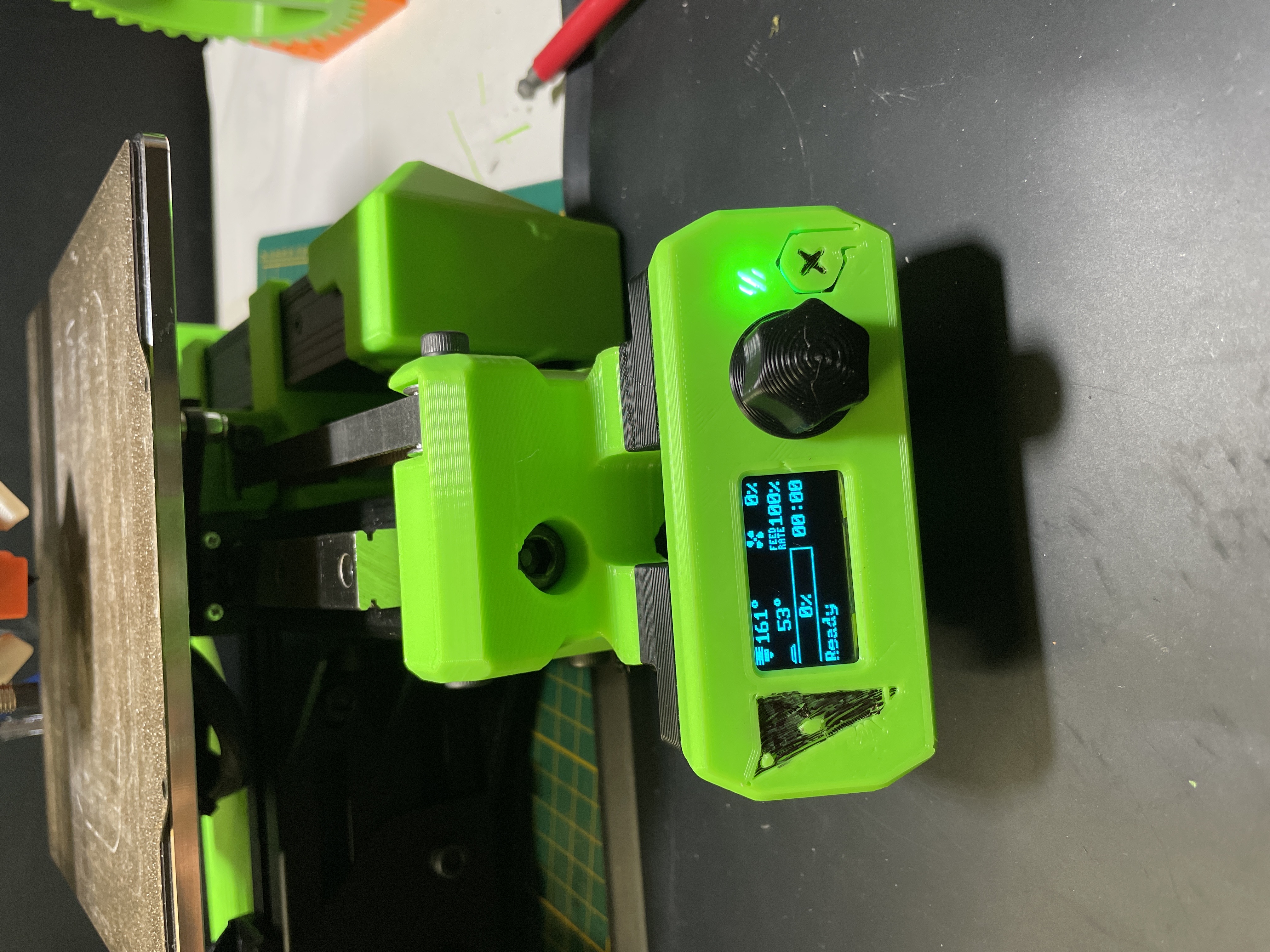

i wanted a small display for my V-Minion so i adapted the Voron 0 display it's easy to setup and not so expensive and run at klipper on my pi Zero 2 without issue .

Credit for timmit99 the designer of this mini display from Voron-Hardware Github

the setup and bom and original file can be found here

The BOM for the display and the Mount on V-MINION

6x m3-10

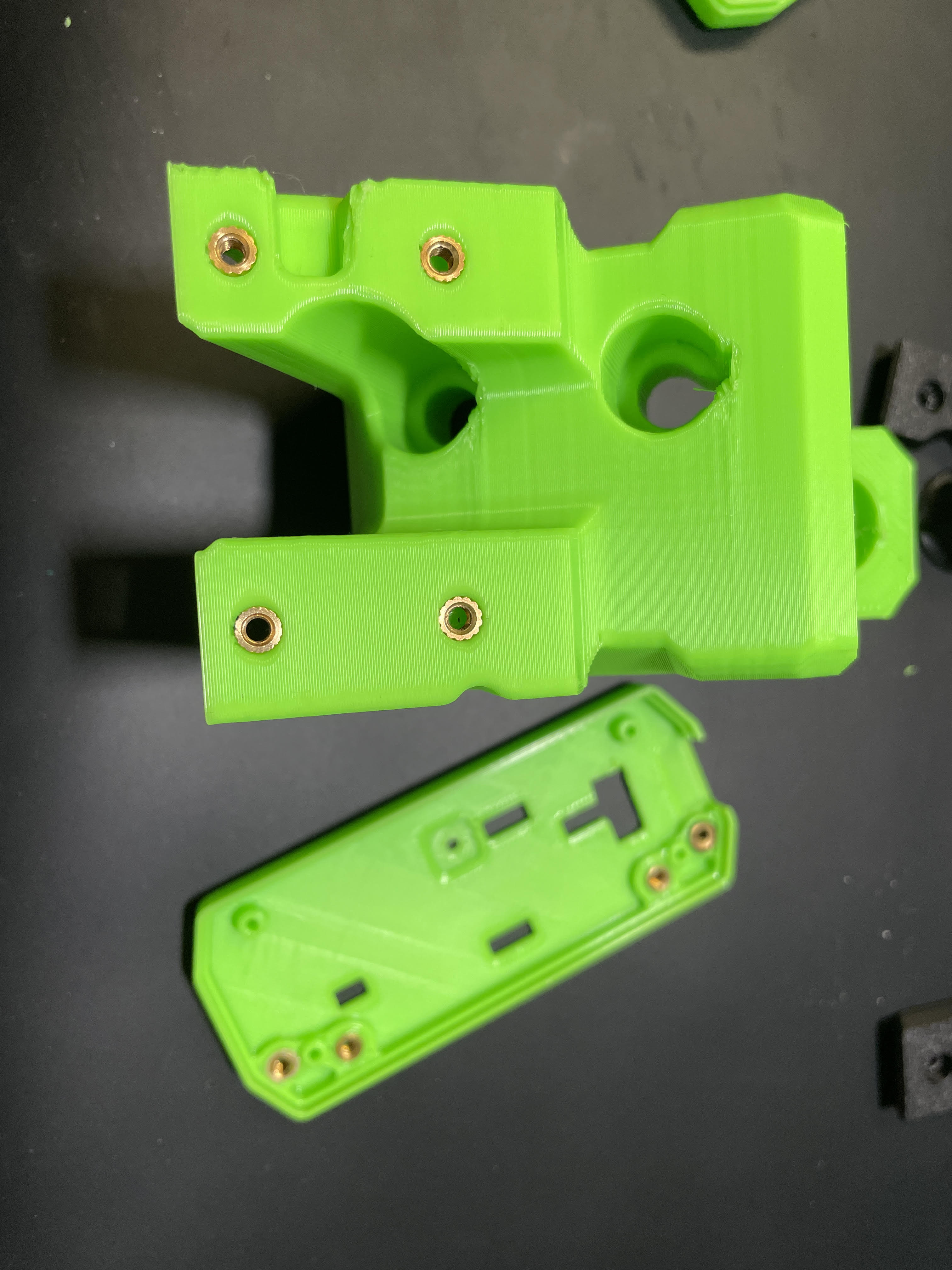

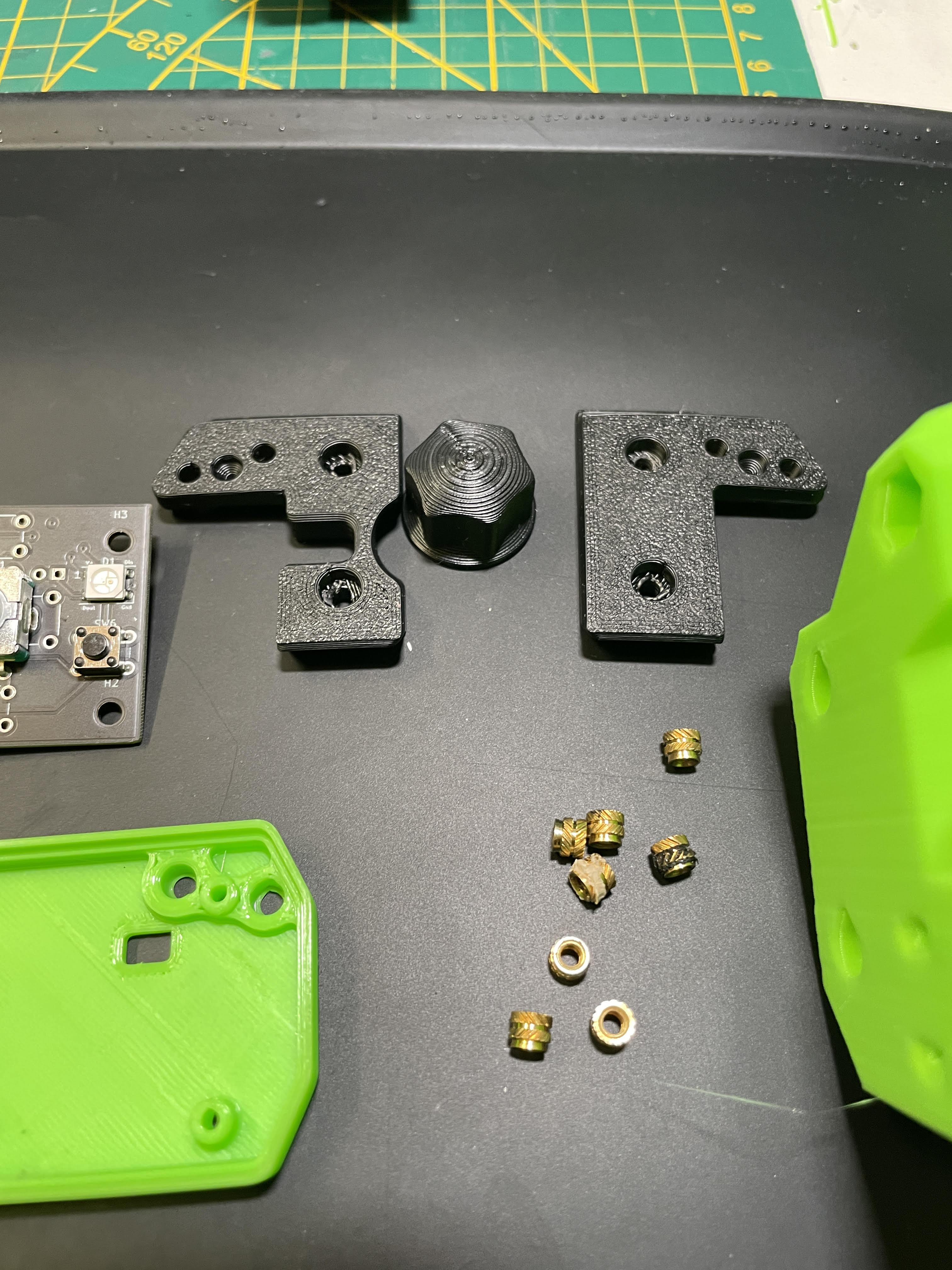

8x m3Heat Inserts OD5x4L
4x M2 self tape screws

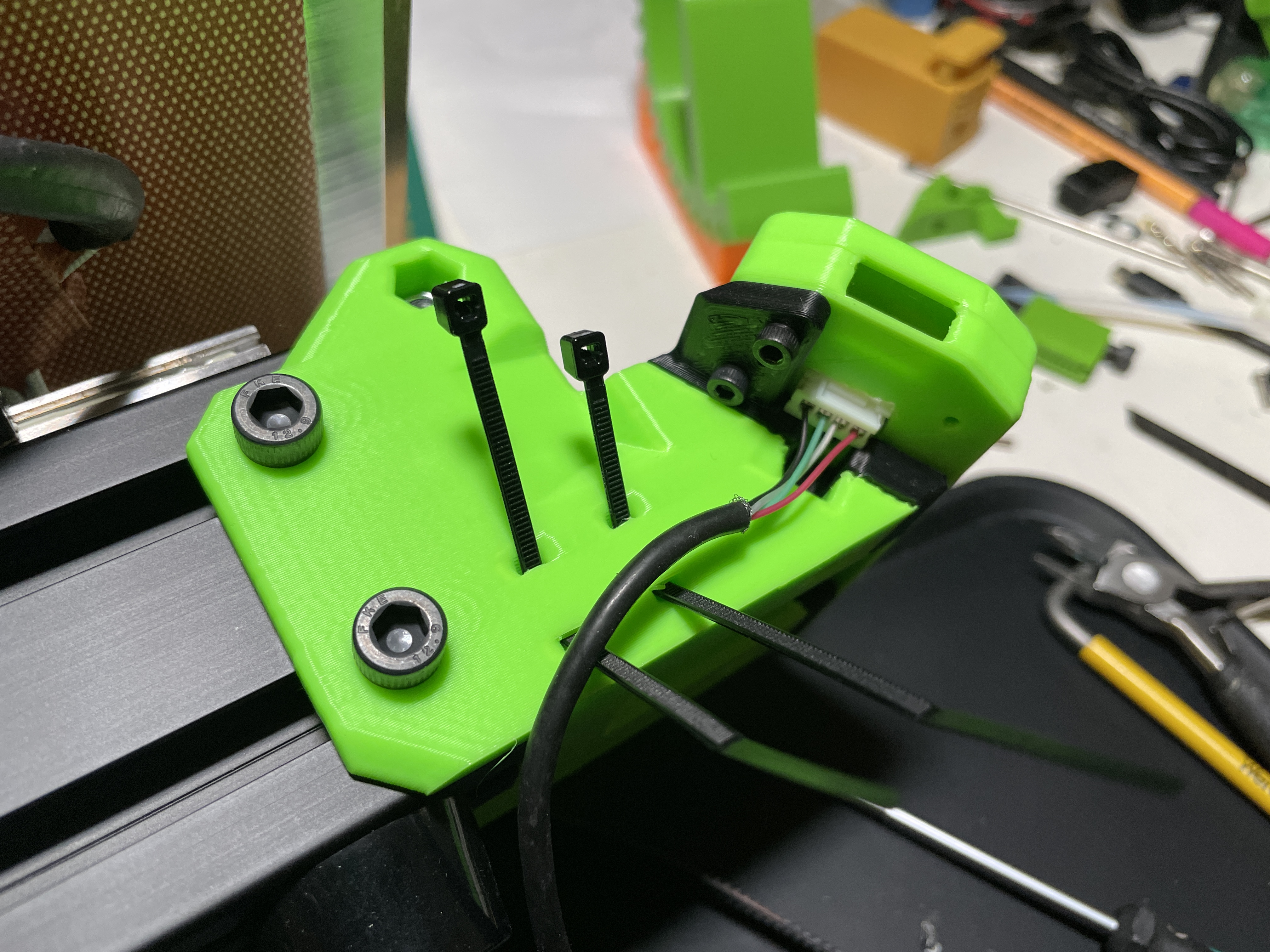

2x ZipTies

2 options Display

Build it from Production Files
Buy the display pre-assembled like i did !

LDO display Here
Fystec Display Here

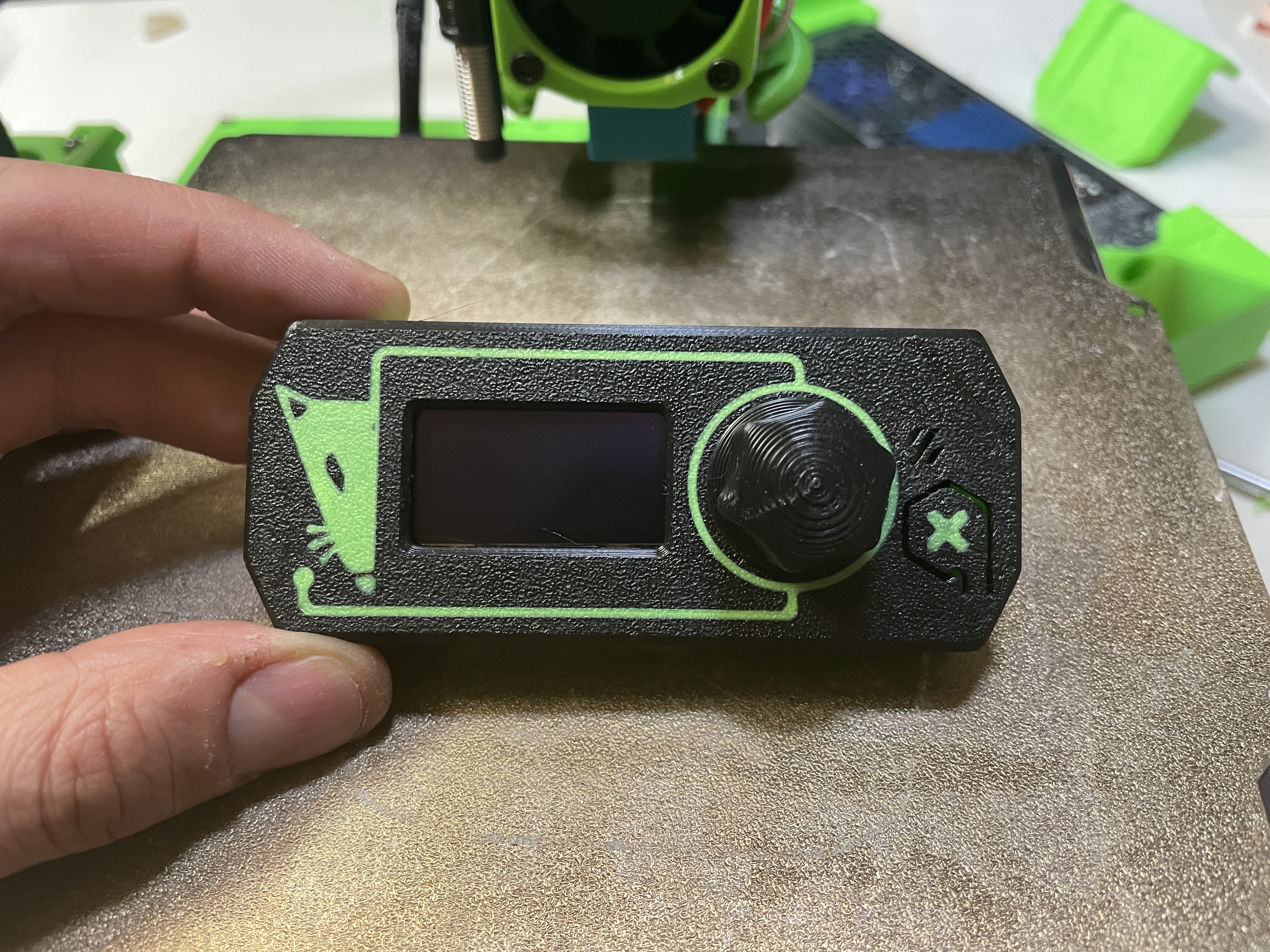

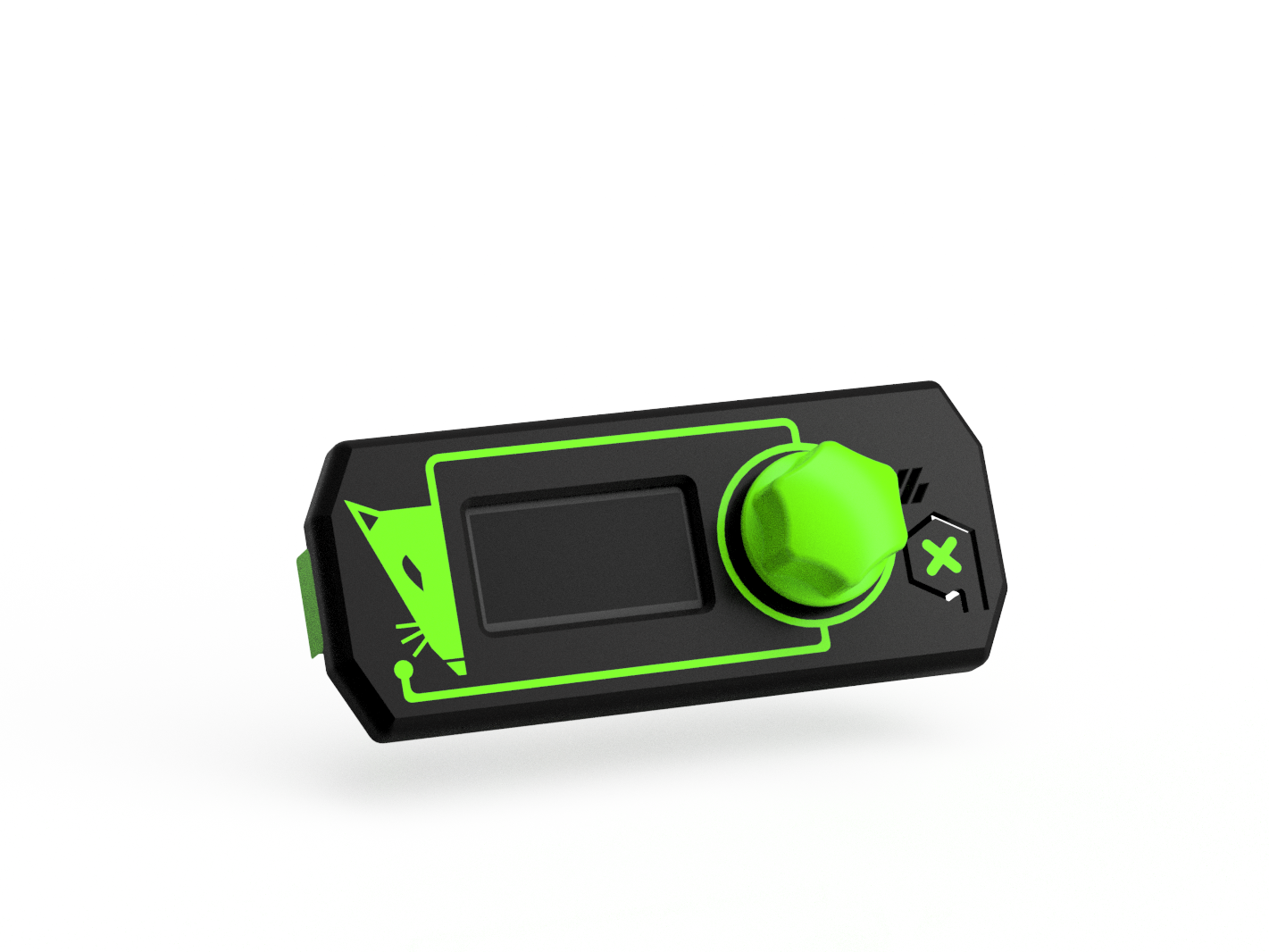

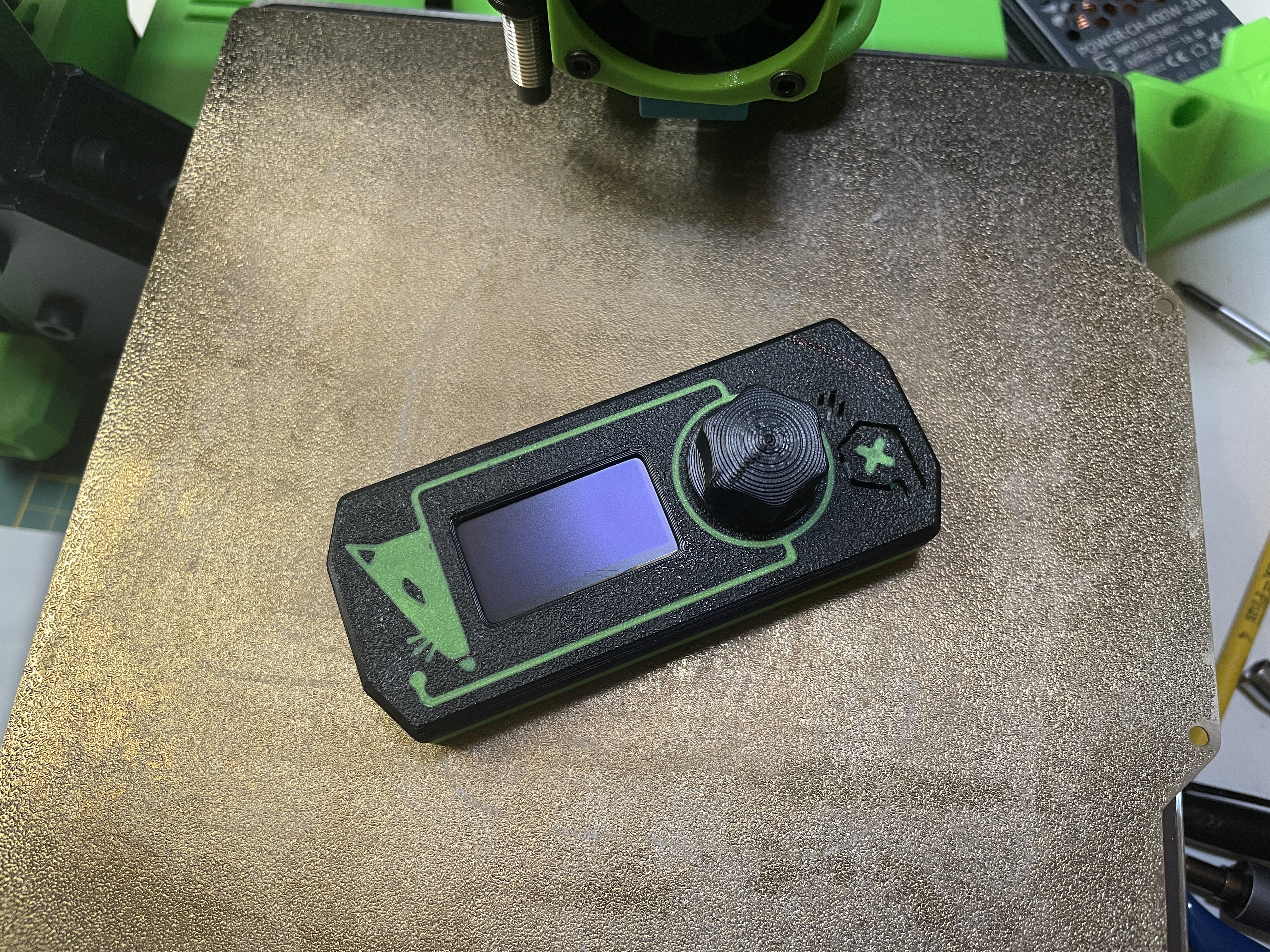

added 2nd version with 2 colors with RatRig Logo .(Needs to import into Prusa MK3s MMU2 setup ). and can be prined on the V-MINION with Filament change !

Videos Helps flashing and more Menu Configuration / installation Big thanks to Greg's Maker Corner

Installation and flashing Voron 0 Display
Configuration Menu itself

Hope you like it and Happy 3d printing
