Description

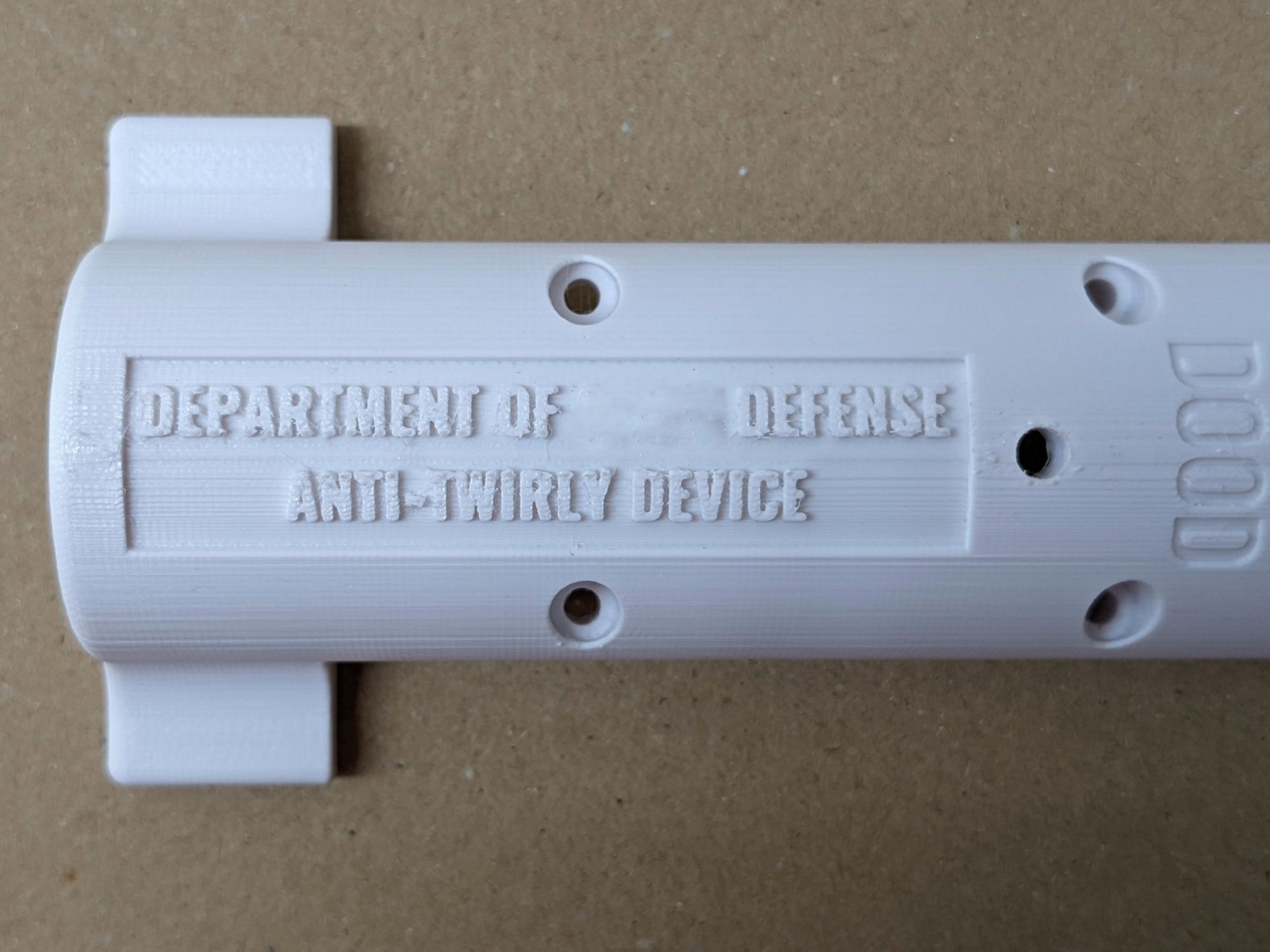

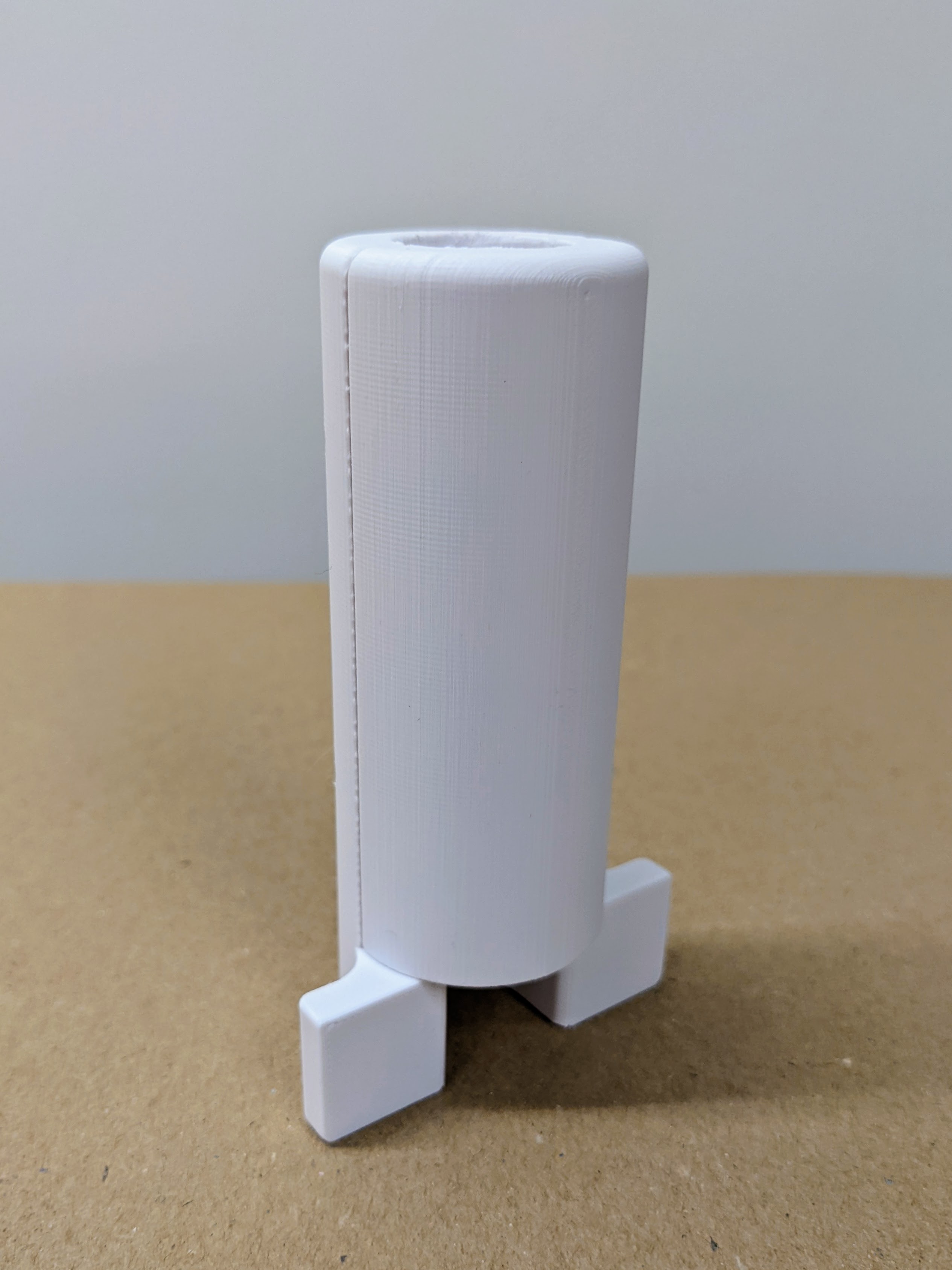

This is a Nanit floor stand compatible bracket that attaches to a crib to hold the pole in place.  I originally designed it to prevent my little one from unscrewing the pole and rotating the camera since our setup prevented us from mounting it against the wall.  I figured I would add some text to have fun with it, so this piece is the property of DOOD, or the Department of (Redacted) Defense.

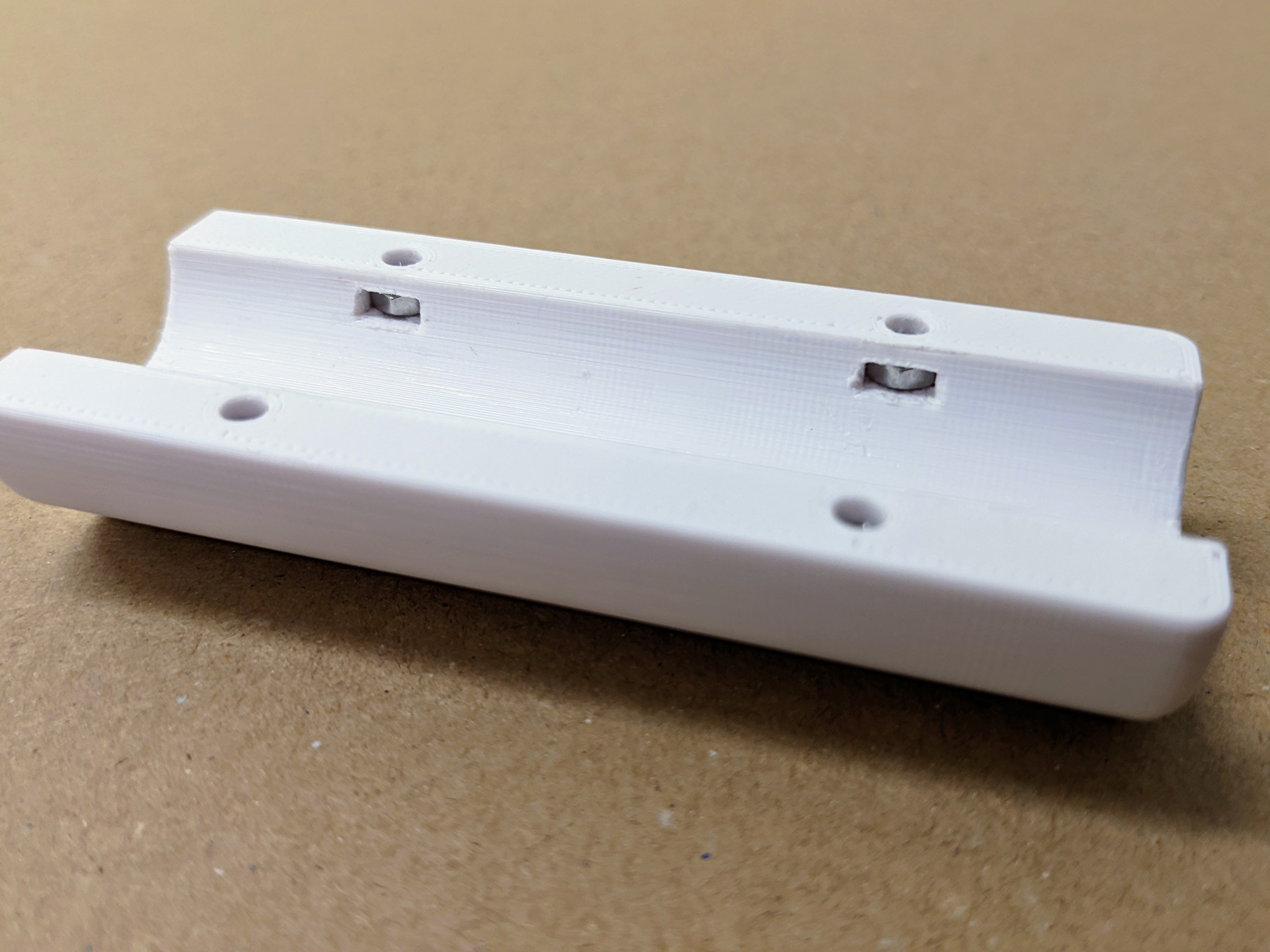

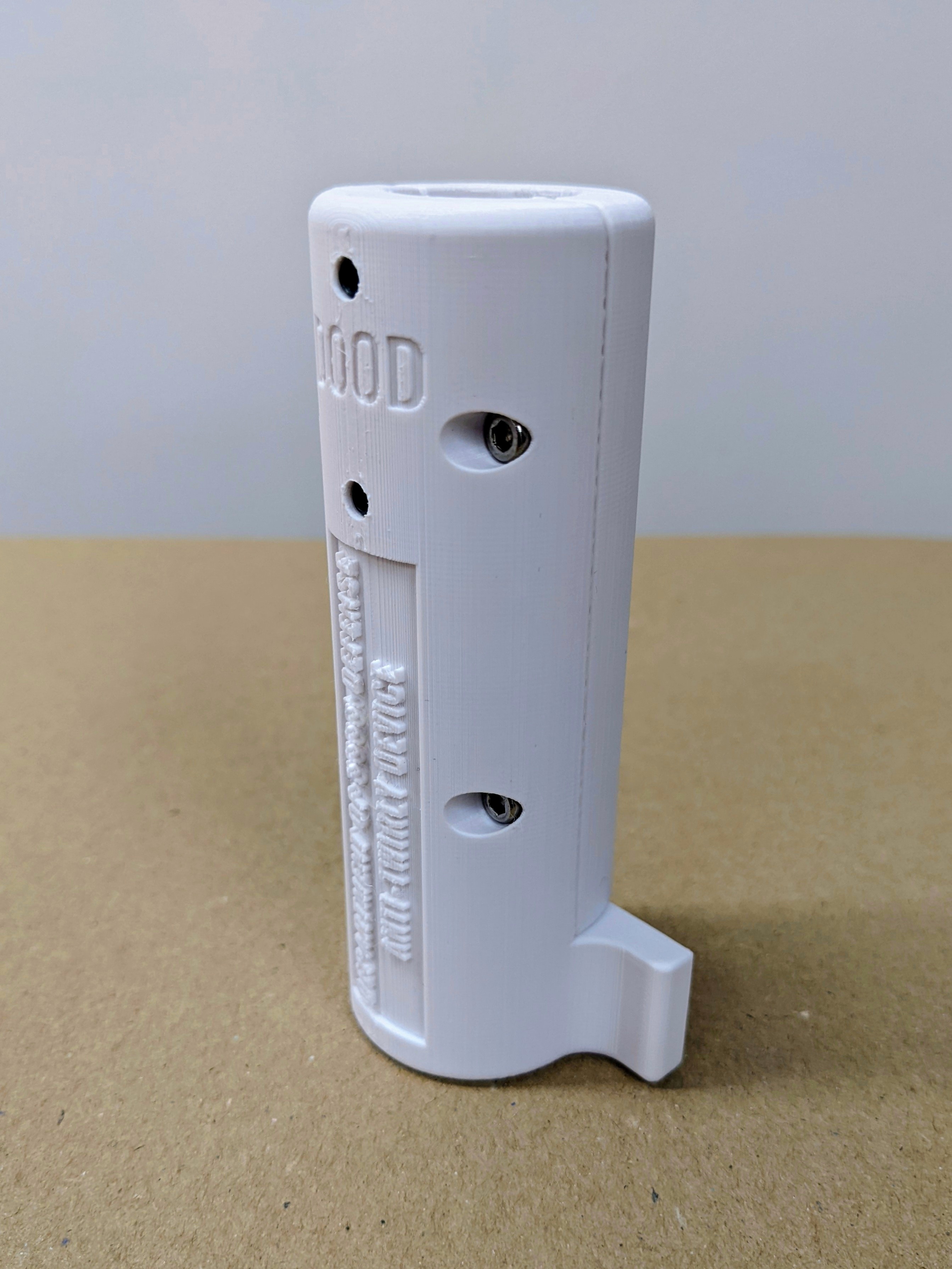

I used M3 hardware to attach the two pieces together and M4 hardware for the set screws and corresponding nuts.  It is attached to the crib using command strips so it's non-destructive.

The STL files are using a .2mm tolerance and don't have any text.  I'm also including the Fusion 360 file that I tried to make parametrically.  This is the first model I've designed so keep that in mind.  I didn't plan on sharing it so some of the parameter names may be confusing and the timeline is probably messy.  The Fusion 360 file includes the sketches so you can add your own text.

I didn't include a G-code file because I'm new to 3D printing, and I'm not sure what I did is the best way.

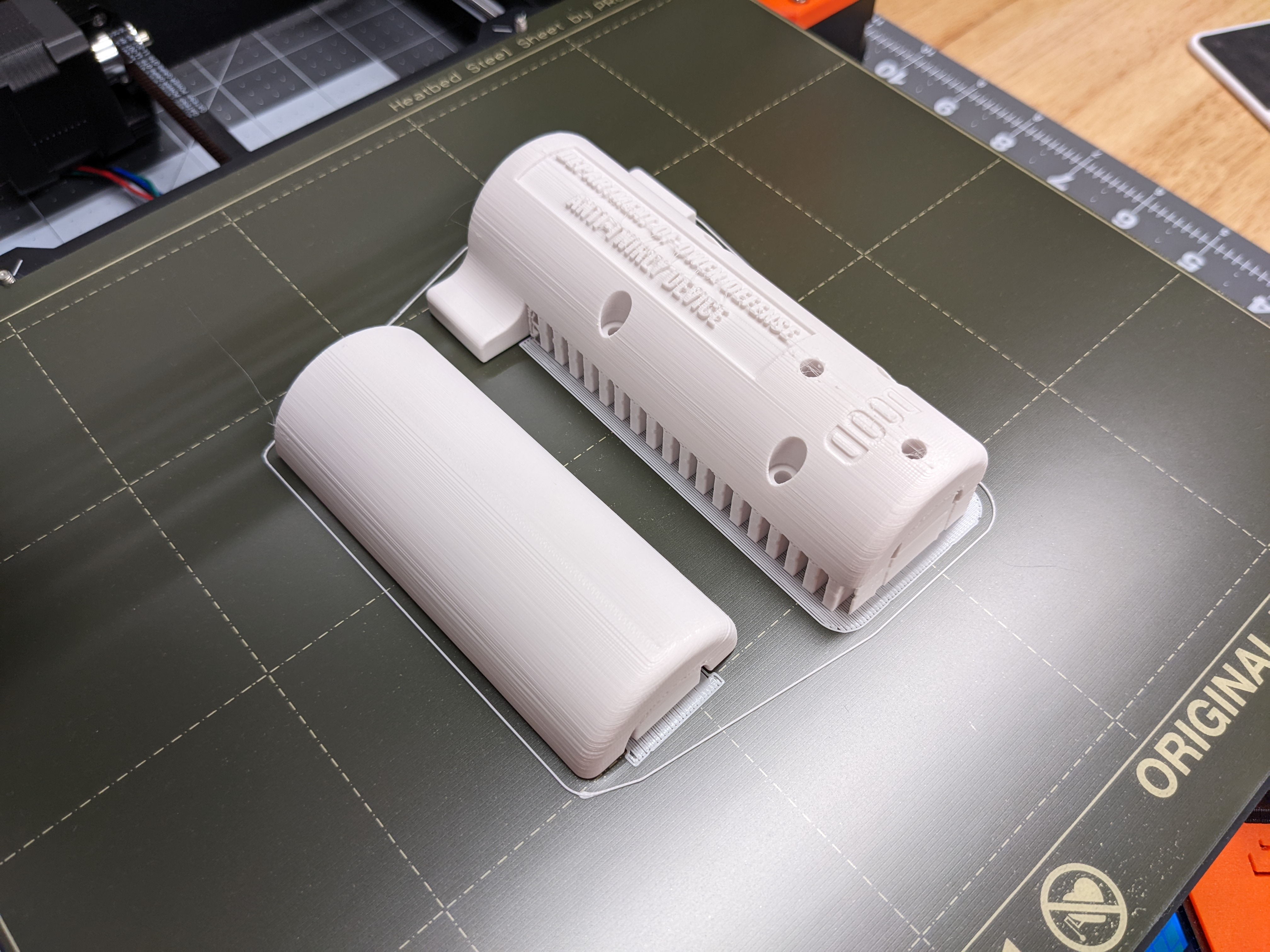

Print instructions

Supports: Yes
Resolution: 0.10mm
Infill: 20%
