Magnet plates for Mod-Grid.

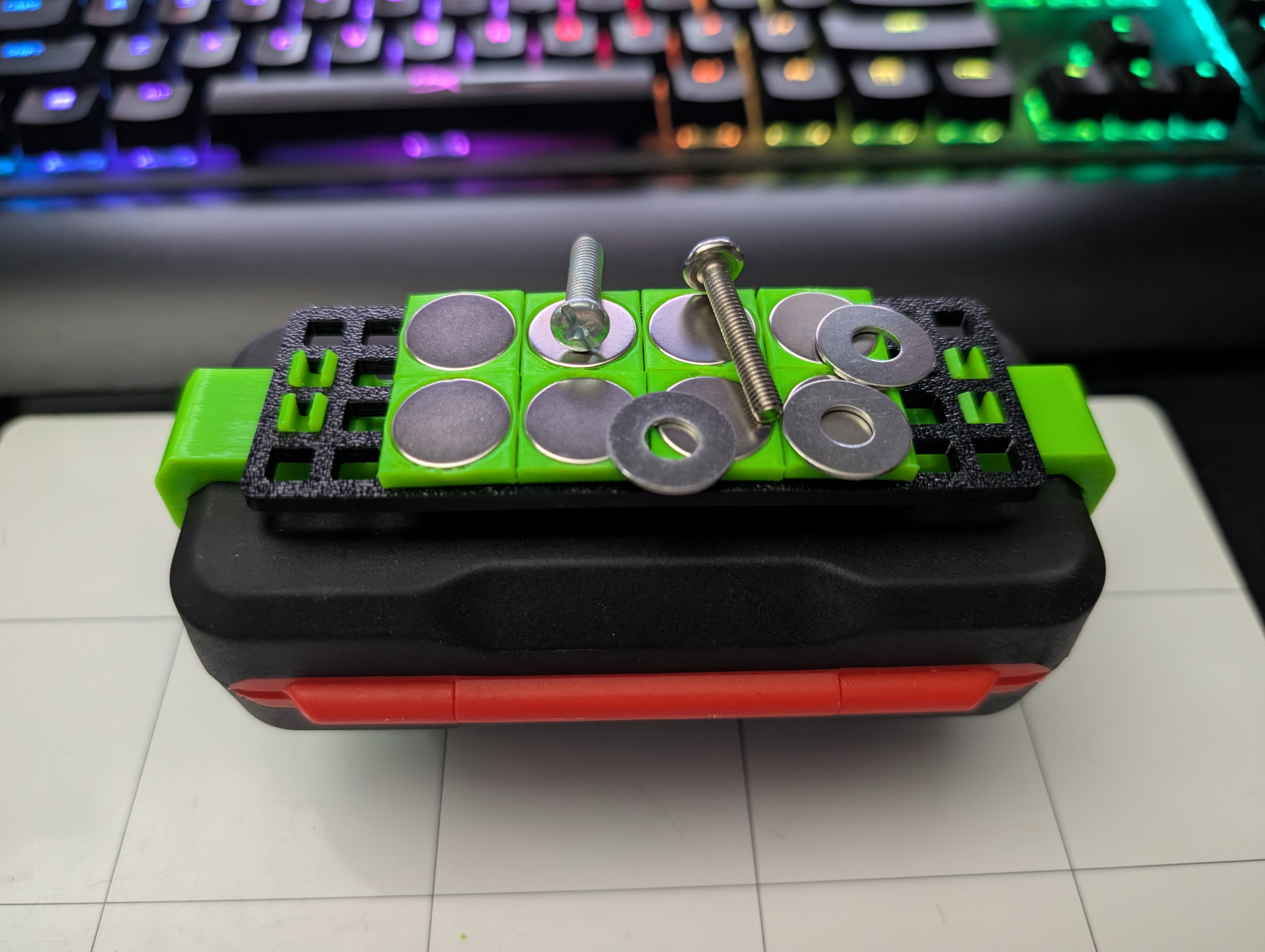

Use if you want a magnet on the back to stick your Mod-Grid to something, add a pocket magnetic work mat, or just want to lightly hold a ferrous object without designing a custom part.

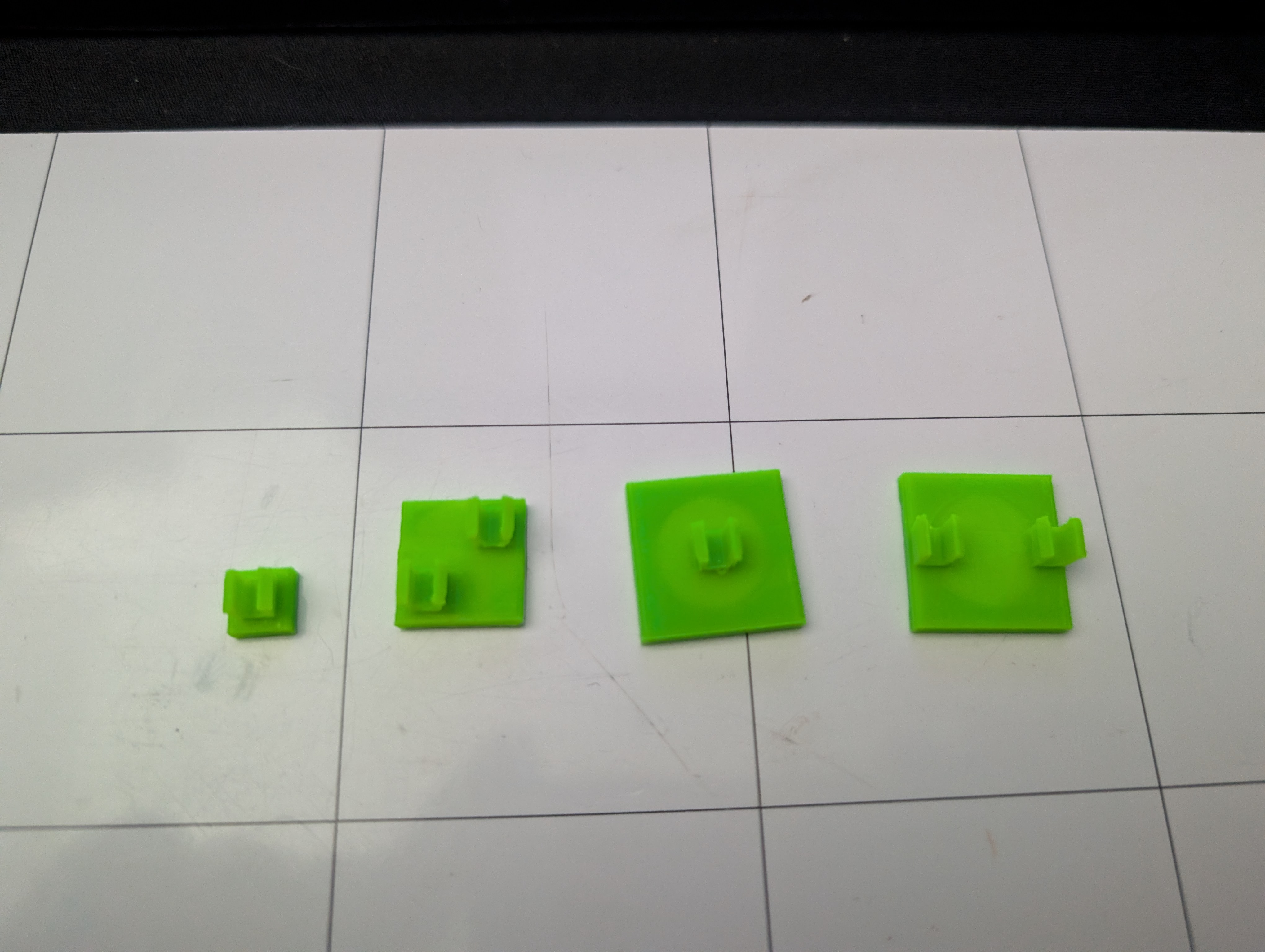

Includes several sizes:


• 1x1 plate that holds 5x2mm magnets

• 1x1 plate that holds 6x2mm magnets

• 1x1 plate that holds 7x2mm magnets

• 2x2 plate that holds 15x2mm magnet

• 3x3 plate with single connector that holds 15x2 magnets

• 3x3 plate with double connector that holds 15x2 magnets

Model will require supports to print and must be printed in the orientation in the print profile. If you orient the model with the magnet hole down, the stress will separate the layers and the part will break when inserting into the Mod-Grid.
