I’ve been looking for a can holder/dispenser for a while that was cheap to print and modular to fulfill my needs. Haven’t found one so i made my own design.

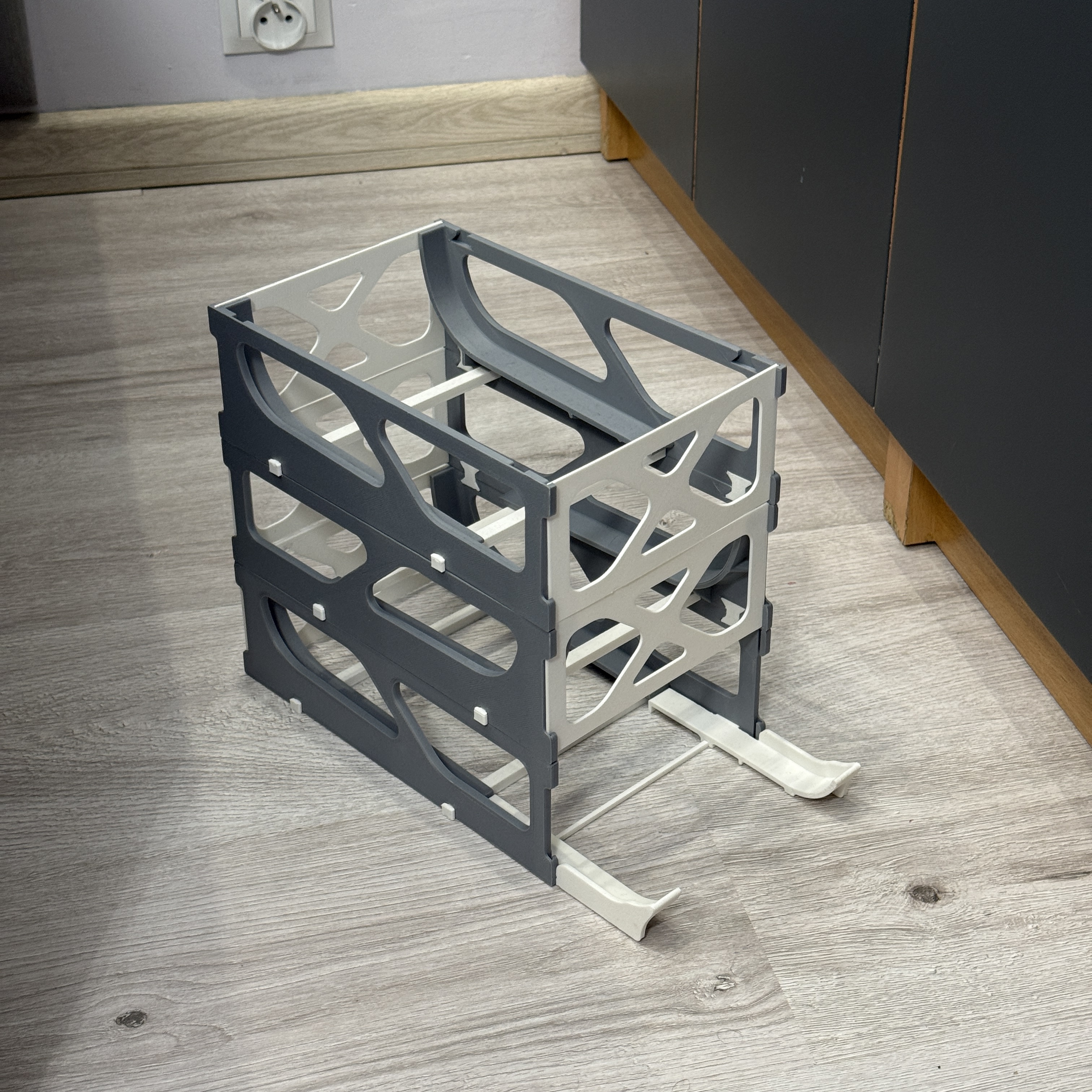

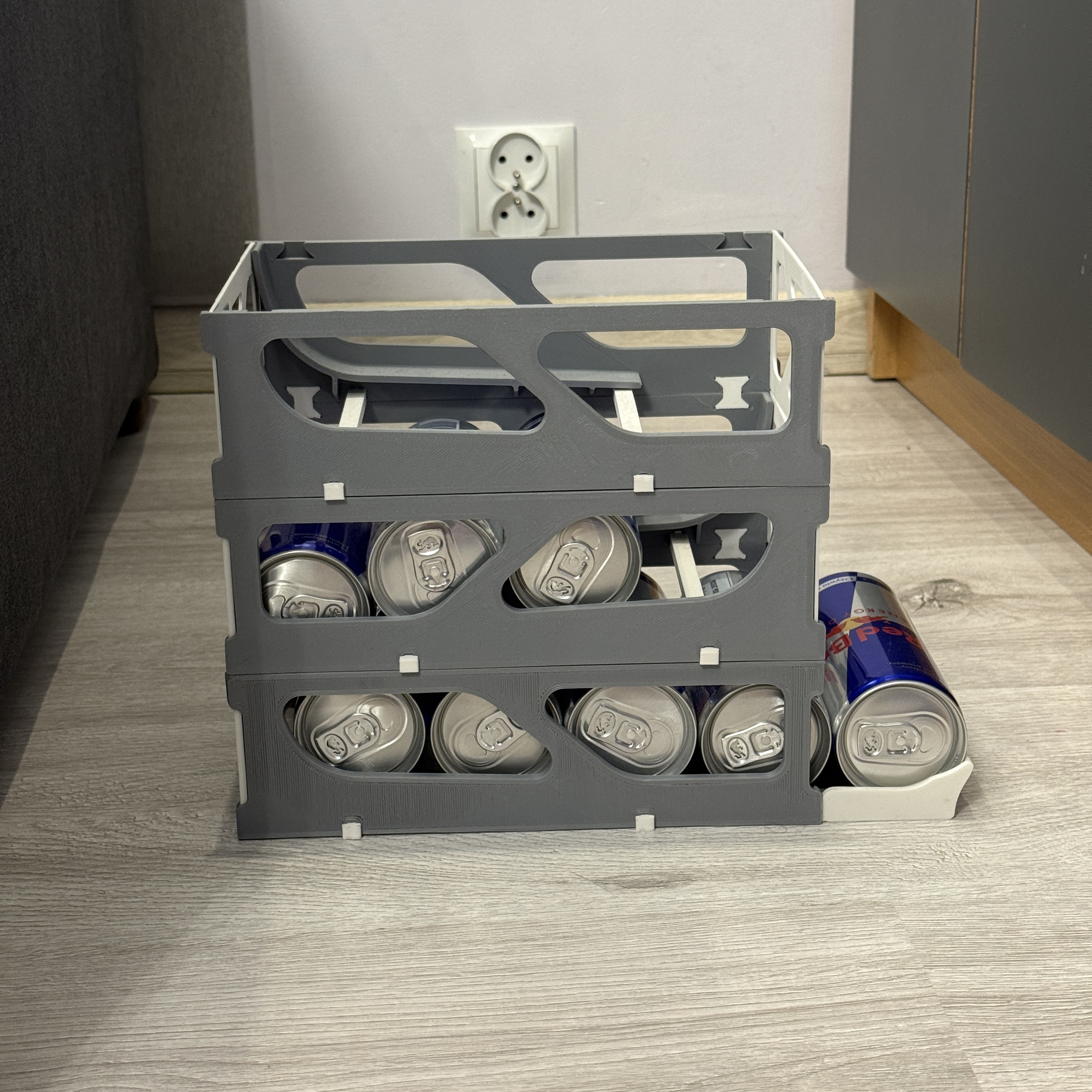

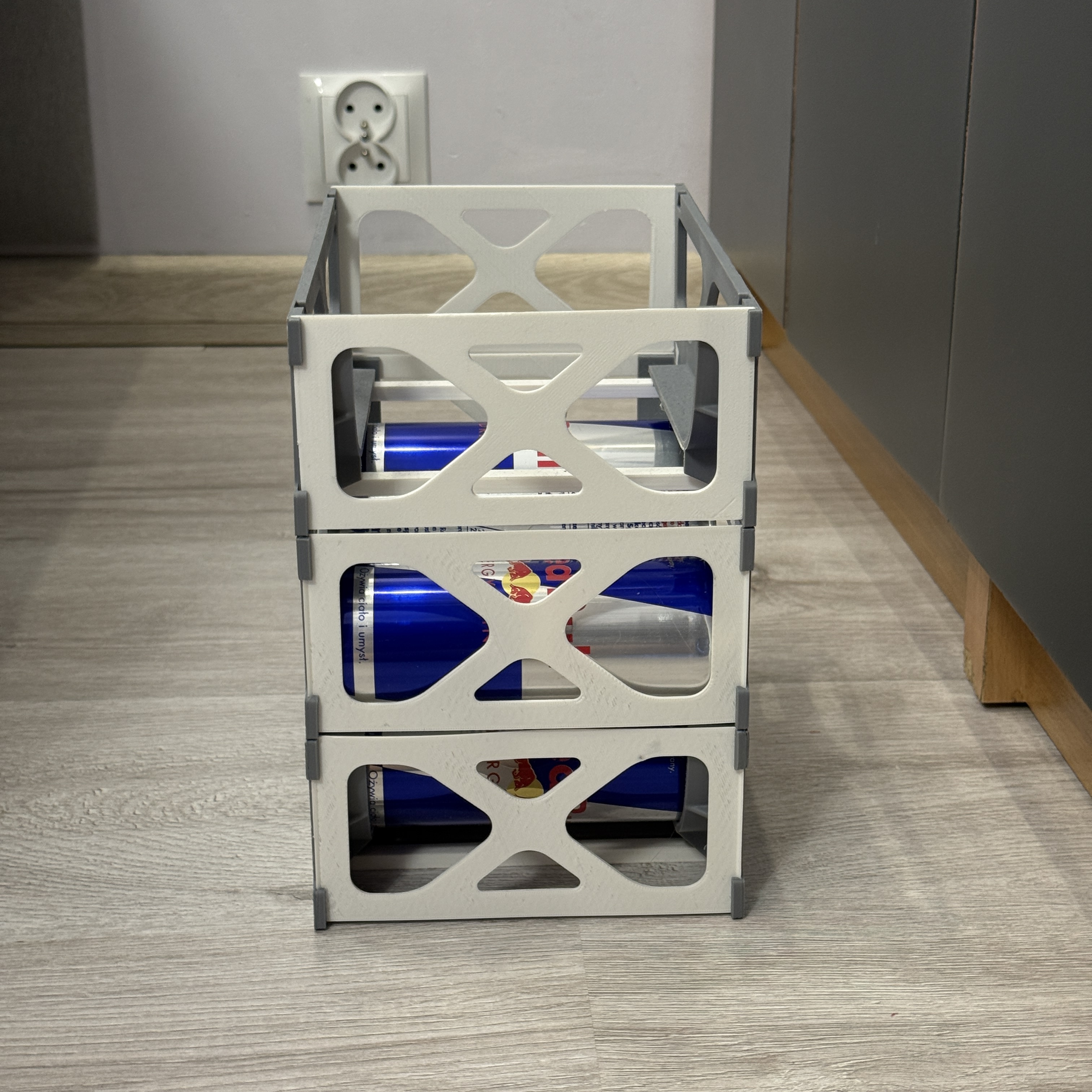

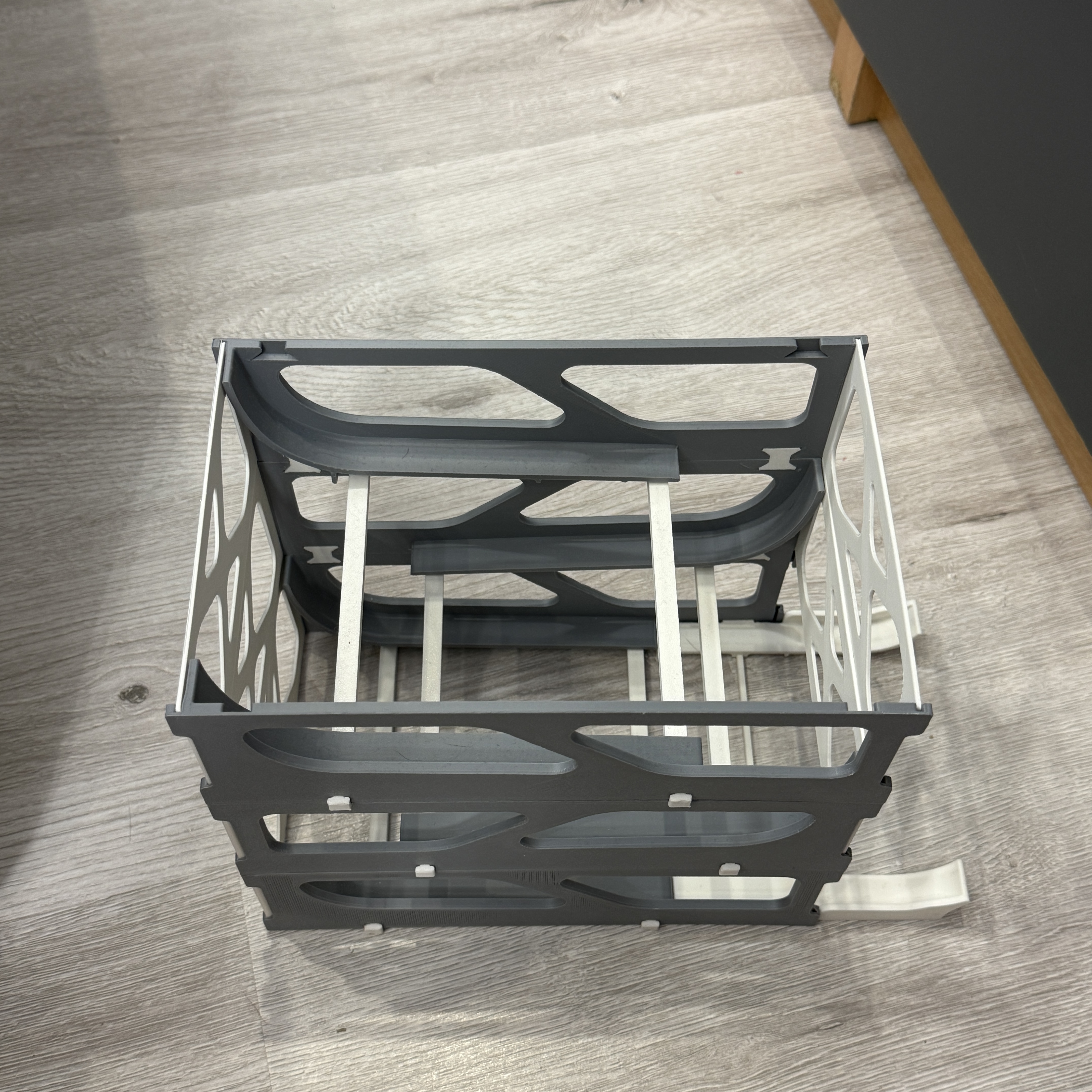

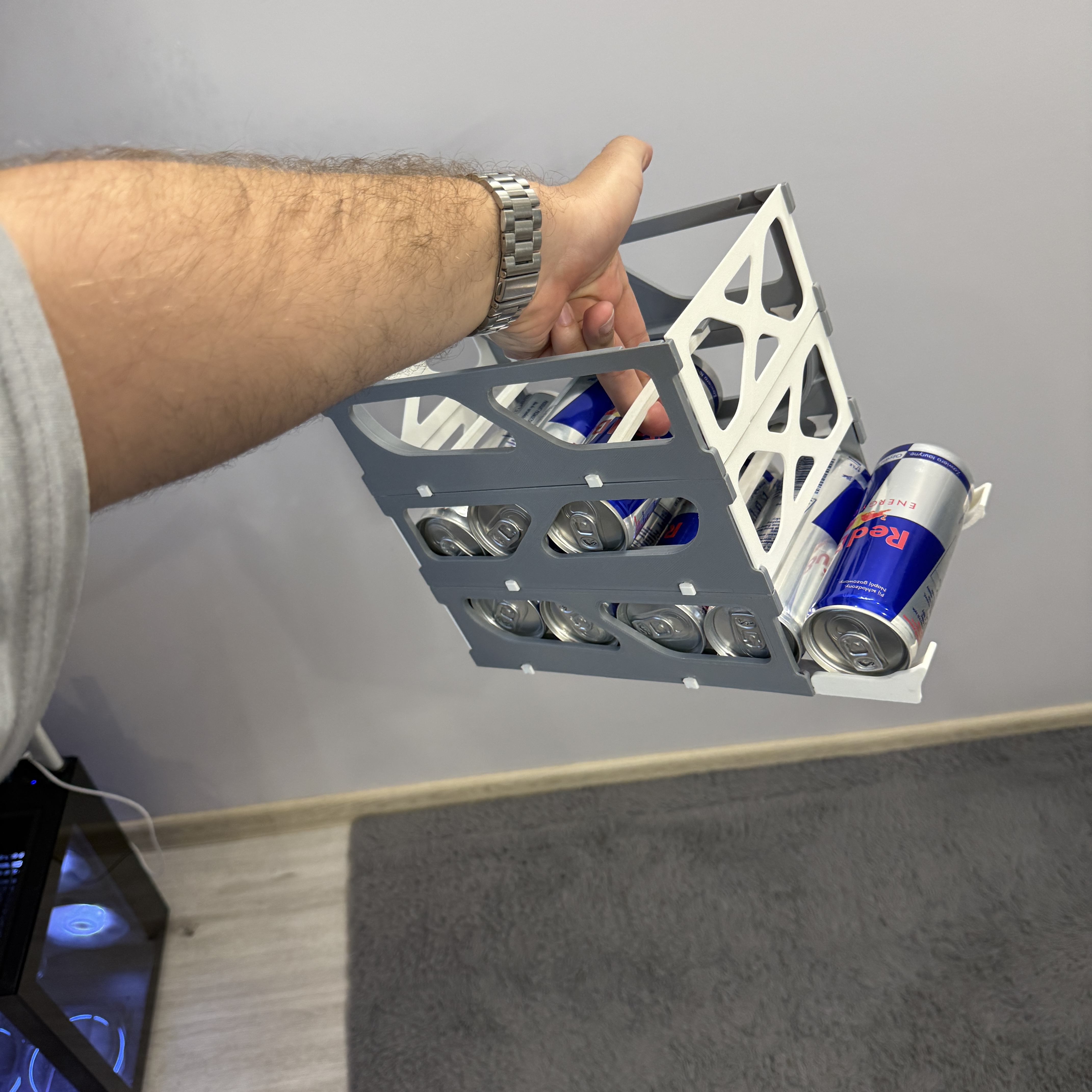

I've created a stackable, low cost redbull cans dispenser. I made my 3 floors high and it's pretty stable, u can propably make it min. 6 floors high but i didn't test it. Each floor can hold about 4 cans, bottom floor can hold 6.


Print info:
REMEMBER TO MIRROR WALLS AND SLIDE

4 wall loops, 3 top/bottom, 30% gyroid infill
Check notes under files for number of each

Assembly:

First of all, connect both Shells for 1st floor with 2 Shell Connectors, then u can add 2 Slide pieces and connect them with Slide Connector. If u want to make dispenser higher, u have to make the same thing as before with walls, align it with the 1st floors holes for Vertical Connectors, when aligned, squeze in the Vertical Connectors in those 4 holes. Also, if u want to use those Front/Back walls, remember to put them before you add another floor as each shell has a blockade at the bottom for those walls.

IMPORTANT:

The design is made with tolerances in mind, but u may need to cut pieces of vertical connectors with a knife to make them fit but not too much as they hold the tower upwards. Squeezing those in with tools might be a good idea.
