HellHound V1.0.6

Warning: this build requires printed flywheels, if you are not capable of producing high quality and strong flywheels build a Werewolf instead. Weak/Unbalanced printed flywheels are hazardous and can explode. Do not push the build past 40k rpm.

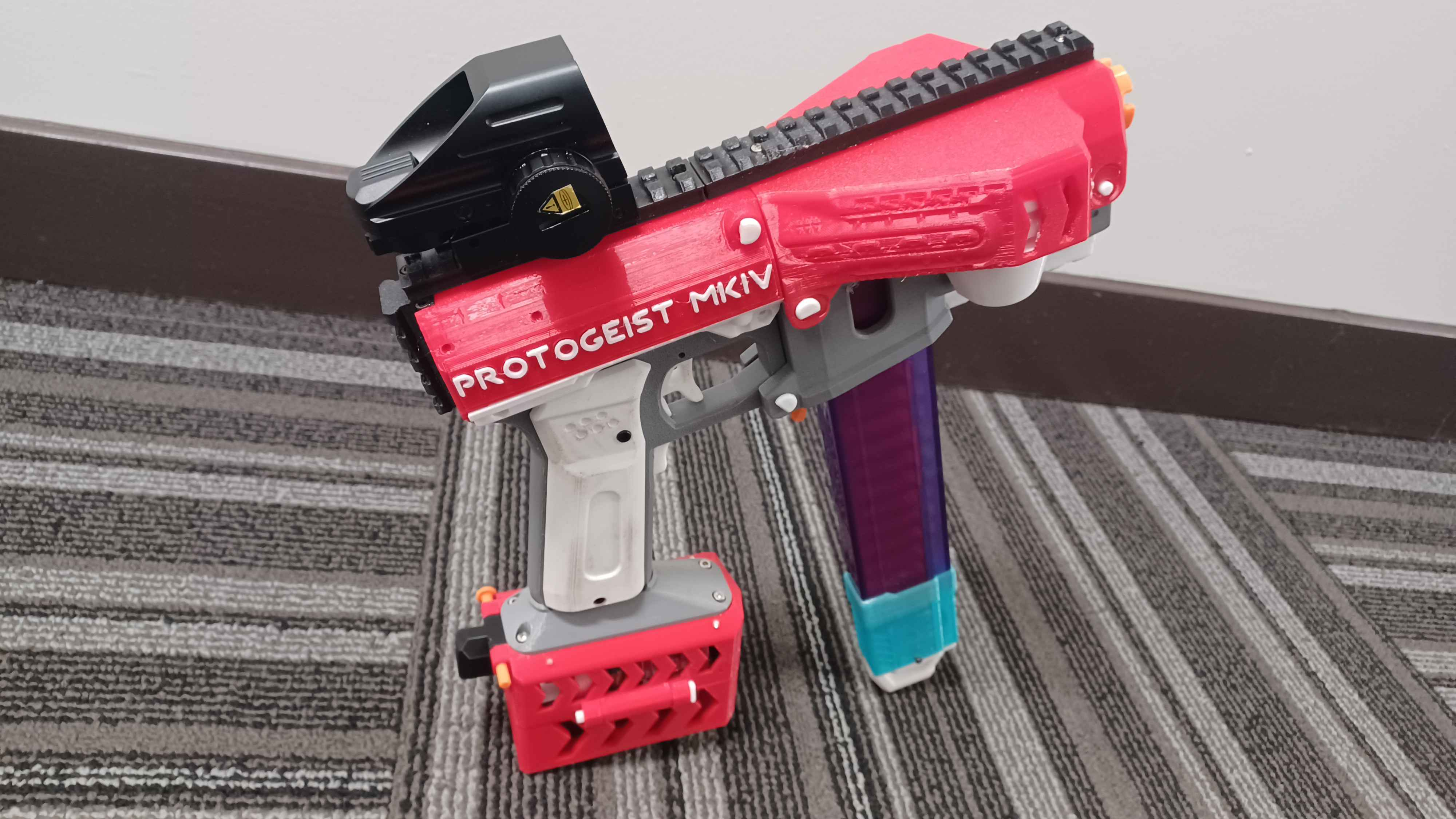

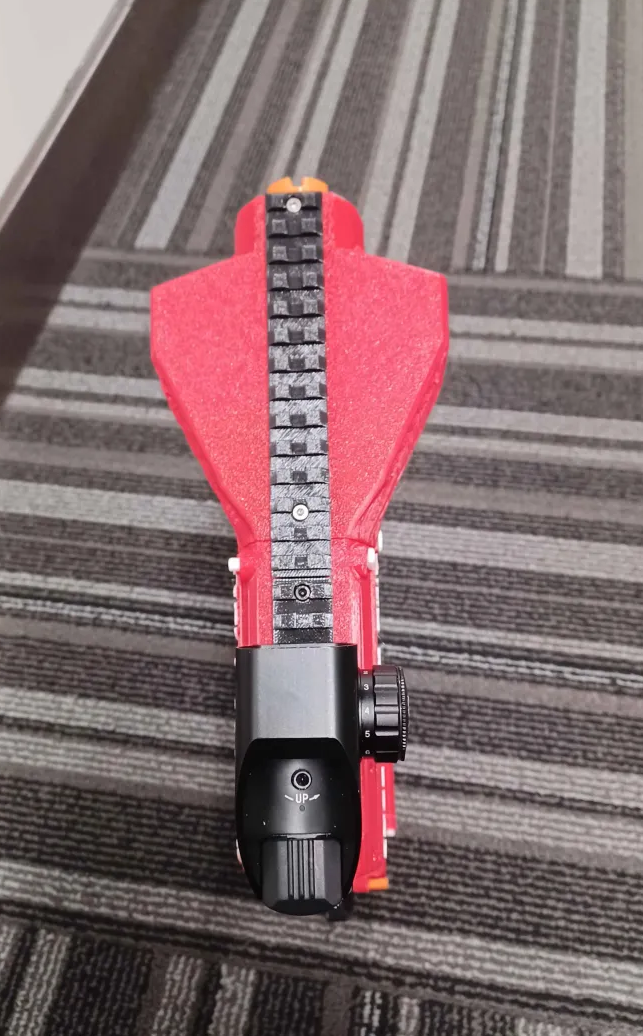

This is a shorter, lighter version of the protean, being more optimized for a fast playstyle in PvP and HvZ. Meant to be a budget competitive blaster around the $70-$80 range (assuming you have a printer). When built correctly it's more accurate than a werewolf due to the Hycon flywheels, and hits very high fps in a tiny form factor. It can hit up to 220 fps with 40k rpm motors on a single stage. It boasts full auto using an n20. Also has adjustable fps with the use of a PWM. Swapping between different fps caps is extremely easy, the firerate lowers with lower fps, combined with a super light trigger it make single shots easy in HvZ fps ranges. it also uses a picatinny stock system, and uses a battery bay under the grip for better weight balance. It also has a build in LED for glow darts at night with a very powerful 5w LED, for very bright darts at night. Also has an option to add on-board mag holders, for those who would rather mount their mags on their blaster than their body for certain game modes. All this is possible thanks to the genius of the base protean geometry.

Brushed hycon wheels lmao

Changelog

1.0.0- released | 5/30/2026

1.0.1- added several new cage options that may flex less | 5/30/2026

1.0.2- added extended motor covers for longer motors | 5/30/2026

1.0.3- added extra bcar options, changed the default hellhound flywheel slightly, and added more options for extended battery bays | 6/7/2026

1.0.4- fixed an issue with battery bays failing to print, also updated glue type in instructions| 6/13/2026

1.0.5- Added whippet wheels V2(better prints), and prototype suppressed whippets| 6/19/2026

1.0.6- Added whippet wheels V3(even better prints), chimera compatible receiver covers, and slightly changed the receiver| 6/29/2026
