Modular Cascade Tower - Marble Drop

The Modular Cascade Tower is a 3D-printed reimagining of the classic wooden musical marble tree. Designed with a clean, sculptural aesthetic, this modular desktop marble run lets you infinitely stack as many tiers as your heart desires.

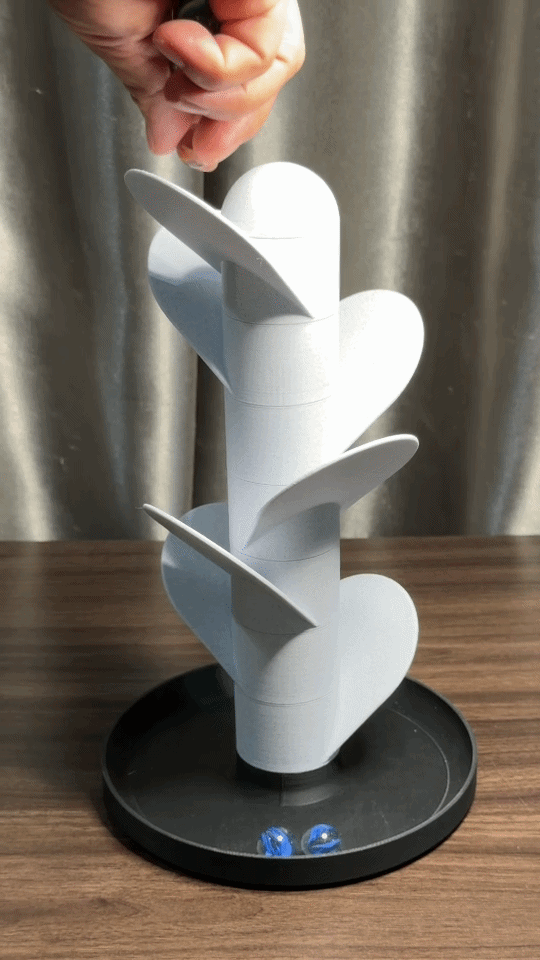

Drop a marble at the top and enjoy the satisfying, rhythmic cascade as it smoothly sweeps through the organic teardrop leaves all the way to the base.

Best of all? The entire print is designed with precise overhang geometry, making it 100% support-free with zero wasted plastic and clean surface finishes straight off the build plate.

Features & Specs

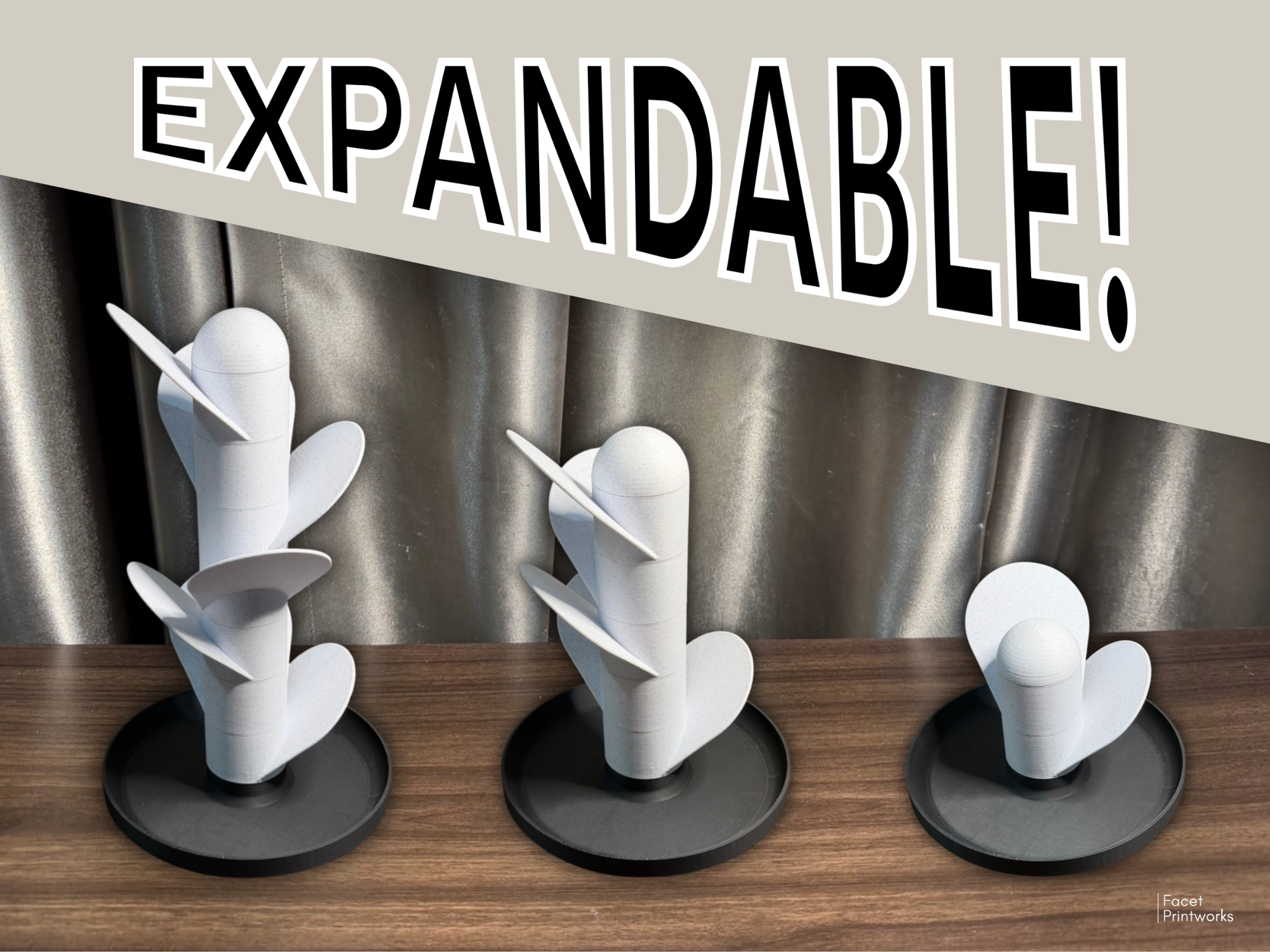

• Infinite Stacking: Print as many modules as you want to build your tower as high as you like.

• Foolproof Twist-Lock: A robust, tolerant locking system that snaps together securely, even if your prints experience minor bed warping. Twist until clicks.

• 100% Support-Free: No tedious post-processing, no support artifacts.

• Optimized for 16mm Marbles: Designed for 16mm although any marbles would probably work.

Don't have a marble? Print yours at [https://www.printables.com/model/1729695-no-support-marbles.](https://www.printables.com/model/1729695-no-support-marbles.)

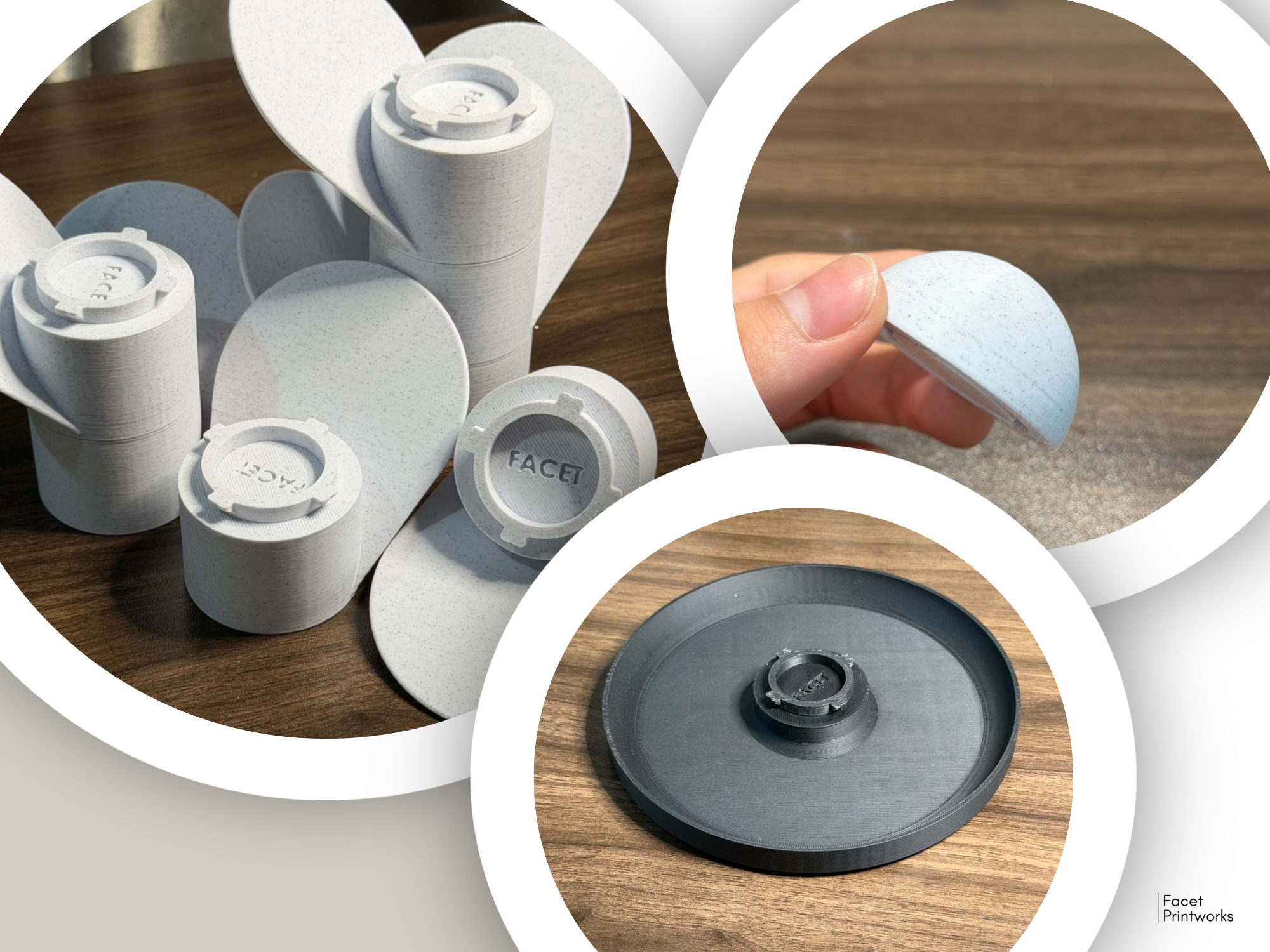

Components

• The Base: A wide catch tray that acts as the base for the entire project. It anchors the tower securely to your desk and cleanly collects the marbles at the bottom of the run while not being too bulky.

• The Module: The core stacking unit of the tower. Each module features the sweeping teardrop paths that guide the marbles, along with the integrated twist locks. Print as many of these as you want to reach your desired height.

• The Cap: A clean half-sphere dome that snaps onto the very top module. It rounds off the core, giving the tower a finished look while anchoring the top of the design.

Recommended Print Settings

• Supports: None. This model is fully optimized to print clean without any support material.

• Orientation: All files are oriented for minimal supports, print as is.

• Material: Any would work.

• Bed Adhesion: Adding brim in your slicder can help minimize bed adhesion problems on the flat surfaces.

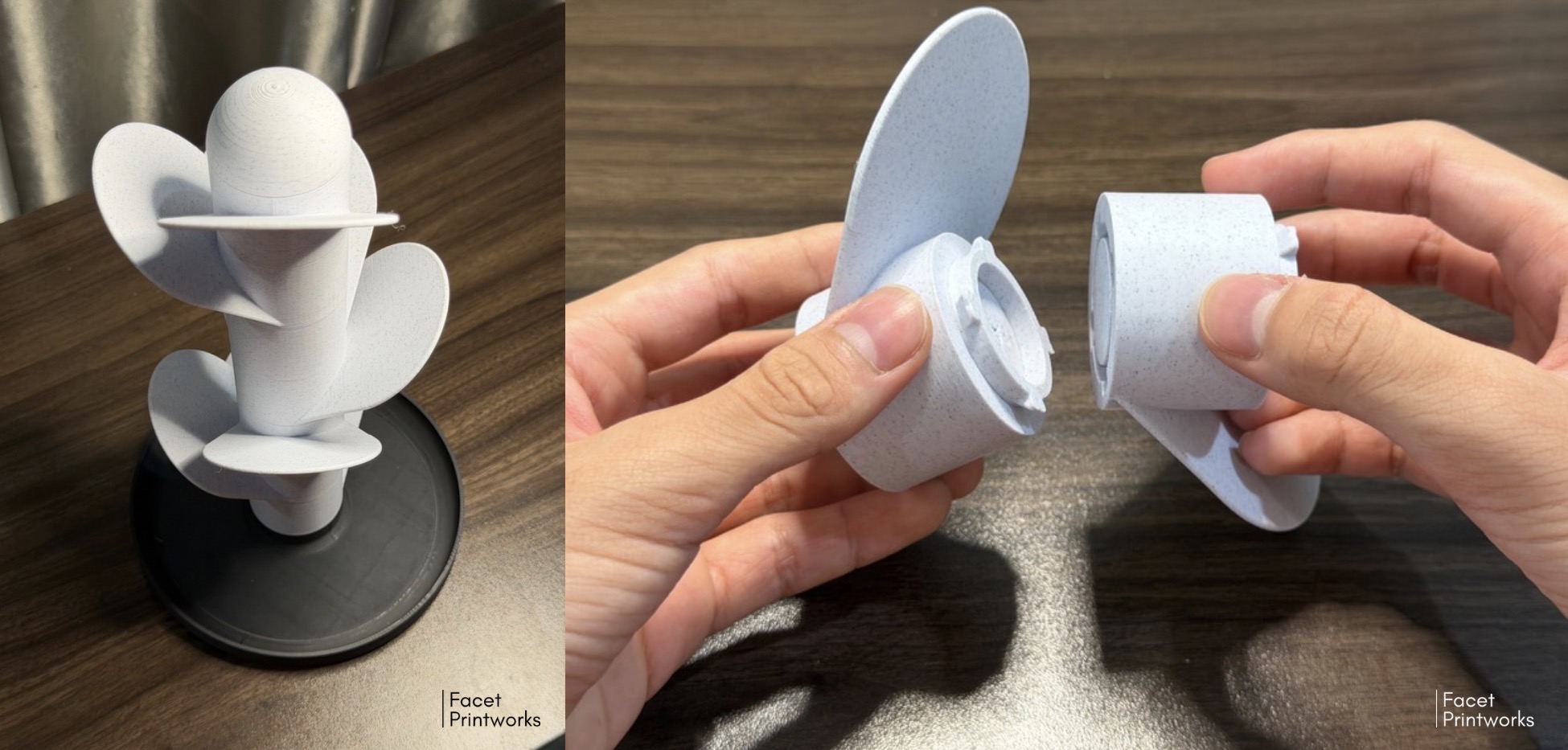

Assembly

To get the marbles cascading from top to bottom, the modules must be rotated as you stack them.

• 90-Degree Shift: When installing a new module onto the level below it, rotate it 90∘ in the same direction to engage the next set of tabs.

• Creating the Loop: Shifting each level ensures that the sweeping teardrop leaves align perfectly into a continuous, spiraling downward path. If you stack them straight without rotating, the tracks won't line up, and the loop will be broken!

• Locking it In: Once aligned, give the module a firm twist clockwise until clicks together to lock the modules securely into place. Repeat this 90∘ rotation for every module you add, all the way up to the cap.



Other Marble Runs

If you like this model, feel free to check out some of my marble runs:

Copyright & Licensing

© 2026 Facet Printworks. All rights reserved. This model is published under the Creative Commons - Attribution - Non-Commercial (CC BY-NC) license. You are welcome to print, share, and remix this design for personal enjoyment, but commercial sale of the digital files or physical prints is strictly prohibited.
