Modelo 3D V-block, 1-V, parametric, OpenSCAD por DaveX no Printables

Descrição

There are two .scad file, one with simple sharp corners, and one using include <Round-Anything/polyround.scad>// from  [https://github.com/Irev-Dev/Round-Anything](https://github.com/Irev-Dev/Round-Anything)  to round the corners and MCAD to provide teardrop holes and other options.

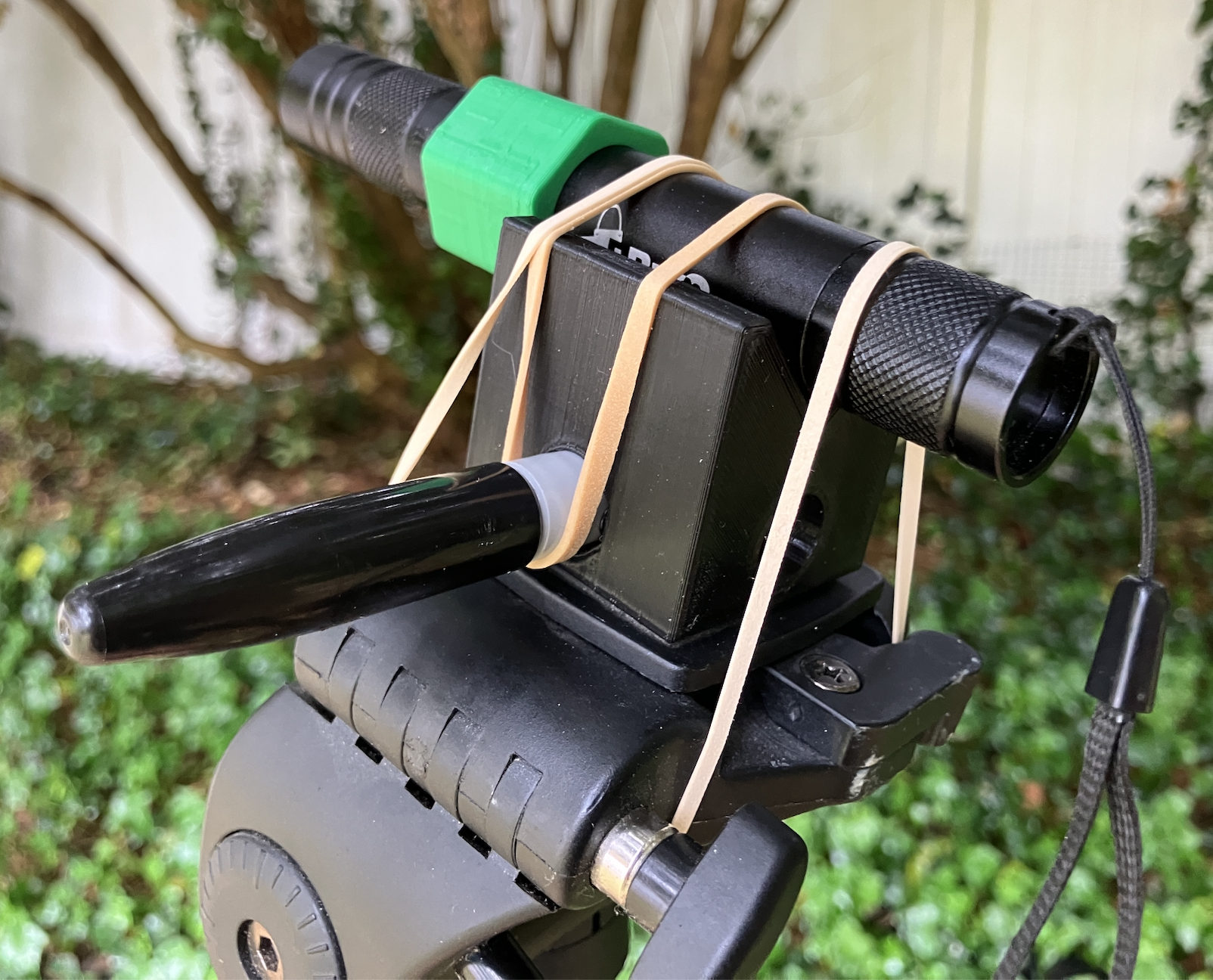

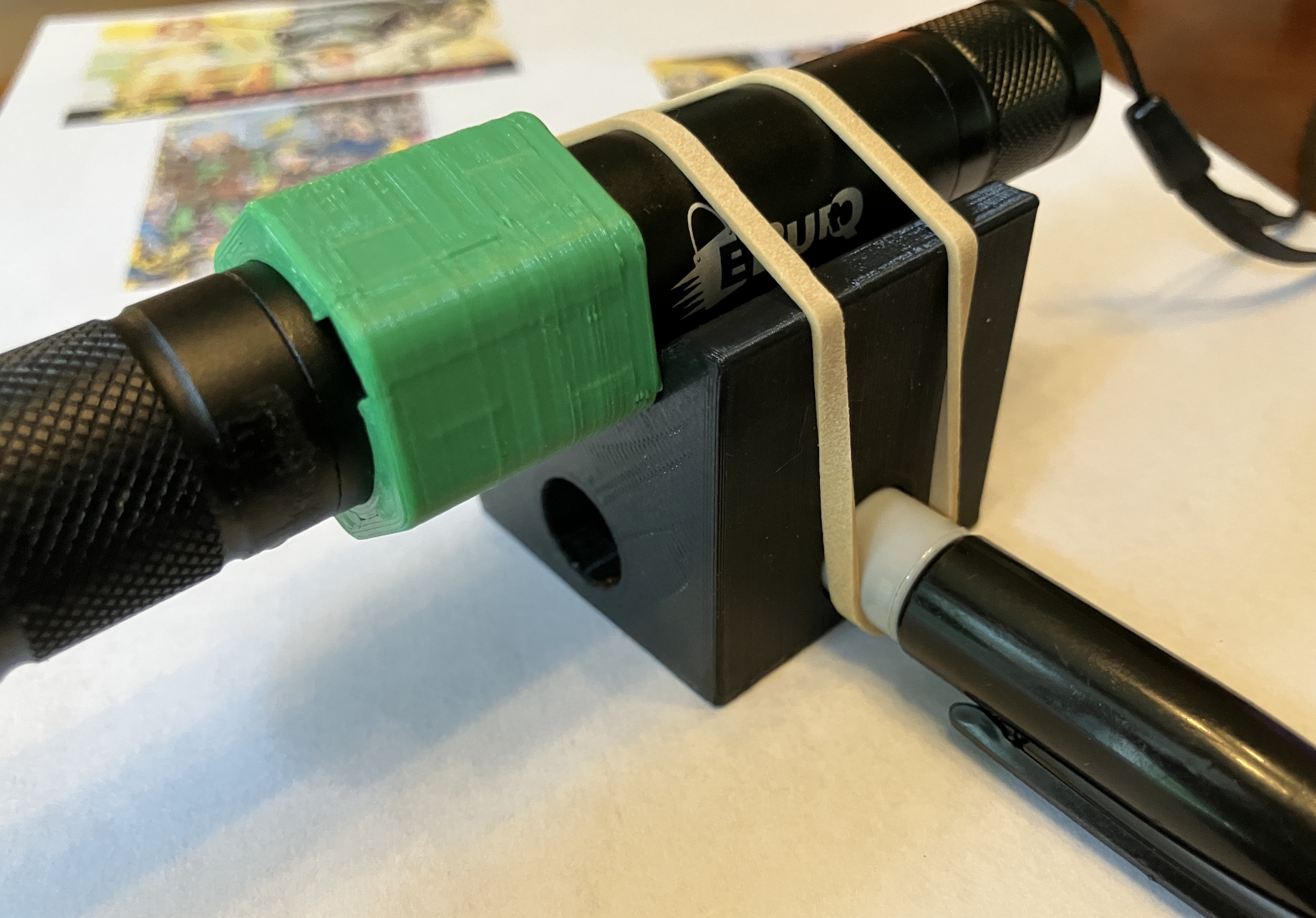

I wanted a simple V-block to mount a laser pointer on a surface, and it works well:

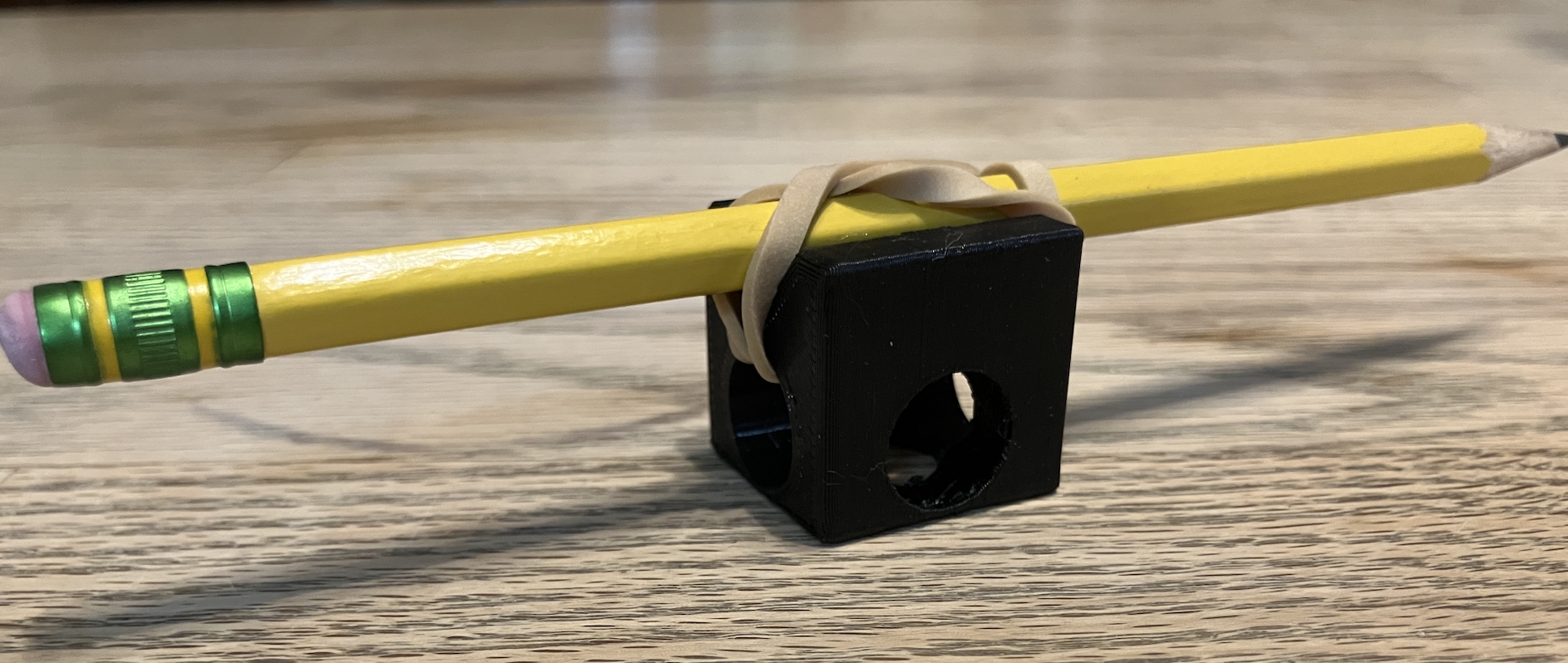

You can use a rubber band or a Velcro strap though  the holes to mount the block to a surface, or to mount a shaft into the vee.  If you wanted it more secure, you could use velcro, zip-times, wire, or actual hardware.

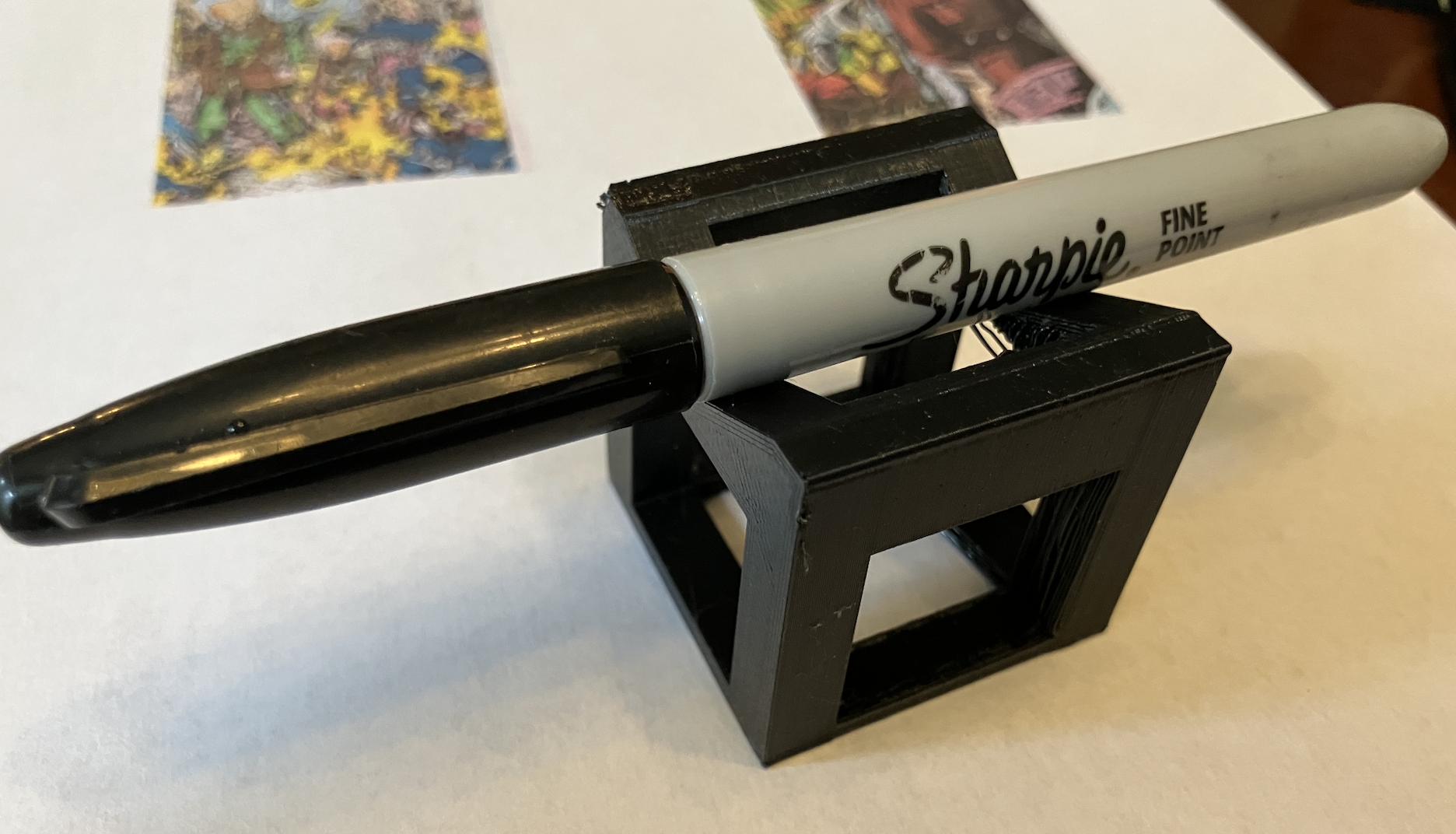

This is a 120deg, 40mm v-block with large square holes through each axis:

You can see some bridging issues under the right-back-top Vee, but it is functional enough for my needs.

I like printing them on end, so the axis of the V is perpendicular to the FDM layers, and the layer perimeters are strong and accurate.

Printables

V-block, 1-V, parametric, OpenSCAD

Publicado em 25 de mai de 2026

2
Curtidas
7
Downloads
3
Impressões
Categoria Tools
Tags
vblock
Licença Creative Commons — Attribution
Arquivos (15)
vblock_25x25x25_3x13mm.stl 125 KB
vblockr_25x25x25_3x13mm.stl 1.2 MB
vblock_120deg_50x25x10.stl 3.3 KB
vblockr_120deg_50x25x10.stl 1.1 MB
vblockr_25x25x25_3hole.stl 1.1 MB
vblock_25x25x25_3hole.stl 60 KB
vblock_120deg_25x25x13.stl 12.3 KB
vblock_25x25x25.stl 12.1 KB
vblock.scad 1.2 KB
vblockr_40x40x40_3x25sq_120.stl 1.1 MB
vblockr_40x40x40_3sq_hole.stl 1.1 MB
vblockr_50x50x50_3hole.stl 1.2 MB
vblockr_40x40x40_3hole.stl 1.3 MB
vblockr_120deg_115x50x15.stl 967.6 KB
vblock_rounded.scad 2.7 KB
