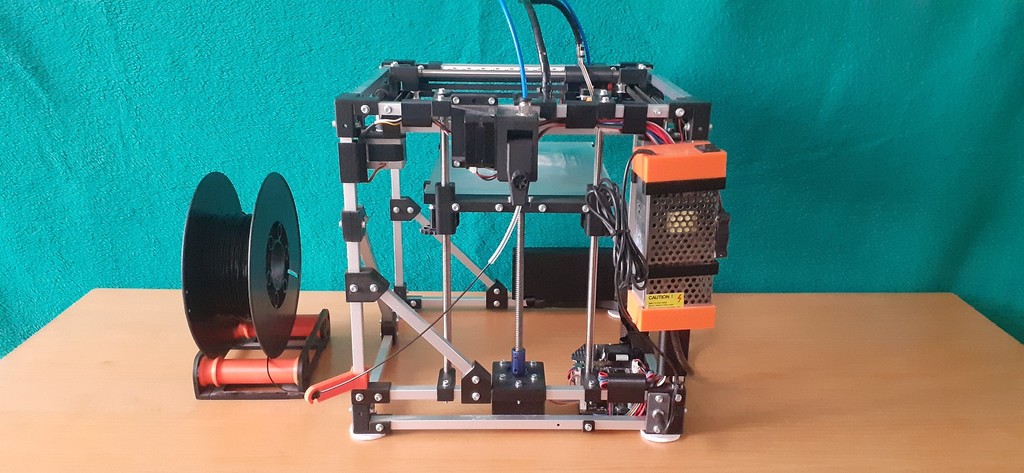

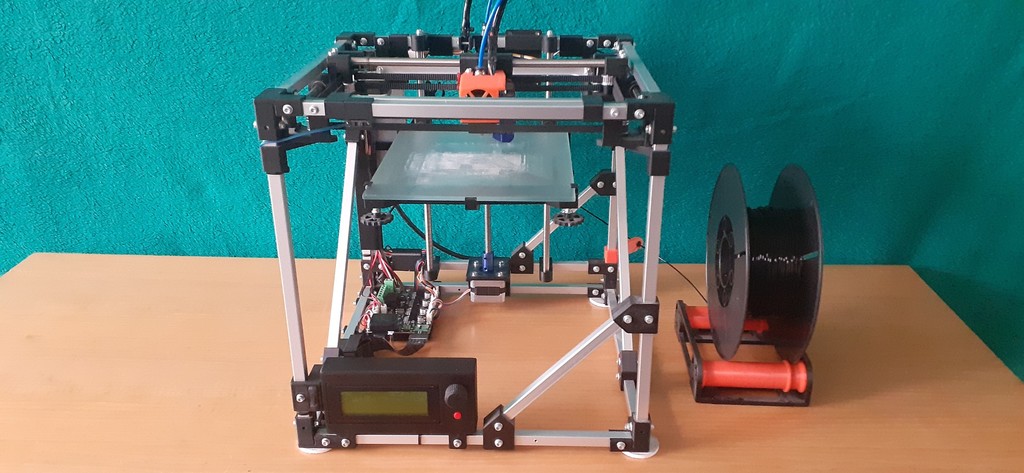

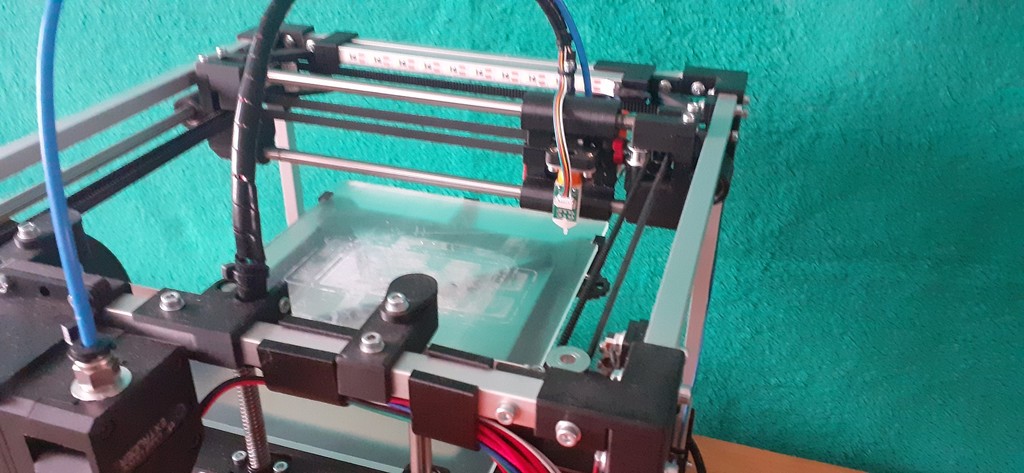

So, this is my 3-rd printer. It's designed to print small objects, up to 160x160x160mm. External dimensions are 315x315x320mm. As usual, it made of aluminum profiles 10x10x1mm, hardened rod 8mm and many bolts&nuts M3. As hotend is used MK10. Motors are some Nema14 for XY and some Nema17 for Z & E.
I was printed all parts from PLA except motor holders, X-carriage, hotend holder and hotend cover, these parts are from PETG.
B.O.M.
Aluminum profile 10x10mm, 1mm thick wall:
9x 284mm for upper frame, lower frame and Z-motor mount
4x 310mm for sides
2x 270mm for side reinforces
Hardened rod 8mm:
2x 280mm for X
2x 230mm for Y
2x 280mm for Z

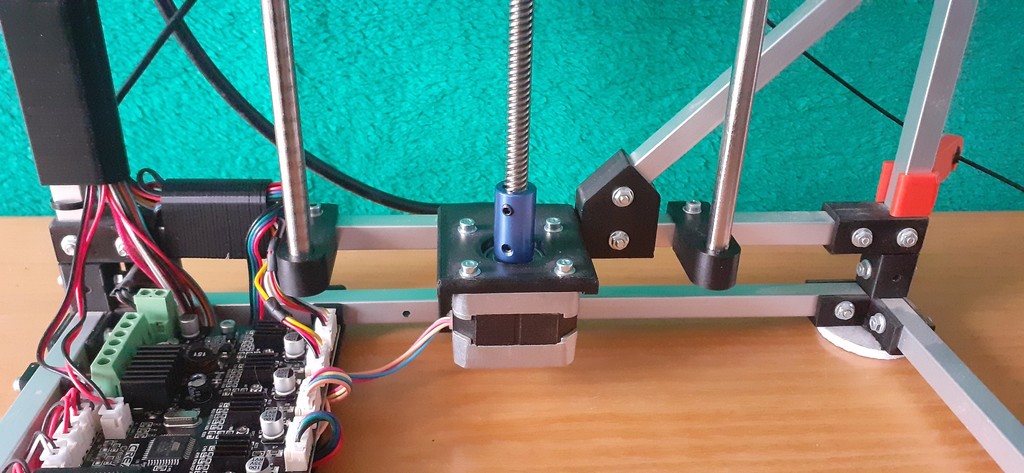

1x trapezoid rod 250mm 8x8 with POM nut
2x LM8LUU for Z-axis
2x LM8UU for Y axis

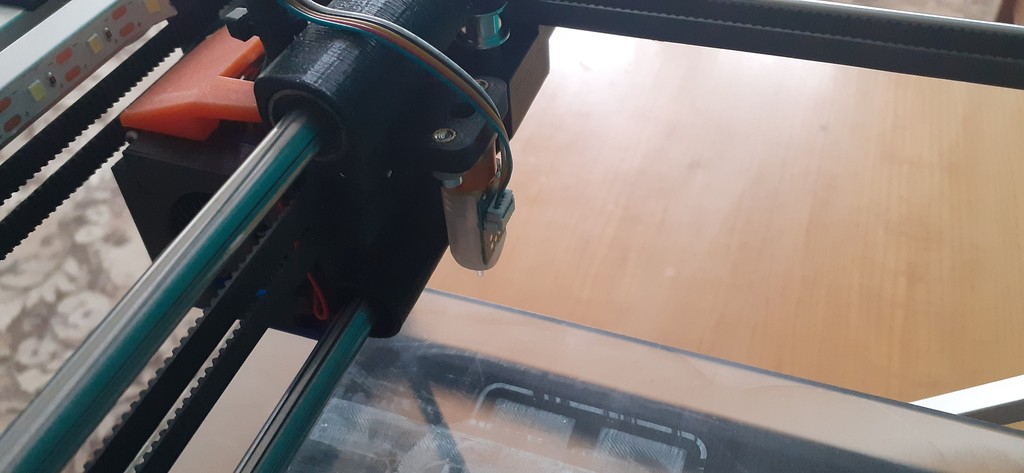

2x LM8UU and 1x LM8SLUU (35mm) for X axis
1x coupler 5mm/8mm
2x 16T pulley
6x 16T idler
2x smooth idler
2.5m GT2 belt
3x NEMA17 (or NEMA14) motor
2x microswitch for endstops X and Y
1x 3DTouch for Z axis
180x230mm glass 3mm thick
1x hotend CR10 (Ender 3)
50cm of Capricorn tube (OD4, ID1.9)
1x 3010 fan for cooling heatsink
1x 4010 radial fan for cooling printed object
Any geared extruder (BMG, Titan or DIY 3D printed...)

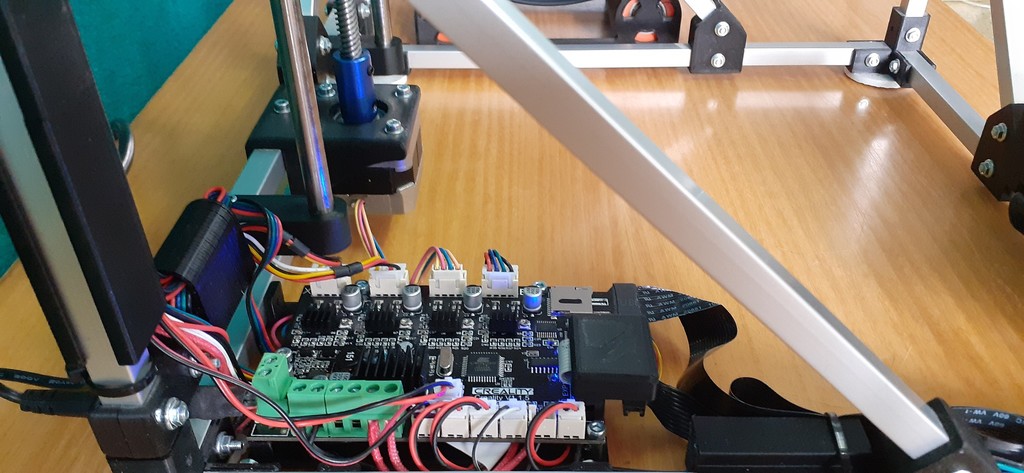

Any mainboard (Anet, Ender, RAMPS with Arduino MEGA, SKR, GEN...)

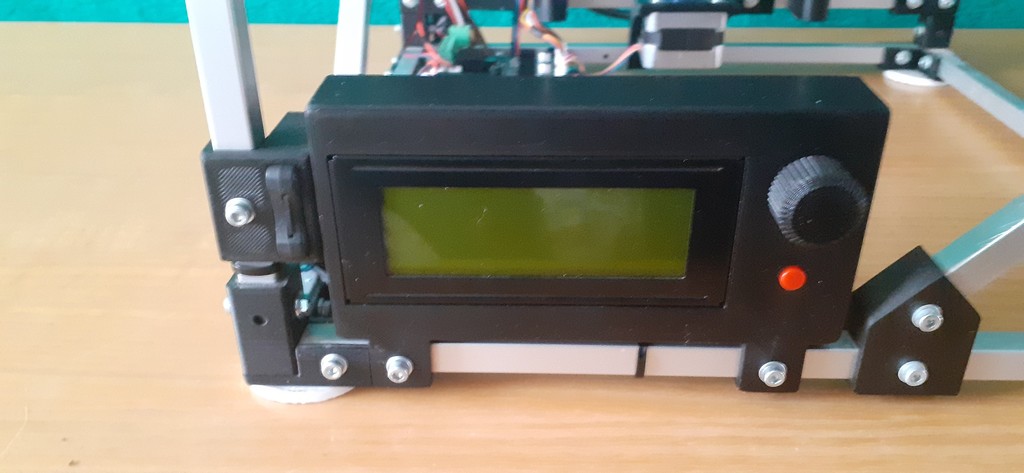

Any LCD display (2004, 12864)
Wires
M3 nuts, bolts and washers (mostly M3x20...)
Print Settings
Printer:
Cassandra, Anet A8
Rafts:
No
Supports:
No
Resolution:
0.2
Infill:
30%
Filament:
Fillamentum, Fiber3D PLA, PETG
Black, Orange
Category: 3D Printers
M-Cube, a tiny CoreXY 3D printer
