Descrição
This model is designed to be printed in TPU.
It is designed for a cable with an outer diameter of 6mm.
The lower part that is screwed to the wall should be manipulated with a perimeter modifier until it is printed as solid part.
In the upper part where the cable is clipped in, you should experiment with perimeters and infill depending on which shore hardness you use. Better print a test piece first to try it out.

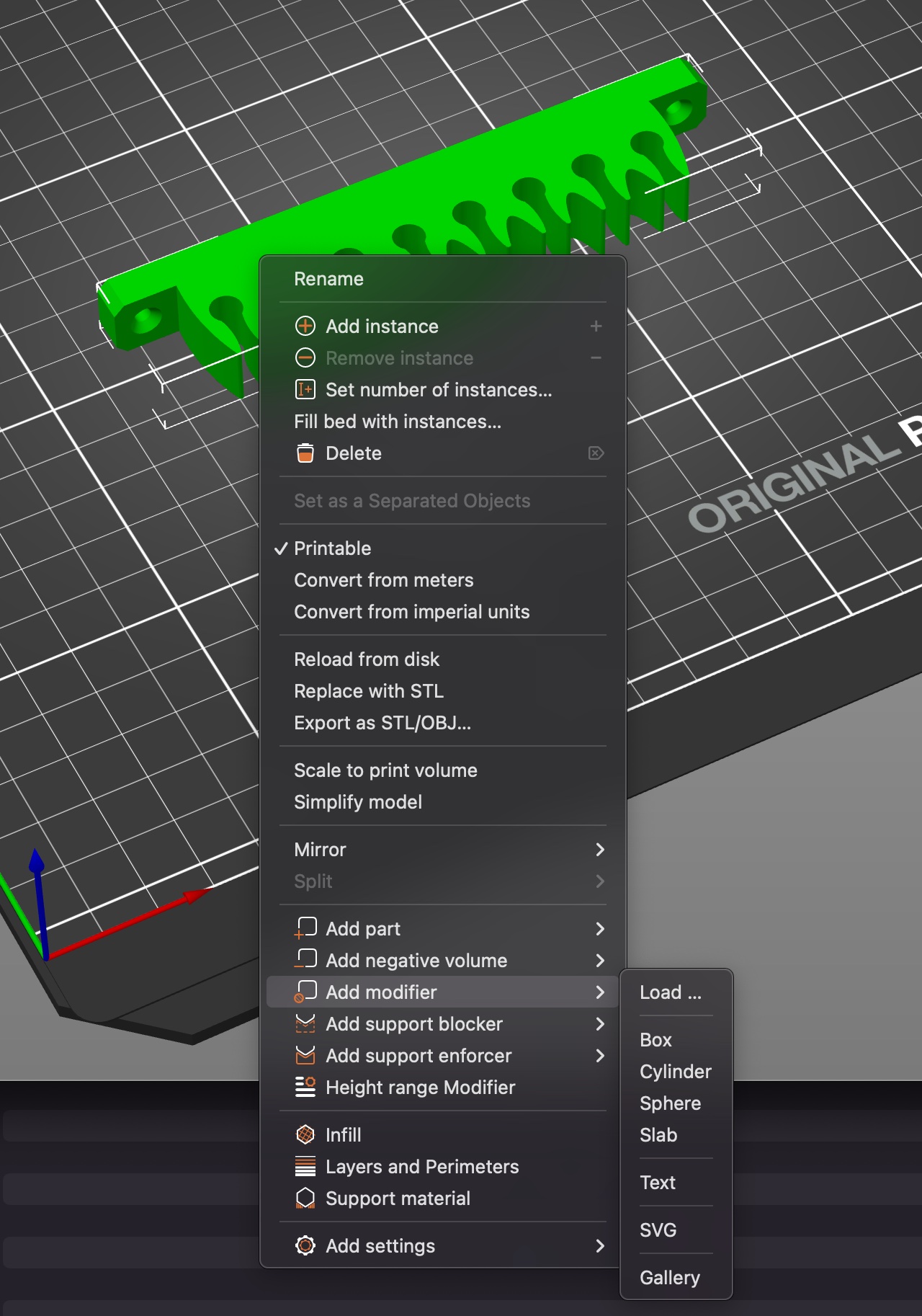

Right click on part add modifier -> Box.

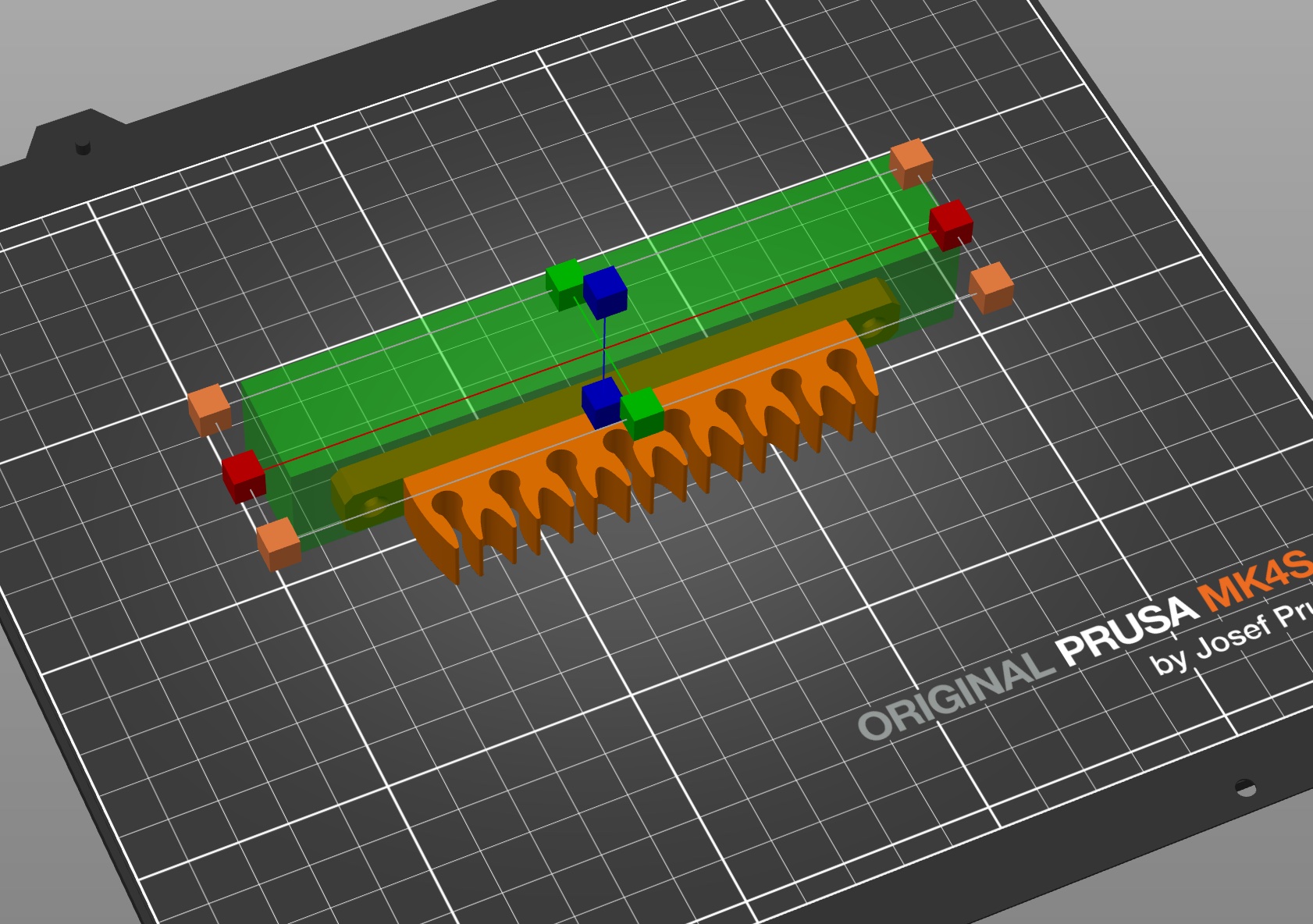

Scale Box.

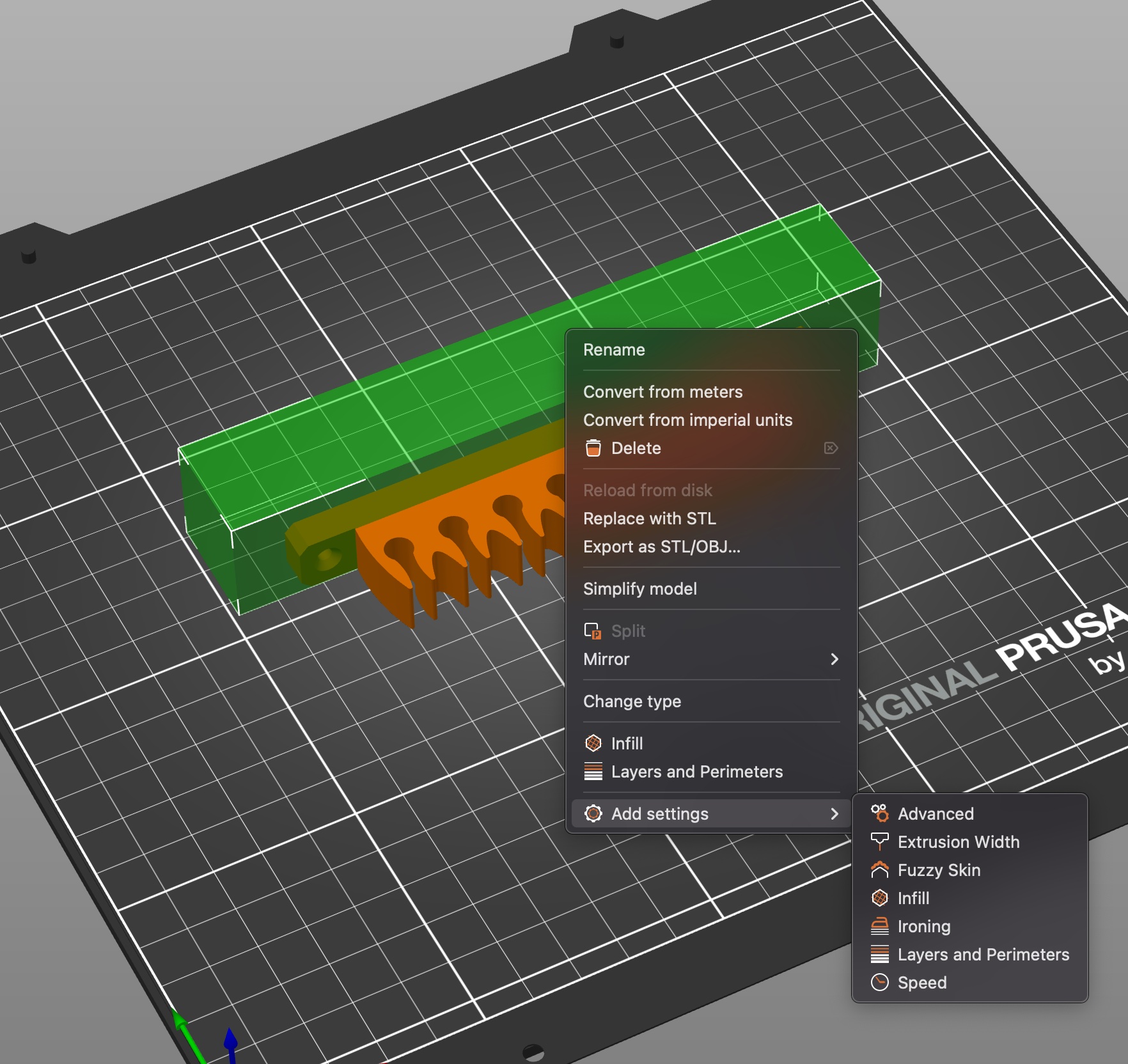

Right click on box - add settings -> Layers and Perimeters.

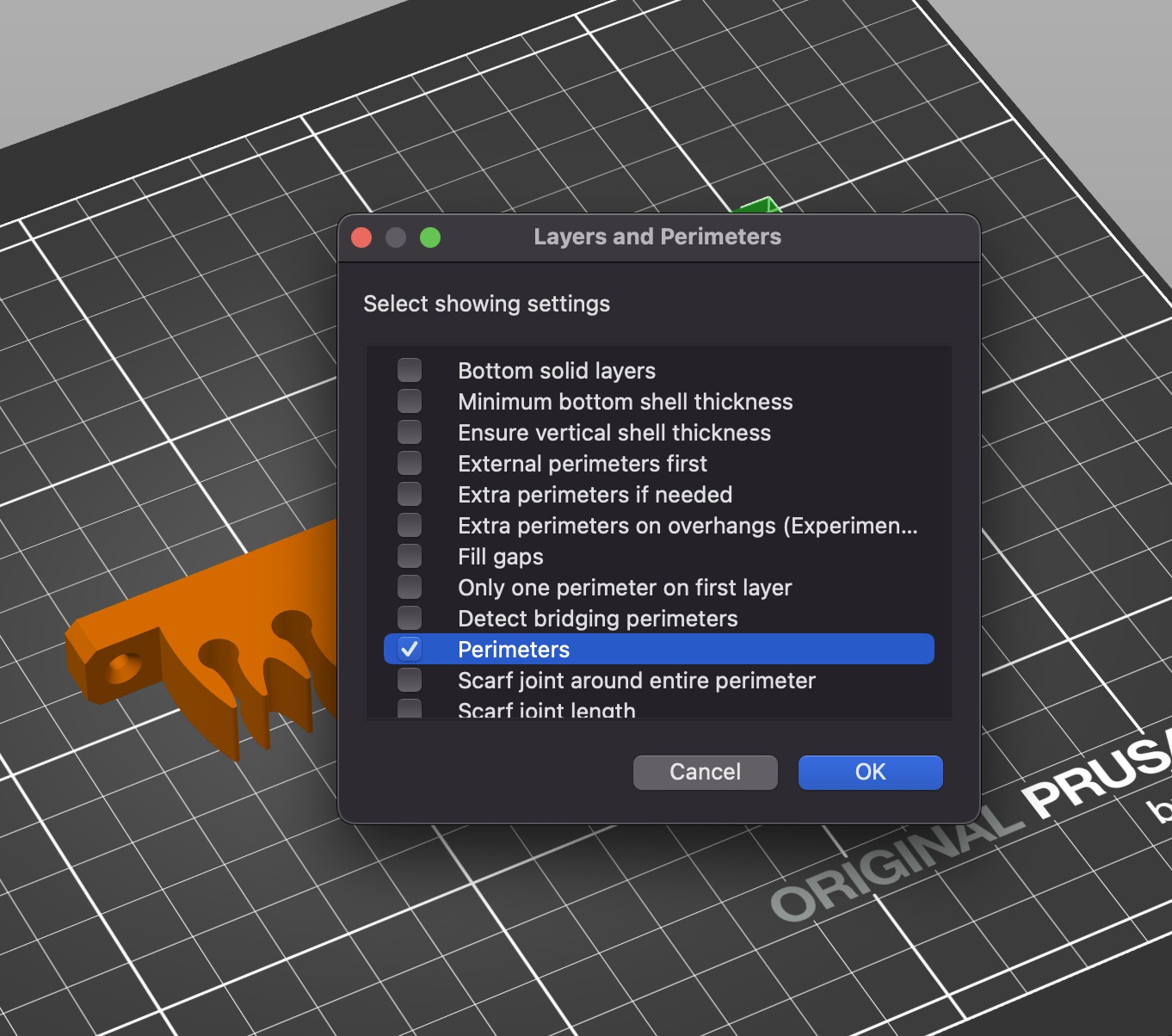

Choose Perimeters.

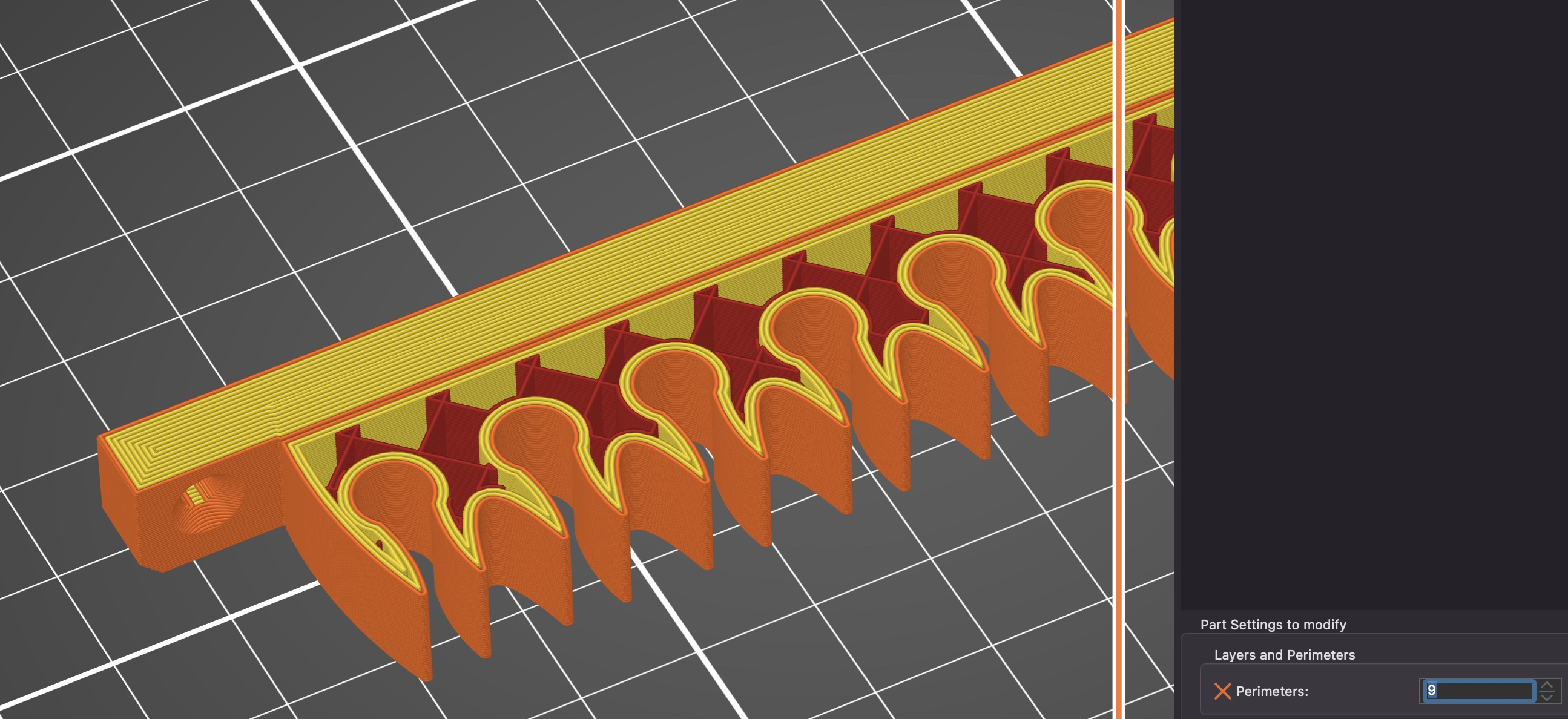

Add 9 perimeters to make the bottom part solid.
Happy printing!
