Modelo 3D Wire Grid Connector Set por CloudedCat no Printables

Descrição

NOT COMPLETE YET!
I am working on completing the set.

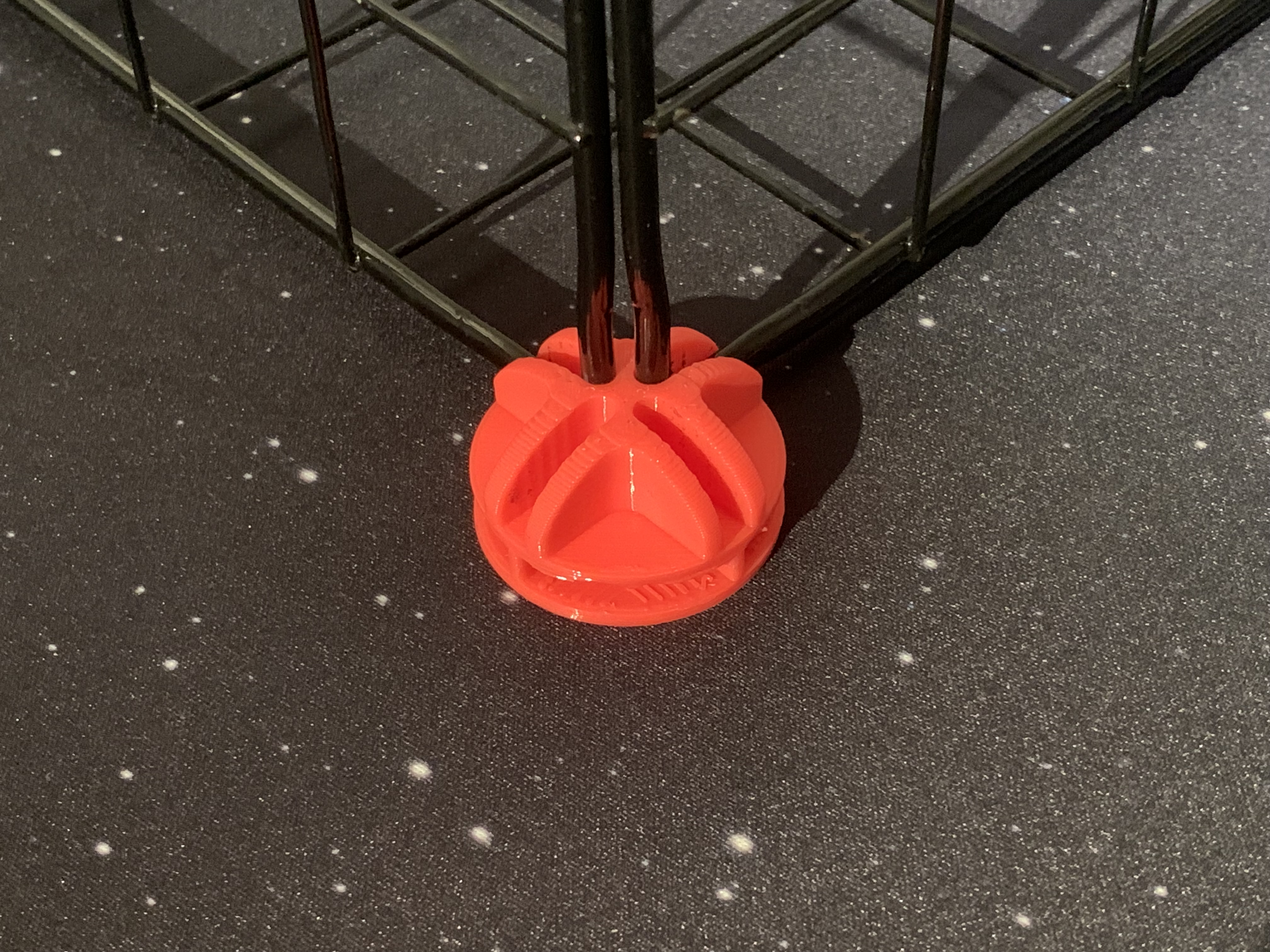

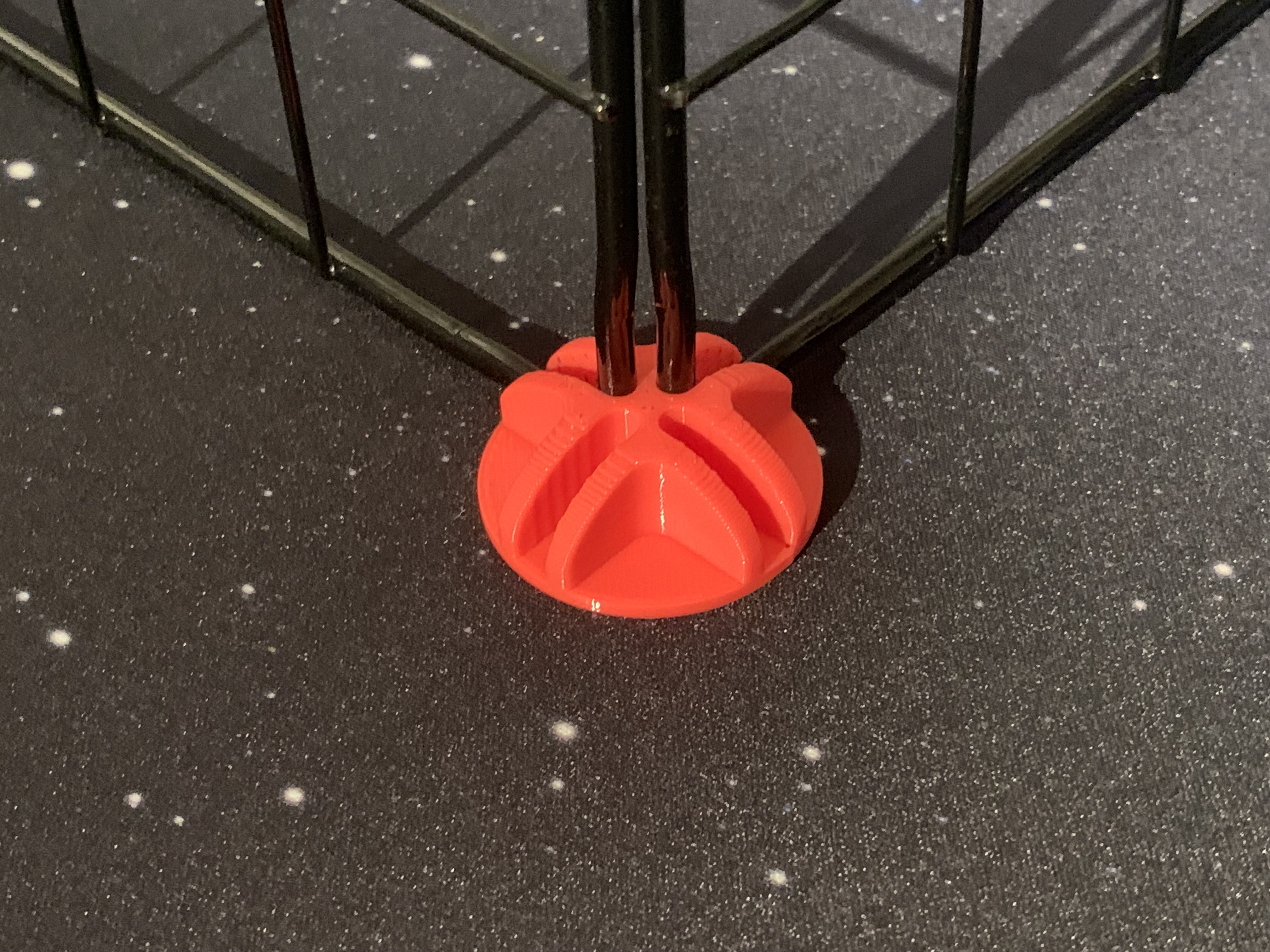

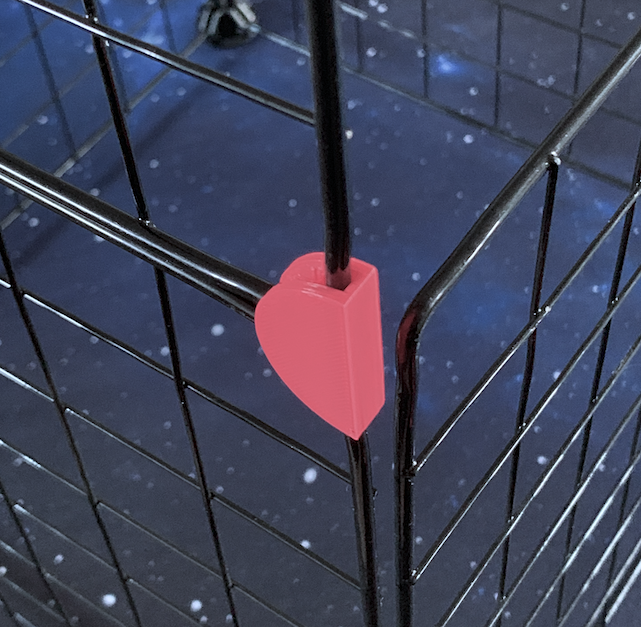

Wire Grid Connectors by CloudedCat

Important: Please note that these connectors are testet on a wire grid frame with a width of 4 mm.
The original part has a hight of roughly 20 mm and a width of 36 mm.

If you're missing variations, please just tell me.
You can contact me here or on Instagram: [https://www.instagram.com/clouded.cat](https://www.instagram.com/clouded.cat)

Nomenclature

In order to address the different variants of the grid connectors, I will introduce a naming system.

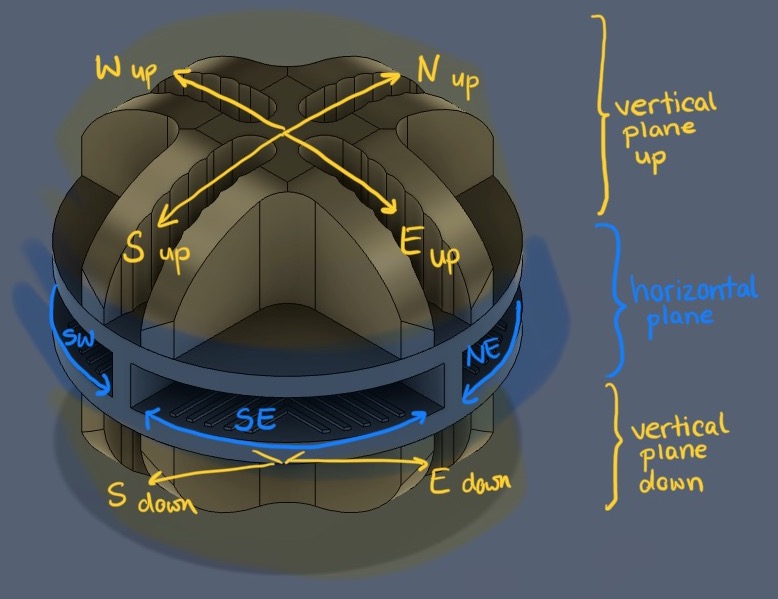

The picture below shows the "biblically accurate" version of one huge, giant, monster-connector.
It is separated into two different planes: the horizontal and the vertical plane. Each plane is optional, so don't be alarmed when one or two of them are missing!

The Horizontal Plane

The horizontal plane has two separate instances: the up and the down part. It is divided into the cardinal directions North, East, South and West. If the connector uses both (the up and the down) planes, they will additionally be marked with up/down.

The Vertical Plane

The vertical plane is divided into the regions North-East, North-West, South-East and South-West. For this one, there are no other variations.

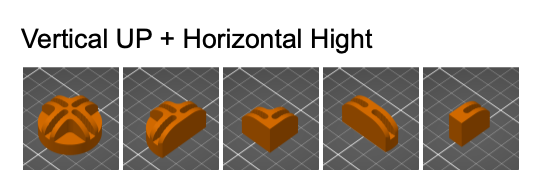

Some connector variations only use the height of the horizontal plane. These will be addressed as +H.

Print Settings, Material Choice and Model Problems

I printed all of the connectors using PLA for fast prototyping. Keep in mind, that PETG, ABS or ASA would probably provide more stability and durability. The "real world" connectors I based this model on are made out of ABS.

For the horizontal plane prints, when you cannot avoid using support, I find that the organic support works best. Be careful, when removing the support: you can easily remove the grid lines as well.

If you're printing a model laying flat on the horizontal plane, you will run into some stability issues with the division lines of the notches. The walls are pretty thin, so handle with care.
I kept the walls this thin, because the original connector I based this model on, has this wall width. I wanted to make sure that you can continue using them.

Changelog

26.05.2026

  • Added T corner model "WireGridConnector_V_N_E_S_H_NE_SE" with two horizontal corners to folder Vertical_UP_Horizontal.

25.05.2026

  • Added three-way corner model "WireGridConnector_V_N_E_H_NE" to folder Vertical_UP_Horizontal.

22.05.2026

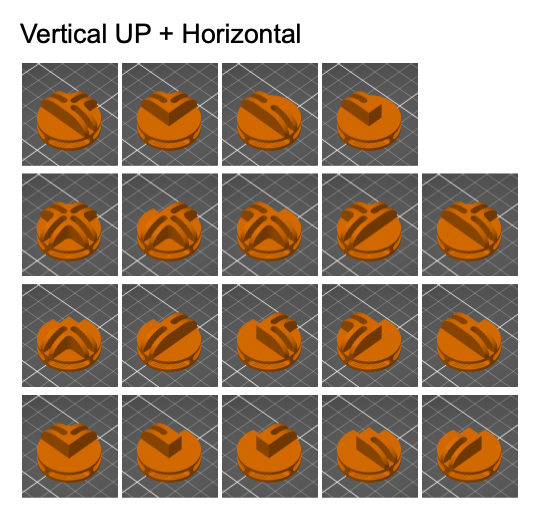

  • Rework of "vertical UP plus horizontal hight" and "vertical UP plus horizontal" planes: new models with curved wall and more model variations

21.05.2026

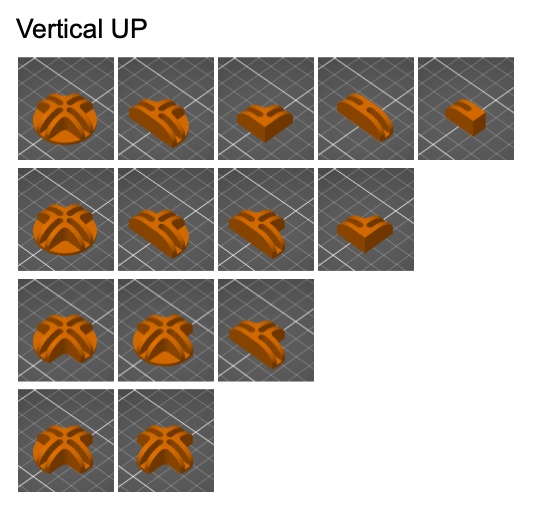

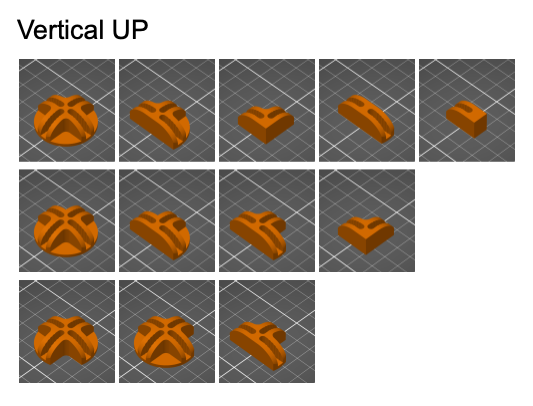

  • Rework of "vertical UP" and "horizontal" models with new / consistent names

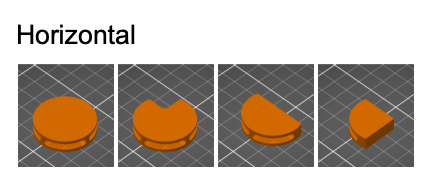

  • Rework of "horizontal" plane, tried to increase stability by creating a curved wall

14.05.2026

  • First upload

Printables

Wire Grid Connector Set

CloudedCat CloudedCat (abre em nova aba)

Publicado em 26 de mai de 2026

77
Curtidas
172
Downloads
Categoria Tools
Tags
connector 4mm gridwall wirecube artistalley
Licença Creative Commons — Attribution — Noncommercial
Arquivos (98)
01_WireGridConnector_H_NE_SE_SW_NW.step 626.6 KB
01_WireGridConnector_H_NE_SE_SW_NW.stl 410.8 KB
02_WireGridConnector_H_SE_SW_NW.step 528.2 KB
02_WireGridConnector_H_SE_SW_NW.stl 306.1 KB
03_WireGridConnector_H_SW_NW.step 381.2 KB
03_WireGridConnector_H_SW_NW.stl 197.7 KB
04_WireGridConnector_H_NW.step 248.9 KB
04_WireGridConnector_H_NW.stl 164.9 KB
01_WireGridConnector_V_UP_N_E_S_W.step 350.3 KB
01_WireGridConnector_V_UP_N_E_S_W.stl 320.2 KB
02_WireGridConnector_V_UP_N_E_S.step 260.6 KB
02_WireGridConnector_V_UP_N_E_S.stl 249.6 KB
03_WireGridConnector_V_UP_N_E.step 186.3 KB
03_WireGridConnector_V_UP_N_E.stl 193 KB
04_WireGridConnector_V_UP_N_S.step 172.2 KB
04_WireGridConnector_V_UP_N_S.stl 179 KB
05_WireGridConnector_V_UP_N.step 112.5 KB
05_WireGridConnector_V_UP_N.stl 136.3 KB
06_WireGridConnector_V_UP_N_E_S_W_Corner_NE.step 335.9 KB
06_WireGridConnector_V_UP_N_E_S_W_Corner_NE.stl 194.3 KB
07_WireGridConnector_V_UP_N_E_S_Corner_NE.step 246.2 KB
07_WireGridConnector_V_UP_N_E_S_Corner_NE.stl 147.3 KB
08_WireGridConnector_V_UP_N_E_S_Corner_SE.step 246.2 KB
08_WireGridConnector_V_UP_N_E_S_Corner_SE.stl 147.3 KB
09_WireGridConnector_V_UP_N_E_Corner_NE.step 190.3 KB
09_WireGridConnector_V_UP_N_E_Corner_NE.stl 119.7 KB
10_WireGridConnector_V_UP_N_E_S_W_Corner_NE_SW.step 376.2 KB
10_WireGridConnector_V_UP_N_E_S_W_Corner_NE_SW.stl 208.9 KB
11_WireGridConnector_V_UP_N_E_S_W_Corner_NE_SE.step 376.1 KB
11_WireGridConnector_V_UP_N_E_S_W_Corner_NE_SE.stl 208.9 KB
12_WireGridConnector_V_UP_N_E_S_Corner_NE_SE.step 268.6 KB
12_WireGridConnector_V_UP_N_E_S_Corner_NE_SE.stl 155.8 KB
13_WireGridConnector_V_UP_N_E_S_Corner_NE_SE_SW.step 371.5 KB
13_WireGridConnector_V_UP_N_E_S_Corner_NE_SE_SW.stl 204.4 KB
14_WireGridConnector_V_UP_N_E_S_Corner_NE_SE_SW_NW.step 366.7 KB
14_WireGridConnector_V_UP_N_E_S_Corner_NE_SE_SW_NW.stl 199.9 KB
01_WireGridConnector_V_N_E_S_H_NE_SE_SW_NW.step 898.5 KB
01_WireGridConnector_V_N_E_S_H_NE_SE_SW_NW.stl 577.4 KB
02_WireGridConnector_V_N_E_H_NE_SE_SW_NW.step 821.7 KB
02_WireGridConnector_V_N_E_H_NE_SE_SW_NW.stl 524.2 KB
03_WireGridConnector_V_N_S_H_NE_SE_SW_NW.step 810.1 KB
03_WireGridConnector_V_N_S_H_NE_SE_SW_NW.stl 515.7 KB
04_WireGridConnector_V_N_H_NE_SE_SW_NW.step 745.4 KB
04_WireGridConnector_V_N_H_NE_SE_SW_NW.stl 471 KB
05_WireGridConnector_V_N_E_S_W_H_SE_SW_NW.step 889.6 KB
05_WireGridConnector_V_N_E_S_W_H_SE_SW_NW.stl 618.8 KB
06_WireGridConnector_V_E_S_W_H_SE_SW_NW.step 801.6 KB
06_WireGridConnector_V_E_S_W_H_SE_SW_NW.stl 557.1 KB
07_WireGridConnector_V_N_S_W_H_SE_SW_NW.step 801.1 KB
07_WireGridConnector_V_N_S_W_H_SE_SW_NW.stl 557.1 KB
08_WireGridConnector_V_N_E_W_H_SE_SW_NW.step 800.7 KB
08_WireGridConnector_V_N_E_W_H_SE_SW_NW.stl 557.1 KB
09_WireGridConnector_V_N_E_S_H_SE_SW_NW.step 800.1 KB
09_WireGridConnector_V_N_E_S_H_SE_SW_NW.stl 557.1 KB
10_WireGridConnector_V_S_W_H_SE_SW_NW.step 725.2 KB
10_WireGridConnector_V_S_W_H_SE_SW_NW.stl 503.9 KB
11_WireGridConnector_V_E_W_H_SE_SW_NW.step 712.7 KB
11_WireGridConnector_V_E_W_H_SE_SW_NW.stl 495.4 KB
12_WireGridConnector_V_E_S_H_SE_SW_NW.step 724 KB
12_WireGridConnector_V_E_S_H_SE_SW_NW.stl 503.9 KB
13_WireGridConnector_V_N_W_H_SE_SW_NW.step 724.4 KB
13_WireGridConnector_V_N_W_H_SE_SW_NW.stl 503.9 KB
14_WireGridConnector_V_N_S_H_SE_SW_NW.step 711.7 KB
14_WireGridConnector_V_N_S_H_SE_SW_NW.stl 495.4 KB
15_WireGridConnector_V_N_E_H_SE_SW_NW.step 723.3 KB
15_WireGridConnector_V_N_E_H_SE_SW_NW.stl 503.9 KB
16_WireGridConnector_V_N_H_SE_SW_NW.step 647 KB
16_WireGridConnector_V_N_H_SE_SW_NW.stl 450.7 KB
17_WireGridConnector_V_E_H_SE_SW_NW.step 647.3 KB
17_WireGridConnector_V_E_H_SE_SW_NW.stl 450.7 KB
18_WireGridConnector_V_S_H_SE_SW_NW.step 647.6 KB
18_WireGridConnector_V_S_H_SE_SW_NW.stl 450.7 KB
19_WireGridConnector_V_W_H_SE_SW_NW.step 648.4 KB
19_WireGridConnector_V_W_H_SE_SW_NW.stl 450.7 KB
WireGridConnector_V_N_E_H_NE.step 454.8 KB
WireGridConnector_V_N_E_H_NE.stl 364.4 KB
WireGridConnector_V_N_E_S_H_NE_SE.step 669.6 KB
WireGridConnector_V_N_E_S_H_NE_SE.stl 485 KB
01_WireGridConnector_V_N_E_S_W_HHight.step 281.2 KB
01_WireGridConnector_V_N_E_S_W_HHight.stl 151.1 KB
02_WireGridConnector_N_E_S_HHight.step 215.1 KB
02_WireGridConnector_N_E_S_HHight.stl 131 KB
03_WireGridConnector_N_E_HHight.step 153.2 KB
03_WireGridConnector_N_E_HHight.stl 95.6 KB
04_WireGridConnector_N_S_HHight.step 184.2 KB
04_WireGridConnector_N_S_HHight.stl 149.9 KB
05_WireGridConnector_N_HHight.step 92.4 KB
05_WireGridConnector_N_HHight.stl 54.5 KB
WireGridConnector_V_N_E_S_UpDown.step 443.4 KB
WireGridConnector_V_N_E_S_UpDown.stl 267.9 KB
WireGridConnector_V_N_E_UpDown.step 323 KB
WireGridConnector_V_N_E_UpDown.stl 207.5 KB
WireGridConnector_V_UpDownAll.step 570.5 KB
WireGridConnector_V_UpDownAll.stl 273.9 KB
WireGridConnector_V_N_E_S_W_H_NE_SE_SW_NW.stl 639.1 KB
WireGridConnector_V_N_E_S_W_H_NE_SE_SW_NW.step 988 KB
WireGridConnector_all.stl 951.8 KB
WireGridConnector_all.step 1.3 MB
