Modelo 3D Prusa Core One Top Panel Protector por Piotr Smarzyński no Printables

Descrição

If you have expensive cat's resting place which happen to also 3D print stuff, I have the solution for one of your problems. My cat weights almost 6 kg and its only matter of time when he falls into my printer. Top panel maybe holds it now, but it bends significantly and I don't want to test it long-term.

I've designed grid-pattern top cover, which you can throw on a blanket for that little rascal. Top vents are accessible and not blocked. Of course it's bigger than a buildplate, so I splitted it to 9 parts. Every one of them are named like FL (Front Left), C (Center), BR (Back Right) etc.

BOM:

  1. M3x8 BHCS screw x20 - link

  2. M3xL3xOD4.5 mm heated inserts x20 - link

  3. 12x4 mm flat silicone pad x20 - link

  4. About 700g of filament, I used ABS

  5. Cat or other agile pet

  6. Blanket

Printing:

  • Position elements with letters facing up.

  • Use supports for flat, unsupported parts,

  • No need to support 45° legs,

Assembly:

  1. Inserts will be placed facing up, when text is facing down.

  2. Near 45° part on the inside put one silicone pad per "leg".

  3. Parts descripted as FL, FC and FR have groove for air vents screws and shoud be in front of a printer.

  4. Put some blankie for your kitten.

  5. Remember to leave airflow for vents.



Cats are happy and I am happy.

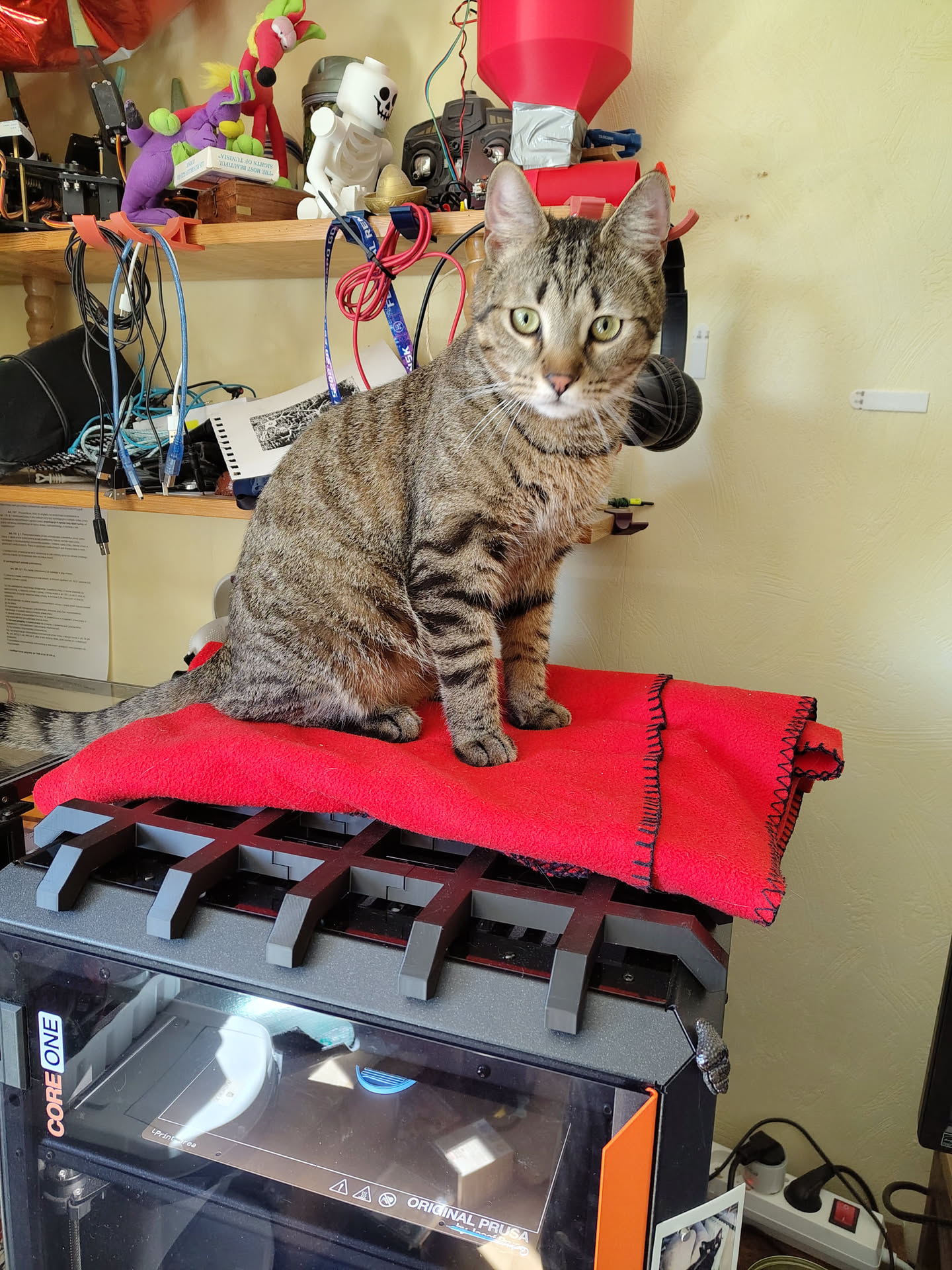

Banana, 6 kg:

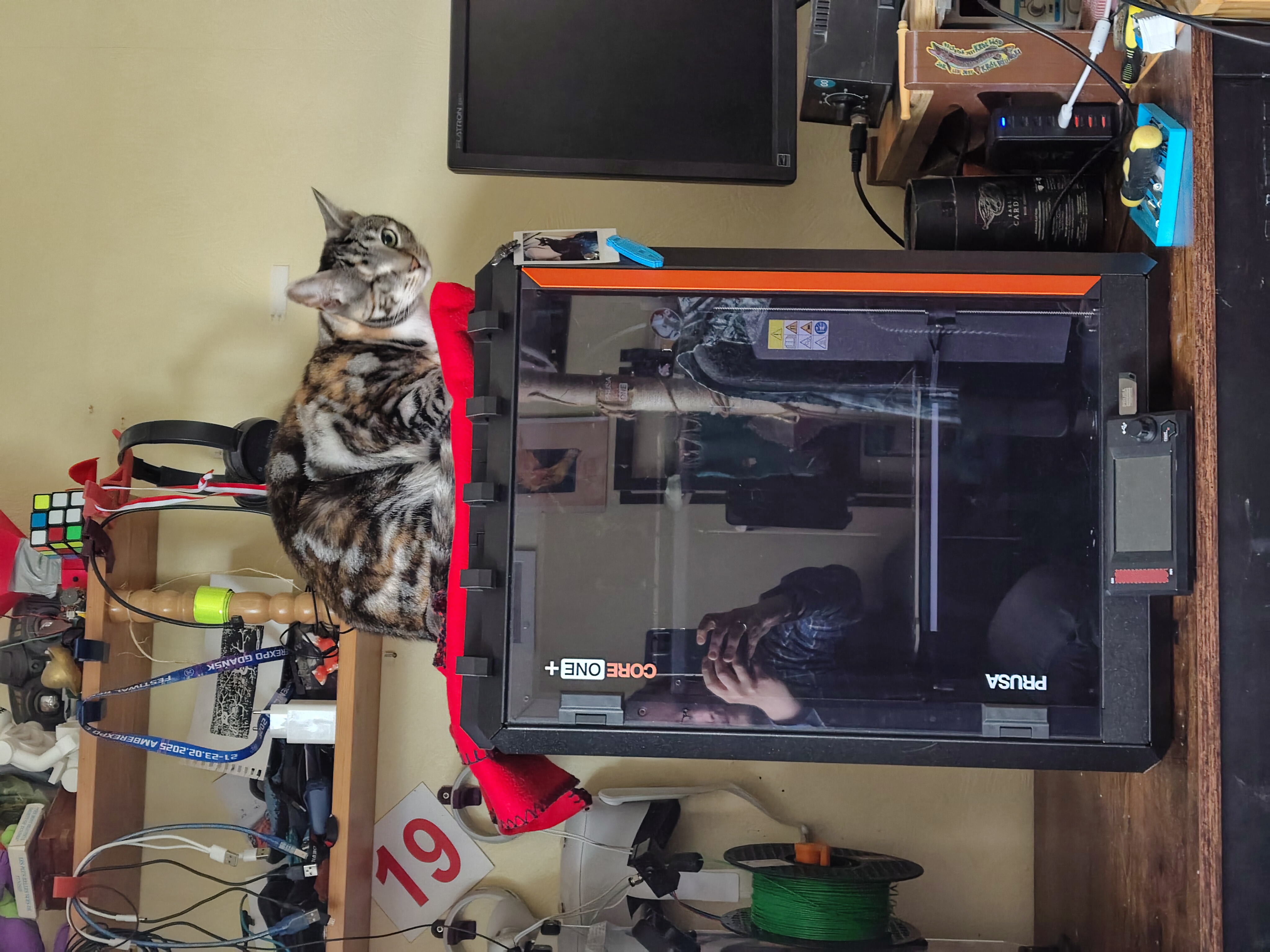

Little Seagull, 3.5 kg:

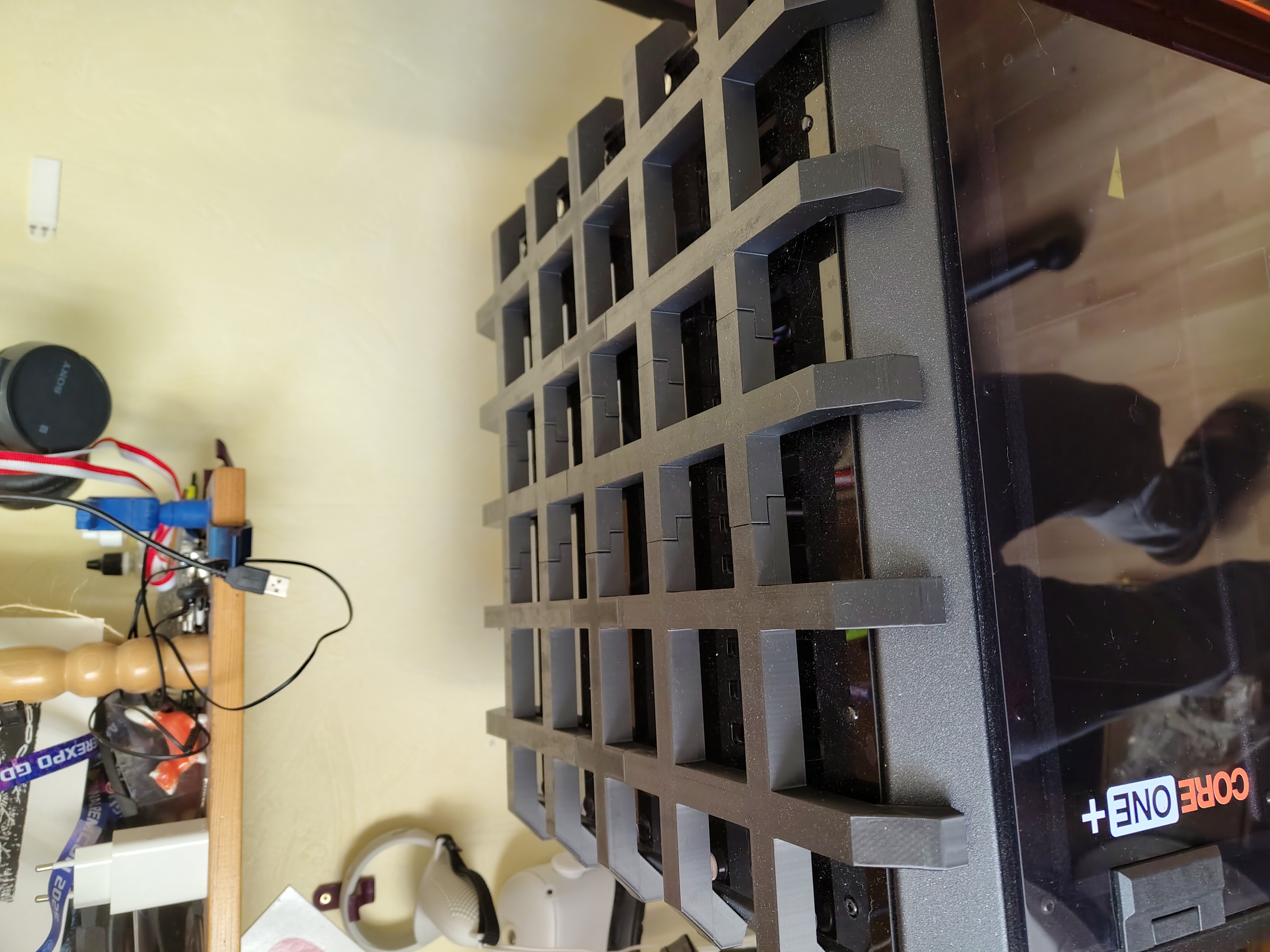

Top view of protector:

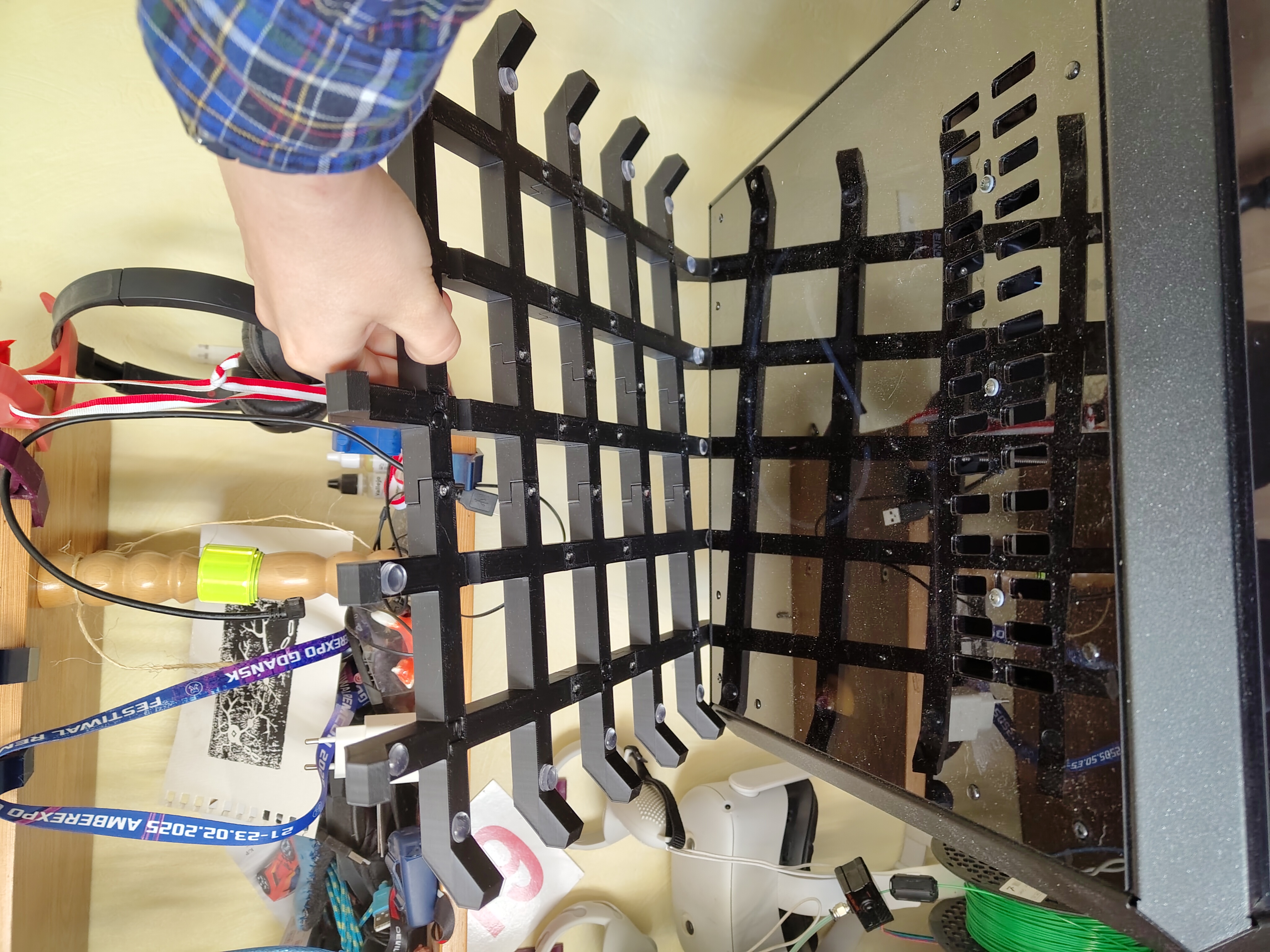

Bottom view of the protector with silicon pads:

Printables

Prusa Core One Top Panel Protector

Publicado em 20 de mai de 2026

61
Curtidas
15
Downloads
2
Impressões
Categoria Prusa Parts & Upgrades
Tags
cat panel protector top proof
Licença Creative Commons — Attribution — Noncommercial
Arquivos (10)
cat_proofing_grid_core_one_assembly v7_back_center.stl 66.3 KB
cat_proofing_grid_core_one_assembly v7_front_left.stl 44.4 KB
cat_proofing_grid_core_one_assembly v7_back_left.stl 60.4 KB
cat_proofing_grid_core_one_assembly v7_front_center.stl 50.3 KB
cat_proofing_grid_core_one_assembly v7_center_right.stl 84.8 KB
cat_proofing_grid_core_one_assembly v7_center_left.stl 71.4 KB
cat_proofing_grid_core_one_assembly v7_center.stl 48.3 KB
cat_proofing_grid_core_one_assembly v7_front_right.stl 57.9 KB
cat_proofing_grid_core_one_assembly v7_back_right.stl 73.9 KB
core_one_assembly.f3d 16 MB
