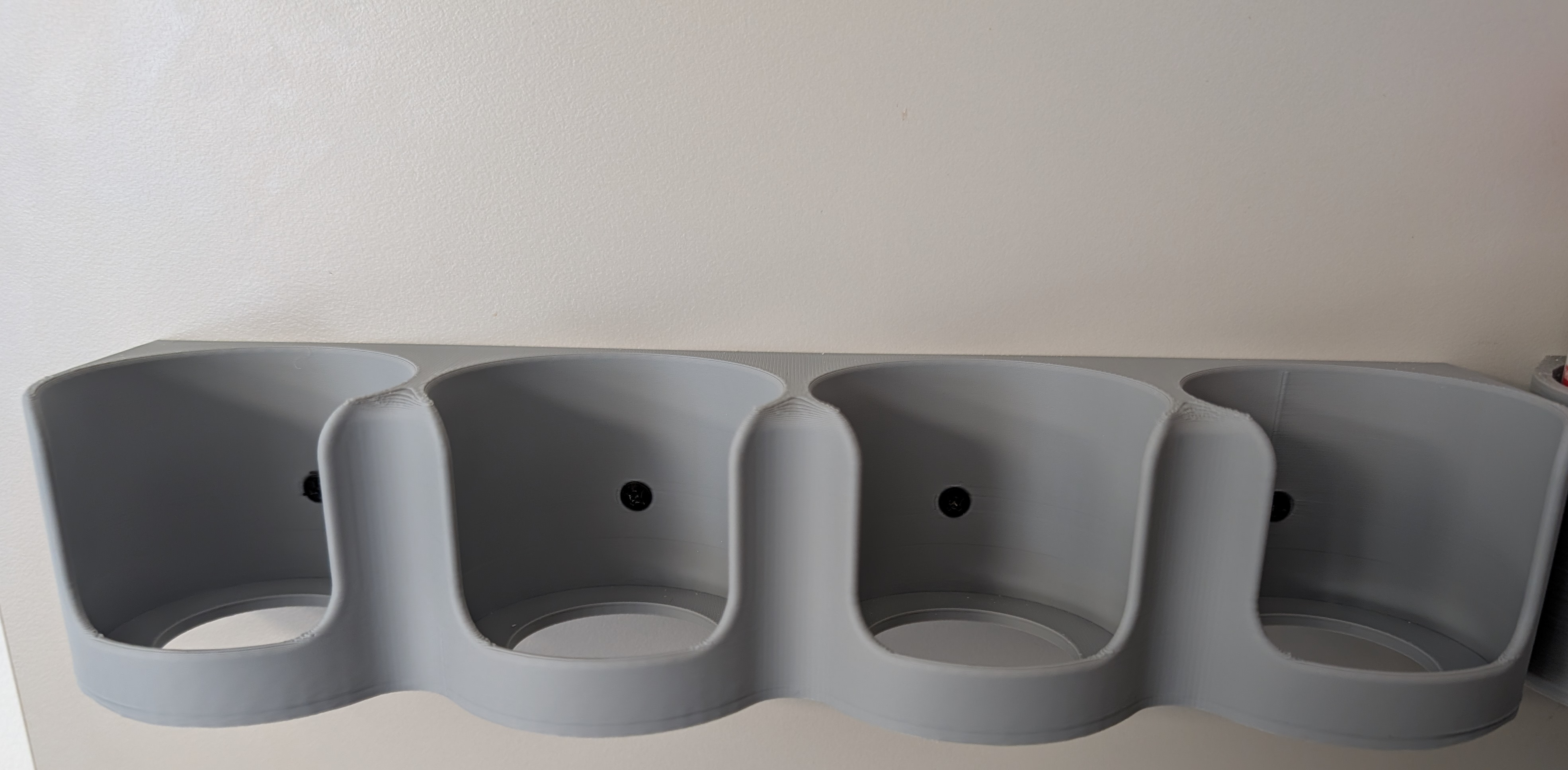

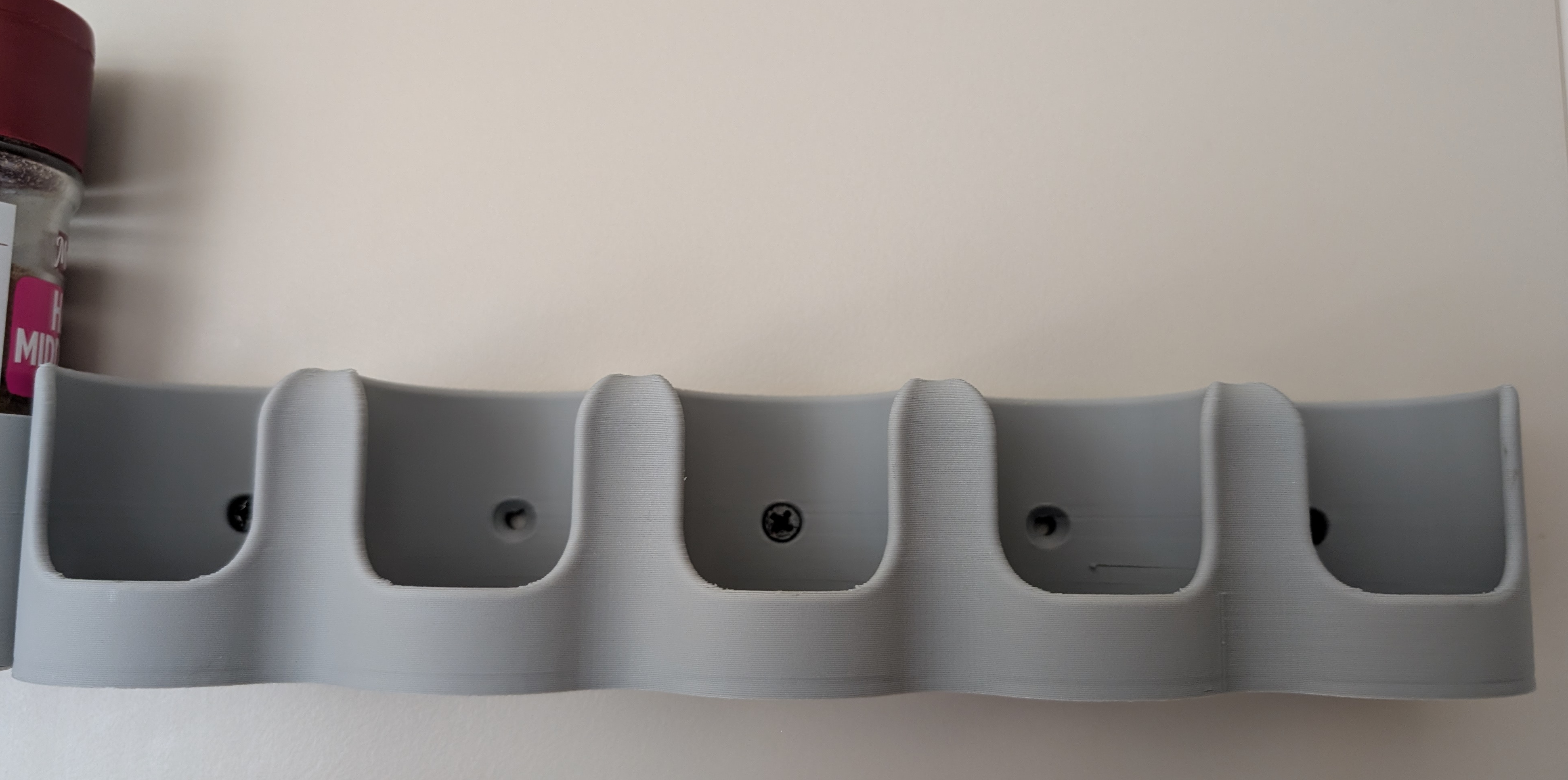

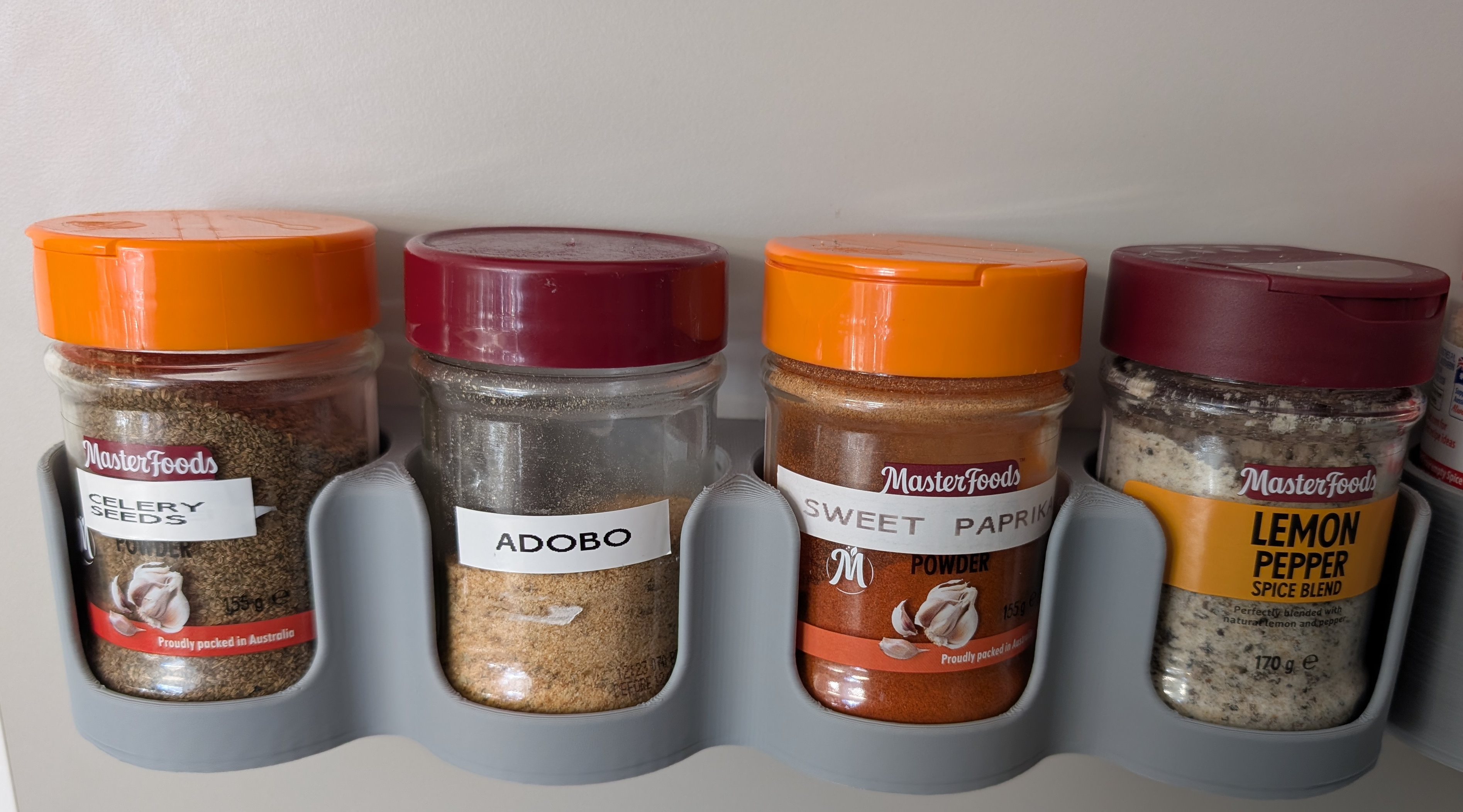

A parametric spice rack organizer designed to hold spice jars neatly in place.

This listing includes several sizes designed to fit the MasterFoods spice jars I use, but you can customise the model for your own jars using the Onshape configurations here:

[https://cad.onshape.com/documents/024d66a18b578dde0d6435f0/w/d4d6a01865f3d5715f305c7a/e/08f6263aac4efcea5f620297?configuration=Count%3D6.0%3BList_U9JM0Nq6ARODX5%3DMasterfoods&renderMode=0&uiState=69ee8c55ea55306e92c59225](https://cad.onshape.com/documents/024d66a18b578dde0d6435f0/w/d4d6a01865f3d5715f305c7a/e/08f6263aac4efcea5f620297?configuration=Count%3D6.0%3BList_U9JM0Nq6ARODX5%3DMasterfoods&renderMode=0&uiState=69ee8c55ea55306e92c59225)

Simply enter the diameter of your spice jar, the desired holder height, and the number of jars you want it to hold. There is also a tolerance setting that adds a little extra clearance around each jar if the fit is too tight.

Hardware

• M3.5 / 6G countersunk screws.

Print Settings

This does not require high precision. I printed mine with:

• 0.4 mm nozzle

• 0.28 mm layer height

• 10% infill

A larger nozzle would probably work fine as well.
