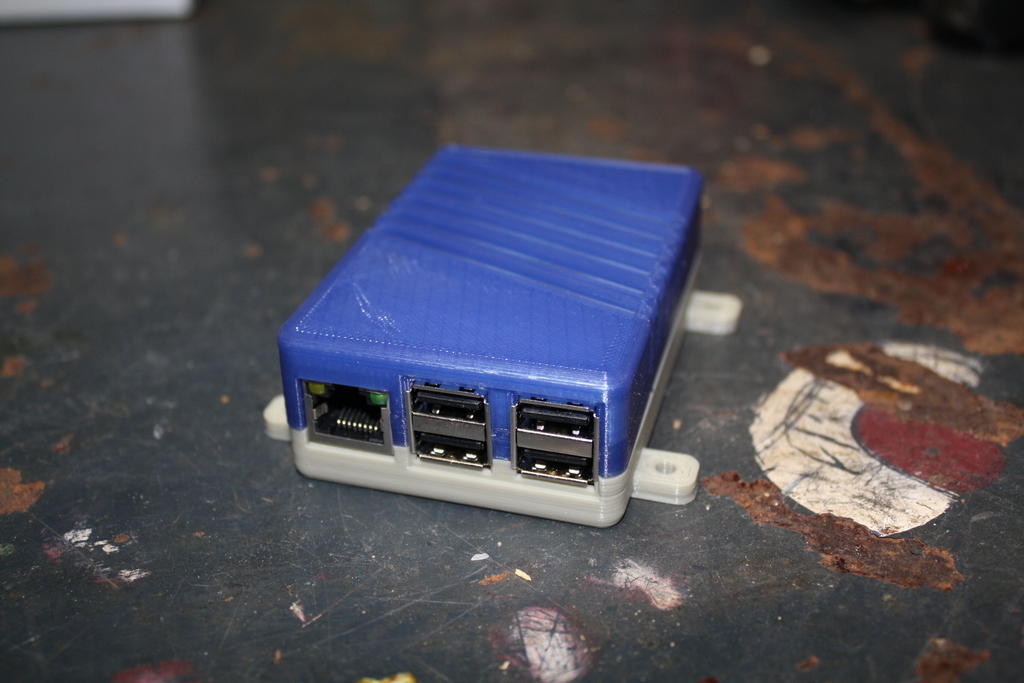

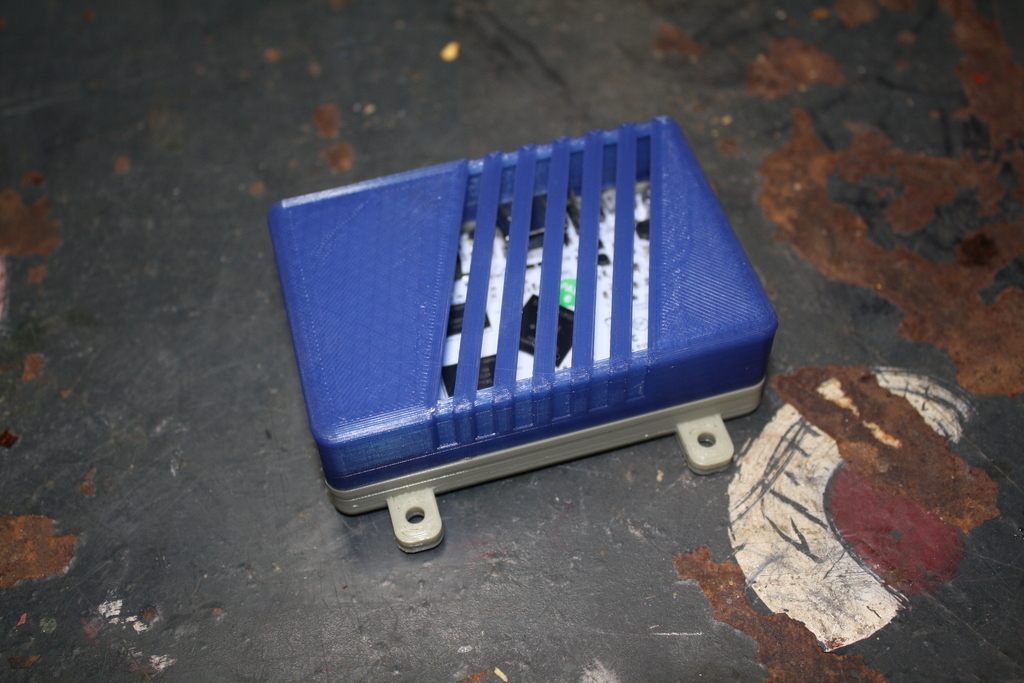

I printed this case for my Libre ALL-H3-CC SBC computer board, and while it fit (almost) perfectly, I needed some mounting tabs to secure it to the wall. Hence, mounting tabs with which to secure it to the wall.

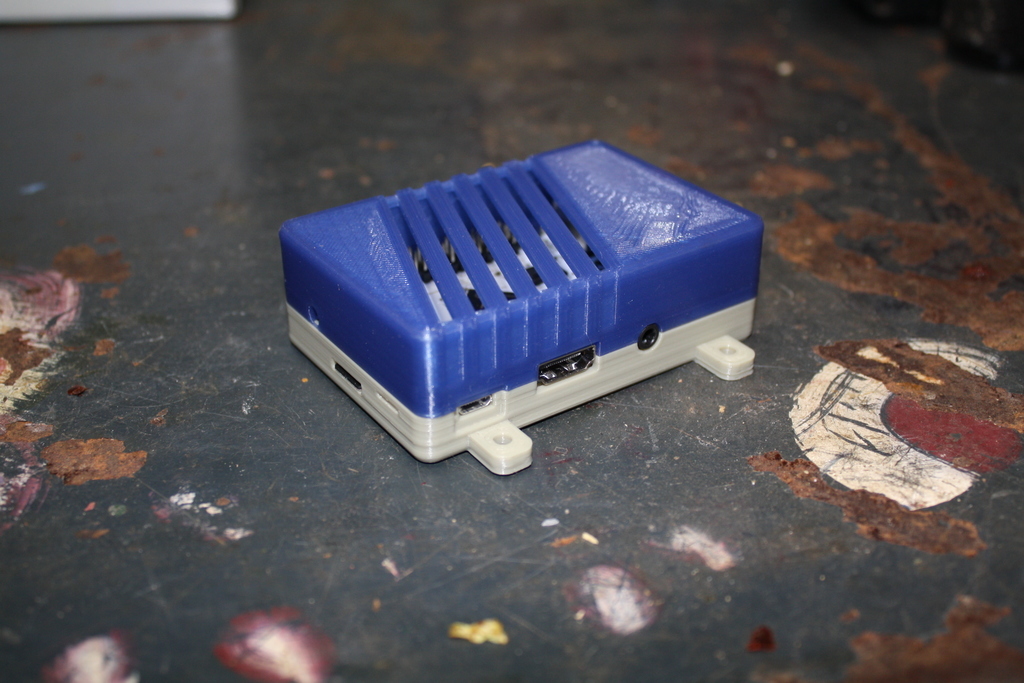

v1 is the one that I initially modeled and printed, only to realize that, in an effort to keep the ears symmetrical, I had inadvertently placed one if them directly below the power connector. Had I been using countersunk screws, I don't think that would have been a problem, but to avoid potential issues for others, I moved that one ear over slightly in v2.

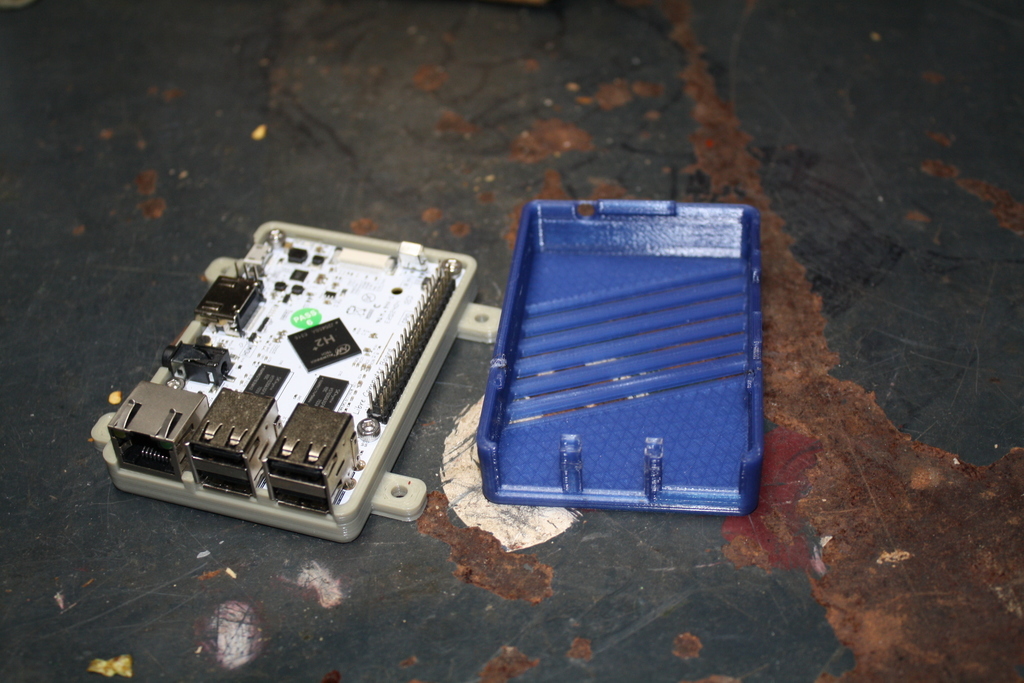

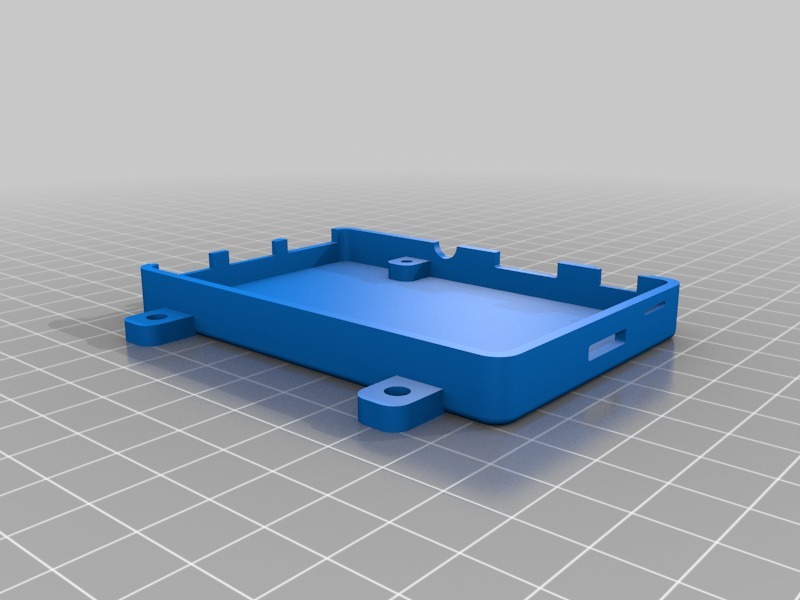

I have only provided the modified lower half (without the GPIO cutout) here. You'll have to get the top half from the original post by luc4r4t0r.

Another Sketchup Model - Debunking the Myth that Sketchup is Useless in 3D Printing

Print Settings

Printer Brand:

TEVO

Printer:

Supports:

No

Resolution:

Infill:

40%

Category: Computer
