Modelo 3D Cornerstone Catapult Project (Archive) por Benedict Roberto no Printables

Descrição

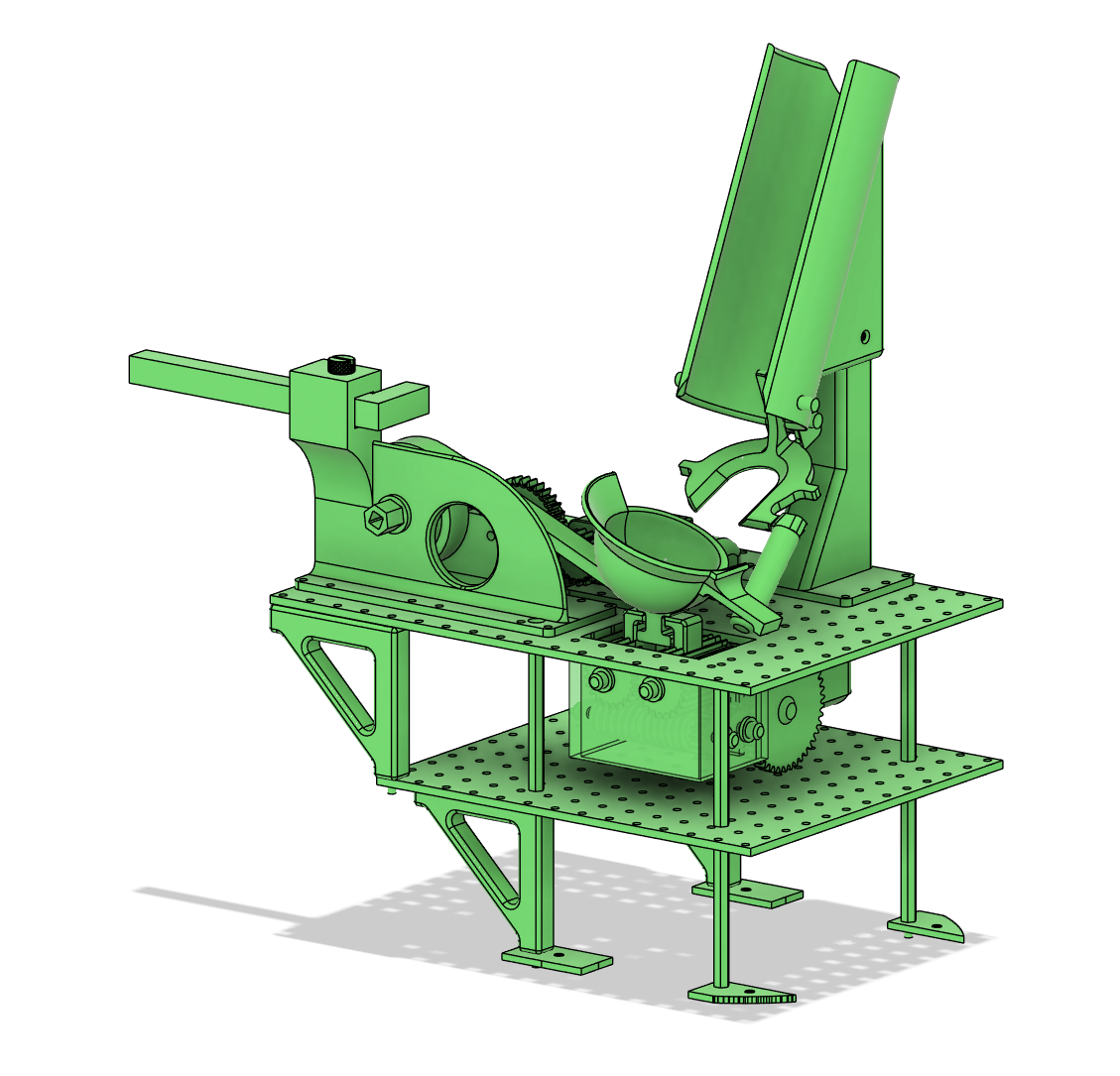

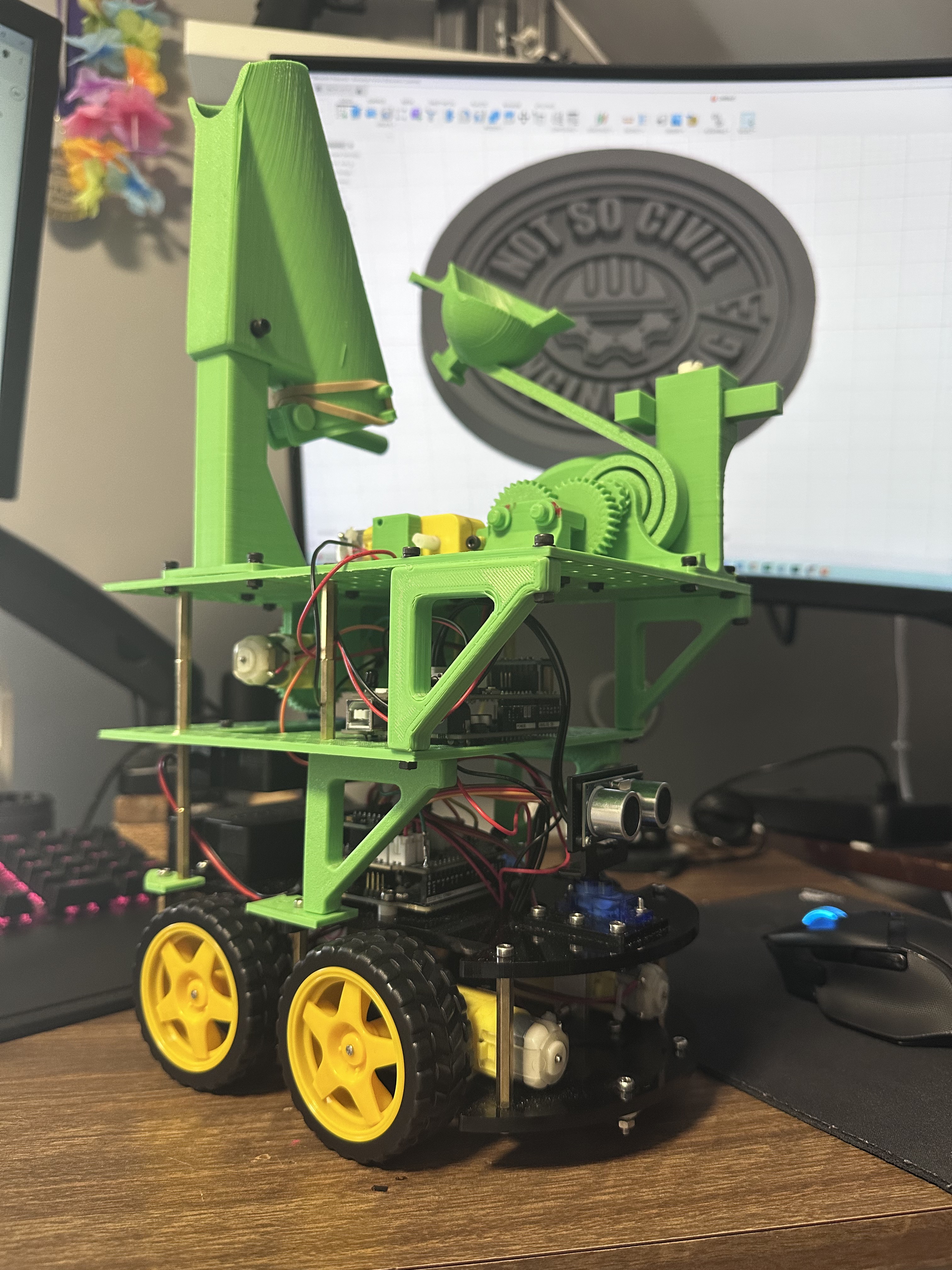

This is an archive of the various parts used for our cornerstone final project. We were tasked with creating a functional catapult prototype to deliver life-saving medical supplies (ping-pong balls). This catapult was meant to be capable of fully autonomous firing and reloading. It would then be mounted on a robot car that must autonomously navigate a course and, at the end, fire the catapult into a basket. Our team placed first out of roughly 70 teams at our university.

This post is not meant as a guide to create a catapult of your own, but as a point of inspiration for future projects! Though if you do want to try making this on your own, it is up to you.

Printables

Cornerstone Catapult Project (Archive)

Benedict Roberto Benedict Roberto (abre em nova aba)

Publicado em 22 de abr de 2026

2
Curtidas
5
Downloads
Categoria Engineering
Tags
university engineering catapult project elegoo cornerstone archive robotcar
Licença Creative Commons — Attribution
Arquivos (44)
Mount Sub-assembly.step 1.1 MB
Reloader Sub-assembly.step 520.3 KB
Trigger Sub-assembly.step 14.1 MB
Catapult Sub-assembly.step 19.3 MB
Catapult Full Assembly.step 35.1 MB
Short Screw.step 25.4 KB
Motor.step 65.2 KB
Nut.step 26.9 KB
Long Screw.step 25.5 KB
Lid Arm.step 9.9 KB
Base.step 52.4 KB
Lid Pin.step 18.7 KB
Hopper.step 159.4 KB
Lid.step 211.5 KB
Front Mount.step 63.3 KB
Back Mount.step 107.6 KB
Standoff.step 16.1 KB
Support Bracket.step 98.7 KB
Bottom Board.step 299.7 KB
Top Board.step 371.3 KB
Axle Cap.step 10 KB
Worm Gear Axle.step 5.5 KB
Trigger Housing.step 182 KB
Gripper Axle.step 5.5 KB
Right Worm Gear.step 1.7 MB
Left Worm gear.step 1.7 MB
Back Gripper.step 3.5 MB
Front Gripper.step 3.4 MB
Trigger Gear.step 3.3 MB
Catapult Pin.step 8.8 KB
Left Buffer.step 7.7 KB
Axle Bearing.step 31.2 KB
Right Buffer.step 7.7 KB
Motor Cage.step 104.8 KB
Restraining Bar.step 12.8 KB
Catapult Body.step 639.8 KB
Gear Train Axle.step 5.5 KB
Catapult Arm.step 195.1 KB
Tension Gear.step 1.9 MB
Motor Gear.step 1.8 MB
Driver Gear.step 6.2 MB
Reduction Gear.step 5 MB
Restraining Bolt.step 2.8 MB
Catapult Full Assembly.stl 14.7 MB
