What

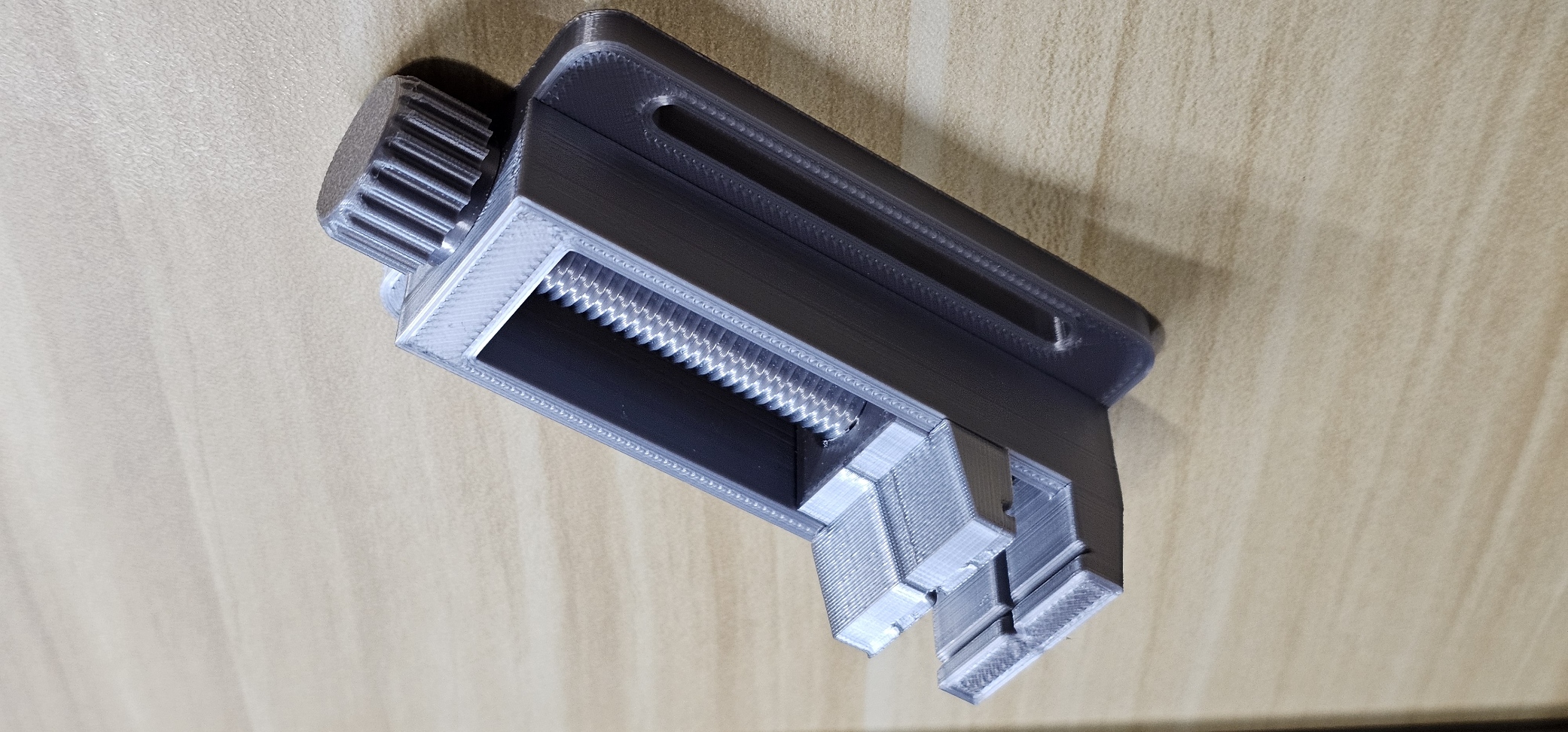

This is a compact vise designed for your holding needs for small parts. The jaws are 24mm wide and opens to about 48mm.

Parts included

• Base - The main body of the vise

• Movable jaw - the moving jaw for the vise

• Screw - the driving part.

• Clip - Parts to hold it together.

Print notes

• Use higher fill ~50% for strength.

• Print the movable jaw face down, the screw standing up. Use 0.1-0.15 layer height for better precision.

• Print two clips flat.

• Scalability is not tested (not designed for it either).

Assembly note

• The screw is left handed. Turn counter clock wise to get on to the moving jaw.

• Some trimming may be needed at the bottom edges.
